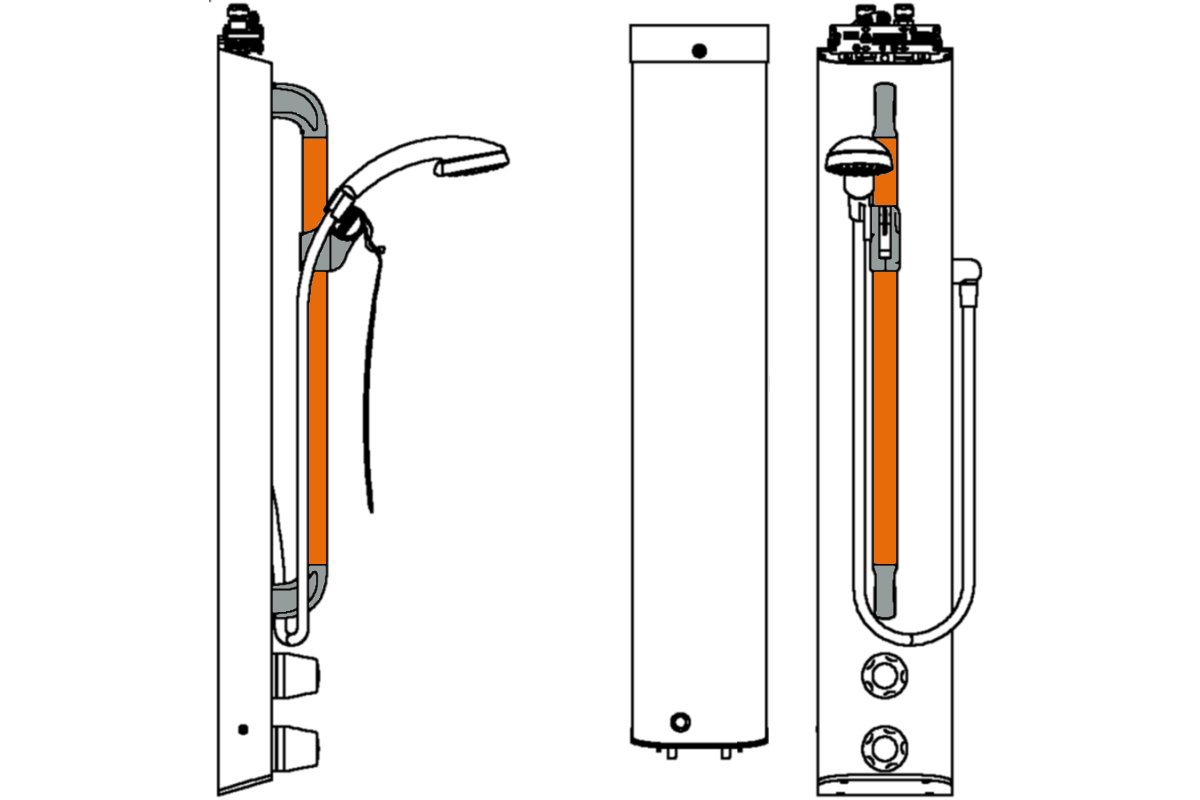

HORNE TSV1 SHOWER PANEL With Riser Rail, Hose and Handset, integral ILTDU and Pipe Cover

T1Y7T9

Includes integral TSV1-3 Thermostatic Shower Valve and In-Line Thermal Disinfection Unit ILTDU pre-plumbed (in copper) within a white epoxy-polyester powder-coated aluminium panel with hand controls and shower kit, comprising flow-regulated chromium plated three function easy-clean shower hand set with flexible hose, riser rail in Deep Orange, and 940mm pipe cover with ILTDU key slot. Product Reference T1Y7T9 as per drawing No. D11347. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne TSV1 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Horne T1Y7T# shower panel with integral ILTDU

Horne shower panel with pipe cover accessory and integral ILTDU

Thermal disinfection of Horne shower panel with integral ILTDU

Triple function handset, hose and orange riser rail

Riser release mechanism on orange Horne shower riser rail

Standard controls for Horne TSV1 shower panels

Horne TSV1 Shower valve with standard control knobs (within shower panel)

T107A / T107A2L / T107B / T107B2L BIM Screengrab

Applications

Thermostatic shower provision for new build, refurbishment, retrofit and temporary installations in sport & leisure, education and other institutional settings where water and energy conservation is of importance.

Horne showers for the Leisure & Education markets

Features

Robust construction, finish and fittings for extended lifespan
Powder-coated panel: white RAL 9010 with Light Reflective Value = 84
Integral in-line thermal disinfection unit ILTDU for control of retrograde contaminants
940mm long Pipe Cover in same profile as panel with key slot for ILTDU operation
Type 3 (healthcare) approved dual control shower valve provides reliable and accurate temperature control
Shower kit comprises anti-kink 1.25m hose, three function easy-clean shower handset and robust riser rail in deep orange, handset holder and riser mechanism - easy to see, slide and adjust for users with limited sight and hand mobility
Handset carriage mechanism with Release Extender allows shorter or wheelchair users to easily lower a high-set shower handset
Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
Pressure and performance tested pre-plumbed assembly with internal copper piping
Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
Low-level servicing valves for ease of maintenance
Highly accessible for quick and simple testing, maintenance and water sampling

Accessories

2 metre hose
Monitoring Kit
TSV1 Flushing Kit
ILTDU Operation Key
Wall mounted supportive grab rails
Lever Controls for retrofit alteration to -2L variant

Standards and Approvals

The HORNE TSV1-3 shower valve is designed to meet the requirements of BS7942:2011, 'Thermostatic mixing valves for use in care establishments' and is approved as a Type 3 TMV to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises)
The HORNE TSV1-3 and the ILTDU are approved to Reg 4 (materials in contact with water) of the Water Fitting Regulations 1999
All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Variants - T1Y7 Range

T1Y7T4 - top entry inlets, standard controls, ILTDU and 465mm Pipe Cover with key slot
T1Y7A - top entry inlets, standard controls
T1Y7B - rear entry inlets, standard controls
T1Y7A2L - top entry inlets, lever controls
T1Y7B2L - rear entry inlets, lever controls
T1Y7T42L - top entry inlets, lever controls, ILTDU and 465mm Pipe Cover with key slot
T1Y7T92L - top entry inlets, lever controls, ILTDU and 940mm Pipe Cover with key slot
