Pipe Cover

The pipe cover is suitable for installations where it is important that there be no exposed pipework such as in secure or mental health settings. It can be used to conceal the pipework between the ceiling and the top of the shower panel.  Available in two lengths: 465mm and 940mm.  Cut to appropriate size.

Accessory Part numbers

SA-465PC - Pipe cover, 465mm maximum length, with securing cuff and security screw.

SA-940PC - Pipe cover, 940mm maximum length, with securing cuff and security screw.

T4/T9 Shower models, Replacement parts

SA-465T - 465mm pipe cover for T4 variant shower panels (which feature an integral ILTDU) adapted to accommodate ILTDU operation key.

SA-940T - 940mm pipe cover for T9 variant shower panels (which feature an integral ILTDU) adapted to accommodate ILTDU operation key.

Enquire about this product

Constructed from extruded aluminium in the same profile as the shower panel, the pipe cover is anodised and then painted (RAL 9010) to match.

Available in two lengths: 465mm and 940mm, the pipe cover can be cut down to the relevant height for your specific installation.

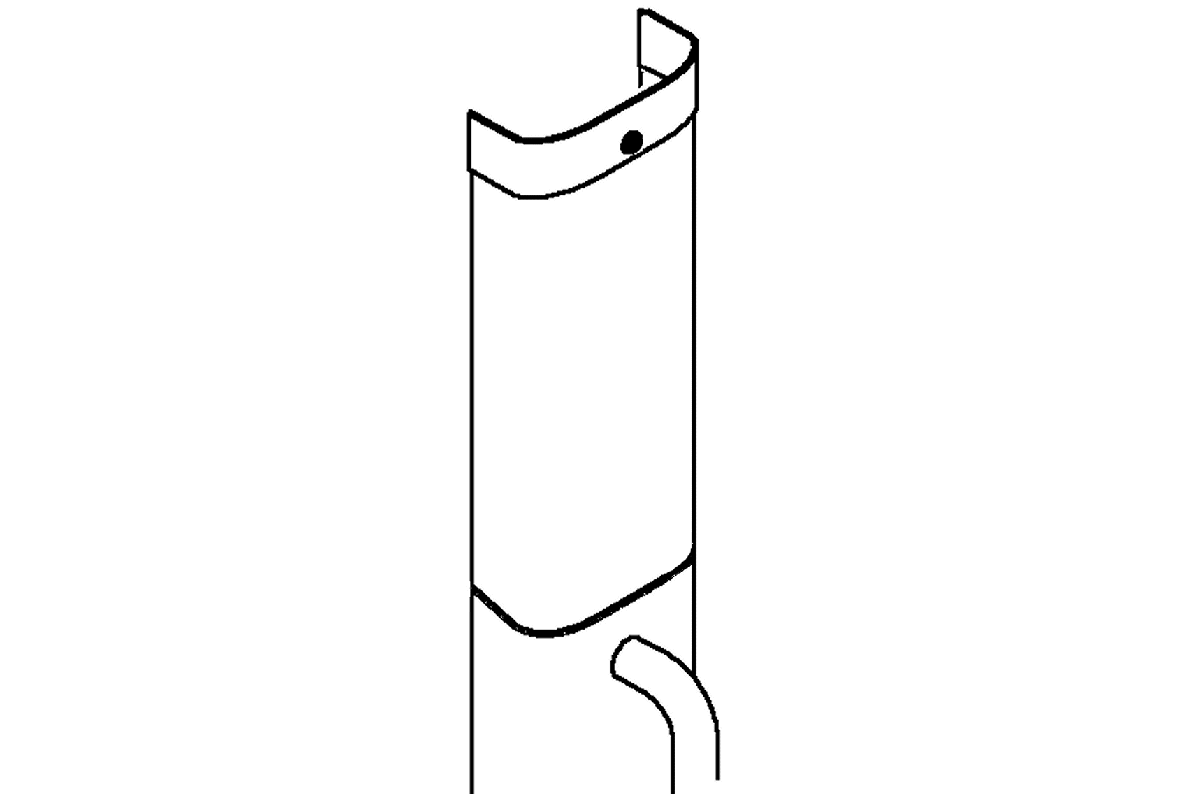

The securing cuff covers the inevitable gap between the pipe cover and the ceiling. For offsite fabrication, it may be preferable to cut the ceiling tile to match the profile of the panel such that the cuff is not required.

Please specify SA-465PC for 465mm length pipe cover and SA-940PC for 940mm length.  These pipe covers can be fitted to any Horne surface mounted shower panel with the exception of the Duŝo Sport Shower Column.

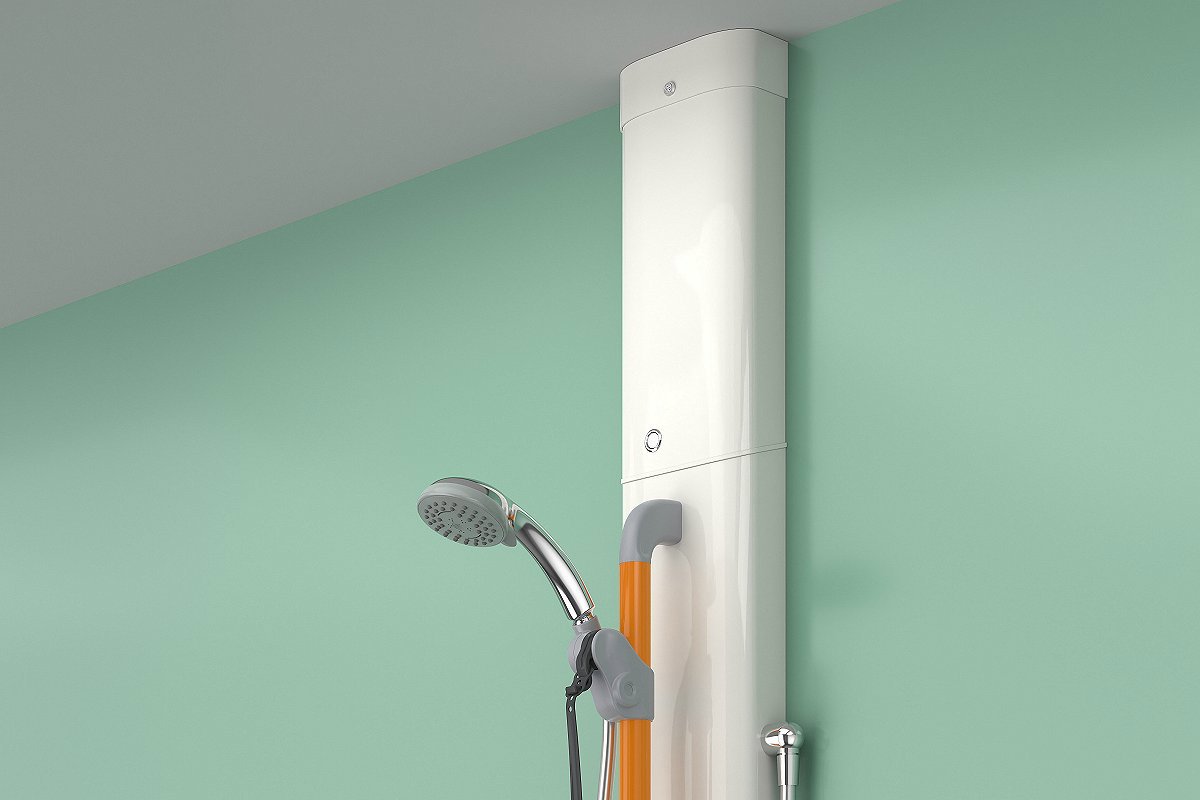

Shower panels featuring an integral In-line Thermal Disinfection Unit, ILTDU, (T4 and T9 shower variants) also include an adapted pipe cover with key slot for operation of the ILTDU as the adjacent picture shows.

If a replacement pipe cover is required for T4 or T9 showers please specify the following Part Numbers:

SA-465T (maximum length 465mm) or SA-940T (maximum length 940mm).

Pipe Cover component in T4 and T9 Horne shower panel models
