HORNE TSV1 Shower Panel with Dual Controls, Riser Rail, Flexible Hose and 3 Function Handset

T1Y7A

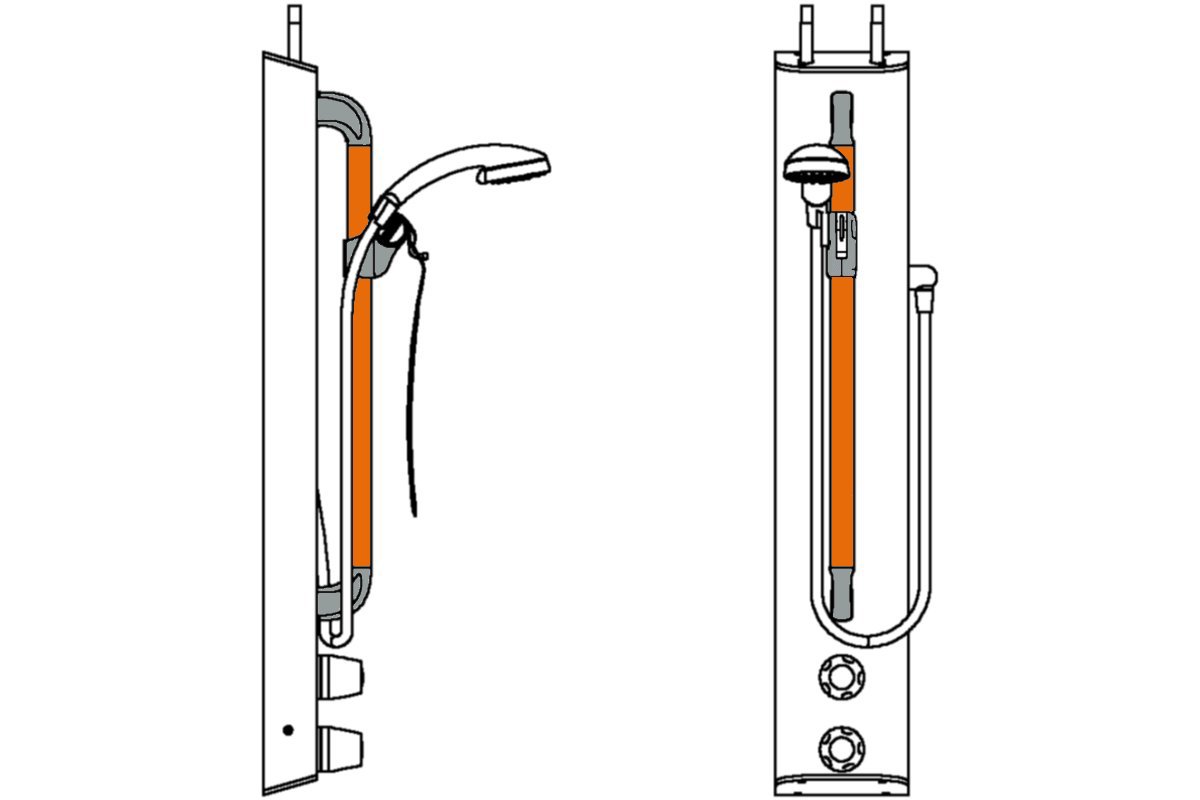

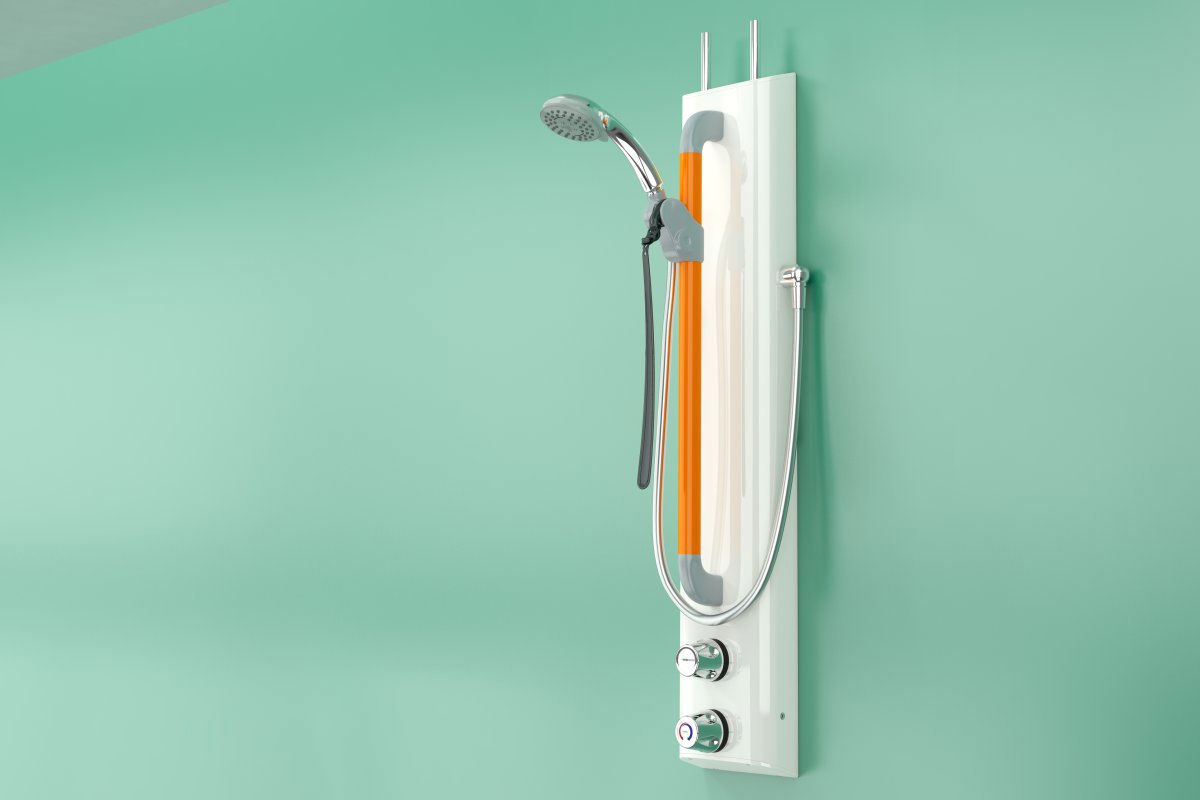

Includes integral TSV1-3 thermostatic shower valve pre-plumbed within a white epoxy-polyester powder-coated aluminium panel with hand controls and shower kit, comprising flow regulated chromium-plated three function easy-clean shower hand set with flexible hose and robust riser rail in Deep Orange. Product Reference T1Y7A as per drawing No. D10330. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne TSV1 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

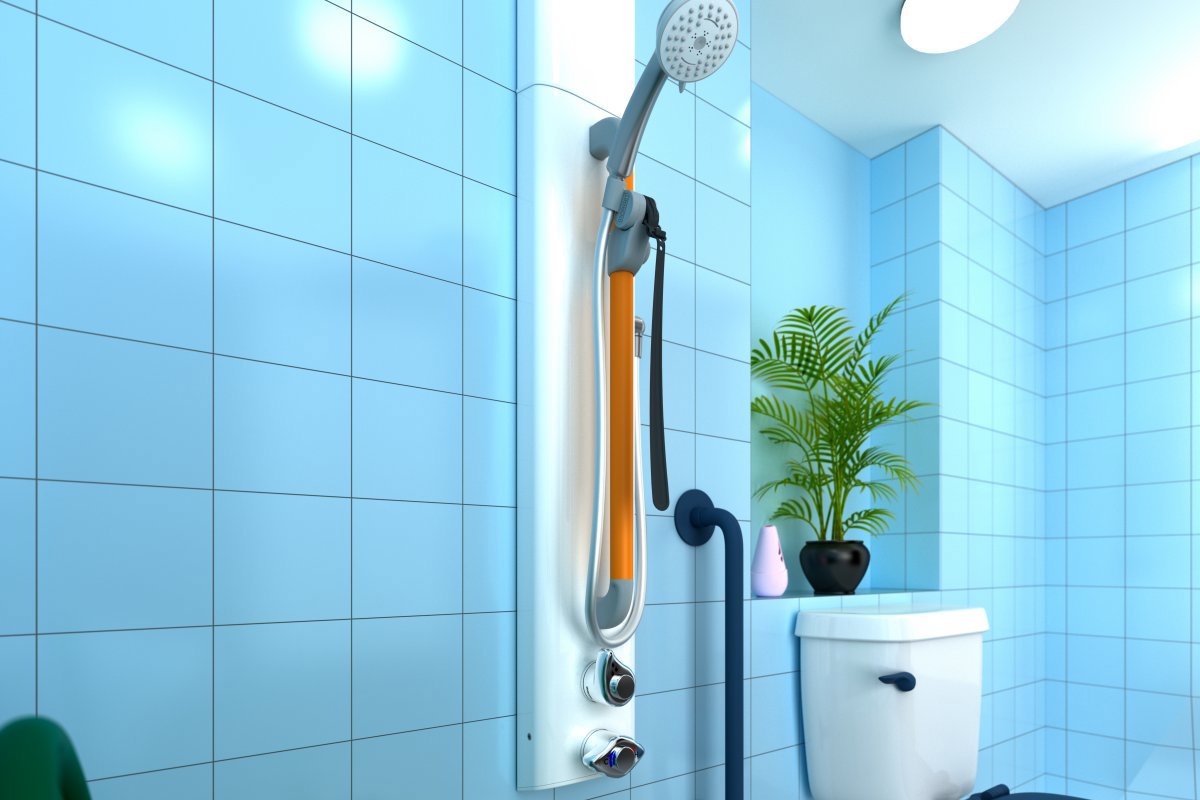

Thermostatic shower provision for new build, refurbishment, retrofit and temporary installations in sport & leisure, education and other institutional settings where water and energy conservation is of importance.

Horne showers for the Leisure & Education markets

Features

  • Robust construction, finish and fittings for extended lifespan
  • Powder-coated panel: white RAL 9010 with Light Reflective Value (LRV) = 84
  • Type 3 (healthcare) approved dual control shower valve provides reliable and accurate temperature control
  • Shower kit comprises WRAS-approved anti-kink 1.25m hose, three function easy-clean shower handset and robust riser rail in deep orange, handset holder and riser mechanism - easy to see, slide and adjust for users with limited sight and hand mobility
  • Handset carriage mechanism with Release Extender allows shorter or wheelchair users to easily lower a high-set shower handset
  • Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
  • Pressure and performance tested pre-plumbed assembly with internal copper piping
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
  • Low-level servicing valves for ease of maintenance
  • Highly accessible for quick and simple testing, maintenance and water sampling

Accessories











Standards and Approvals

  • The HORNE TSV1-3 shower valve is designed to meet the requirements of BS7942:2011, 'Thermostatic mixing valves for use in care establishments' and is approved as a Type 3 TMV to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises)
  • The HORNE TSV1-3 is approved to Reg 4 (materials in contact with water) of the Water Fitting Regulations 1999
  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224



Variants - T1Y7 Range

  • T1Y7B - rear entry inlets, standard controls
  • T1Y7T4 - top entry inlets, standard controls, ILTDU and 465mm Pipe Cover with key slot
  • T1Y7T9 - top entry inlets, standard controls, ILTDU and 940mm Pipe Cover with key slot
  • T1Y7A2L - top entry inlets, lever controls
  • T1Y7B2L - rear entry inlets, lever controls
  • T1Y7T42L - top entry inlets, lever controls,ILTDU and 465mm Pipe Cover with key slot
  • T1Y7T92L - top entry inlets, lever controls, ILTDU and 940mm Pipe Cover with key slot
