HORNE Inclusive Design TSV1 Shower Panel with Lever Controls, Shower Kit, ILTDU and Pipe Cover

T108T42L

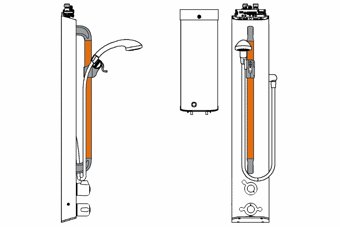

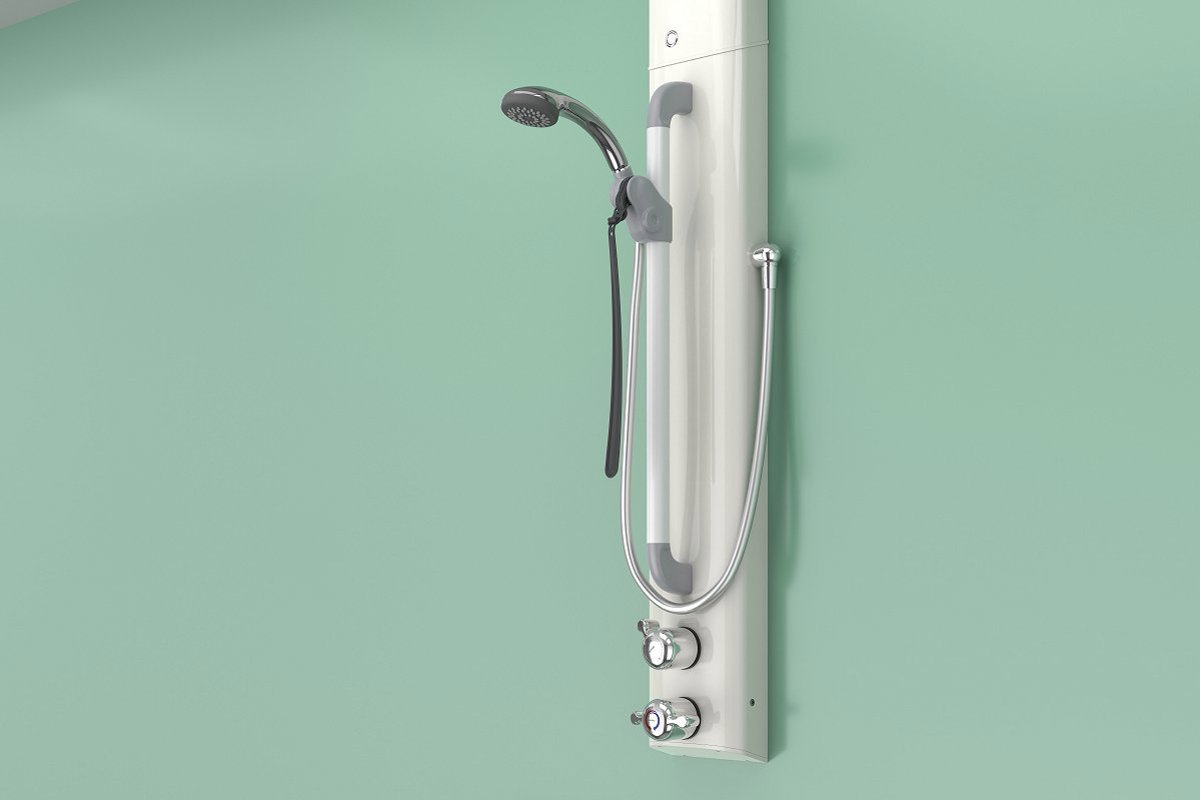

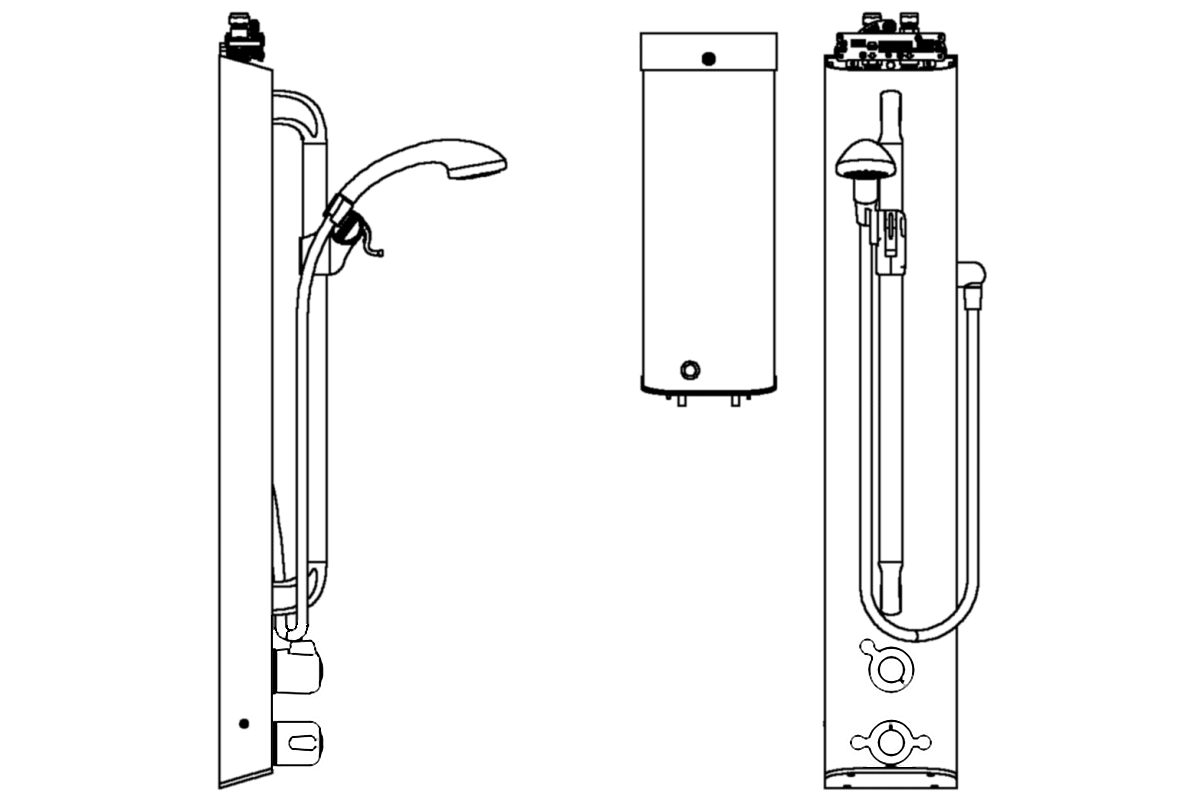

Includes integral TSV1-3 Thermostatic Shower Valve and In-Line Thermal Disinfection Unit, ILTDU, pre-plumbed (in copper) within a white epoxy-polyester powder-coated aluminium panel with BS 8300 compliant lever hand controls and shower kit, comprising flow-regulated chromium plated single function shower hand set with flexible hose, robust riser rail, and 465mm pipe cover with ILTDU key slot. Product Reference T108T42L as per drawing No. D11352. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne TSV1 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

Shower provision for new build, refurbishment, retrofit and temporary installations in healthcare, elderly, extra and dementia care, disability adaptations, as well as accessible & Changing Places showering in public facilities across transit hubs, leisure, education and healthcare.

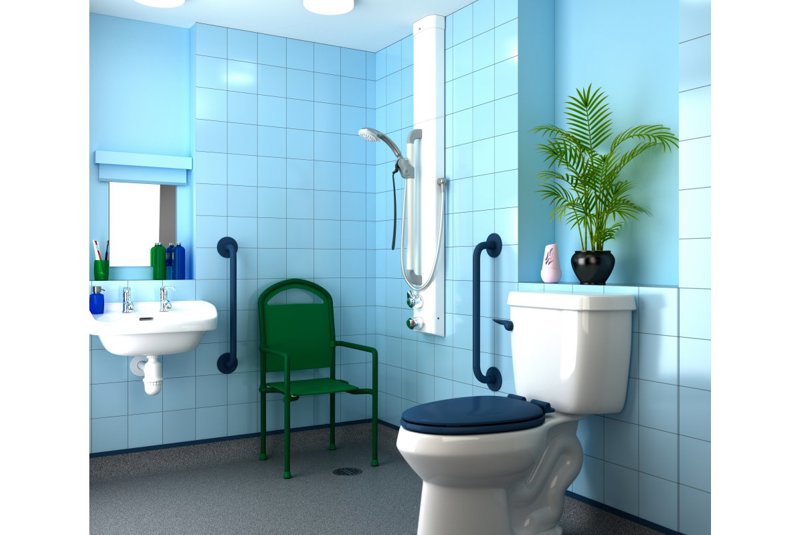

Horne T107A2L shower panel in accessible shower room

Features

  • Robust construction, finish and fittings for extended lifespan
  • Powder-coated panel: white RAL 9010 with Light Reflective Value = 84
  • Type 3 (healthcare) approved dual control shower valve provides reliable and accurate temperature control
  • Integral ILTDU in-line thermal disinfection unit for control of retrograde contaminants

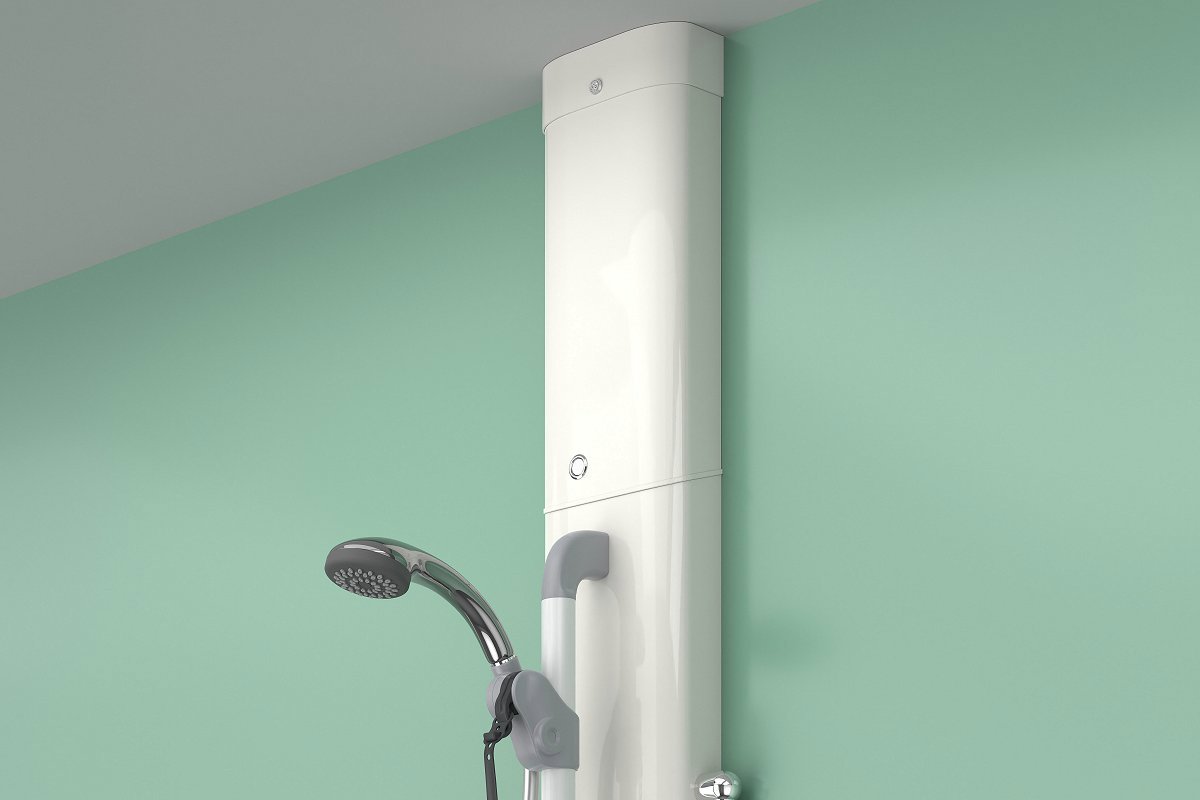

  • 465mm long Pipe Cover in same profile as panel with key slot for ILTDU operation
  • Inclusive design Lever controls for ease of operation
  • Shower kit comprises anti-kink 1.25m hose, single function easy-clean shower handset and robust riser rail with inclusive-design sliding handset holder - easy to see, slide and adjust for users with limited sight and hand mobility
  • Handset carriage mechanism with Release Extender allows shorter or wheelchair users to easily lower a high-set shower handset
  • Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
  • Pressure and performance tested pre-plumbed assembly with internal copper piping
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
  • Low-level servicing valves for ease of maintenance
  • Highly accessible for quick and simple testing, maintenance and water sampling

Accessories











Standards and Approvals

  • The HORNE TSV1-3 shower valve is designed to meet the requirements of BS7942:2011, 'Thermostatic mixing valves for use in care establishments' and is approved as a Type 3 TMV to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises)
  • The HORNE TSV1-3 and the ILTDU are approved to Reg 4 (materials in contact with water) of the Water Fitting Regulations 1999
  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224



Variants - T108 Range

  • T108T92L - top entry inlets, lever controls, ILTDU and 940mm pipe cover with key slot
  • T108A2L - top entry inlets, lever controls
  • T108B2L - rear entry inlets, lever controls
  • T108A - top entry inlets, standard controls
  • T108B - rear entry inlets, standard controls
  • T108T4 - top entry inlets, standard controls, ILTDU and 465mm pipe cover with key slot
  • T108T9 - top entry inlets, standard controls, ILTDU and 940mm pipe cover with key slot
