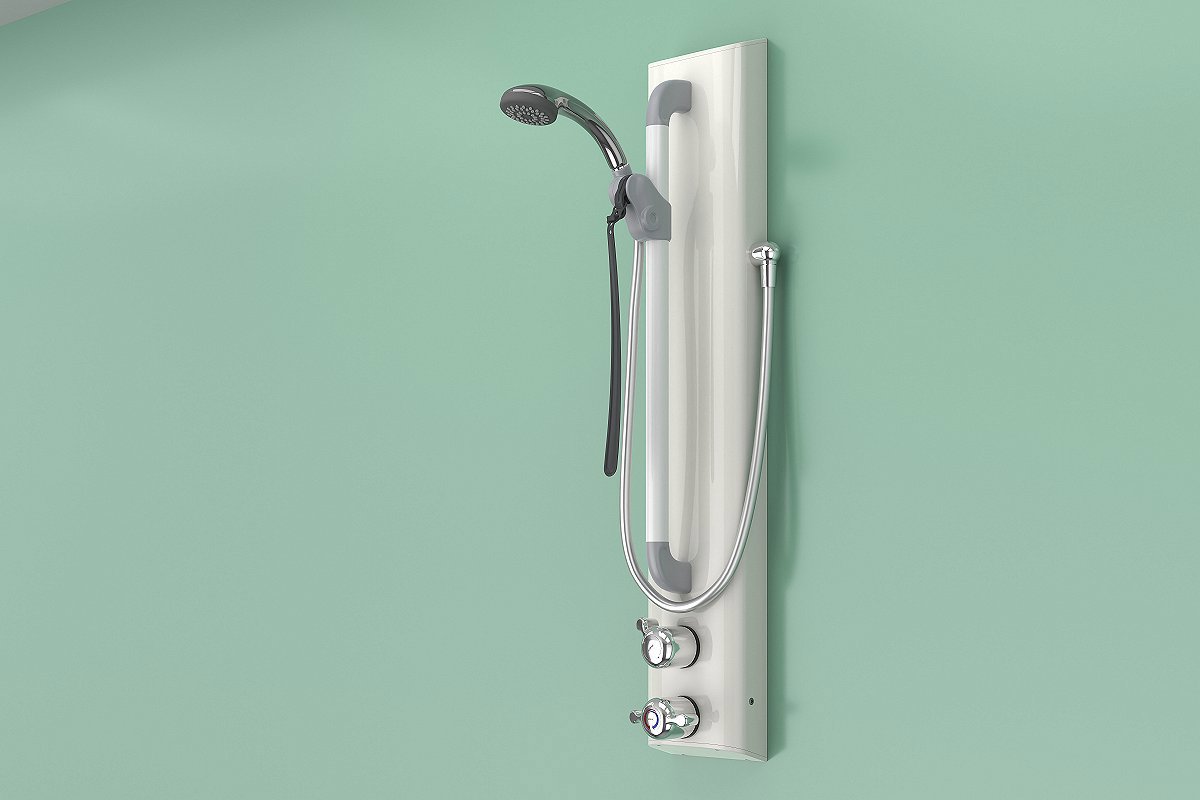

HORNE TSV1 Shower Panel with Lever Controls, Flexible Hose and Slide Bar and Single Function Shower Handset

T108B2L

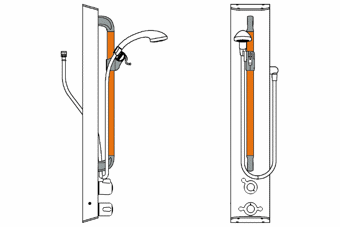

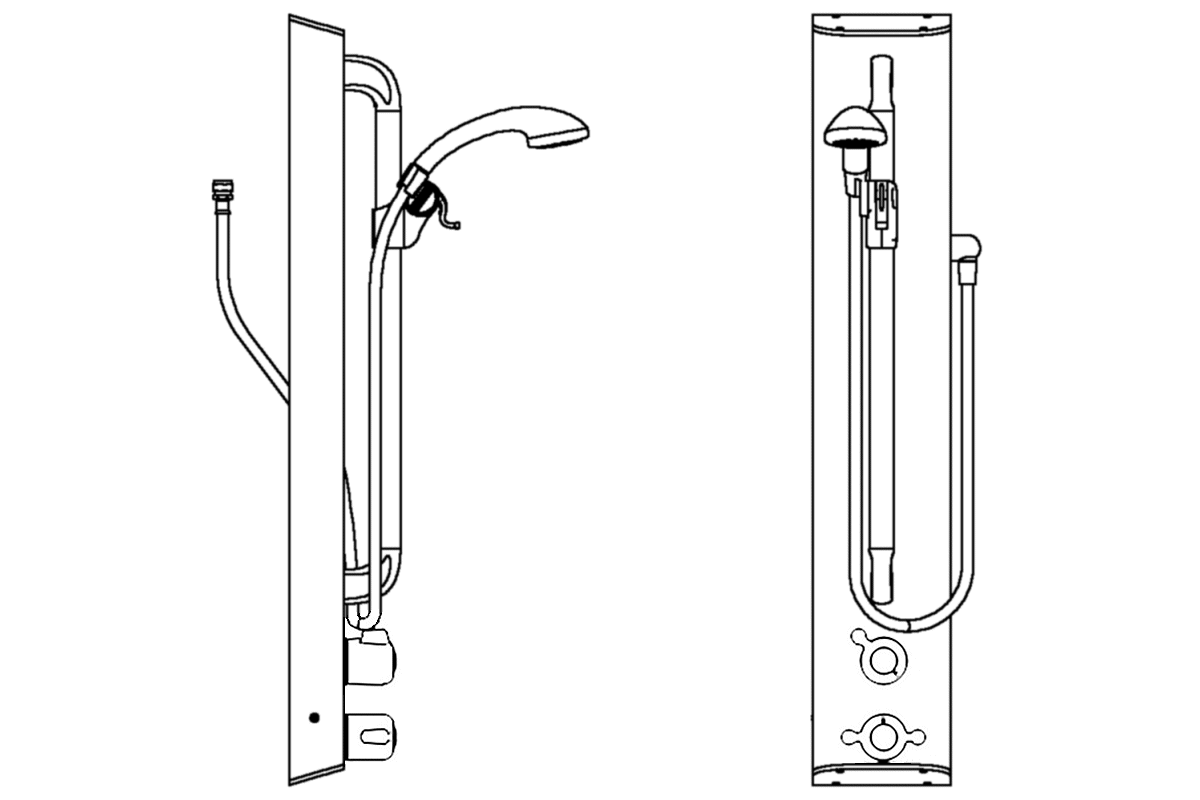

Includes integral TSV1-3 thermostatic shower valve pre-plumbed within a white powder coated aluminium panel with lever hand controls and shower kit, comprising flow regulated chromium plated single function shower hand set with flexible hose and slide bar. Connections by SOFT-PEX flexile braided hose for concealed water supply. Product Reference T108B2L as per drawing No. D10369. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne TSV1 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

Shower provision for new build, refurbishment, retrofit and temporary installations in healthcare, elderly, extra and dementia care, as well as Accessible & Changing Places showering in public facilities across leisure, education and healthcare.

Horne Dementia Friendly Shower Room

Features

  • Robust construction, finish and fittings for extended lifespan
  • Powder coated panel: white RAL 9010 with Light Reflective Value = 86.
  • TMV3 approved dual control shower valve provides reliable and accurate temperature control
  • Lever controls for ease of operation
  • Shower kit comprises anti-kink 1.25m hose, single function easy clean shower handset and robust riser bar with easy to see, and slide, handset holder
  • Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
  • Pressure and performance tested pre-plumbed assembly
  • Includes flexible braided (SOFT-PEX) inlets for concealed supplies
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
  • Low level servicing valves for ease of maintenance
  • Highly accessible for quick and simple maintenance

Standards and Approvals

  • The T108B2L is named on the Water Technology List (efficient showers) thus is eligible for Enhanced Capital Allowances(tax relief).
  • The HORNE TSV1-3 shower valve is designed to meet the requirements of BS7942:2000, 'Thermostatic mixing valves for use in care establishments' and is approved, under the TMV3 Scheme, to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises).
  • The HORNE TSV1-3 is a WRAS approved product.
  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Variants - 108 Range

  • T108A2L - top entry inlets, lever controls.
  • T108T42L - top entry inlets, lever controls, ILTDU and 465mm pipe cover with key slot
  • T108T92L - top entry inlets, lever controls, ILTDU and 940mm pipe cover with key slot
  • T108A - top entry inlets, standard controls
  • T108B - rear entry inlets, standard controls
  • T108T4 - top entry inlets, standard controls, ILTDU and 465mm pipe cover with key slot
  • T108T9 - top entry inlets, standard controls, ILTDU and 940mm pipe cover with key slot

Useful Documents

Related Products

Installations

  • Bannatyne Fitness Clubs (various locations)
  • Bowthorpe Care Village, Norwich
  • Epsom & St Helier Hospitals NHS Trust
  • Glan Clwyd Hospital, Rhyl
  • Leeds Specialist Inclusive Learning Centres
  • Leonard Cheshire Disability (various locations)
  • Lydia Eva Dementia Care Home, Gt Yarmouth
  • Methodist Homes
  • Montrose Care Home, Isle of Arran
  • North Staffordshire Hospital
  • Northwick Park Hospital
  • Orpington Hospital, Kent
  • QE University Hospitals, Glasgow
  • Queens Medical Centre, Nottingham
  • Richmond Extra Care Villages
  • Royal Free London Hospital NHS F Trust
  • St Clements Hospital, Ipswich
  • Southampton General Hospital
  • Southend University Hospital
  • The Lilacs Rehabilitation Centre, N. Lincs
  • Tiverton Hospital, North Devon
  • Tywyn & District War Memorial Hospital
