HORNE TSV1 SHOWER PANEL With Riser Rail, Hose and Handset, integral ILTDU and Pipe Cover

T108T9

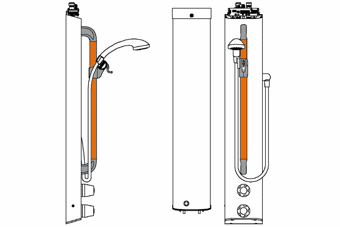

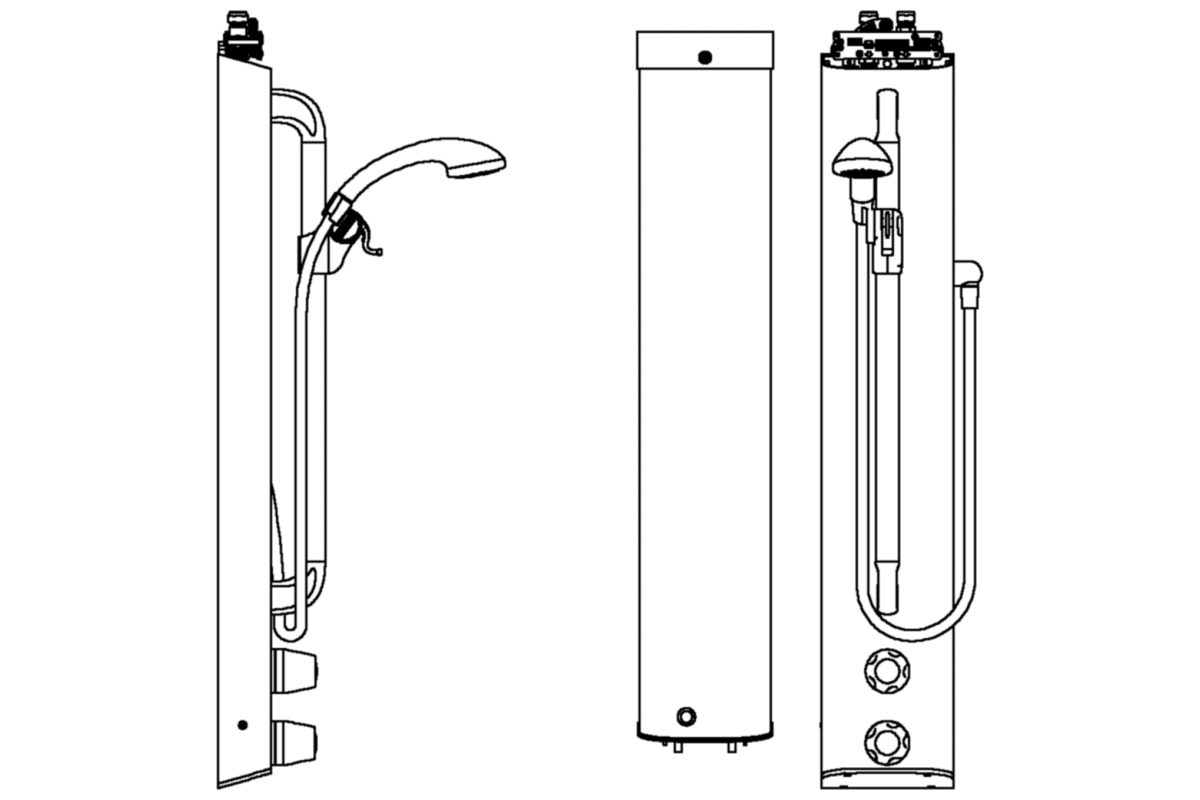

Includes integral TSV1-3 Thermostatic Shower Valve and In-Line Thermal Disinfection Unit ILTDU pre-plumbed (in copper) within a white epoxy-polyester powder-coated aluminium panel with hand controls and shower kit, comprising flow-regulated chromium-plated single function easy-clean shower hand set with flexible hose and riser rail, and 940mm pipe cover with ILTDU key slot. Product Reference T108T9 as per drawing No. D11351. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne TSV1 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Horne T108T# shower panel with integral ILTDU

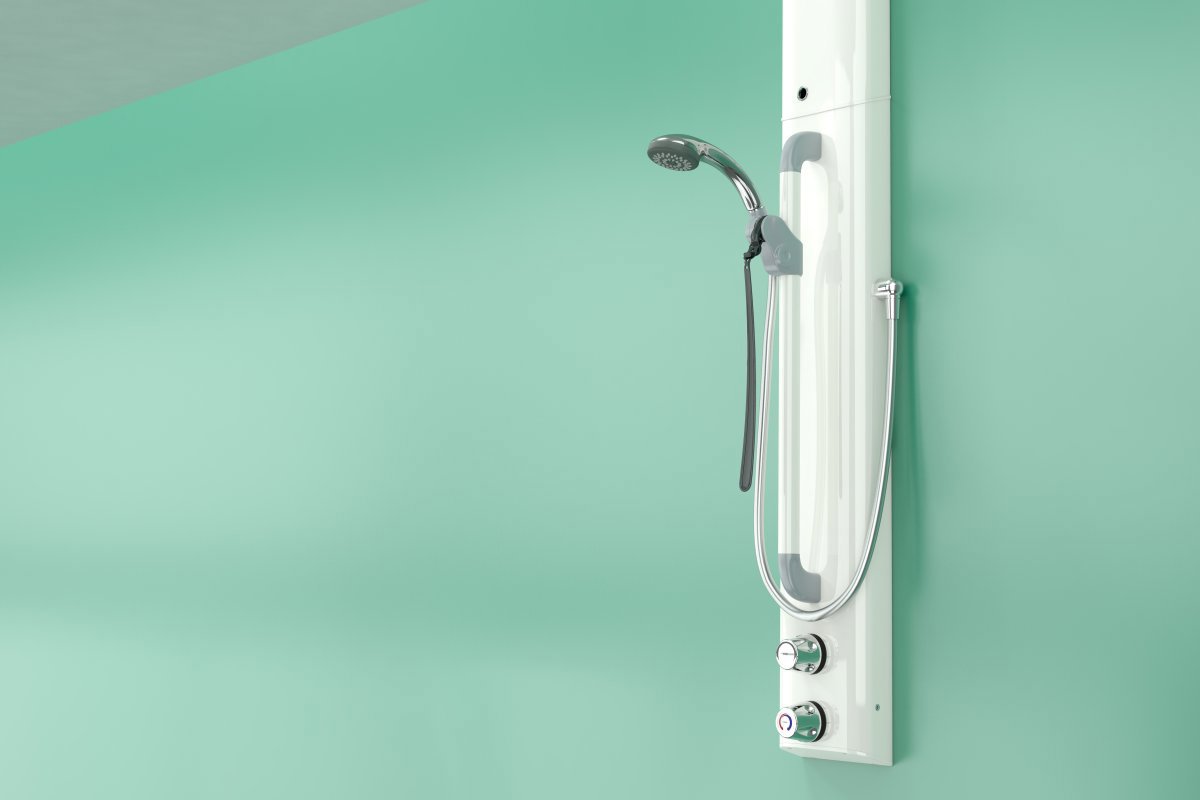

Horne shower panel with integral ILTDU, pipe cover, single function handset and white riser rail

Thermal disinfection of Horne shower panel with integral ILTDU

Single function shower handset, hose and Horne white riser rail

Horne shower handset riser adjustment release mechanism

Horne Shower Riser rail adjustment release mechanism

Standard controls for Horne TSV1 shower panels

Horne TSV1 Shower valve with standard control knobs (within shower panel)

T108A2L / T108B / T108B2L / T108A BIM Screengrab

Applications

Shower provision for new build, refurbishment, retrofit and temporary installations in healthcare, residential care, education, leisure and other institutional settings.

Horne showers for Healthcare Leisure Education markets

Features

Robust construction, finish and fittings for extended lifespan
Powder-coated panel: white RAL 9010 with Light Reflective Value = 84
Integral in-line thermal disinfection unit ILTDU for control of retrograde contaminants
940mm long Pipe Cover in same profile as panel with key slot for ILTDU operation
Type 3 (healthcare) approved dual control shower valve provides reliable and accurate temperature control
Shower kit comprises anti-kink 1.25m hose, single function easy-clean shower handset and robust riser rail with sliding handset holder - easy to see, slide and adjust for users with limited sight and hand mobility
Handset carriage mechanism with Release Extender allows shorter or wheelchair users to easily lower a high-set shower handset
Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
Pressure and performance tested pre-plumbed assembly with internal copper piping
Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
Low-level servicing valves for ease of maintenance
Highly accessible for quick and simple testing, maintenance and water sampling

Accessories

2 metre hose
Monitoring Kit
TSV1 Flushing Kit
ILTDU Operation Key
Wall mounted supportive grab rails
Lever Controls for retrofit alteration to -2L variant

Standards and Approvals

The HORNE TSV1-3 shower valve is designed to meet the requirements of BS7942:2011, 'Thermostatic mixing valves for use in care establishments' and is approved as a Type 3 TMV to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises)
The HORNE TSV1-3 and the ILTDU are approved to Reg 4 (materials in contact with water) of the Water Fitting Regulations 1999
All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Variants - T108 Range

T108T4 - top entry inlets, standard controls, ILTDU and 465mm Pipe Cover with key slot
T108A - top entry inlets, standard controls
T108B - rear entry inlets, standard controls
T108A2L - top entry inlets, lever controls
T108B2L - rear entry inlets, lever controls
T108T42L - top entry inlets, lever controls, ILTDU and 465mm Pipe Cover with key slot
T108T92L - top entry inlets, lever controls, ILTDU and 940mm Pipe Cover with key slot
