HORNE Inclusive Design TSV1 Shower Panel with Lever Controls, Riser Rail, Flexible Hose and Three Function Shower Handset

T1Y7B2L

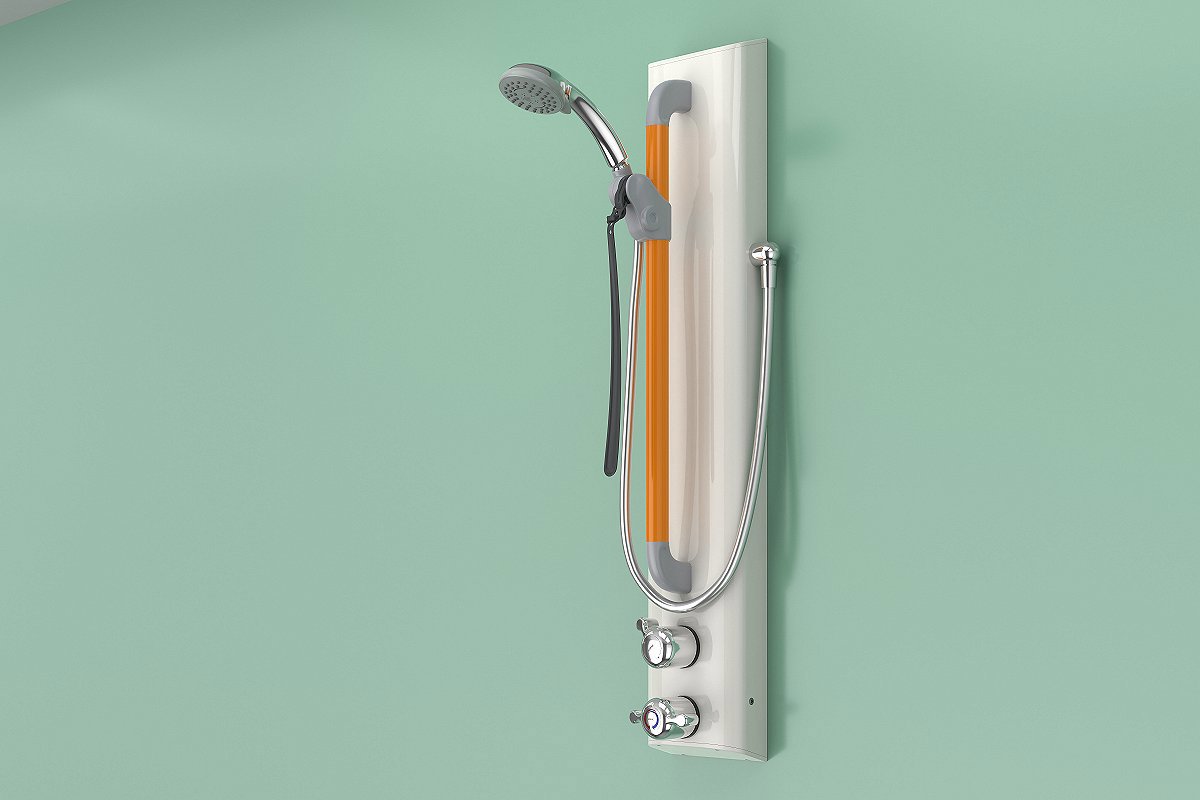

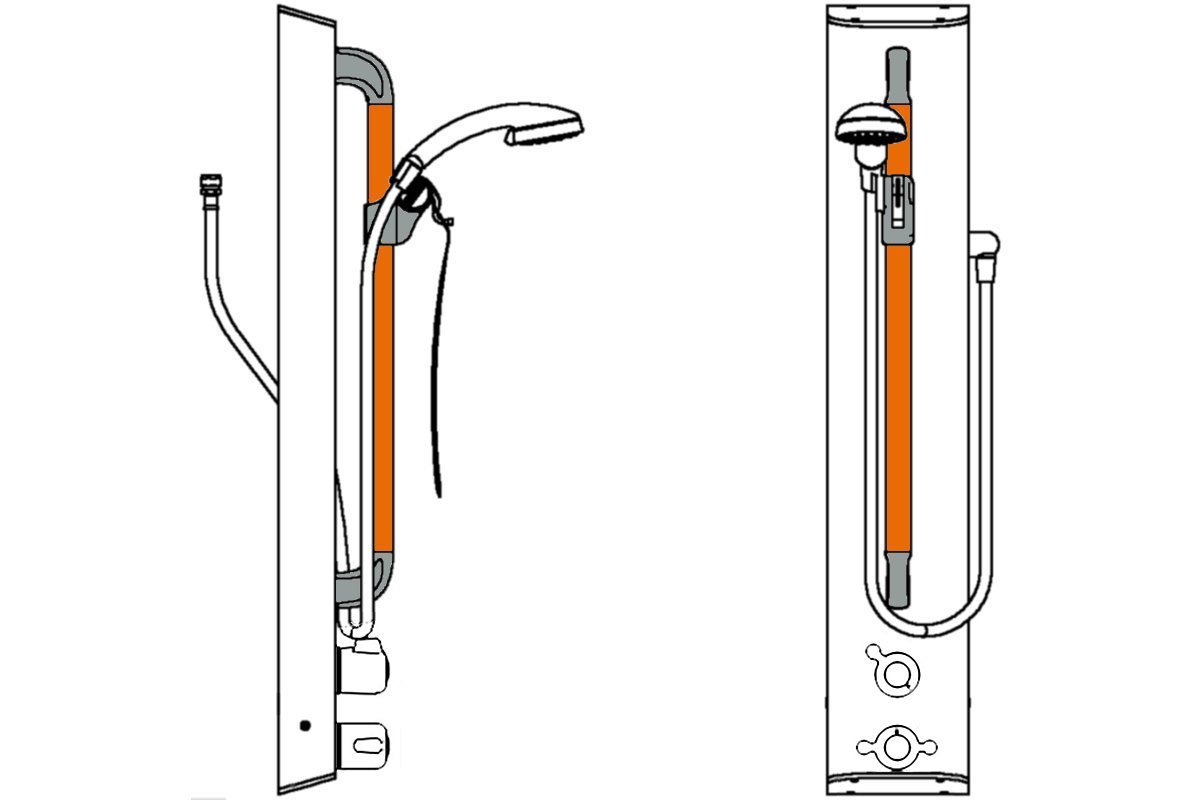

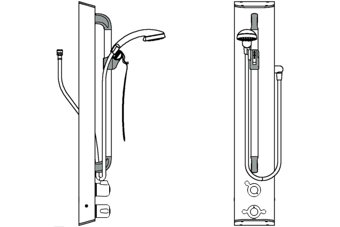

Includes integral TSV1-3 thermostatic shower valve pre-plumbed within a white epoxy-polyester powder-coated aluminium panel with BS 8300 compliant lever controls and shower kit, comprising flow regulated chromium plated three function shower hand set with flexible hose, inclusive-design riser mechanism and riser rail in Deep Orange. Connections by SOFT-PEX flexible braided hose for concealed water supply. Product Reference T1Y7B2L as per drawing No. D10371. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne TSV1 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

Shower provision for new build, refurbishment, retrofit and temporary installations in aged and dementia care and for Accessible and Changing Places shower provision in public facilities across healthcare, transit hubs, leisure and education.

Sectors

Features

  • Robust construction, finish and fittings for extended lifespan
  • Powder-coated panel: white RAL 9010 with Light Reflective Value = 84
  • Type 3 (healthcare) approved dual control shower valve provides reliable and accurate temperature control
  • Inclusive design Lever controls for ease of operation
  • Shower kit comprises anti-kink 1.25m hose, three function easy clean shower handset and robust dementia-friendly deep orange riser rail (RAL 2011, LRV= 27) with inclusive-design sliding handset holder - easy to see, slide and adjust for users with limited sight and hand mobility
  • Handset carriage mechanism with Release Extender allows shorter or wheelchair users to easily lower a high-set shower handset
  • Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
  • Pressure and performance tested pre-plumbed assembly
  • Includes flexible braided (SOFT-PEX) inlets for concealed supplies
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
  • Low level servicing valves for ease of maintenance
  • Highly accessible for quick and simple testing, maintenance and water sampling

Accessories











Standards and Approvals

  • The HORNE TSV1-3 shower valve is designed to meet the requirements of BS7942:2011, 'Thermostatic mixing valves for use in care establishments' and is approved as a Type 3 TMV to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises)
  • The HORNE TSV1-3 is approved to Reg 4 (materials in contact with water) of the Water Fitting Regulations 1999
  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224



Variants - T1Y7 Range

  • T1Y7A2L - top entry inlets, lever controls.
  • T1Y7T42L - top entry inlets, lever controls, ILTDU and 465mm pipe cover with key slot
  • T1Y7T92L - top entry inlets, lever controls, ILTDU and 940mm pipe cover with key slot
  • T1Y7A - top entry inlets, standard controls
  • T1Y7B - rear entry inlets, standard controls
  • T1Y7T4 - top entry inlets, standard controls, ILTDU and 465mm pipe cover with key slot
  • T1Y7T9 - top entry inlets, standard controls, ILTDU and 940mm pipe cover with key slot
