HORNE TSV1 Shower Panel Ligature Resistant with Integral ILTDU and Pipe Cover

T109T9LR

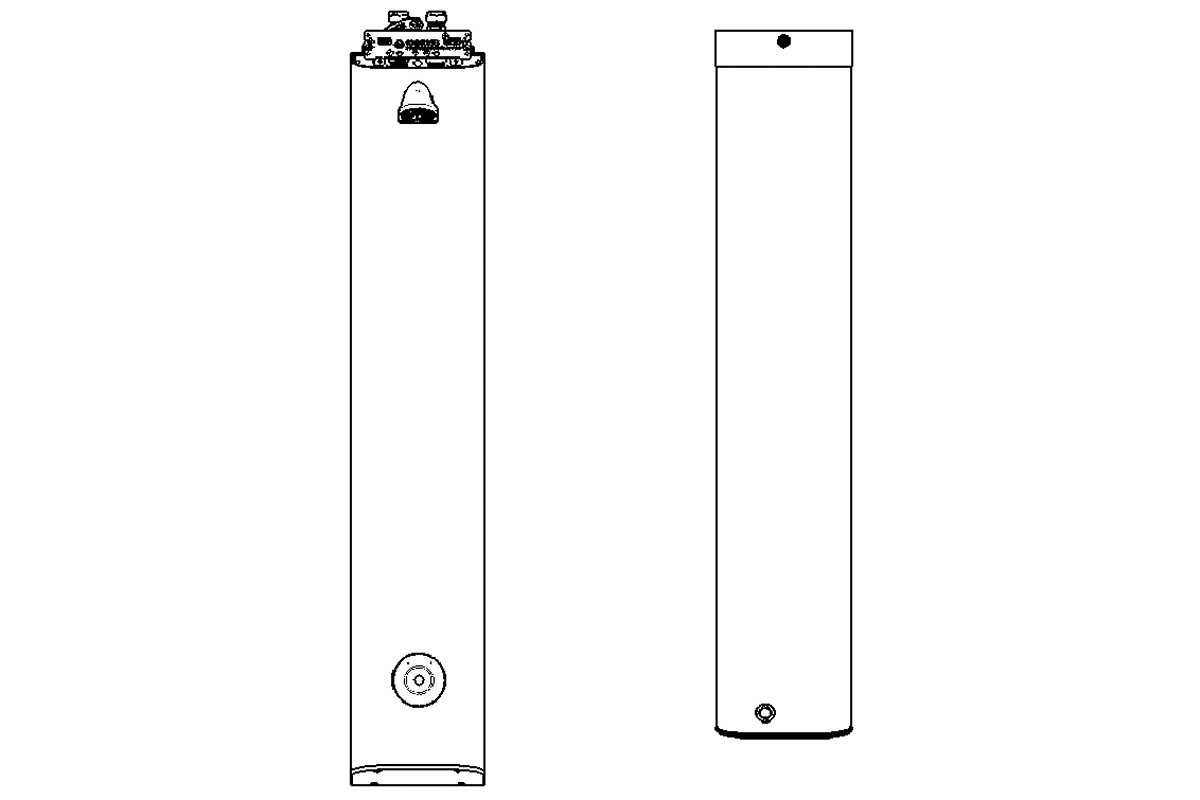

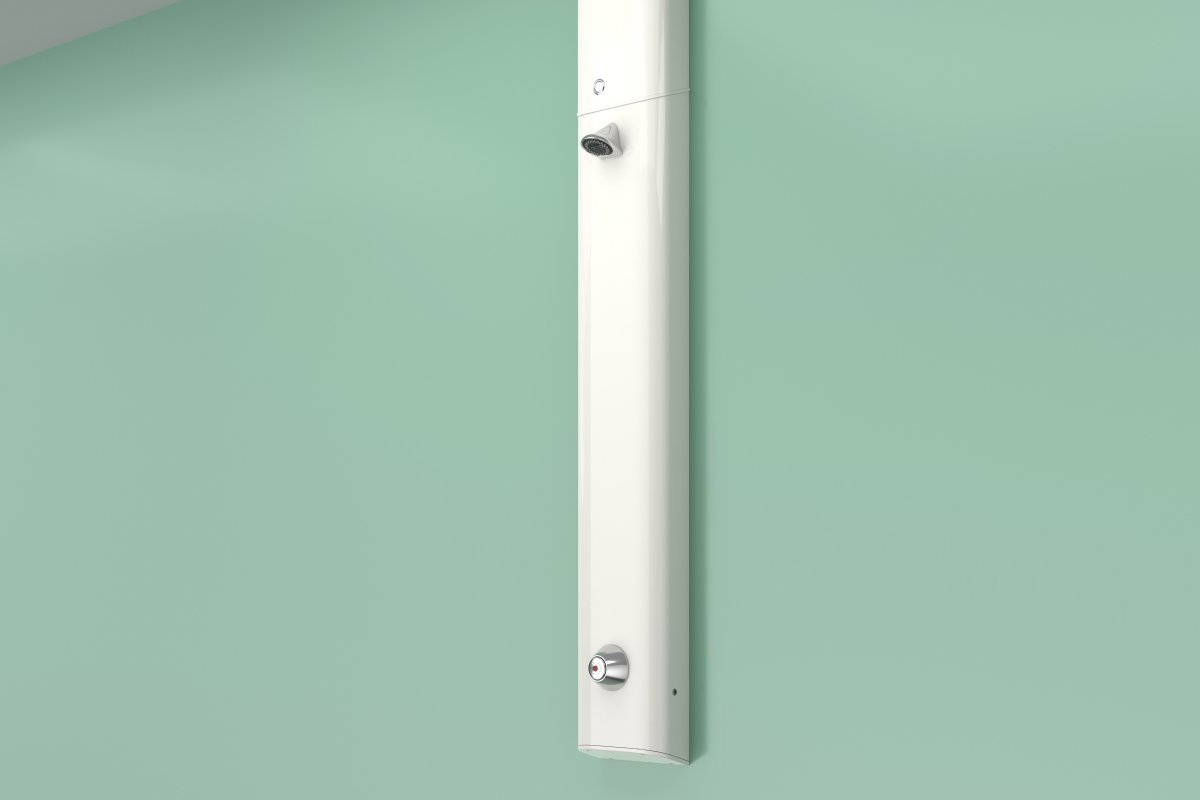

Includes TMV3 Approved Horne 15 Thermostatic Mixing Valve and In-Line Thermal Disinfection Unit ILTDU pre-plumbed (in copper) within a white powder coated aluminium panel with ligature resistant push button timed flow control, fixed vandal resistant shower head in chromium plated finish, flow regulator and 940mm pipe cover with ILTDU key slot. Product Reference T109T9LR as per drawing No. D11373. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne TSV1 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

Ligature resistant shower provision for new build, refurbishment, retrofit and temporary installations in secure, healthcare, mental health, education, leisure and other institutional settings.

Horne Showers for Secure, Mental Health, Healthcare, Leisure and Education Markets

Features

  • Robust construction, finish and fittings for extended lifespan
  • Powder coated panel: white RAL 9010 with Light Reflective Value = 86

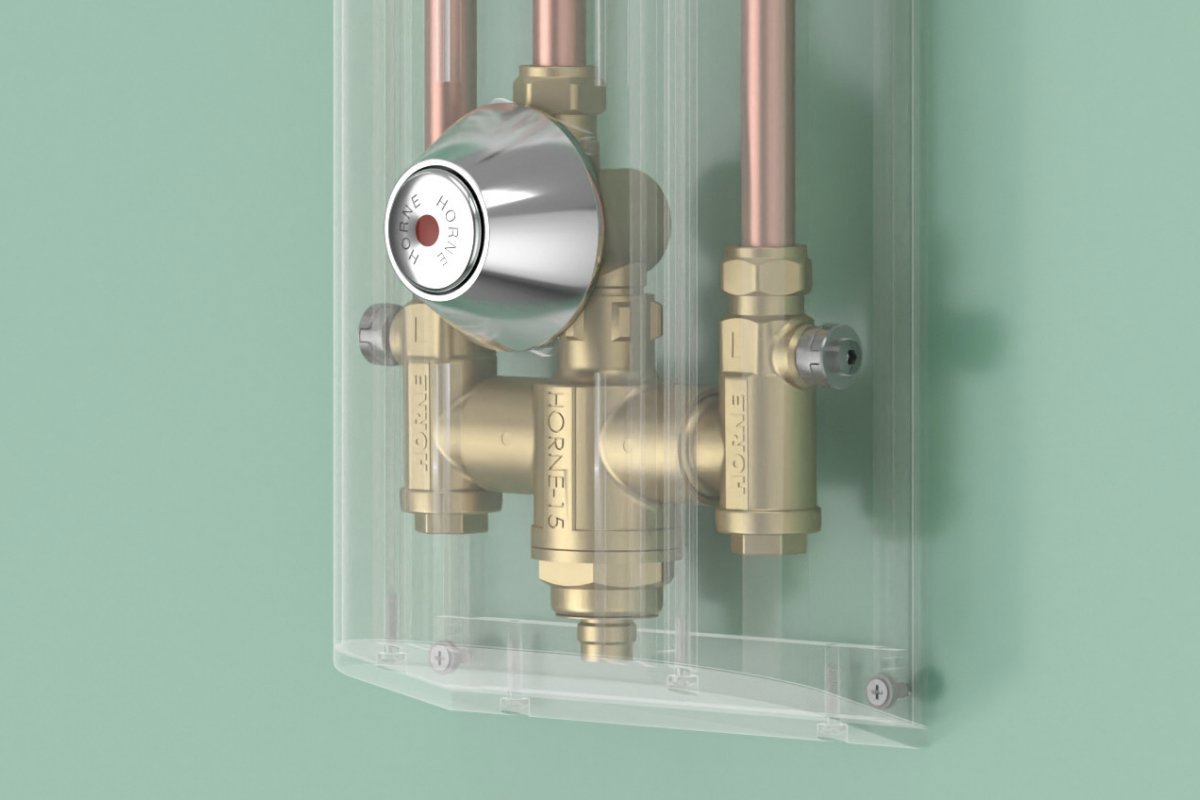

  • TMV3 approved integral Horne 15 themostatic mixing valve provides reliable and accurate temperature control

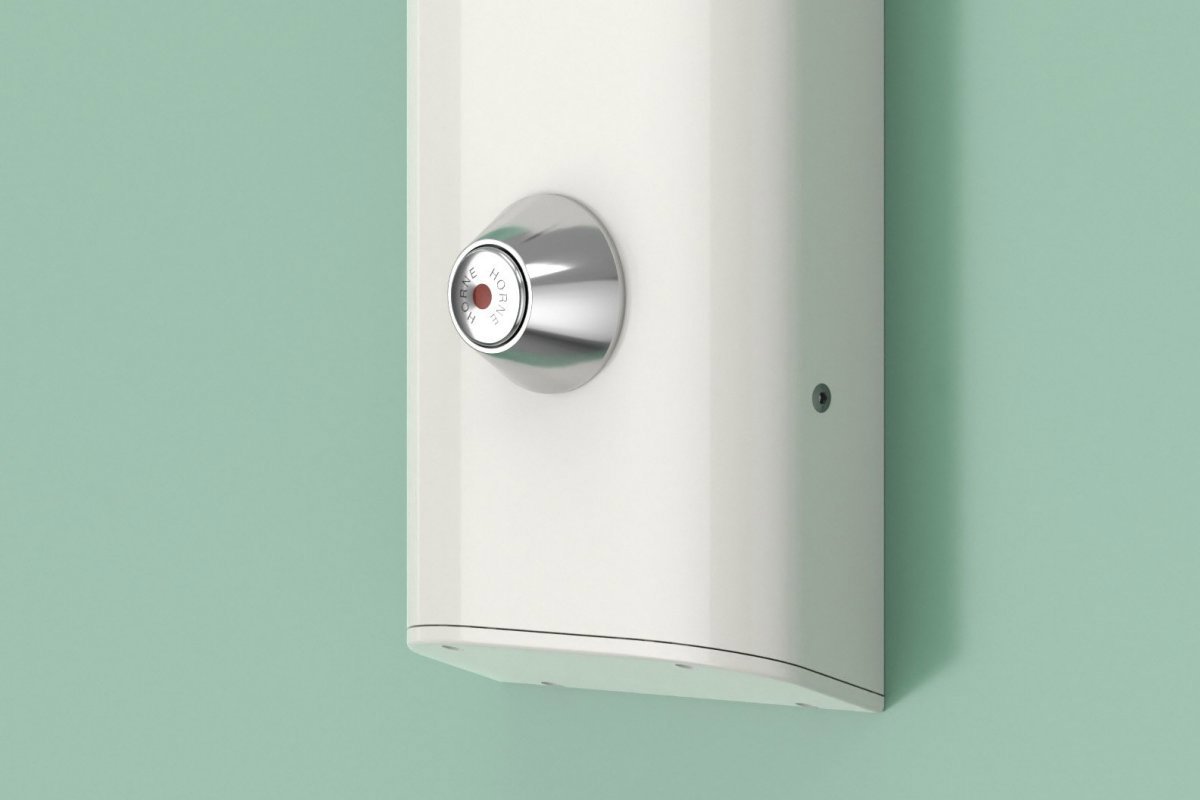

  • Ligature resistant push button timed flow control for water and energy conservation
  • Vandal adn ligature resistant shower head with 2 spray positions and easy clean nozzle array - see our Safe Secure and Versatile too animation

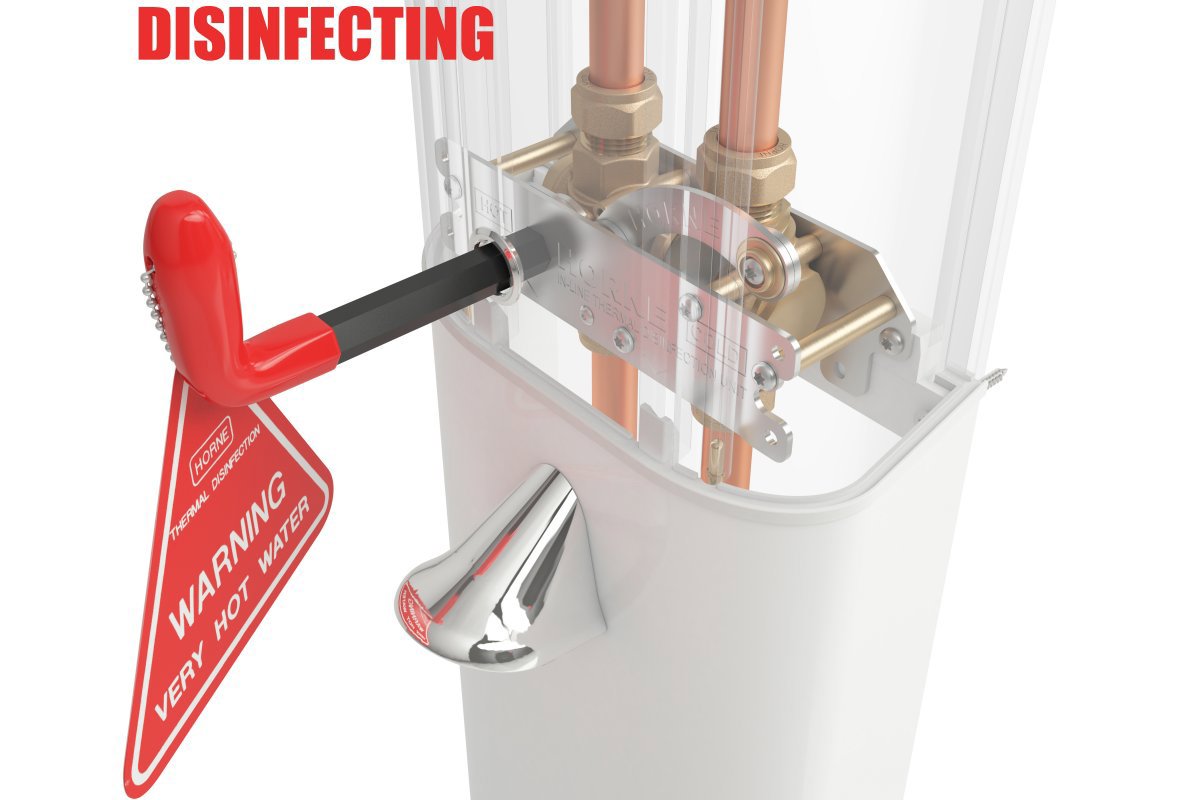

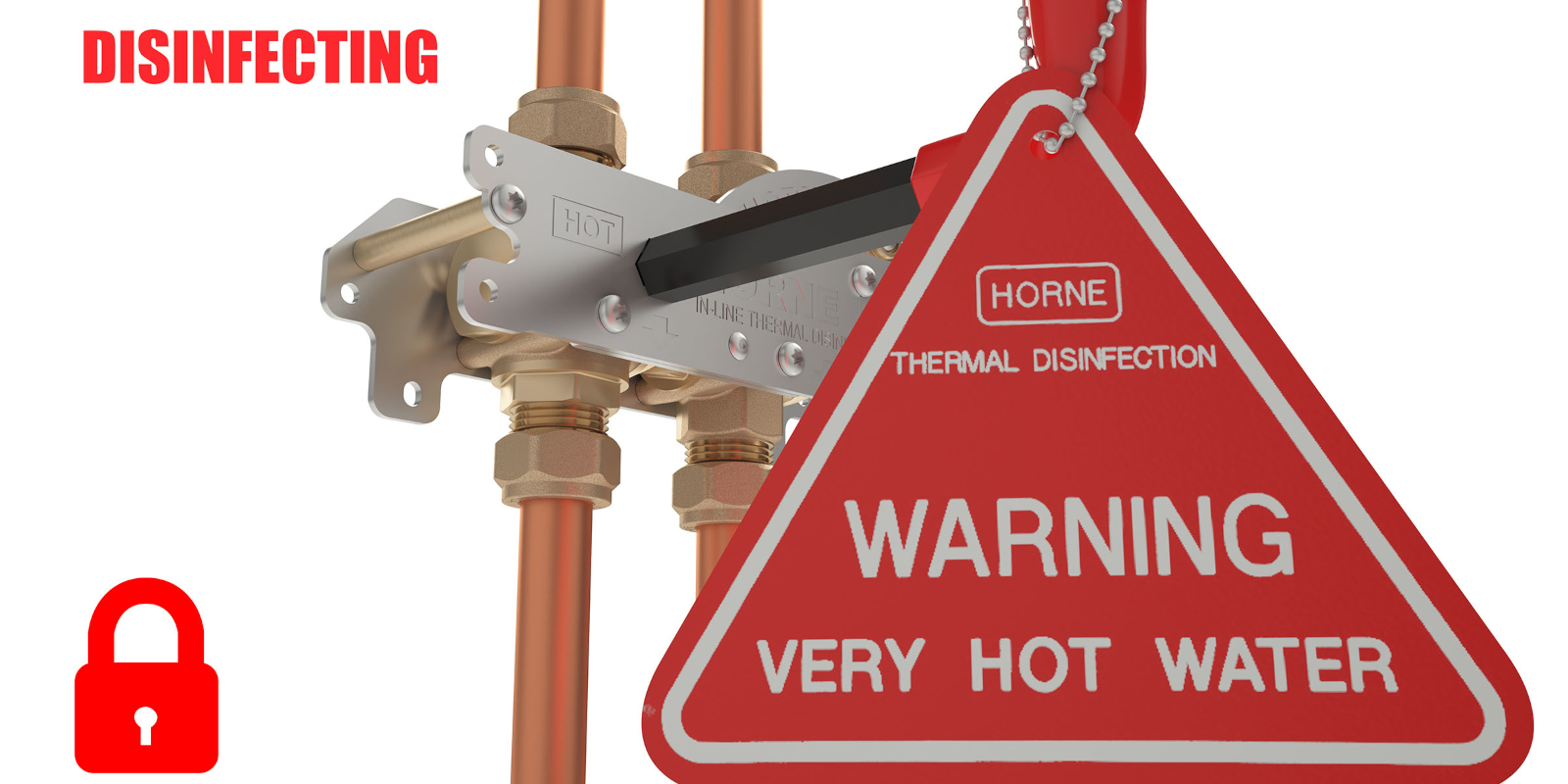

  • Integral ILTDU in-line thermal disinfection unit for control of retrograde contaminants
  • 940mm long Pipe Cover in same profile as panel with key slot for ILTDU operation
  • Integral flow regulator (8 L/min) for water and energy conservation and contributes to BREEAM rating
  • Pressure and performance tested pre-plumbed assembly with internal copper piping
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
  • Low level servicing valves for ease of maintenance
  • Highly accessible for quick and simple maintenance

Accessories

Standards and Approvals

  • The T109T9LR is named on the Water Technology List (efficient showers) thus is eligible for Enhanced Capital Allowances (tax relief).
  • The HORNE 15 thermostatic mixing valve is designed to meet the requirements of BS7942:2000, 'Thermostatic mixing valves for use in care establishments' and is approved, under the TMV3 Scheme, to NHS Model Engineering Specifications D 08 Thermostatic mixing valves(Healthcare premises).
  • The HORNE 15 is a WRAS approved product.
  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Variants - T109 Range

  • T109T4LR - top entry inlets, ligature resistant control, ILTDU and 465mm Pipe Cover with key slot
  • T109ALR - top entry inlets, ligature resistant control
  • T109BLR - rear entry inlets, ligature resistant control
  • T109A - top entry inlets, standard control
  • T109B - rear entry inlets, standard control
  • T109T4 - top entry inlets, standard control, ILTDU and 465mm Pipe Cover with key slot
  • T109T9 - top entry inlets, standard control, ILTDU and 940mm Pipe Cover with key slot
