HORNE TSV1 Shower Panel Ligature Resistant with Timed Flow Control and Vandal Resistant Shower Head

T109BLR

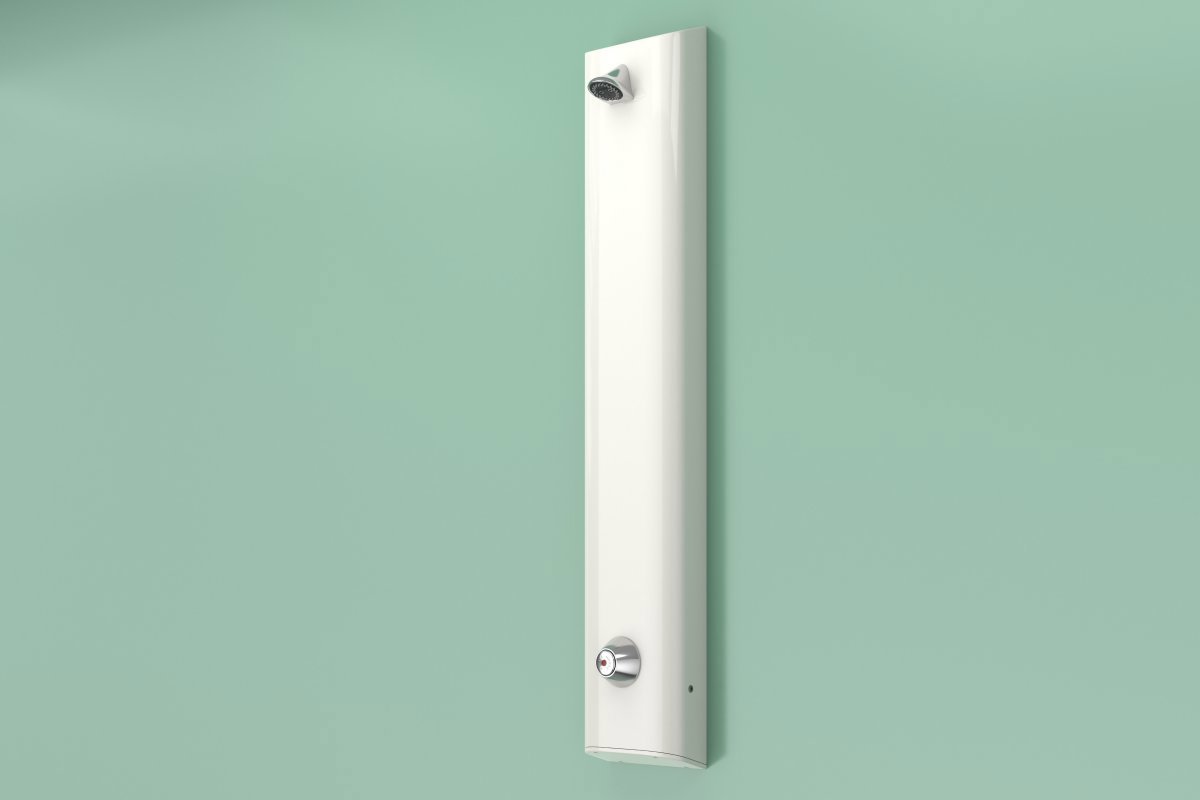

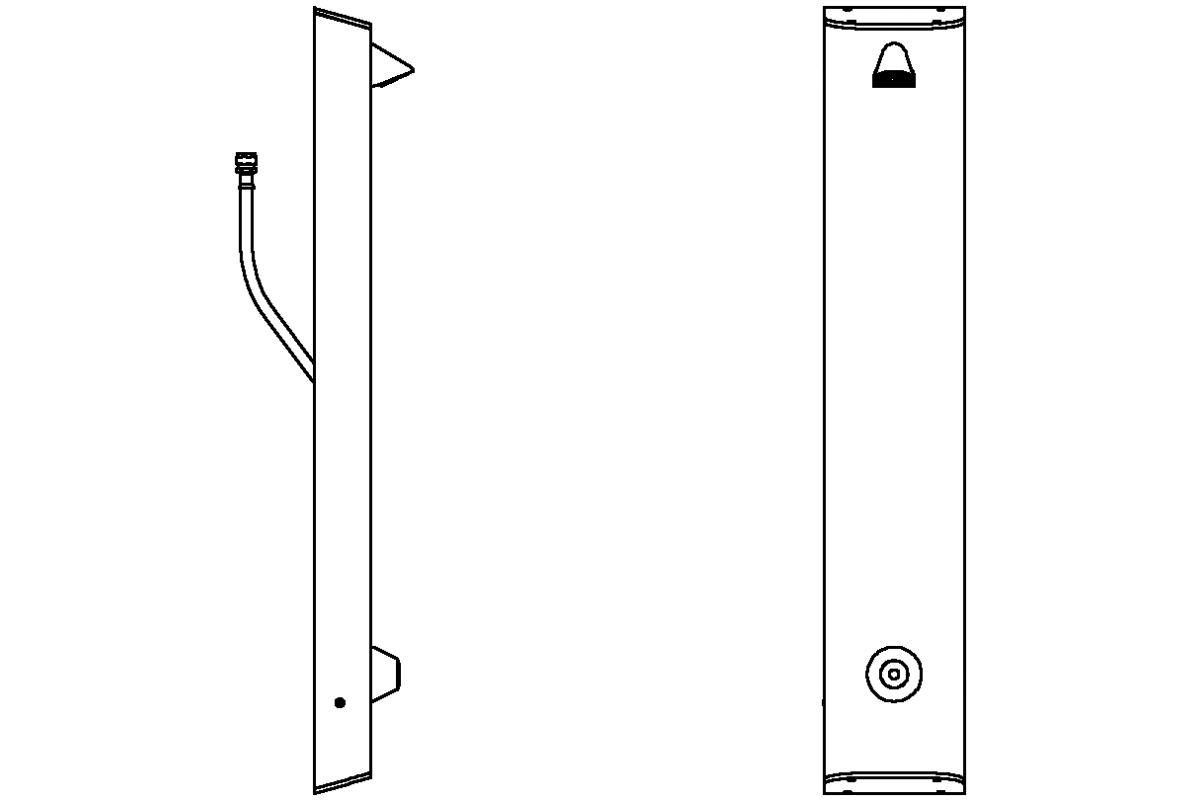

Includes integral TMV3 Scheme Approved Horne 15 H1503 thermostatic mixing valve pre-plumbed within a white epoxy-polyester powder-coated aluminium panel with push button timed flow control with ligature resistant shroud and vandal and ligature resistant, adjustable and flow regulated shower head in chromium plated finish. Connections by SOFT-PEX flexible braided hose for concealed water supply. Product Reference T109BLR as per drawing D10349. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne 15 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

Ligature resistant shower provision for new build, refurbishment, retrofit and temporary installations in secure, healthcare, mental health, education, leisure and other institutional settings.

Horne Showers for Secure, Mental Health, Healthcare, Leisure and Education Markets

Features

  • Robust construction, finish and fittings for extended lifespan
  • Powder-coated panel: white RAL 9010 with Light Reflective Value = 84
  • TMV3 Scheme approved Horne 15 TMV provides reliable and accurate temperature control
  • Ligature and vandal resistant shower head with 2 spray positions and easy-clean nozzle array - - see our Safe Secure and Versatile too animation
  • Includes ligature resistant bezel on push-button timed flow control
  • Flow regulator (8 L/min) integral to fixed shower head for water and energy conservation contributes to BREEAM rating
  • Pressure and performance tested pre-plumbed assembly
  • Includes flexible braided (SOFT-PEX) inlets for concealed water supplies
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installation
  • Low level servicing valves for ease of maintenance
  • Highly accessible for quick and simple testing, maintenance and water sampling

Accessories

Standards and Approvals

  • The HORNE H1503 thermostatic mixing valve is designed to meet the requirements of BS7942:2000, 'Thermostatic mixing valves for use in care establishments' and is approved, under the TMV3 Scheme, to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises).
  • The HORNE H1503 thermostatic mixing valves is a WRAS Approved product.
  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Standards

Variants - T109 Range

  • T109A - top entry inlets, standard control
  • T109B - rear entry inlets, standard control
  • T109T4 - top entry inlets, standard control, ILTDU and 465mm Pipe Cover with key slot
  • T109T9 - top entry inlets, standard control, ILTDU and 940mm Pipe Cover with key slot
  • T109ALR - top entry inlets, ligature resistant control
  • T109T4LR - top entry inlets, ligature resistant control, ILTDU and 465mm Pipe Cover with key slot
  • T109T9LR - top entry inlets, ligature resistatn control, ILTDU and 940mm Pipe Cover with key slot
