HORNE TSV1 Shower Panel with Integral ILTDU and Pipe Cover

T109T4

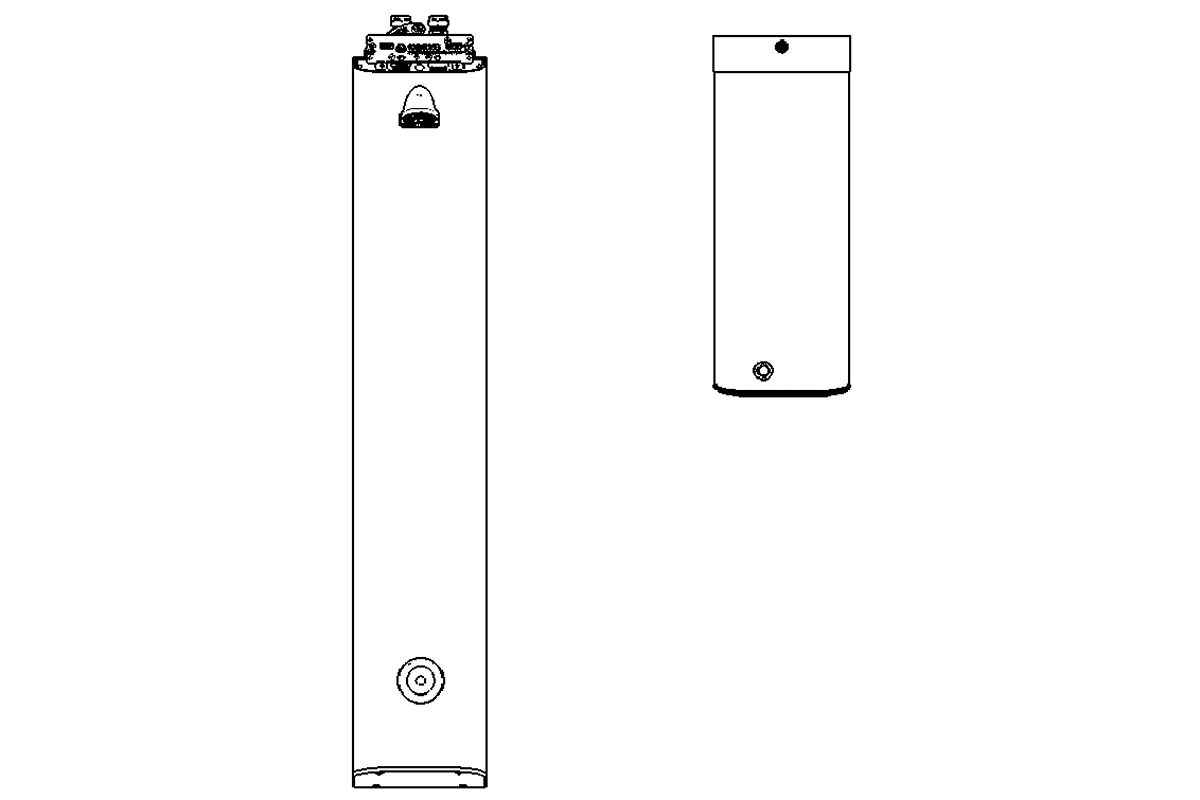

Includes TMV3 Approved Horne 15 Thermostatic Mixing Valve and In-Line Thermal Disinfection Unit ILTDU pre-plumbed (in copper) within a white epoxy-polyester powder-coated aluminium panel with push button timed flow control, fixed vandal resistant shower head in chromium plated finish, flow regulator and 465mm pipe cover with ILTDU key slot. Product Reference T109T4 as per drawing No. D11370. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne TSV1 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Horne 15 within shower panel with standard push button timed flow control

Thermal disinfection of Horne shower panel with integral ILTDU

Pipe Cover with ILTDU access slot and plug over VR head

Horne ligature and vandal resistant shower head

VR shower head with adjustable spray plate

T109A / T109B / T109ALR / T109BLR BIM Screengrab

Applications

Shower provision for new build, refurbishment, retrofit and temporary installations in healthcare, residential care, education, leisure and other institutional settings.

Horne showers for Healthcare Leisure Education markets

Features

Robust construction, finish and fittings for extended lifespan
Powder0coated panel: white RAL 9010 with Light Reflective Value = 84
Type 3 (healthcare) approved integral Horne 15 thermostatic mixing valve provides reliable and accurate temperature control
Push-button timed flow control for water and energy conservation
Vandal resistant shower head with 2 spray positions and easy-clean nozzle array - see our Safe Secure and Versatile too animation
Integral ILTDU in-line thermal disinfection unit for control of retrograde contaminants
465mm long Pipe Cover in same profile as panel with key slot for ILTDU operation
Integral flow regulator (8 L/min) for water and energy conservation and contributes to BREEAM rating
Pressure and performance tested pre-plumbed assembly with internal copper piping
Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
Low level servicing valves for ease of maintenance
Highly accessible for quick and simple testing, maintenance and water sampling

Accessories

Standards and Approvals

The shower's internal HORNE 15 TMV is designed to meet the requirements of BS7942:2011, 'Thermostatic mixing valves for use in care establishments' and is approved, as a Type 3 thermostatic mixing valve, to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises).
The H1503 and the ILTDU are UK Water Reg. 4 approved (materials in contact with water).
All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Variants - T109 Range

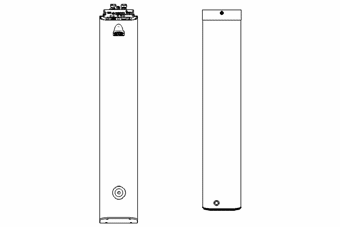

T109T9 - top entry inlets, standard control, ILTDU and 940mm Pipe Cover with key slot
T109A - top entry inlets, standard control
T109B - rear entry inlets, standard control
T109ALR - top entry inlets, ligature resistant control
T109BLR - rear entry inlets, ligature resistant control
T109T4LR - top entry inlets, ligature resistant control, ILTDU and 465mm Pipe Cover with key slot
T109T9LR - top entry inlets, ligature resistatn control, ILTDU and 940mm Pipe Cover with key slot
