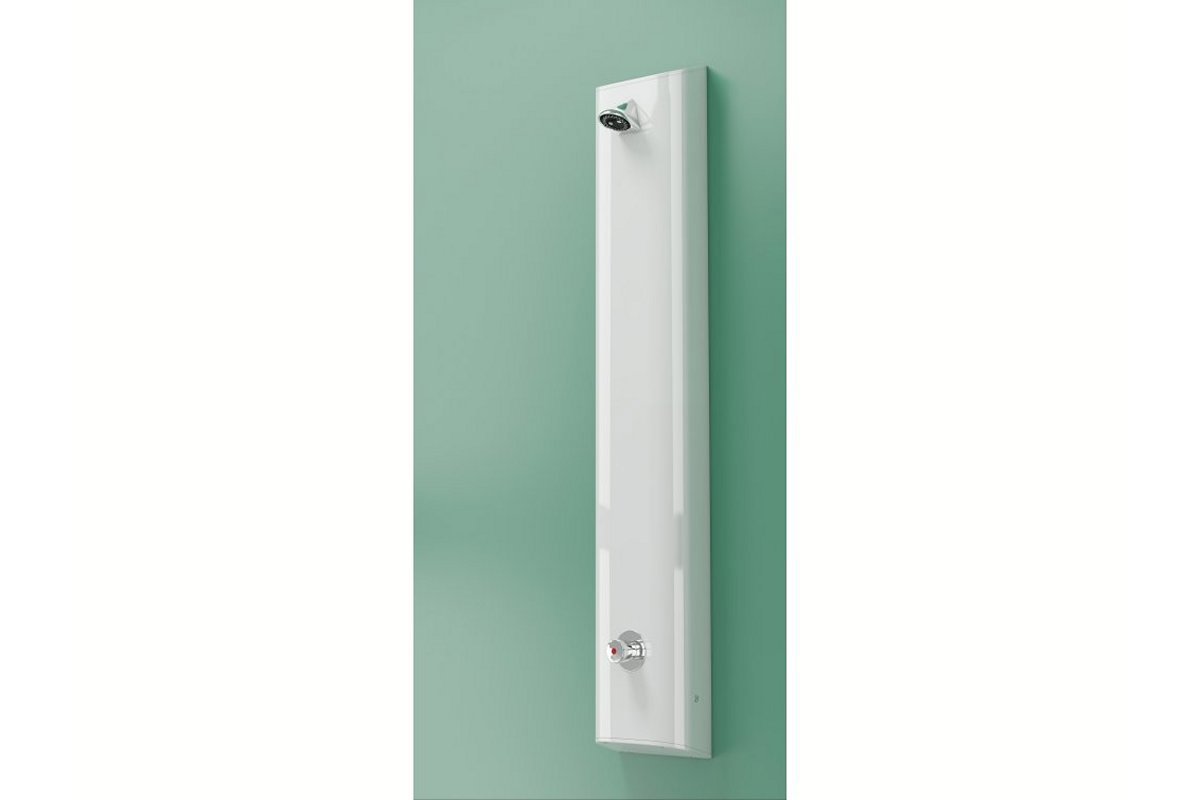

HORNE TSV1 Shower Panel with Timed Flow Control and Vandal Resistant Shower Head

T109B

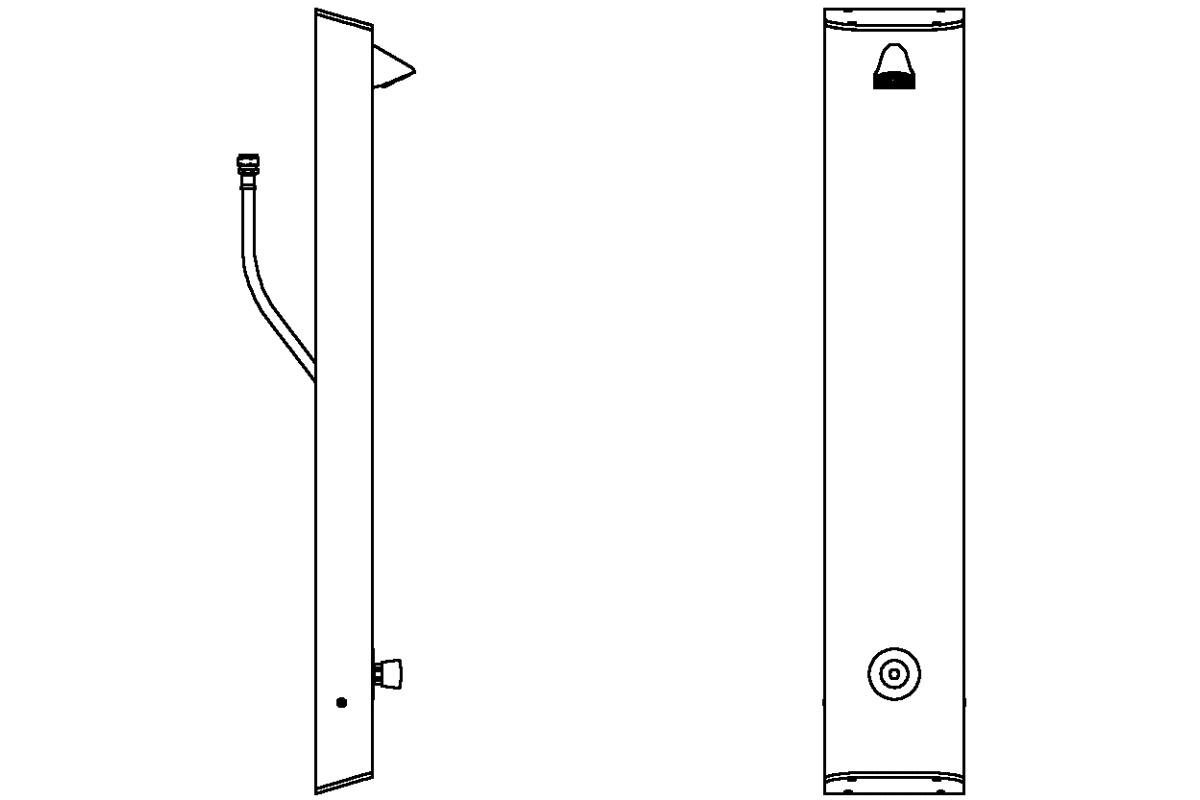

Includes integral Horne 15 H1503 thermostatic mixing valve pre-plumbed within a white powder coated aluminium panel with push button timed flow control and vandal resistant, adjustable and flow regulated shower head in chromium plated finish. Connections by SOFT-PEX flexible braided hose for concealed water supply. Product Reference T109B as per drawing D10358. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne 15 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

Shower provision for new build, refurbishment, retrofit and temporary installations in healthcare, education, leisure and other institutional settings.

Horne showers for Healthcare Leisure Education markets

Features

  • Robust construction, finish and fittings for extended lifespan
  • Powder coated panel: white RAL 9010 with Light Reflective Value = 86.
  • TMV3 approved integral Horne 15 thermostatic mixing valve provides reliable and accurate temperature control

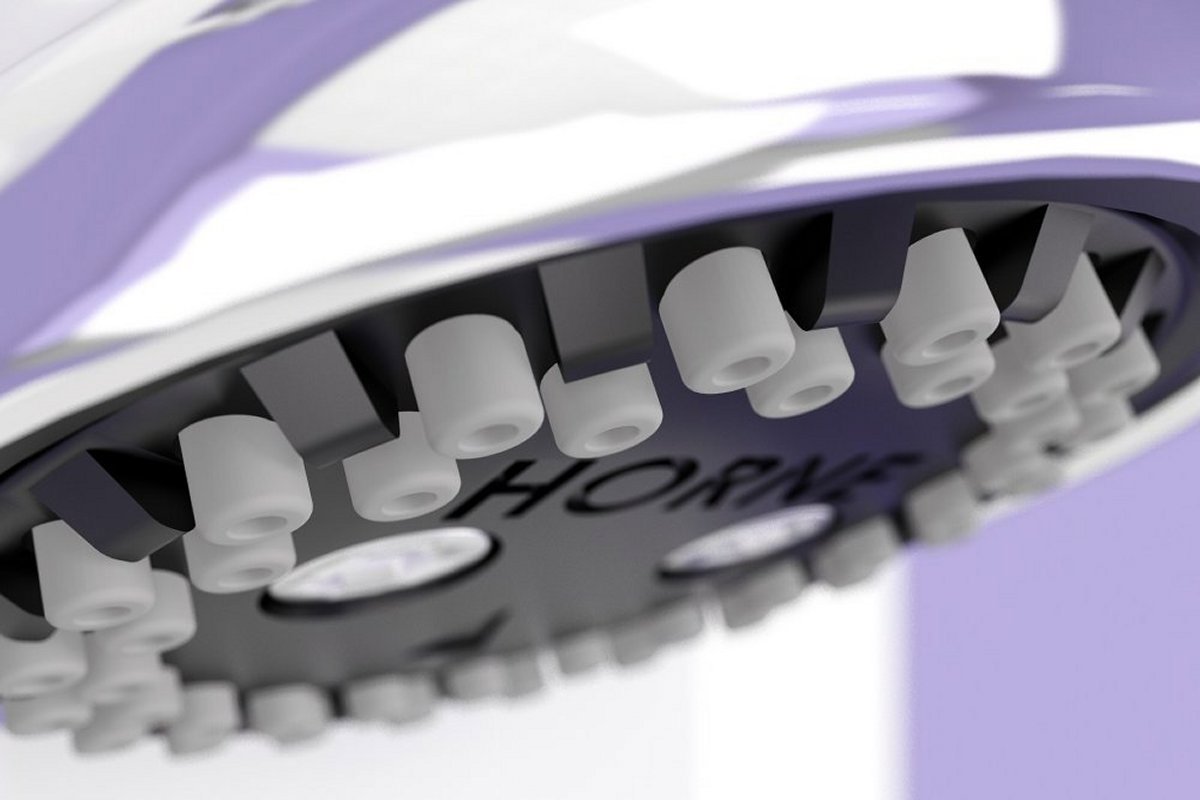

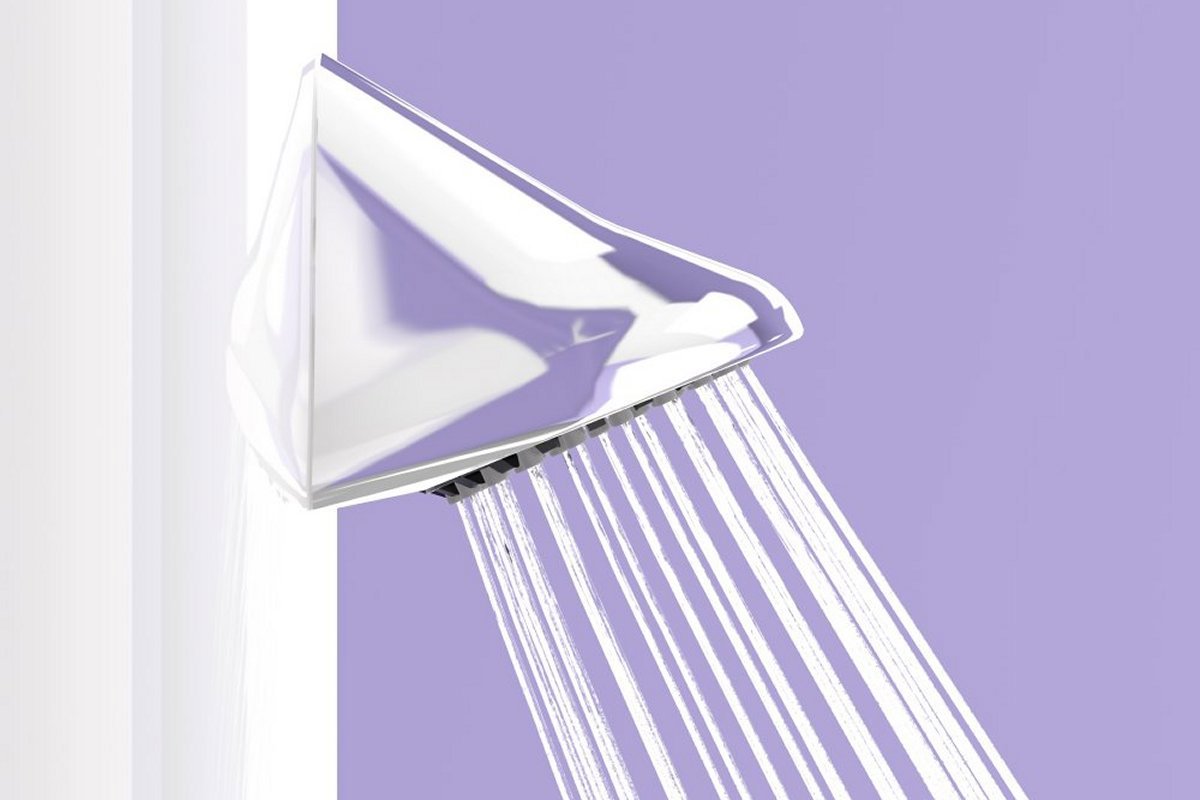

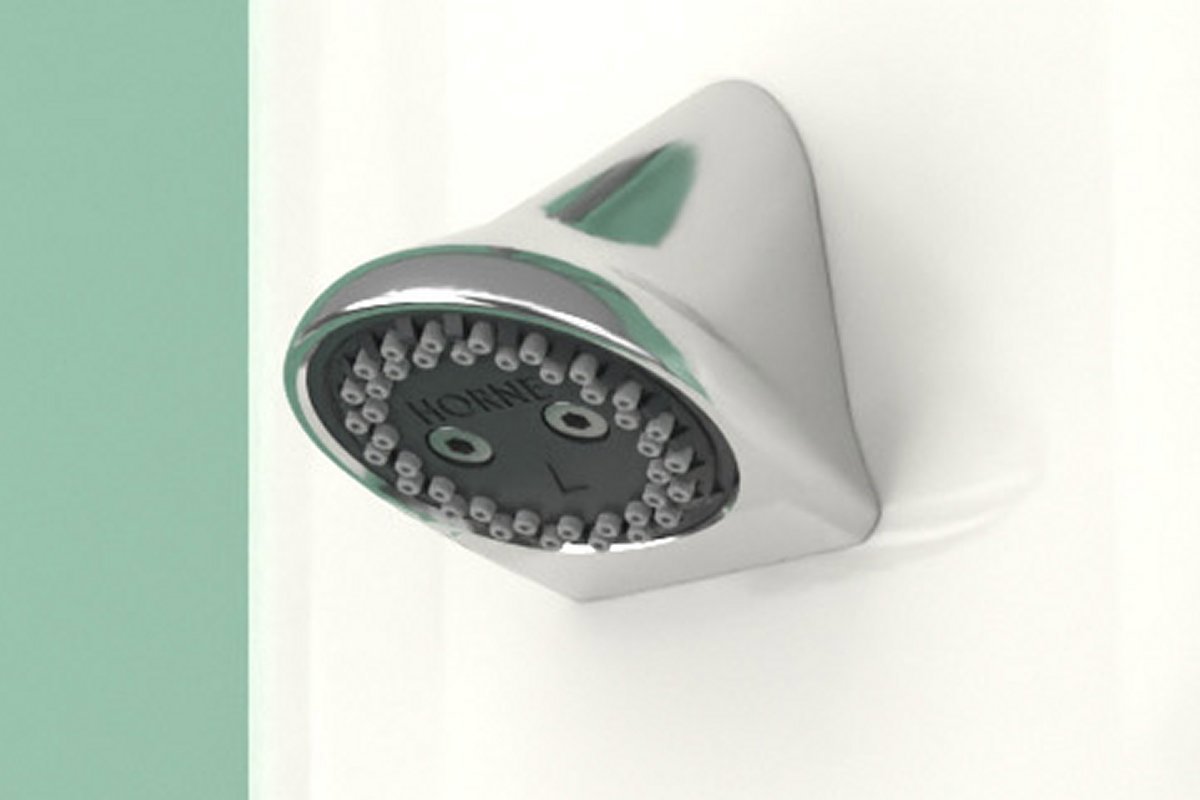

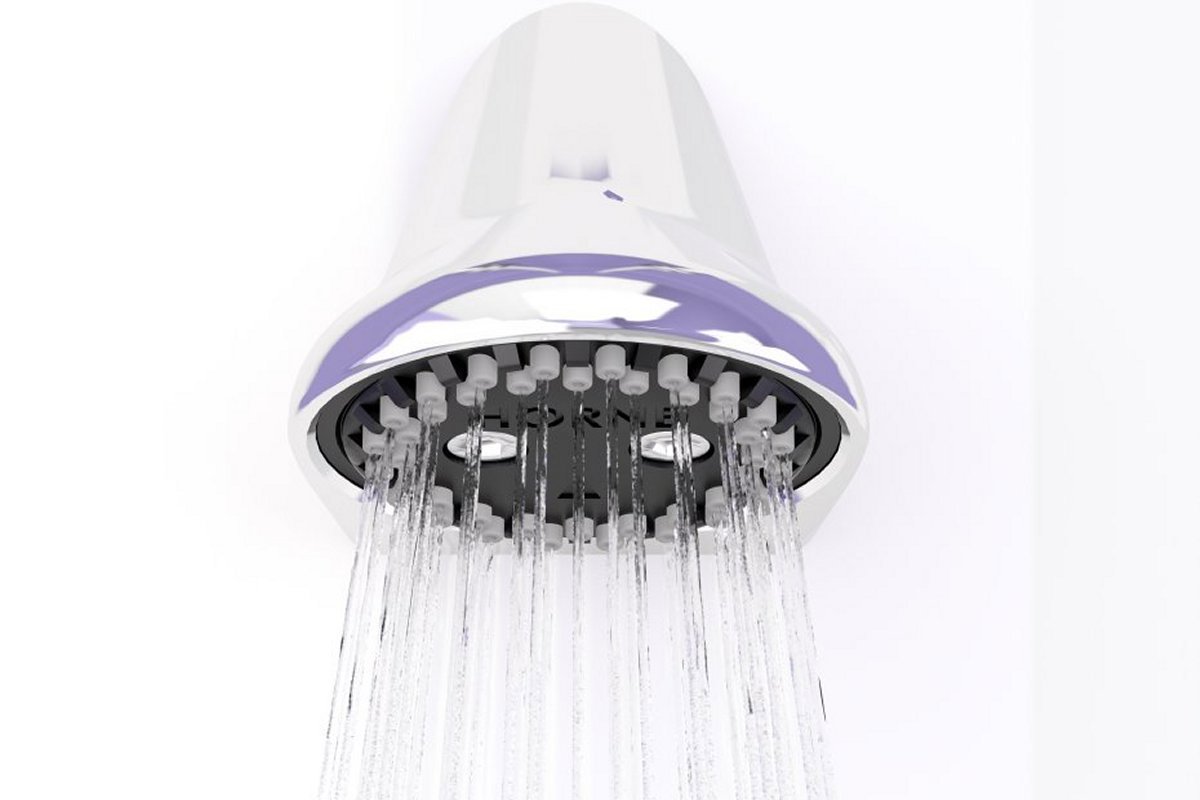

  • Vandal resistant shower head with 2 spray positions and easy clean nozzle array - see our Safe Secure and Versatile too animation
  • Push button timed flow control for water and energy conservation
  • Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
  • Pressure and performance tested pre-plumbed assembly
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
  • Includes flexible braided (SOFT-PEX) inlets suitable for concealed water supply
  • Low level servicing valves for ease of maintenance
  • Highly accessible for quick and simple testing, maintenance and water sampling

Accessories

Standards and Approvals

  • The T109B is named on the Water Technology List (efficient showers) thus is eligible for Enhanced Capital Allowances (tax relief).
  • The HORNE H1503 thermostatic mixing valve is designed to meet the requirements of BS7942:2000, 'Thermostatic mixing valves for use in care establishments' and is approved, under the TMV3 Scheme, to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises).
  • The HORNE H1503 is a WRAS approved product.
  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

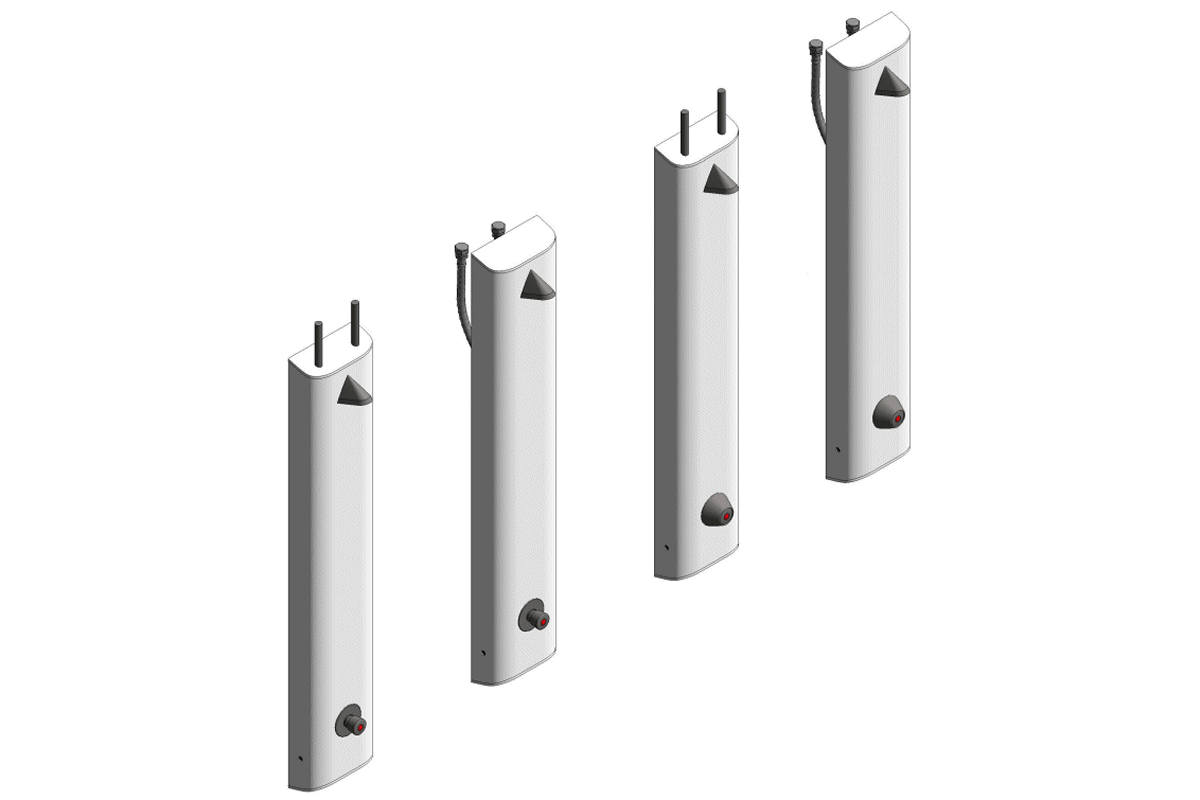

Variants - T109 Range

  • T109A - top entry inlets, standard control

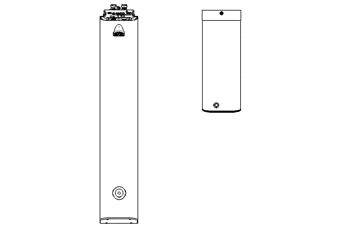

  • T109T4 - top entry inlets, standard control, ILTDU and 465mm Pipe Cover with key slot
  • T109T9 - top entry inlets, standard control, ILTDU and 940mm Pipe Cover with key slot
  • T109ALR - top entry inlets, ligature resistant control
  • T109BLR - rear entry inlets, ligature resistant control
  • T109T4LR - top entry inlets, ligature resistant control, ILTDU and 465mm Pipe Cover with key slot
  • T109T9LR - top entry inlets, ligature resistatn control, ILTDU and 940mm Pipe Cover with key slot

Useful Documents

Related Products

Installations

  • All Saints School, Dagenham
  • Brechin Community Campus
  • Brooksby Melton College Sports Facility
  • Cheadle Hulme Independent School
  • Combs Valley Campsite
  • Crumlin Recreation Grounds, Antrim
  • Denmead School, Hampton
  • Irvine Royal Academy, Ayrshire
  • Viewforth High School, Kirkaldy
