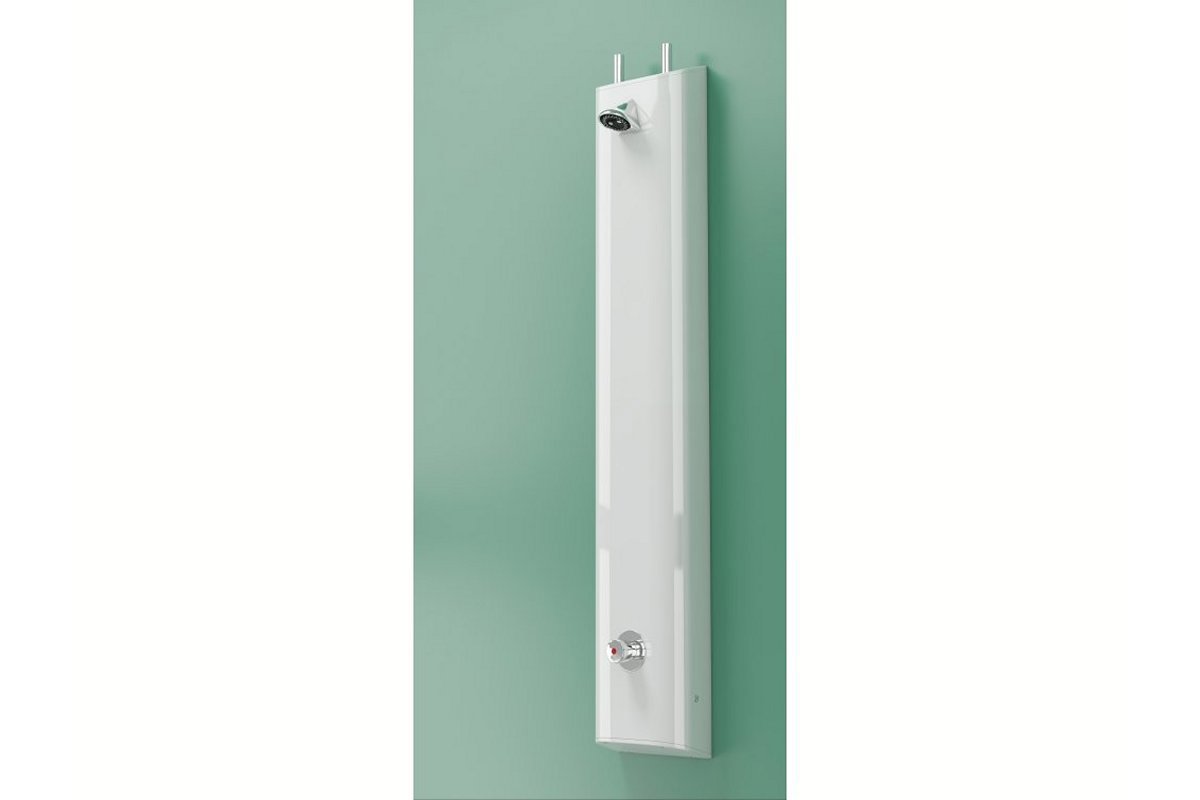

HORNE TSV1 Shower Panel with Timed Flow Control and Vandal Resistant Shower Head

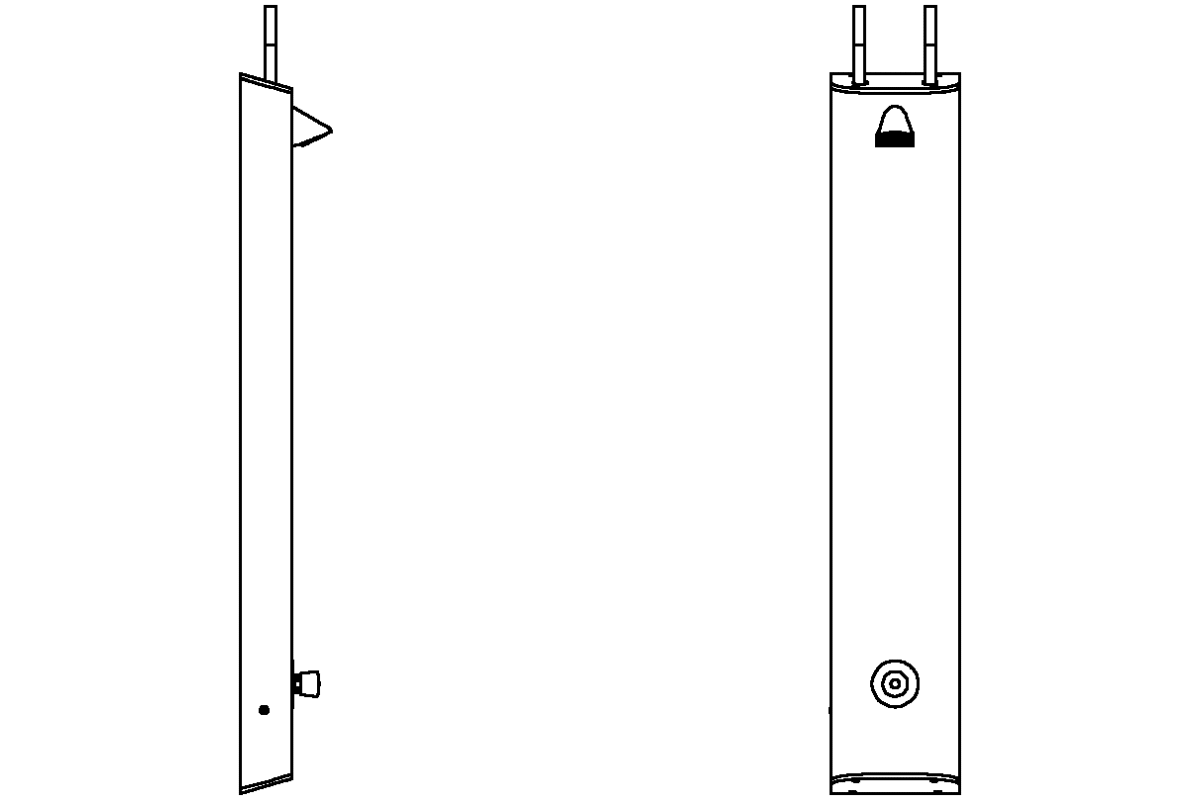

Includes integral Horne 15 H1503 thermostatic mixing valve pre-plumbed within a white epoxy-polyester powder-coated aluminium panel with push button timed flow control and vandal resistant, adjustable and flow regulated shower head in chromium plated finish. Product Reference T109A as per drawing No. D10351. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne 15 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product


Shower provision for new build, refurbishment, retrofit and temporary installations in healthcare, residential care, education, leisure and other institutional settings.

Horne showers for Healthcare Leisure Education markets


  • Robust construction, finish and fittings for extended lifespan
  • Powder-coated panel: RAL 9010, Light Reflective Value = 84
  • Type 3 (healthcare) approved integral Horne 15 thermostatic mixing valve provides reliable and accurate temperature control
  • Push-button timed flow control for water and energy conservation
  • Vandal resistant shower head with 2 spray positions and easy clean nozzle array - see our Safe Secure and Versatile too animation
  • Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
  • Pressure and performance tested pre-plumbed assembly with internal copper piping
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
  • Low level servicing valves for ease of maintenance
  • Highly accessible for quick and simple testing, maintenance and water sampling

Standards and Approvals

  • The shower's internal HORNE 15 TMV is designed to meet the requirements of BS7942:2011, 'Thermostatic mixing valves for use in care establishments' and is approved, as a Type 3 thermostatic mixing valve, to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises).
  • The H1503 is UK Water Reg. 4 approved (materials in contact with water).
  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Variants - T109 Range

  • T109B - rear entry inlets, standard control
  • T109T4 - top entry inlets, standard control, ILTDU and 465mm Pipe Cover with key slot
  • T109T9 - top entry inlets, standard control, ILTDU and 940mm Pipe Cover with key slot
  • T109ALR - top entry inlets, ligature resistant control
  • T109BLR - rear entry inlets, ligature resistant control
  • T109T4LR - top entry inlets, ligature resistant control, ILTDU and 465mm Pipe Cover with key slot
  • T109T9LR - top entry inlets, ligature resistatn control, ILTDU and 940mm Pipe Cover with key slot
