HORNE TSV1 Shower Panel Ligature Resistant with Timed Flow Control and Vandal Resistant Shower Head

T109ALR

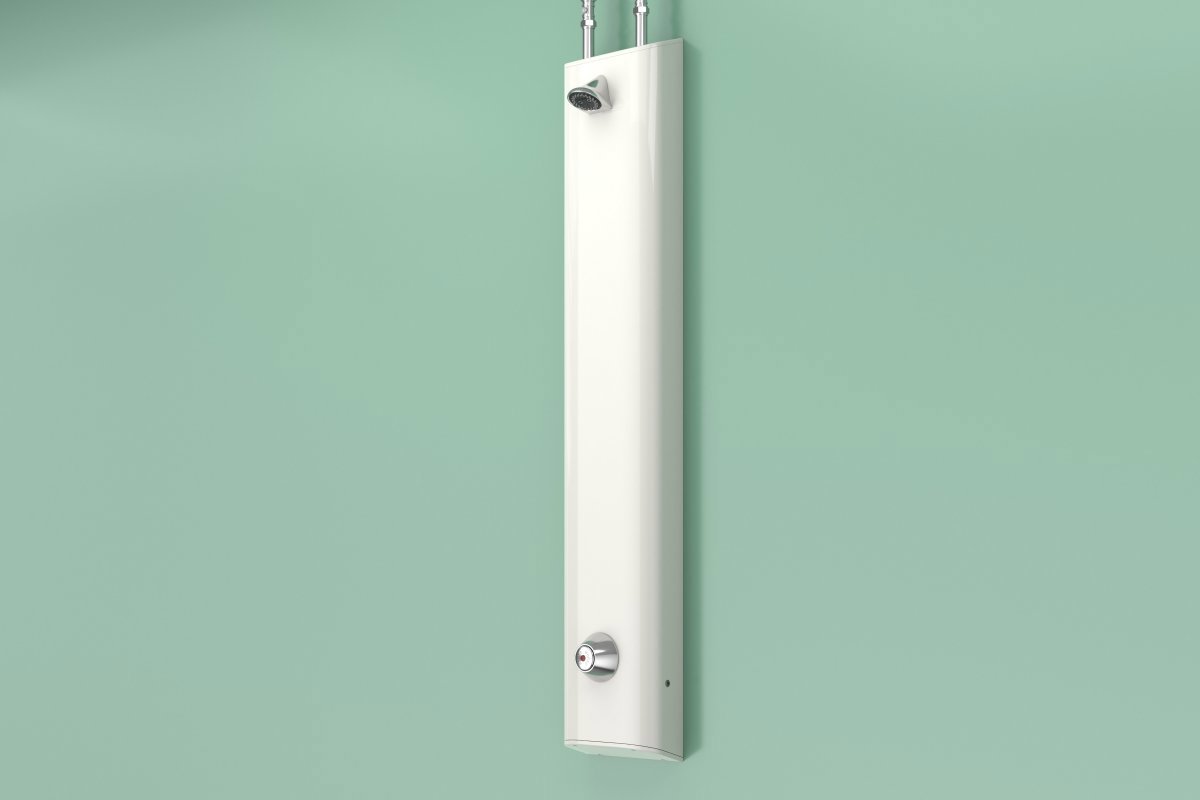

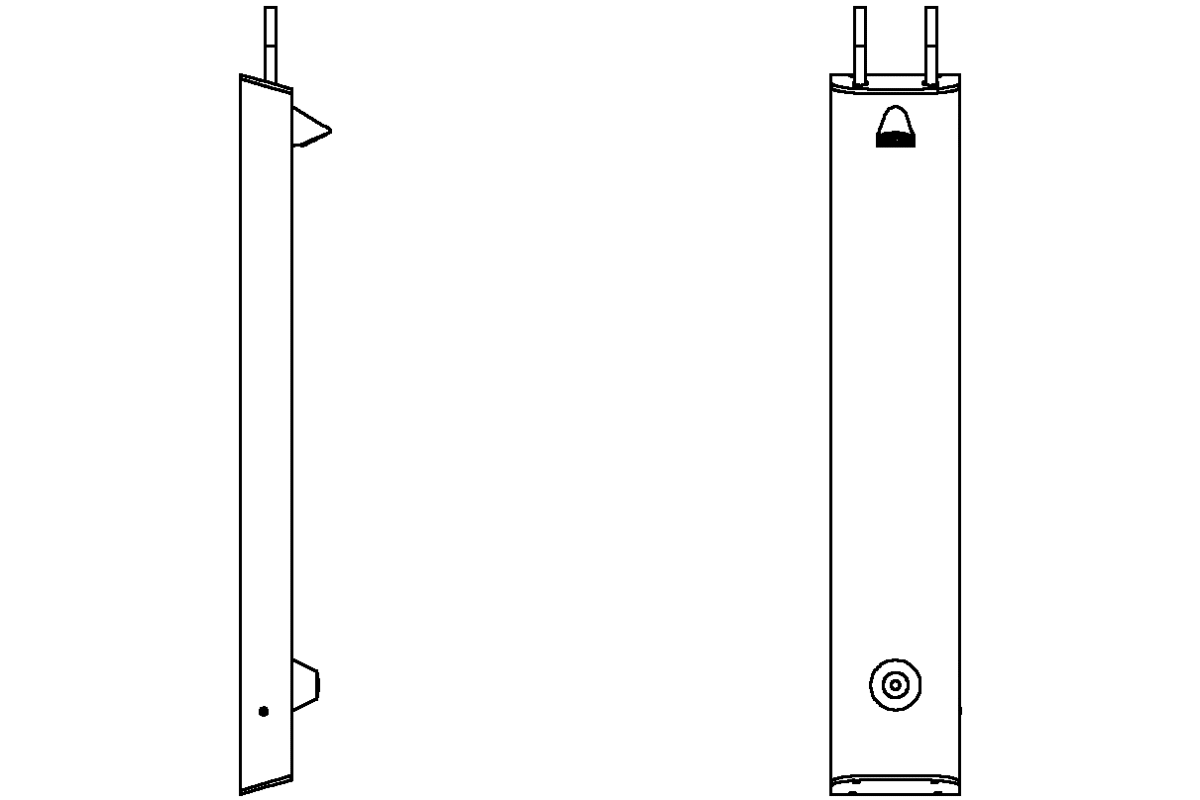

Includes integral TMV3 Scheme Approved Horne 15 H1503 thermostatic mixing valve pre-plumbed within a white powder coated aluminium panel with push button timed flow control with ligature resistant bezel and vandal and ligature resistant, adjustable and flow regulated shower head in chromium plated finish. Product Reference T109ALR as per drawing No. D10352. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne 15 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

Ligature resistant shower provision for new build, refurbishment, retrofit and temporary installations in secure, healthcare, mental health, education, leisure and other institutional settings.

Horne Showers for Secure, Mental Health, Healthcare, Leisure and Education Markets

Features

  • Robust construction, finish and fittings for extended lifespan
  • Powder coated panel: white RAL 9010 with Light Reflective Value = 86.
  • TMV3 approved Horne 15 TMV provides reliable and accurate temperature control
  • Ligature and vandal resistant shower head with 2 spray positions and easy clean nozzle array - see our Safe Secure and Versatile too animation
  • Includes ligature resistant bezel on push button timed flow control
  • Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
  • Pressure and performance tested pre-plumbed assembly with internal copper piping
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installation
  • Low level servicing valves for ease of maintenance
  • Highly accessible for quick and simple maintenance

Standards and Approvals

  • The T109ALR is named on the Water Technology List (efficient showers) thus is eligible for Enhanced Capital Allowances (tax relief).
  • The HORNE H1503 thermostatic mixing valve is designed to meet the requirements of BS7942:2000, 'Thermostatic mixing valves for use in care establishments' and is approved, under the TMV3 Scheme, to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises).
  • The HORNE H1503 thermostatic mixing valve is a WRAS Approved product.
  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Variants - T109 Range

  • T109A - top entry inlets, standard control
  • T109B - rear entry inlets, standard control
  • T109T4 - top entry inlets, standard control, ILTDU and 465mm Pipe Cover with key slot
  • T109T9 - top entry inlets, standard control, ILTDU and 940mm Pipe Cover with key slot
  • T109BLR - rear entry inlets, ligature resistant control
  • T109T4LR - top entry inlets, ligature resistant control, ILTDU and 465mm Pipe Cover with key slot
  • T109T9LR - top entry inlets, ligature resistatn control, ILTDU and 940mm Pipe Cover with key slot
