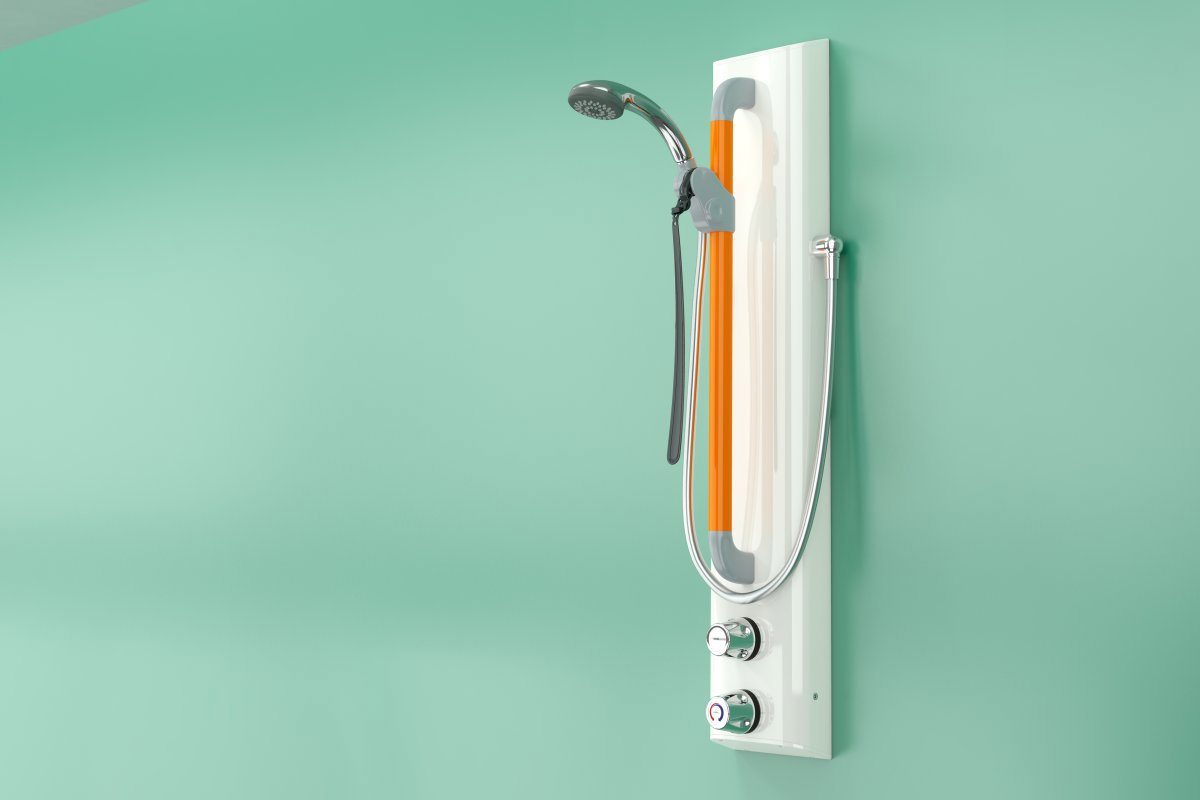

HORNE TSV1 Shower Panel with Riser Rail, Flexible Hose and Single Function Shower Handset

T1Y8B

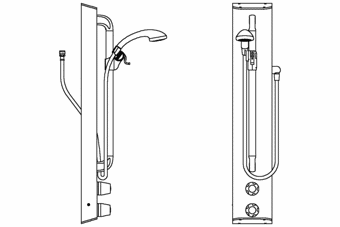

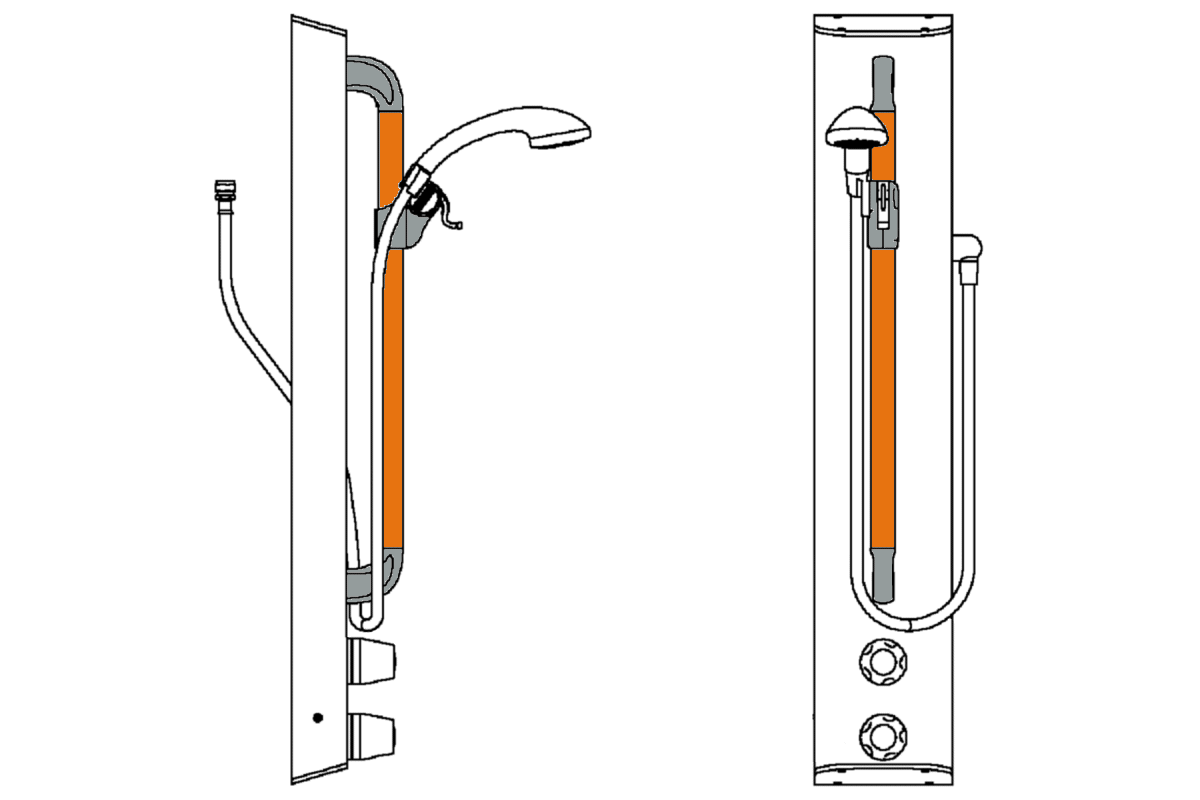

Includes integral thermostatic shower valve pre-plumbed within a white epoxy-polyester powder-coated aluminium panel with hand controls and shower kit, comprising flow regulated chromium plated single function shower hand set with flexible hose, inclusive-design riser mechanism and riser rail in Deep Orange. Connections by SOFT-PEX flexible braided hose for concealed water supply. Product Reference T1Y8B as per drawing D10341. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne TSV1 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

Shower provision for new build, refurbishment, retrofit and temporary installations in healthcare, education, leisure and other institutional settings.

Horne showers for Healthcare Leisure Education markets

Features

  • Robust construction, finish and fittings for extended lifespan
  • powder coated panel: white RAL 9010 with Light Reflective Value = 84
  • TMV3 approved dual control shower valve provides reliable and accurate temperature control
  • Shower kit comprising anti-kink 1.25m hose, single function easy-clean shower handset and robust and inclusive-design deep orange riser rail (RAL 2011, LRV= 27), handset holder and riser mechanism - easy to see, slide and adjust for users with limited sight and hand mobility
  • Handset carriage mechanism with Release Extender allows shorter or wheelchair users to easily lower a high-set shower handset
  • Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
  • Pressure and performance tested pre-plumbed assembly
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
  • Includes flexible (Soft-PEX) inlets suitable for concealed water supplies
  • Low level servicing valves for ease of maintenance
  • Highly accessible for quick and simple testing, maintenance and water sampling





Accessories

Standards and Approvals

  • The HORNE TSV1-3 shower valve is designed to meet the requirements of BS7942:2000, 'Thermostatic mixing valves for use in care establishments' and is approved, under the TMV3 Scheme, to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises).
  • All materials in contact with water are WRAS approved.
  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Variants - 1Y8 Range

  • T1Y8A - top entry inlets, standard controls
  • T1Y8T4 - top entry inlets, standard controls, ILTDU and 465mm pipe cover with key slot
  • T1Y8T9 - top entry inlets, standard controls, ILTDU and 940mm pipe cover with key slot
  • T1Y8A2L - top entry inlets, BS 8300 compliant lever controls.
  • T1Y8B2L - rear entry inlets with Soft-Pex flexible braided hose, lever controls
  • T1Y8T42L - top entry inlets, lever controls, ILTDU and 465mm pipe cover with key slot
  • T1Y8T92L - top entry inlets, lever controls, ILTDU and 940mm pipe cover with key slot
