HORNE TSV1 Shower Panel with Riser Rail, Flexible Hose and Single Function Shower Head

T1Y8A

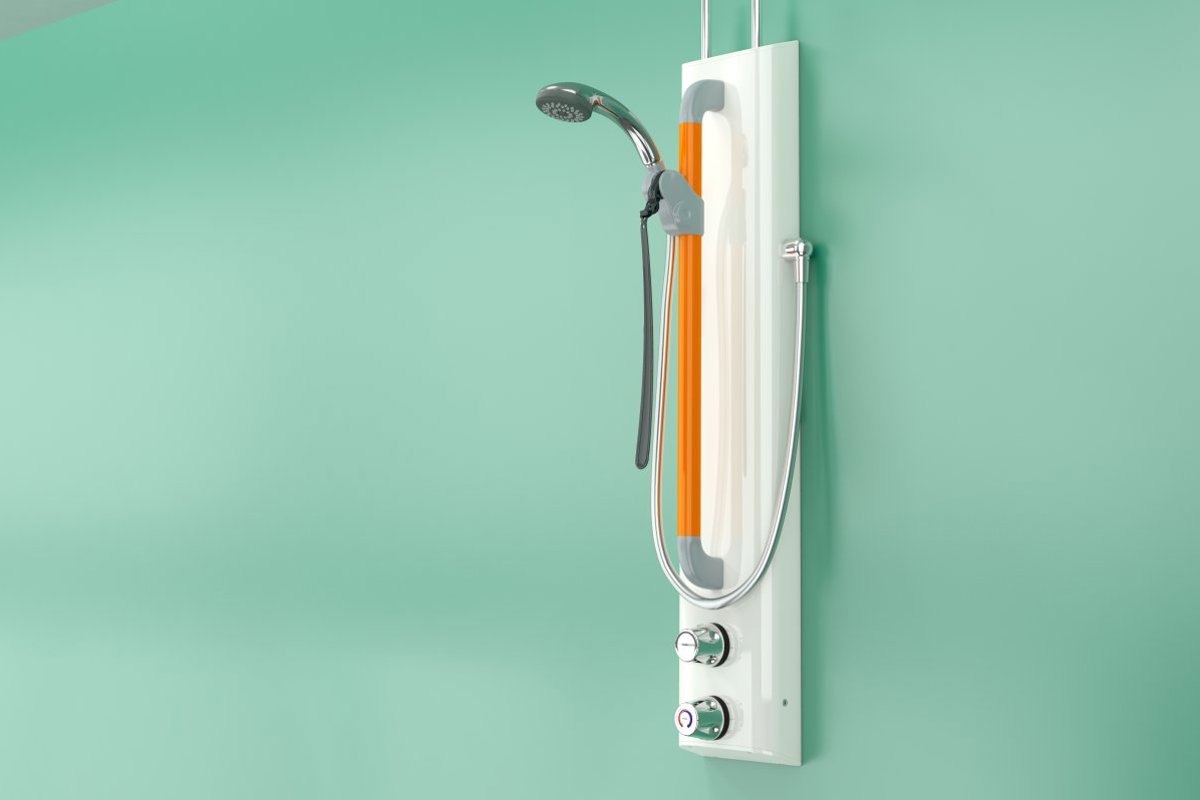

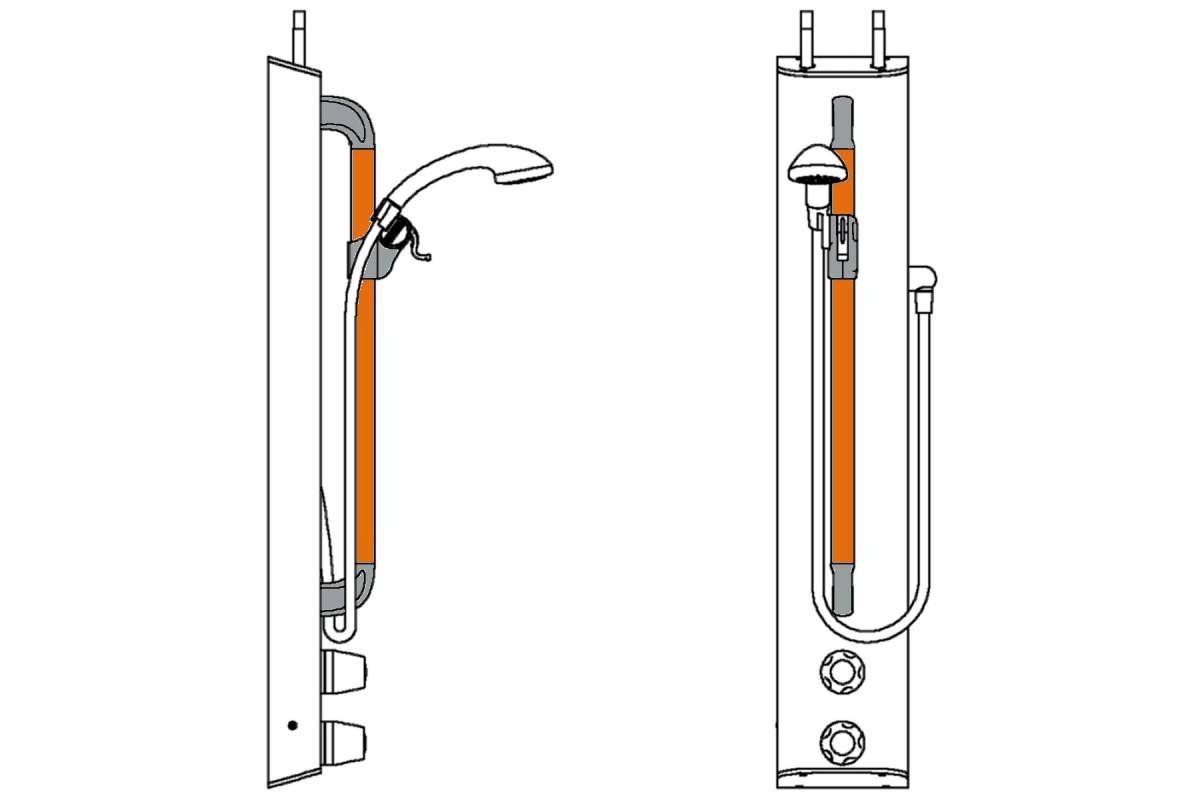

Includes integral TSV1-3 thermostatic shower valve pre-plumbed within a white epoxy-polyester powder-coated aluminium panel with hand controls and shower kit, comprising flow regulated chromium-plated single function shower hand set with flexible hose and riser rail in Deep Orange. Product Reference T1Y8A as per drawing No. D10329. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne TSV1 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

T1Y8A2L shower in dementia en-suite with highly visible supportive grab and riser bar

Horne Accessible Showering - Changing Places

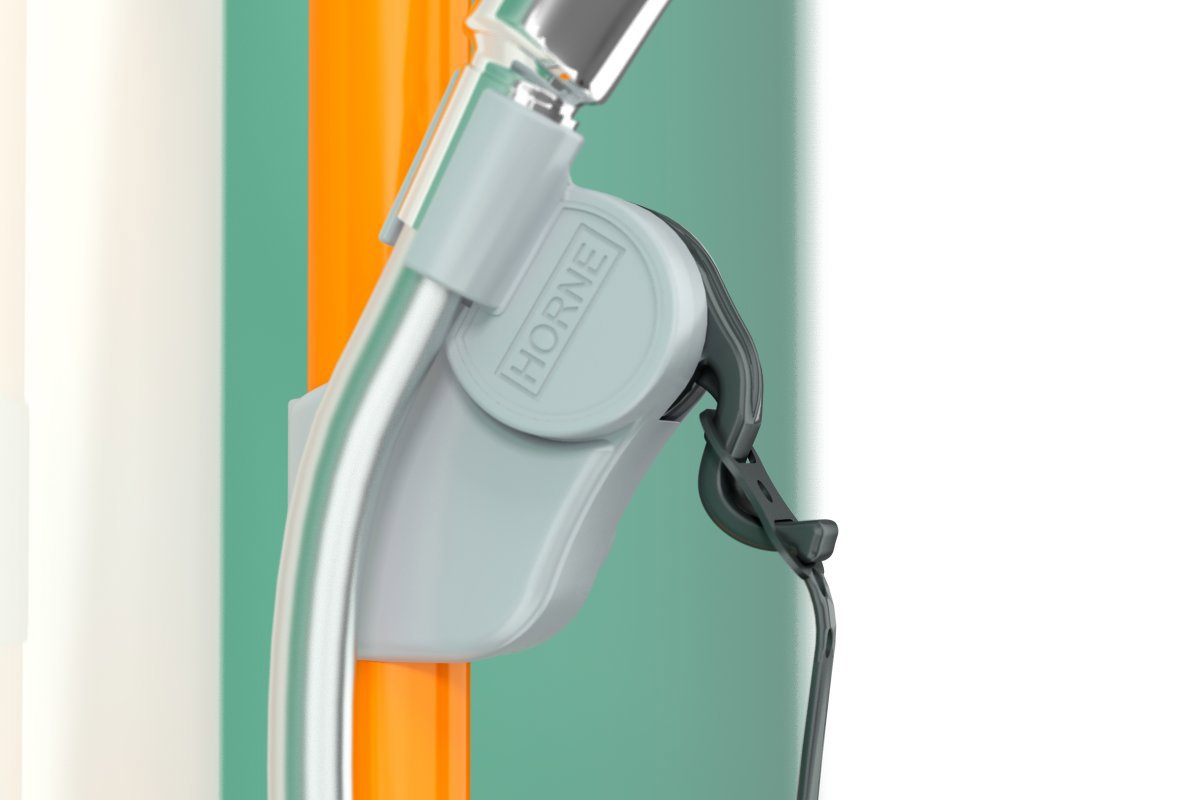

Release mechanism on orange Horne shower riser rail

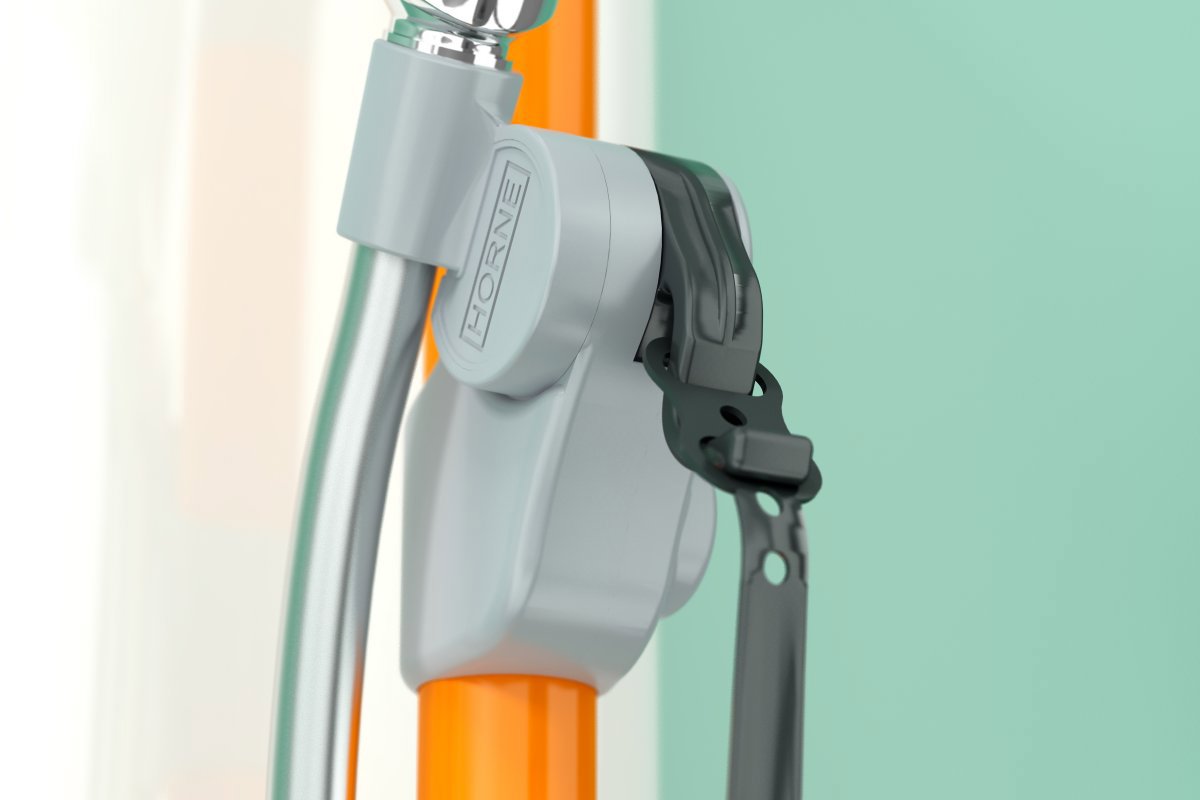

Riser release mechanism on orange Horne shower riser rail

Single function handset, hose and Horne orange riser rail

Standard controls for Horne TSV1 shower panels

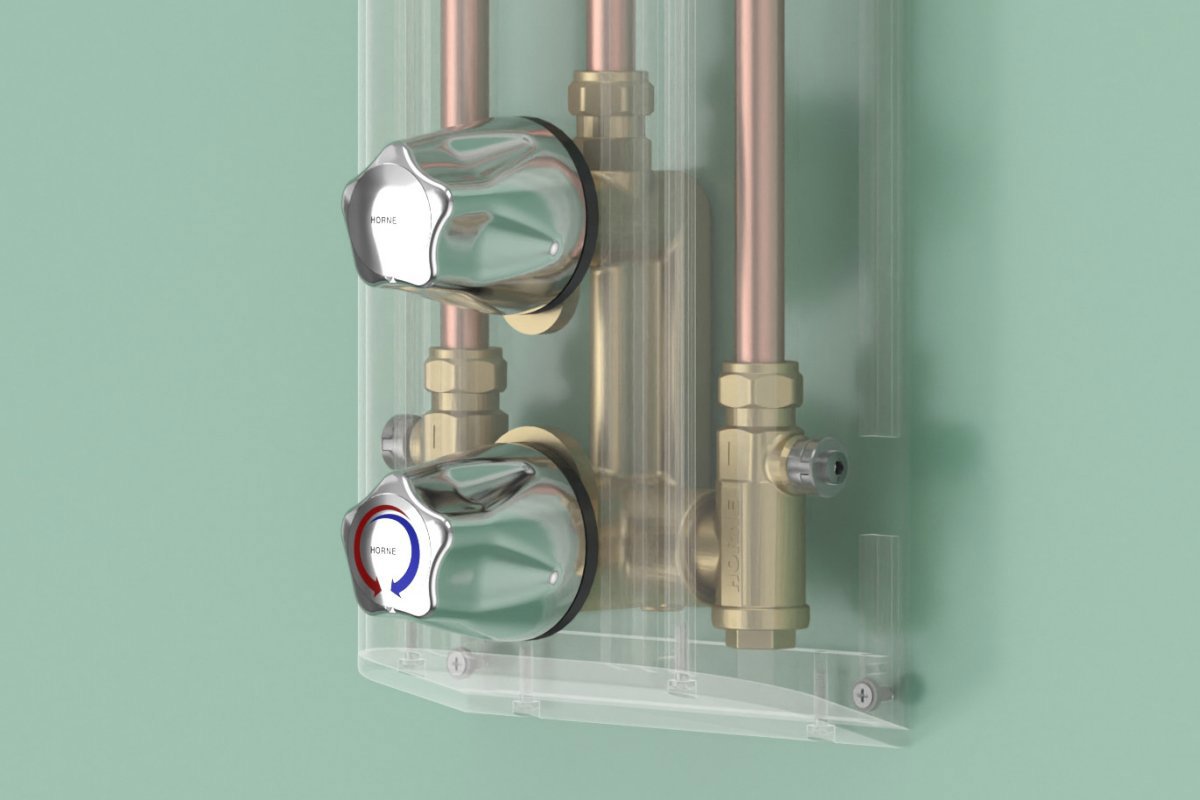

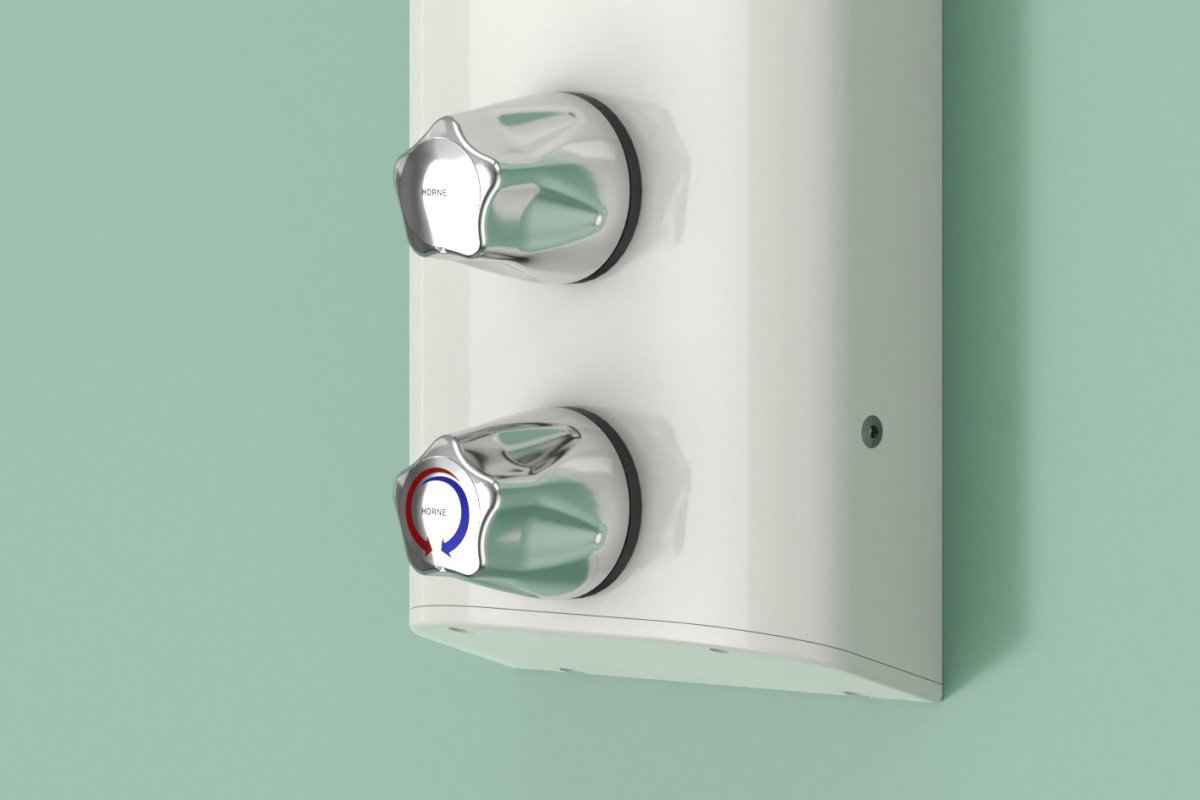

Horne TSV1 Shower valve with standard control knobs (within shower panel)

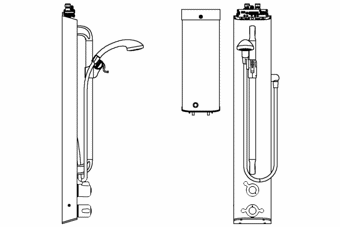

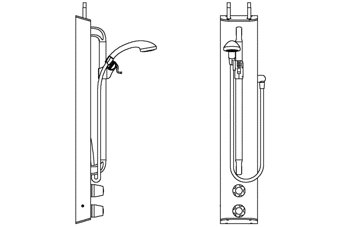

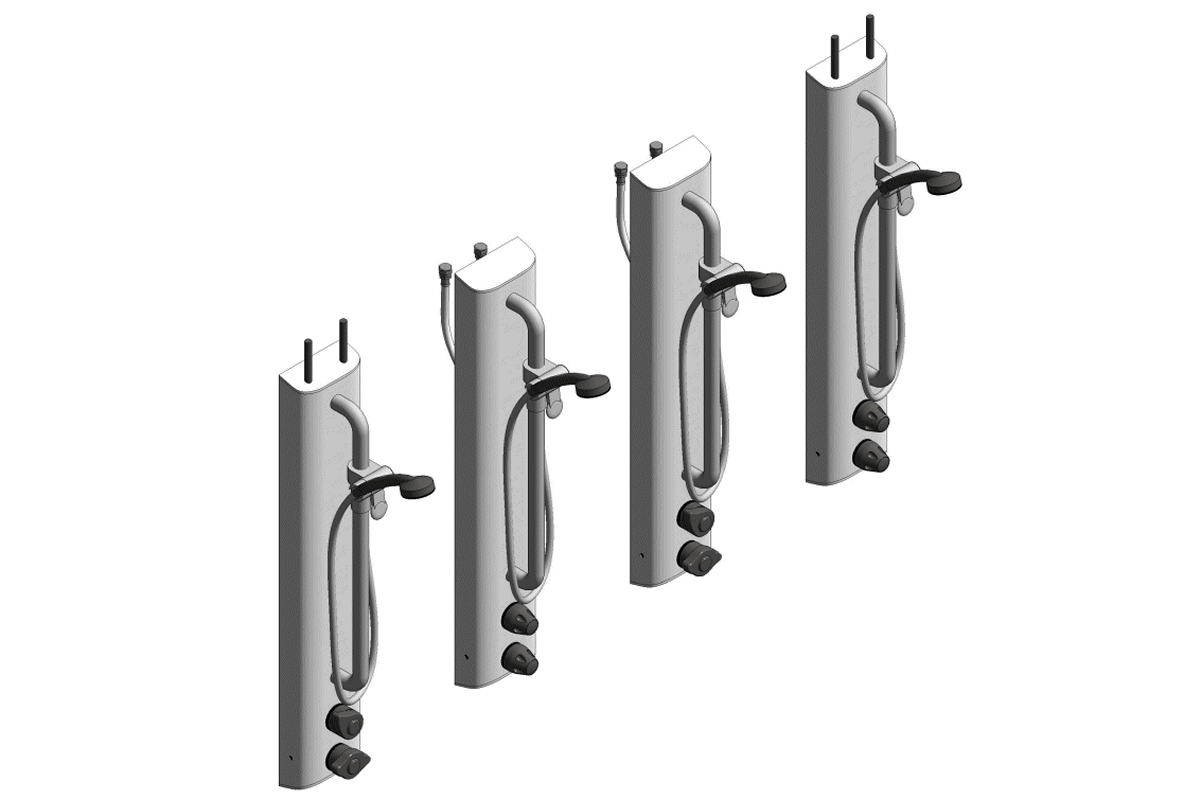

T108A2L / T108B / T108B2L / T108A BIM Screengrab

Applications

Shower provision for new build, refurbishment, retrofit and temporary installations in healthcare, residential care, education, leisure and other institutional settings.

Horne showers for Healthcare Leisure Education markets

Features

Robust construction, finish and fittings for extended lifespan
Powder-coated panel: white RAL 9010 with Light Reflective Value (LRV) = 84
Type 3 (healthcare) approved dual control shower valve provides reliable and accurate temperature control
Shower kit comprising anti-kink 1.25m hose, single function easy-clean shower handset and robust riser rail in deep orange, handset holder and riser mechanism - easy to see, slide and adjust for users with limited sight and hand mobility
Handset carriage mechanism with Release Extender allows shorter or wheelchair users to easily lower a high-set shower handset
Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
Pressure and performance tested pre-plumbed assembly with internal copper piping
Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
Low-level servicing valves for ease of maintenance

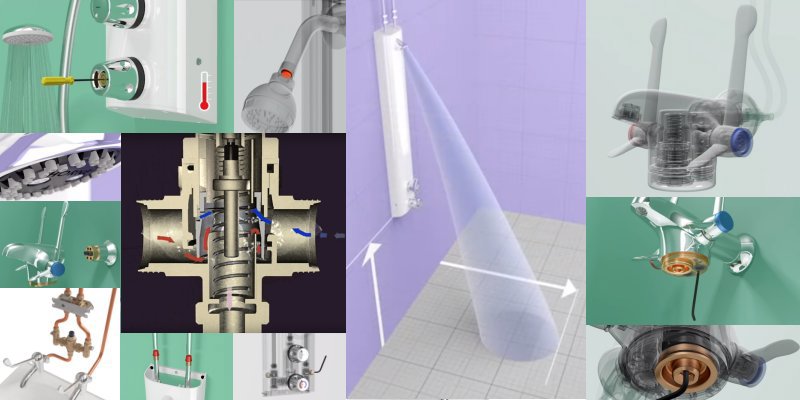

Highly accessible for quick and simple testing, maintenance and water sampling

Accessories

2 metre hose
Pipe cover with same profile as panel
Wall-mounted supportive grab rails
TSV1 Flushing Kit
Monitoring Kit
Lever Controls for retrofit alteration to -2L variant

Standards and Approvals

The HORNE TSV1-3 shower valve is designed to meet the requirements of BS7942:2011, 'Thermostatic mixing valves for use in care establishments' and is approved as a Type 3 TMV to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises)
The HORNE TSV1-3 is approved to Reg 4 (materials in contact with water) of the Water Fitting Regulations 1999
All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Variants - T1Y8 Range

T1Y8B - rear entry inlets, standard controls
T1Y8T4 - top entry inlets, standard controls, ILTDU and 465mm pipe cover with key slot
T1Y8T9 - top entry inlets, standard controls, ILTDU and 940mm pipe cover with key slot
T1Y8A2L - top entry inlets, BS 8300 compliant lever controls
T1Y8B2L - rear entry inlets, BS 8300 compliant lever controls
T1Y8T42L - top entry inlets, lever controls, ILTDU and 465mm pipe cover with key slot
T1Y8T92L - top entry inlets, lever controls, ILTDU and 940mm pipe cover with key slot
