HORNE Thermostatic Shower Panel with Lever Temperature Control, Timed Flow Control, Integral ILTDU and Pipe Cover

T206T41L

Includes Thermostatic Shower Valve and In-Line Thermal Disinfection Unit ILTDU pre-plumbed (in copper) within a white epoxy-polyester powder-coated aluminium panel with push button timed flow control lever temperature adjustment, easy-clean swivel shower head in chromium plated finish, flow regulator and 465mm pipe cover with ILTDU key slot. Product Reference T206T41L as per drawing No. D11366. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne TSV1 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

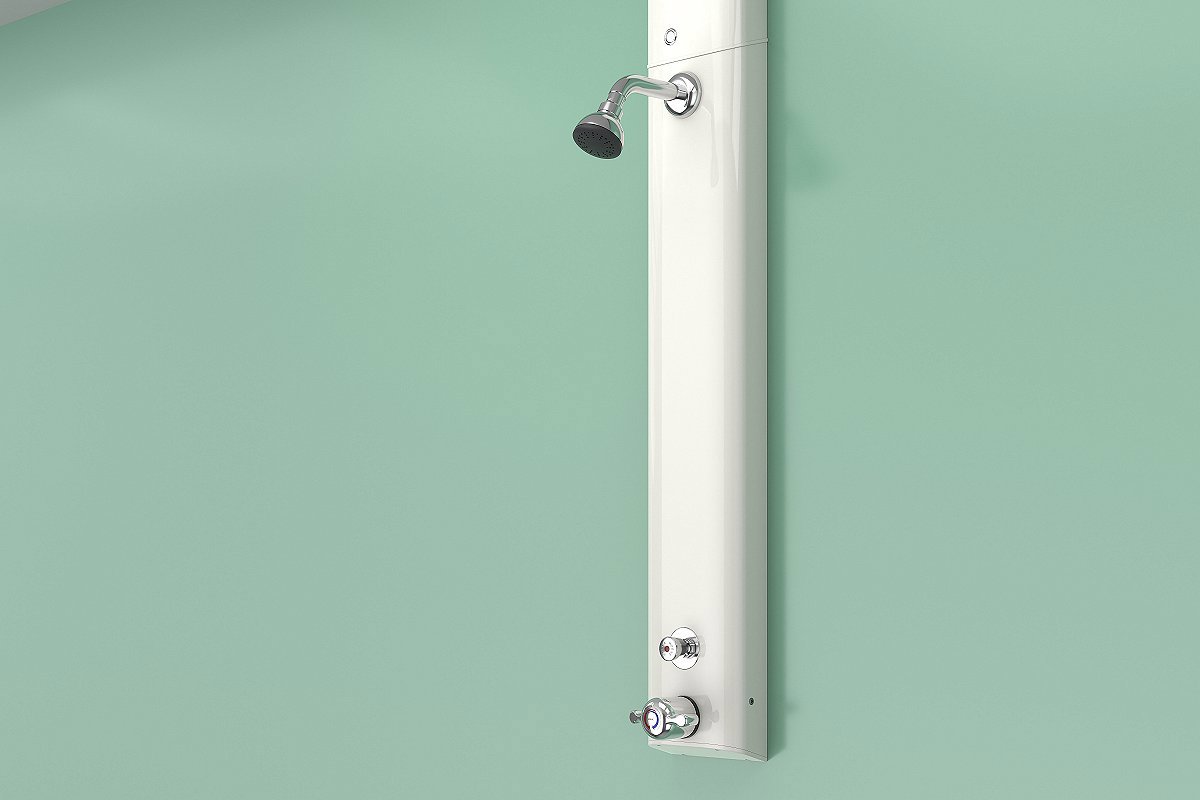

Horne shower panel T206T#1L with lever control and integral In-line Thermal Disinfection Unit

Pipe cover with ILTDU access slot over swivel shower head - Horne showers

Thermal disinfection of Horne shower panel with integral ILTDU

TFC with lever operated temperature control (Horne Showers)

Horne shower valve with timed flow and lever temperature controls (within shower panel)

Horne Shower component -single function swivel head

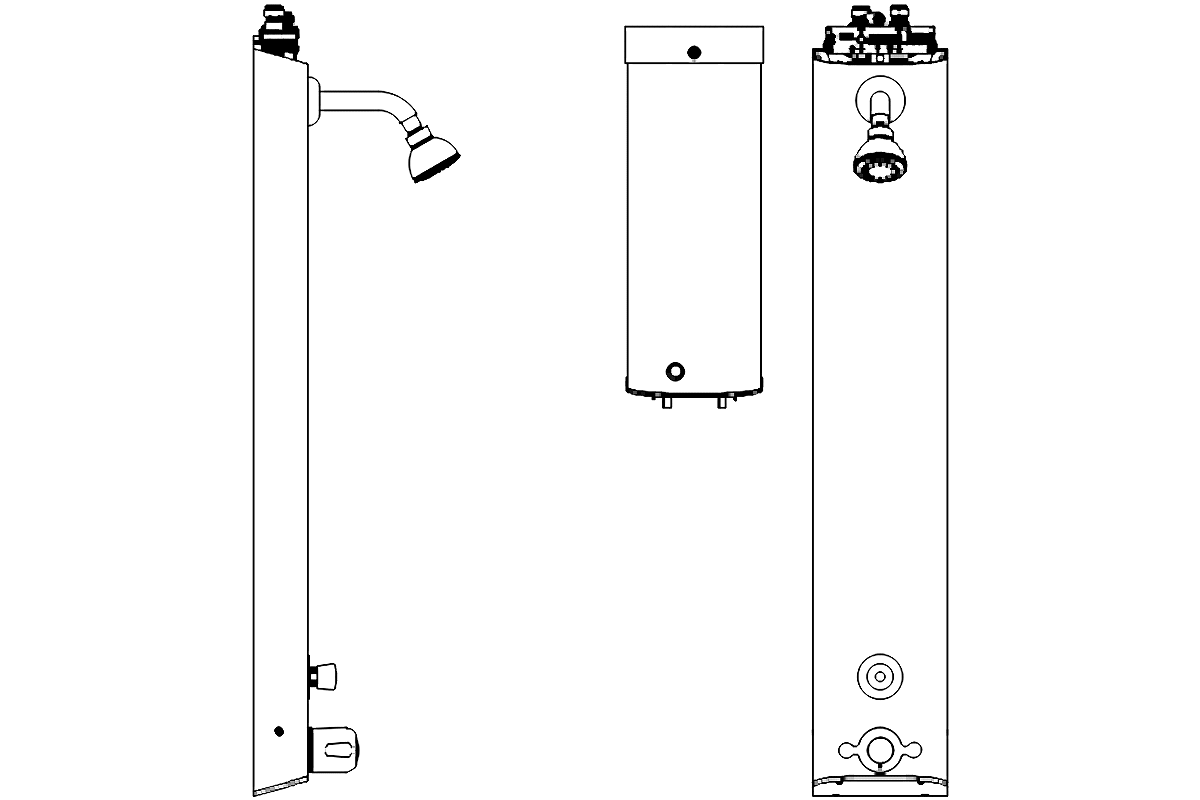

Line Drawing Horne shower panel T206T41L

Applications

Shower provision for new build, refurbishment, retrofit and temporary installations in sport & leisure, education and other institutional settings where water and energy conservation is of importance.

Horne showers for the Leisure & Education markets

Features

Robust construction, finish and fittings for extended lifespan
Powder-coated panel: white RAL 9010 with Light Reflective Value = 84
Type 3 (healthcare) approved thermostatic shower valve and push button timed flow control provides reliable and accurate temperature control while conserving water
Temperature adjustment by lever control for easy operation
Easy clean 3 function swivel shower head in chromium plated finish
Integral ILTDU in-line thermal disinfection unit for control of retrograde contaminants
465mm long Pipe Cover in same profile as panel with key slot for ILTDU operation
Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
Pressure and performance tested pre-plumbed assembly with internal copper piping
Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
Low level servicing valves for ease of maintenance
Highly accessible for quick and simple testing, maintenance and water sampling

Accessories

Standards and Approvals

The HORNE TSV-TFC shower valve is designed to meet the requirements of BS7942:2011, 'Thermostatic mixing valves for use in care establishments' and is approved as a Type 3 Thermostatic mixing valve to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises)
The HORNE TSV-TFC shower valve is approved to Reg 4 (materials in contact with water) of the Water Fitting Regulations 1999
All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Variants - T206 Range

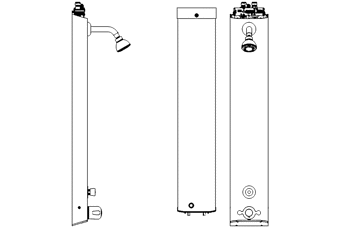

T206T91L - top entry inlets, temperature control lever, ILTDU and 940mm Pipe Cover with key slot.
T206A1L - top entry inlets, temperature control lever
T206B1L - rear entry inlets, temperature control lever
T206A - top entry inlets, standard controls
T206B - rear entry inlets, standard controls
T206T4 - top entry inlets, standard controls, ILTDU and 465mm Pipe Cover with key slot
T206T9 - top entry inlets, standard controls, ILTDU and 940mm Pipe Cover with key slot
