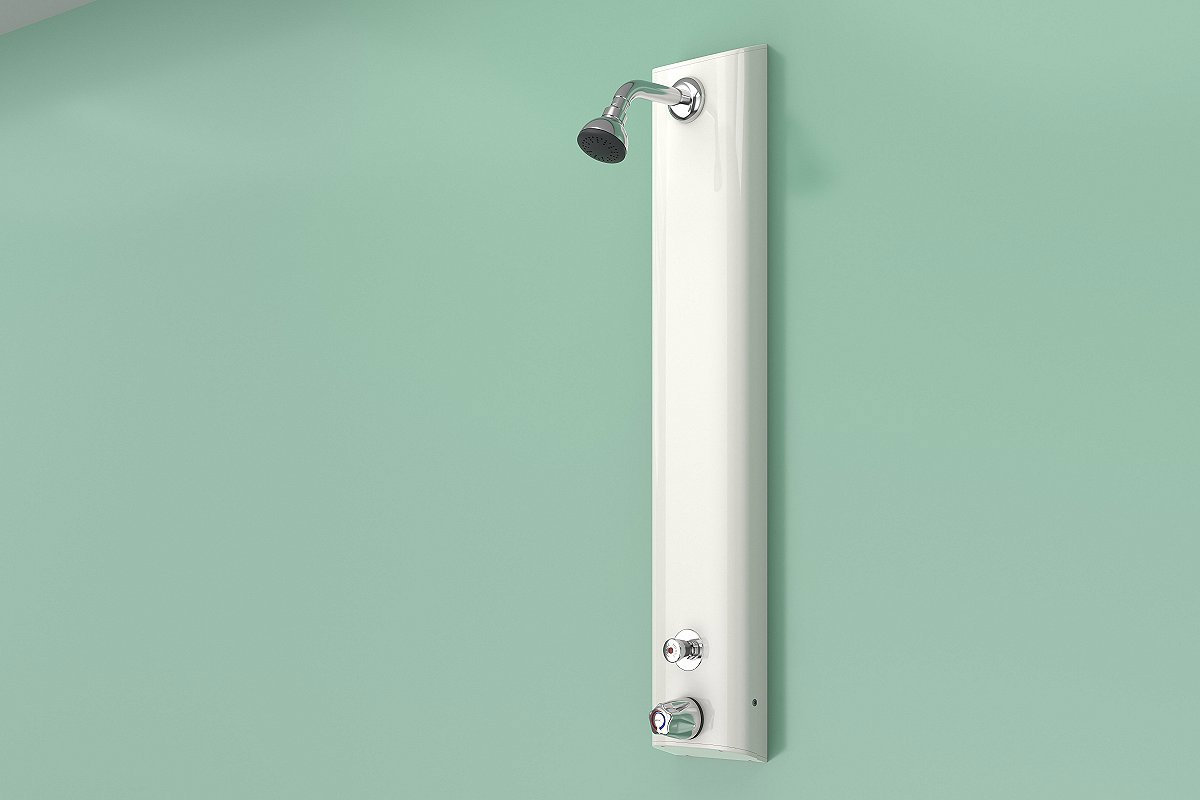

HORNE Thermostatic Shower Panel with Temperature Control, Timed Flow Control and Swivel Shower Head

T206B

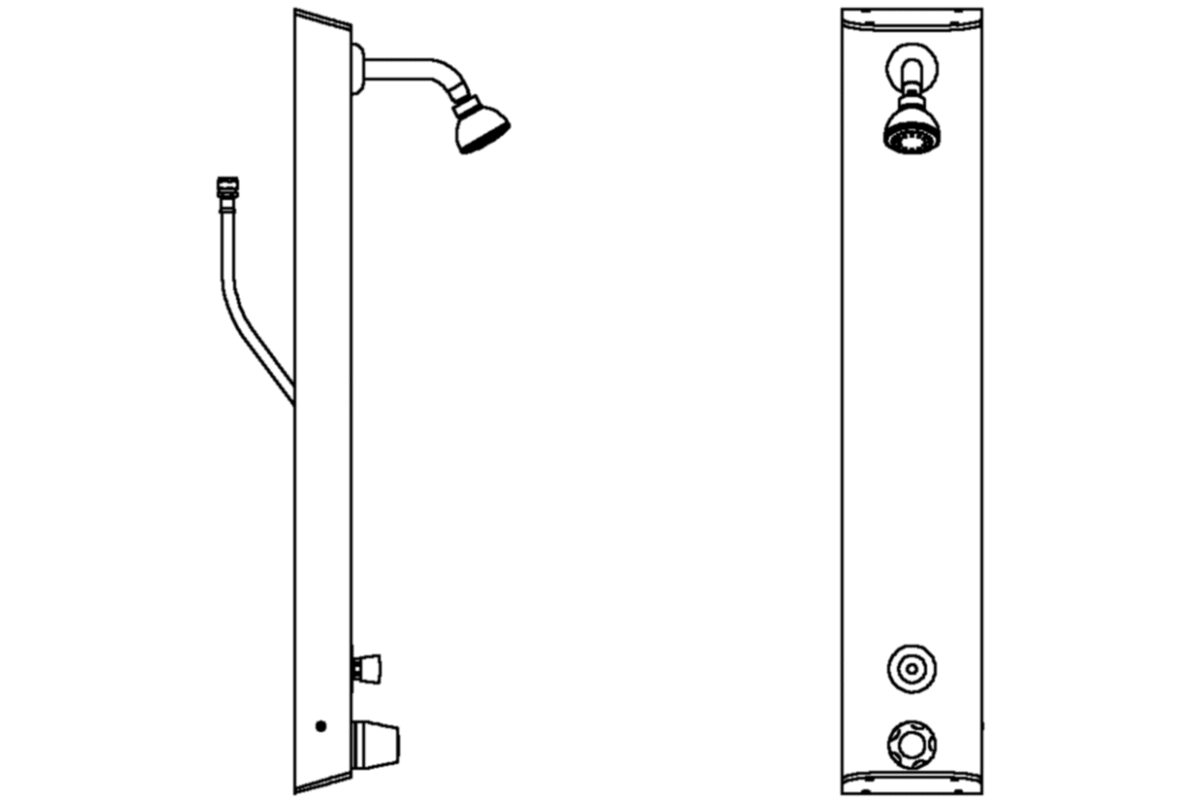

Includes integral thermostatic shower valve pre-plumbed within a white epoxy-polyester powder-coated aluminium panel with push button timed flow control, temperature adjustment and swivel shower head in chromium plated finish. Connections by SOFT-PEX flexible braided hose for concealed water supply. Product Reference T206B as per drawing D10362. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne TSV1 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Features

  • Robust construction, finish and fittings for extended lifespan
  • Powder-coated panel: white RAL 9010 with Light Reflective Value = 84
  • Integrated thermostatic shower valve and push-button timed flow control provides reliable and accurate temperature control while conserving water
  • Fixed swivel head for directional flow with easy-clean spray face
  • Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
  • Pressure and performance tested pre-plumbed assembly
  • Includes flexible braided inlets with SOFT-PEX liner suitable for concealed water supplies.
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
  • Low level servicing valves for ease of maintenance
  • Highly accessible for quick and simple testing, maintenance and water sampling

Accessories

Standards and Approvals

  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Variants - T206 Range

  • T206B - rear entry inlets, standard controls

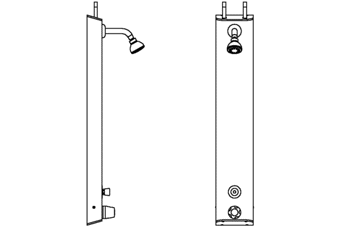

  • T206T4 - top entry inlets, standard controls, ILTDU and 465mm Pipe Cover with key slot
  • T206T9 - top entry inlets, standard controls, ILTDU and 940mm Pipe Cover with key slot
  • T206A1L - top entry inlets, temperature control lever
  • T206B1L - rear entry inlets, temperature control lever
  • T206T41L - top entry inlets, temperature control lever, ILTDU and 465mm Pipe Cover with key slot
  • T206T91L - top entry inlets, temperature control lever, ILTDU and 940mm Pipe Cover with key slot

Useful Documents

Related Products

recent Installations

  • Banham Zoo Norfolk
  • Bannatyne Health Clubs (various locations)
  • The Quays Swimming Centre, Southampton
  • Victoria Barracks, Ballater
  • Wern Farm Caravan Park
  • Worksop College, Boys Boarding House
