HORNE Thermostatic Shower Panel with Integral ILTDU and Pipe Cover

T206T4

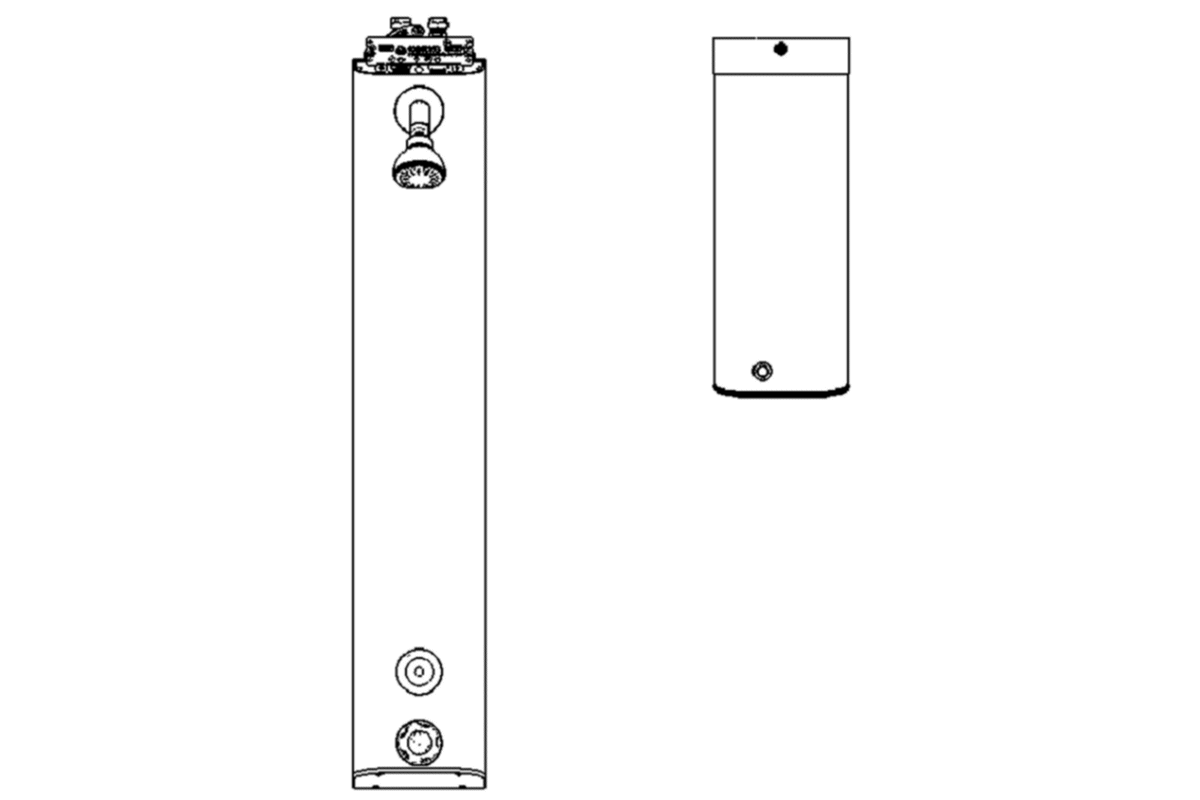

Includes Thermostatic Shower Valve and In-Line Thermal Disinfection Unit ILTDU pre-plumbed (in copper) within a white epoxy-polyester powder-coated aluminium panel with push button timed flow control, temperature adjustment, easy-clean swivel shower head in chromium plated finish, flow regulator and 465mm pipe cover with ILTDU key slot. Product Reference T206T4 as per drawing No. D11364. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne TSV1 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

Shower provision for new build, refurbishment, retrofit and temporary installations in sport & leisure, education and other institutional settings where water and energy conservation is of importance.

Horne showers for the Leisure & Education markets

Features

  • Robust construction, finish and fittings for extended lifespan
  • Powder-coated panel: white RAL 9010 with Light Reflective Value = 84
  • Type 3 (healthcare) approved thermostatic shower valve and push button timed flow control provides reliable and accurate temperature control while conserving water
  • Easy clean 3 function swivel shower head
  • Integral ILTDU in-line thermal disinfection unit for control of retrograde contaminants
  • 465mm long Pipe Cover in same profile as panel with key slot for ILTDU operation
  • Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
  • Pressure and performance tested pre-plumbed assembly with internal copper piping
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
  • Low level servicing valves for ease of maintenance
  • Highly accessible for quick and simple testing, maintenance and water sampling

Accessories











Standards and Approvals

  • The HORNE TSV-TFC shower valve is designed to meet the requirements of BS7942:2011, 'Thermostatic mixing valves for use in care establishments' and is approved as a Type 3 Thermostatic mixing valve to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises)
  • The HORNE TSV-TFC shower valve is approved to Reg 4 (materials in contact with water) of the Water Fitting Regulations 1999
  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224



Variants - T206 Range

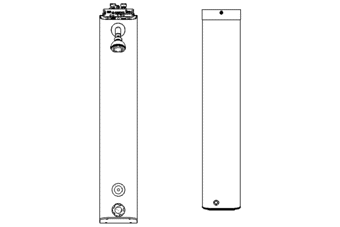

  • T206T9 - top entry inlets, standard controls, ILTDU and 940mm Pipe Cover with key slot
  • T206A - top entry inlets, standard controls
  • T206B - rear entry inlets, standard controls
  • T206A1L - top entry inlets, lever temperature control
  • T206B1L - rear entry inlets, lever temperature control
  • T206T41L - top entry inlets, lever temperature control, ILTDU and 465mm Pipe Cover with key slot
  • T206T91L - top entry inlets, lever temperature control, ILTDU and 940mm Pipe Cover with key slot.
