HORNE Thermostatic Shower Panel with Temperature Control, Timed Flow Control and Swivel Shower Head

T206A

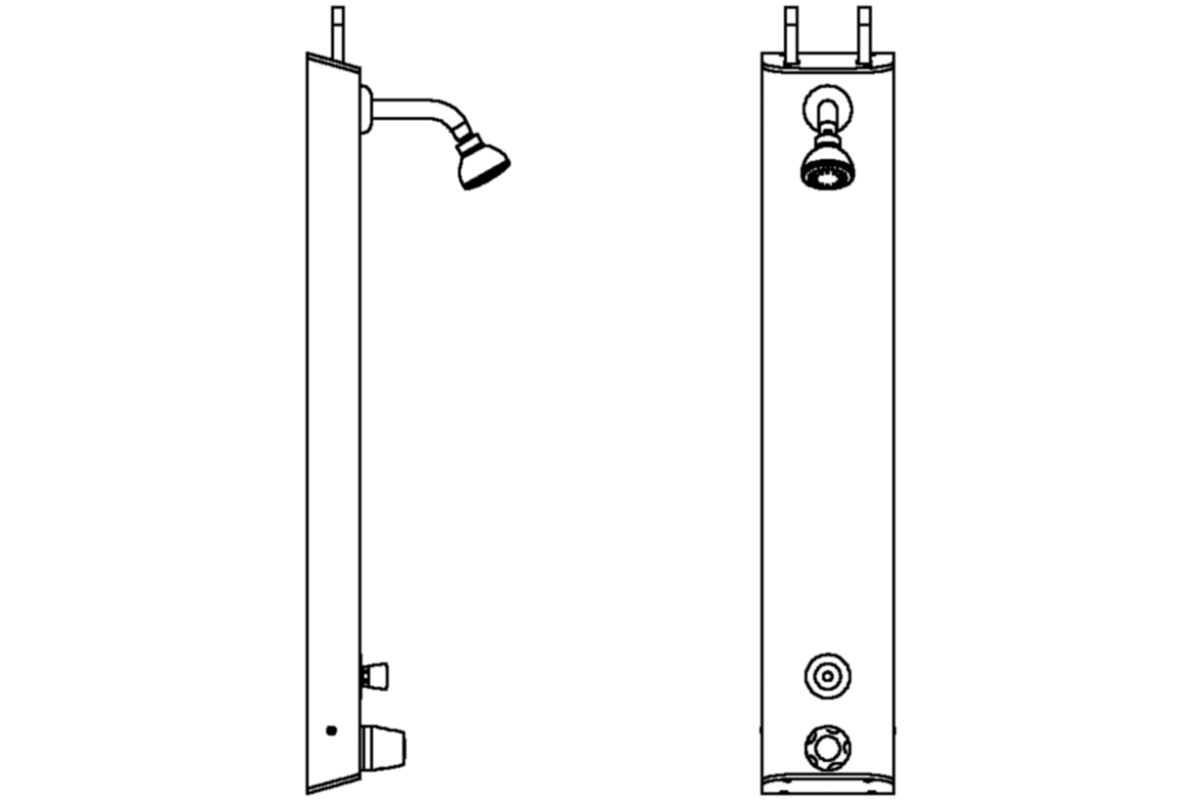

Includes integral thermostatic shower valve pre-plumbed within a white powder coated aluminium panel with push button timed flow control, temperature adjustment and swivel shower head in chromium plated finish. Product Reference T206A as per drawing No. D10347. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne TSV1 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

Shower provision for new build, refurbishment, retrofit and temporary installations in sport & leisure, education and other institutional settings where water and energy conservation is of importance.

Horne showers for the Leisure & Education markets

Features

  • Robust construction, finish and fittings for extended lifespan
  • Powder coated panel: white RAL 9010 with Light Reflective Value = 86.
  • Integrated themostatic shower valve and push button timed flow control provides reliable and accurate temperature control while conserving water
  • Fixed swivel head for directional flow with easy-clean spray face
  • Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
  • Pressure and performance tested pre-plumbed assembly with internal copper piping
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
  • Low level servicing valves for ease of maintenance
  • Highly accessible for quick and simple maintenance

Standards and Approvals

  • The T206A is named on the Water Technology List (efficient showers) thus is eligible for Enhanced Capital Allowances (tax relief).
  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Variants - 206 Range

  • T206B - rear entry inlets, standard controls
  • T206T4 - top entry inlets, standard controls, ILTDU and 465mm Pipe Cover with key slot
  • T206T9 - top entry inlets, standard controls, ILTDU and 940mm Pipe Cover with key slot
  • T206A1L - top entry inlets, temperature control lever
  • T206B1L - rear entry inlets, temperature control lever
  • T206T41L - top entry inlets, temperature control lever, ILTDU and 465mm Pipe Cover with key slot
  • T206T91L - top entry inlets, temperature control lever, ILTDU and 940mm Pipe Cover with key slot

Useful Documents

Related Products

Installations

  • Bannatyne Health Clubs (various locations)
  • The Quays Swimming Centre, Southampton
  • Worksop College, Boys Boarding House
