HORNE TSV1 SHOWER PANEL With Riser Rail, Hose and Handset, integral ILTDU and Pipe Cover

T107T9

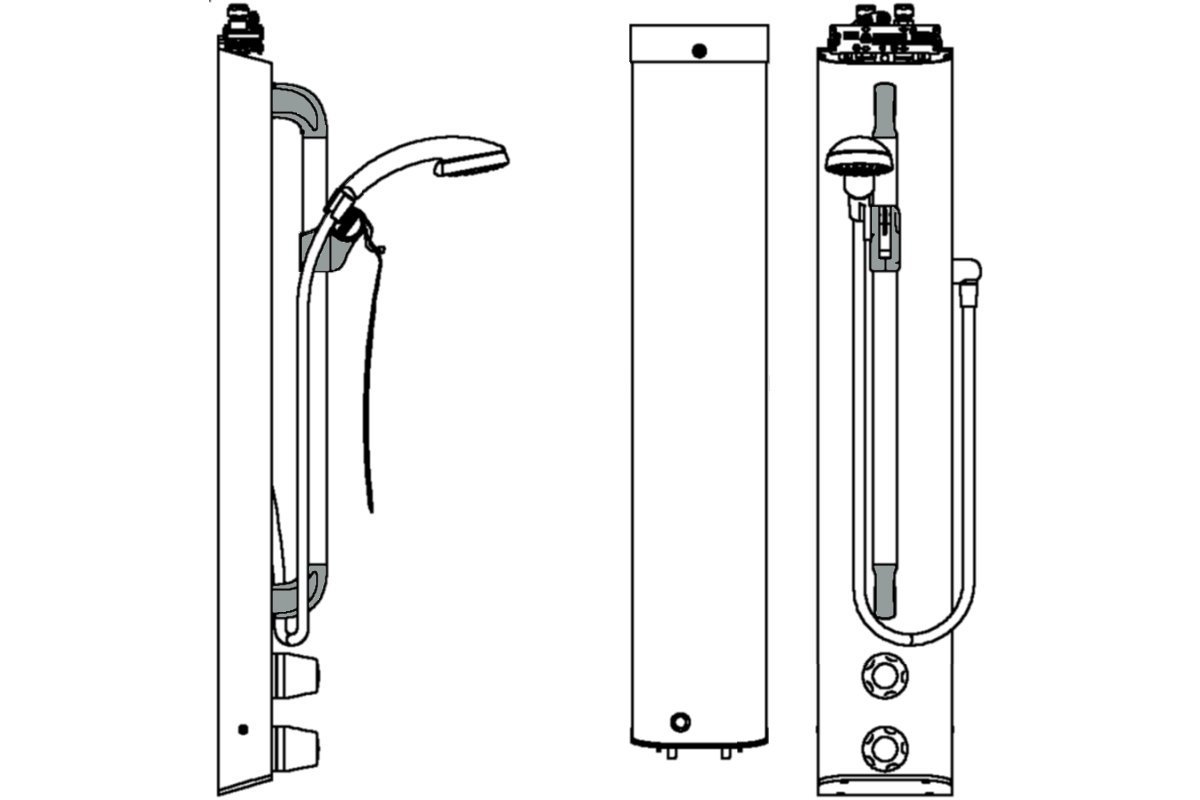

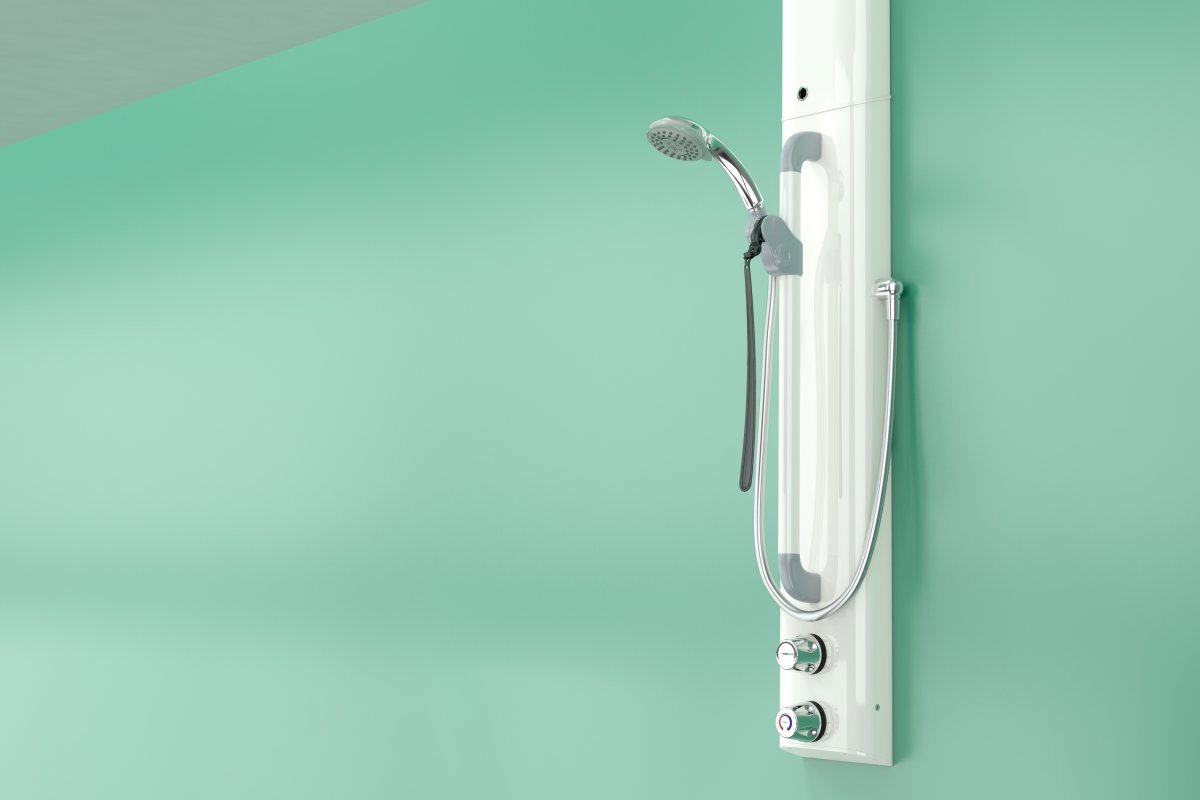

Includes integral TSV1-3 Thermostatic Shower Valve and In-Line Thermal Disinfection Unit ILTDU pre-plumbed (in copper) within a white epoxy-polyester powder-coated aluminium panel with hand controls and shower kit, comprising flow-regulated chromium plated three function easy-clean shower hand set with flexible hose, riser rail, and 940mm pipe cover with ILTDU key slot. Product Reference T107T9 as per drawing No. D11347. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne TSV1 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

Thermostatic shower provision for new build, refurbishment, retrofit and temporary installations in sport & leisure, education and other institutional settings where water and energy conservation is of importance.

Horne showers for the Leisure & Education markets

Features

  • Robust construction, finish and fittings for extended lifespan
  • Powder-coated panel: white RAL 9010 with Light Reflective Value = 84
  • Integral in-line thermal disinfection unit ILTDU for control of retrograde contaminants
  • 940mm long Pipe Cover in same profile as panel with key slot for ILTDU operation
  • Type 3 (healthcare) approved dual control shower valve provides reliable and accurate temperature control
  • Shower kit comprises anti-kink 1.25m hose, three function easy-clean shower handset and robust riser rail with inclusive-design sliding handset holder - easy to see, slide and adjust for users with limited sight and hand mobility
  • Handset carriage mechanism with Release Extender allows shorter or wheelchair users to easily lower a high-set shower handset
  • Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
  • Pressure and performance tested pre-plumbed assembly with internal copper piping
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
  • Low level servicing valves for ease of maintenance
  • Highly accessible for quick and simple testing, maintenance and water sampling

Accessories











Standards and Approvals

  • The HORNE TSV1-3 shower valve is designed to meet the requirements of BS7942:2011, 'Thermostatic mixing valves for use in care establishments' and is approved as a Type 3 TMV to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises)
  • The HORNE TSV1-3 and the ILTDU are approved to Reg 4 (materials in contact with water) of the Water Fitting Regulations 1999
  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224



Variants - T107 Range

  • T107T4 - top entry inlets, standard controls, ILTDU and 465mm Pipe Cover with key slot
  • T107A - top entry inlets, standard controls
  • T107B - rear entry inlets, standard controls
  • T107A2L - top entry inlets, lever controls
  • T107B2L - rear entry inlets, lever controls
  • T107T42L - top entry inlets, lever controls, ILTDU and 465mm Pipe Cover with key slot
  • T107T92L - top entry inlets, lever controls, ILTDU and 940mm Pipe Cover with key slot
