HORNE TSV1 Shower Panel Ligature Resistant with Integral ILTDU and Pipe Cover

T105T9LR

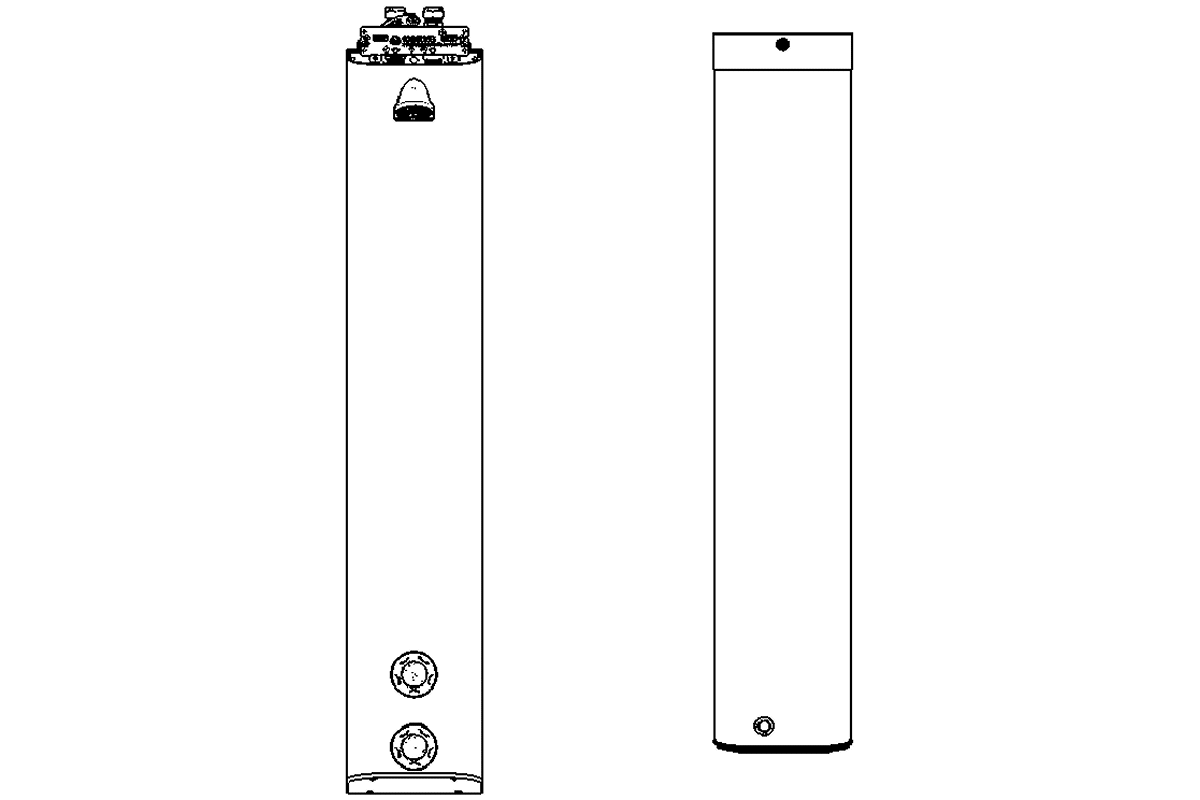

Includes TSV1 Thermostatic Shower Valve and In-Line Thermal Disinfection Unit ILTDU pre-plumbed (in copper) within a white powder coated aluminium panel with ligature resistant hand controls, vandal and ligature resistant shower head in chromium plated finish, flow regulator and 940mm pipe cover with ILTDU key slot. Product Reference T105T9LR as per drawing No. D11341. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne TSV1 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

Ligature resistant shower provision for new build, refurbishment, retrofit and temporary installations in secure, healthcare, mental health, education, leisure and other institutional settings.

Horne Showers for Secure, Mental Health, Healthcare, Leisure and Education Markets

Features

  • Robust construction, finish and fittings for extended lifespan
  • Powder coated panel: white RAL 9010 with Light Reflective Value = 86
  • TMV3 approved dual control shower valve (ligature resistant controls) provides reliable and accurate temperature control
  • Vandal and ligature resistant shower head with 2 spray positions and easy clean nozzle array - see our Safe Secure and Versatile too animation
  • Integral ILTDU in-line thermal disinfection unit  for control of retrograde contaminants
  • 940mm long Pipe Cover in same profile as panel with key slot for ILTDU operation
  • Integral flow regulator (8 L/min) for water and energy conservation and contributes to BREEAM rating
  • Pressure and performance tested pre-plumbed assembly with internal copper piping
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
  • Low level servicing valves for ease of maintenance
  • Highly accessible for quick and simple maintenance







Accessories

Standards and Approvals

  • The T105T9LR is named on the Water Technology List (efficient showers) thus is eligible for Enhanced Capital Allowances (tax relief).
  • The HORNE TSV1-3 shower valve is designed to meet the requirements of BS7942:2000, 'Thermostatic mixing valves for use in care establishments' and is approved, under the TMV3 Scheme, to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises).
  • The HORNE TSV1-3 is a WRAS approved product.
  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Variants - 105 Range

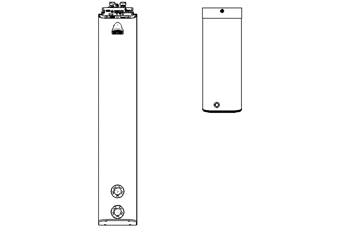

  • T105T4LR - top entry inlets, ligature resistant controls, ILTDU and 465mm Pipe Cover with key slot
  • T105ALR - top entry inlets, ligature resistant controls
  • T105BLR - rear entry inlets, ligature resistant controls
  • T105A - top entry inlets, standard controls
  • T105B - rear entry inlets, standard controls
  • T105T4 - top entry inlets, standard controls, ILTDU and 465mm Pipe Cover with key slot
  • T105T9 - top entry inlets, standard controls, ILTDU and 940mm Pipe Cover with key slot
  • T105A2L - top entry inlets, lever controls
  • T105B2L - rear entry inlets, lever controls
  • T105T42L - top entry inlets, lever controls, ILTDU and 465mm Pipe Cover with key slot
  • T105T92L - top entry inlets, lever controls, ILTDU and 940mm Pipe Cover with key slot
