HORNE TSV1 Shower Panel Ligature Resistant Dual Controls and Vandal and Ligature Resistant Shower Head

T105ALR

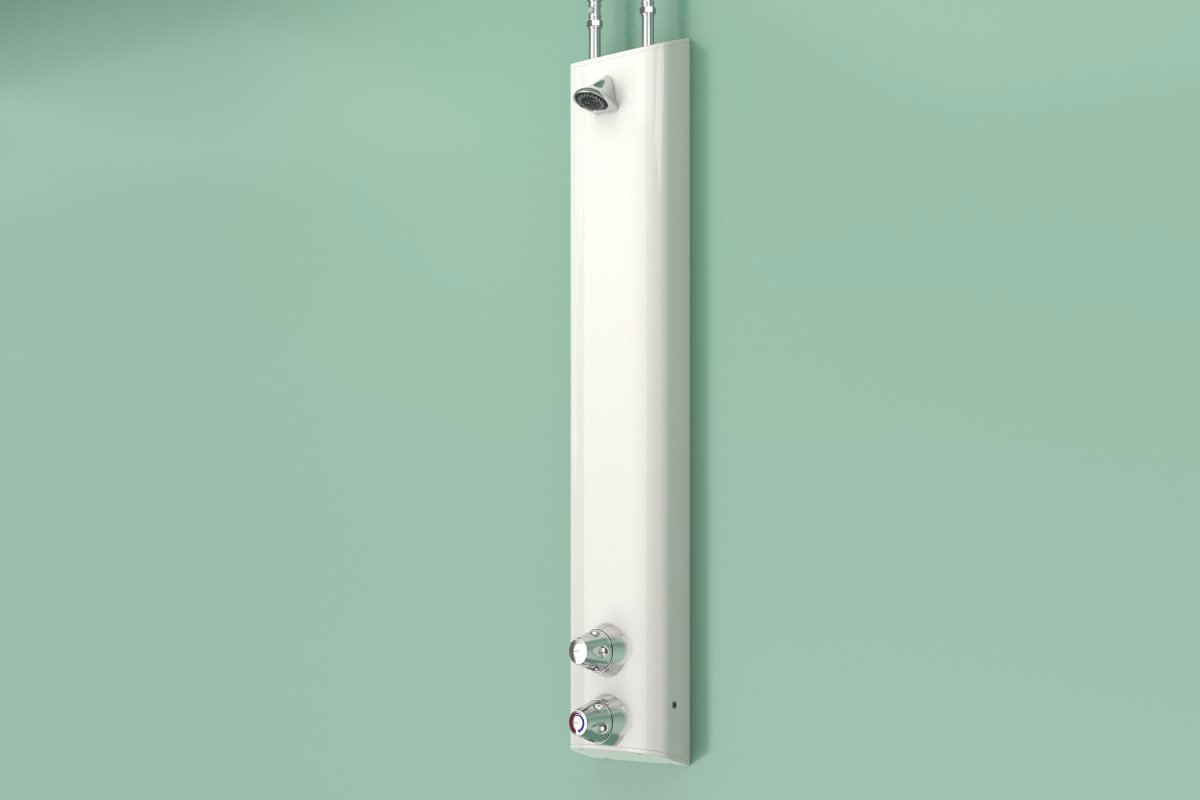

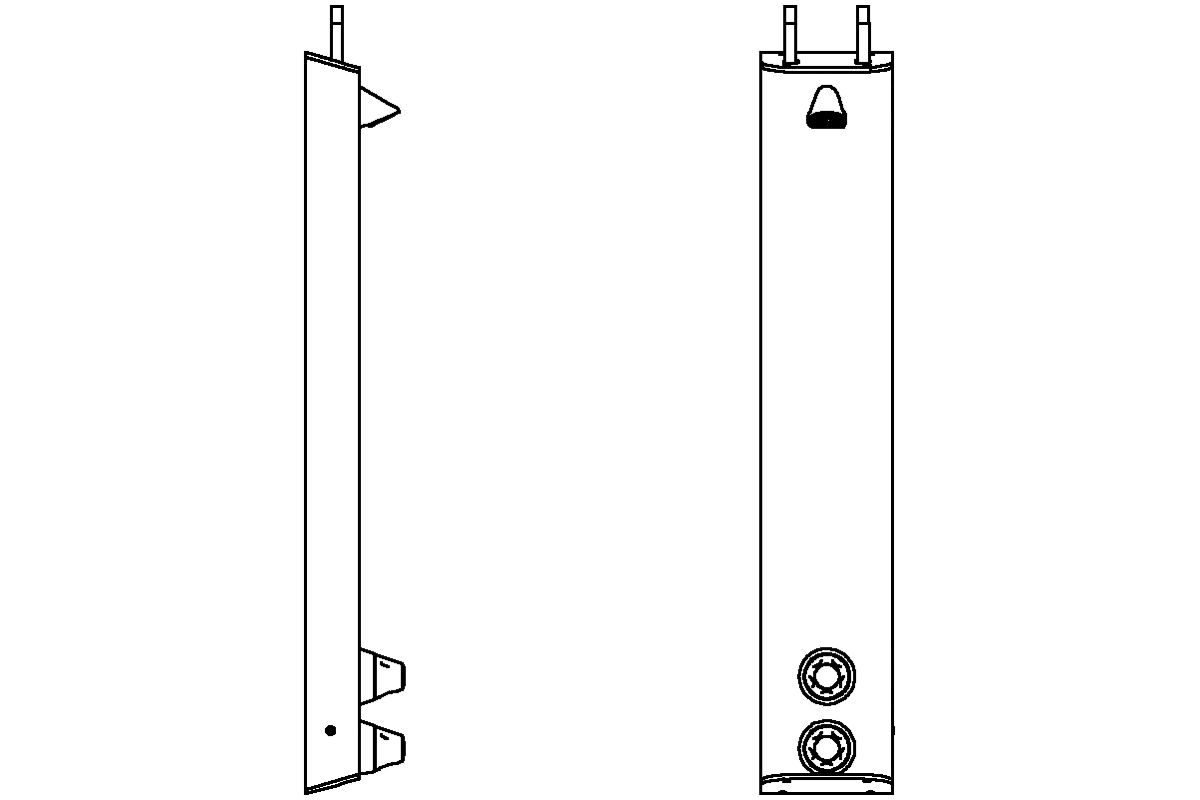

Includes integral TSV1-3 thermostatic shower valve pre-plumbed within a white epoxy-polyester powder-coated aluminium panel with ligature resistant hand controls and vandal and ligature resistant, adjustable and flow regulated shower head in chromium plated finish. Product Reference T105ALR as per drawing No. D10389. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne TSV1 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

Ligature resistant shower provision for new build, refurbishment, retrofit and temporary installations in secure, mental health, healthcare establishments and some leisure and education settings.

Horne Showers for Secure, Mental Health, Healthcare, Leisure and Education Markets

Features

  • Robust construction, finish and fittings for extended lifespan
  • Powder-coated panel: white RAL 9010 with Light Reflective Value = 84.
  • Type 3 (healthcare) approved dual control shower valve provides reliable and accurate temperature control
  • Fixed ligature and vandal resistant shower head with 2 spray positions and easy clean nozzle array - see our Safe Secure and Versatile too animation
  • Integral flow regulator (8 L/min) for water and energy conservation and contributes to BREEAM

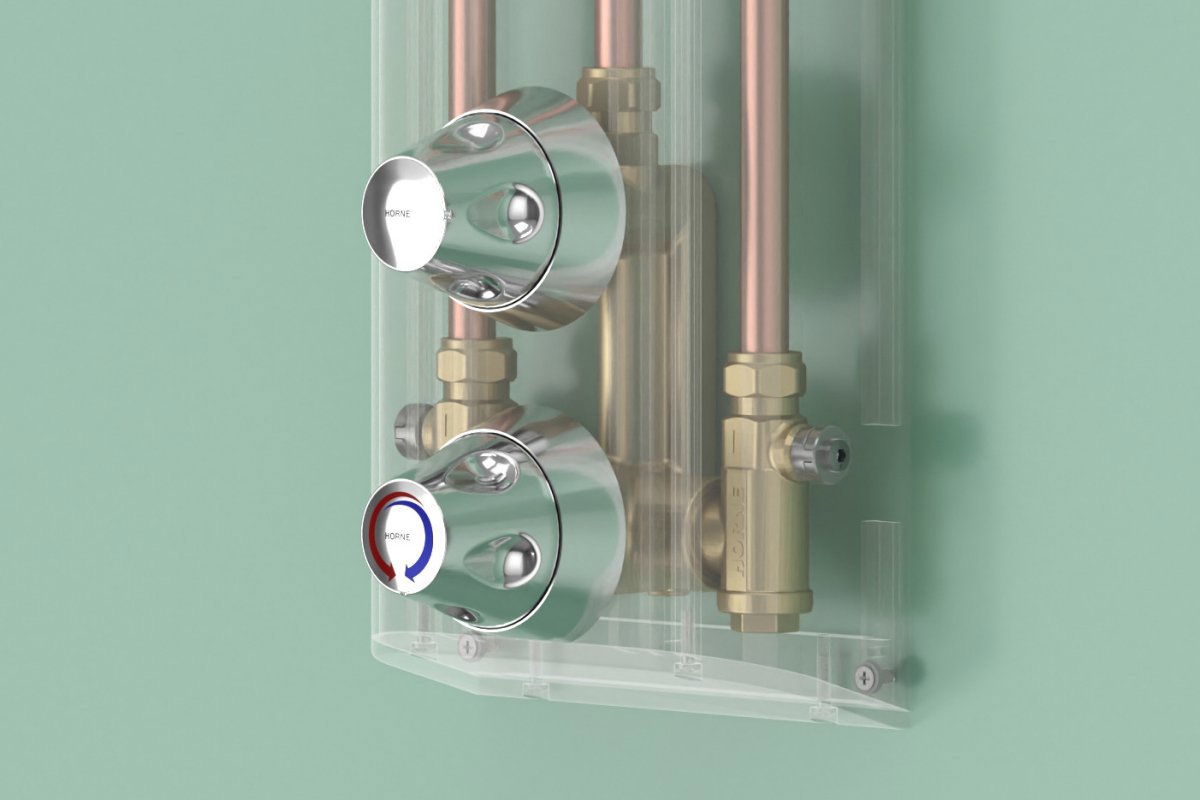

  • Pressure and performance tested pre-plumbed assembly with internal copper piping
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
  • Low level servicing valves for ease of maintenance
  • Highly accessible for quick and simple testing, maintenance and water sampling

Accessories









Standards and Approvals

  • The HORNE TSV1-3 shower valve is designed to meet the requirements of BS7942:2011, 'Thermostatic mixing valves for use in care establishments' and is approved as a Type 3 TMV to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises)
  • The HORNE TSV1-3 is approved to Reg 4 (materials in contact with water) of the Water Fitting Regulations 1999
  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

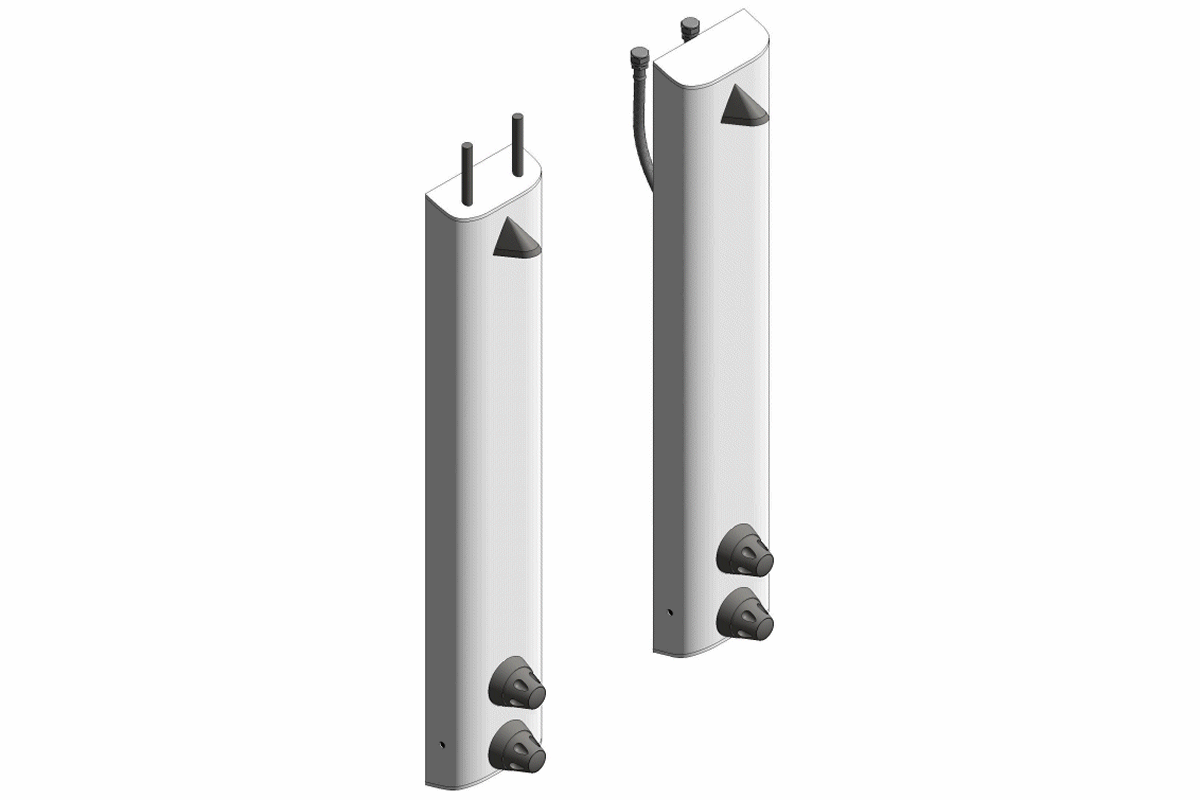

Variants - T105 Range

  • T105BLR - rear entry inlets, ligature resistant controls
  • T105T4LR - top entry inlets, ligature resistant controls, ILTDU and 465mm Pipe Cover with key slot
  • T105T9LR - top entry inlets, ligature resistant controls, ILTDU and 940mm Pipe Cover with key slot
  • T105A - top entry inlets, standard controls
  • T105B - rear entry inlets, standard controls
  • T105T4 - top entry inlets, standard controls, ILTDU and 465mm Pipe Cover with key slot
  • T105T9 - top entry inlets, standard controls, ILTDU and 940mm Pipe Cover with key slot
  • T105A2L - top entry inlets, lever controls
  • T105B2L - rear entry inlets, lever controls
  • T105T42L - top entry inlets, lever controls, ILTDU and 465mm Pipe Cover with key slot
  • T105T92L - top entry inlets, lever controls, ILTDU and 940mm Pipe Cover with key slot
