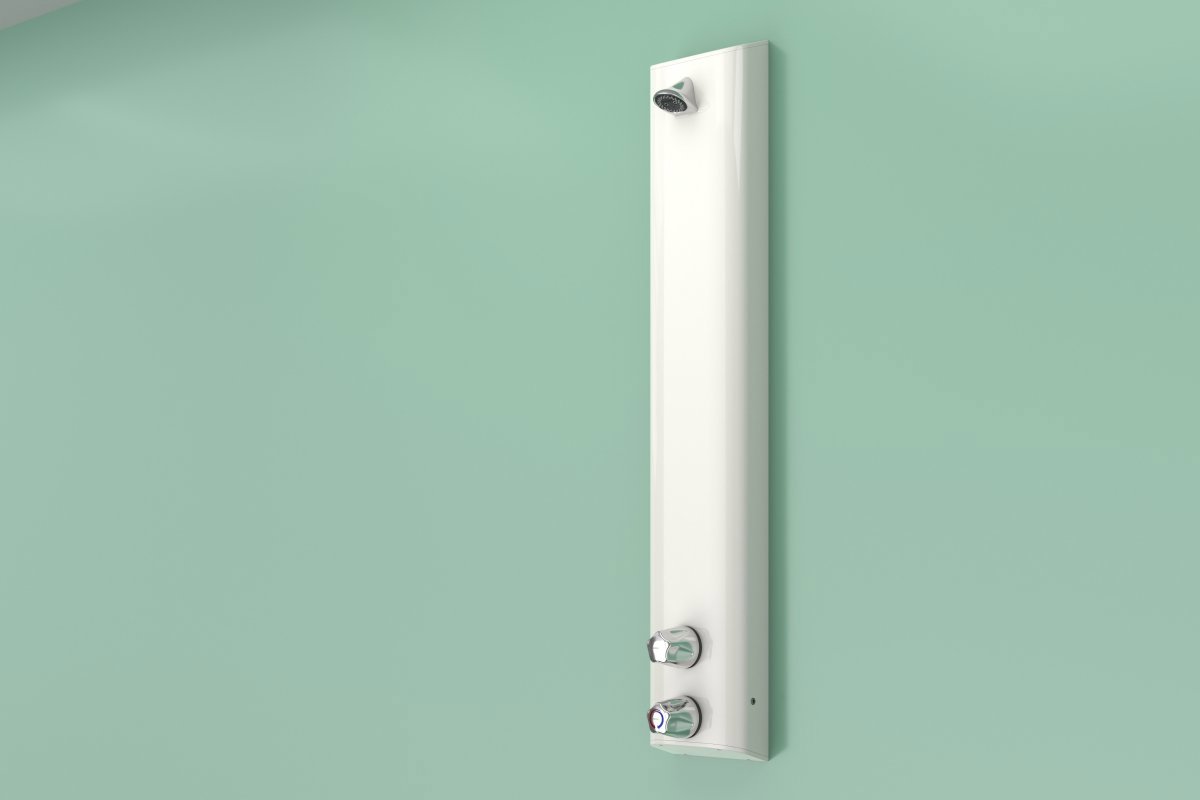

HORNE TSV1 Shower Panel with Dual Control Thermostatic Shower Valve and Vandal Resistant Shower Head

T105B

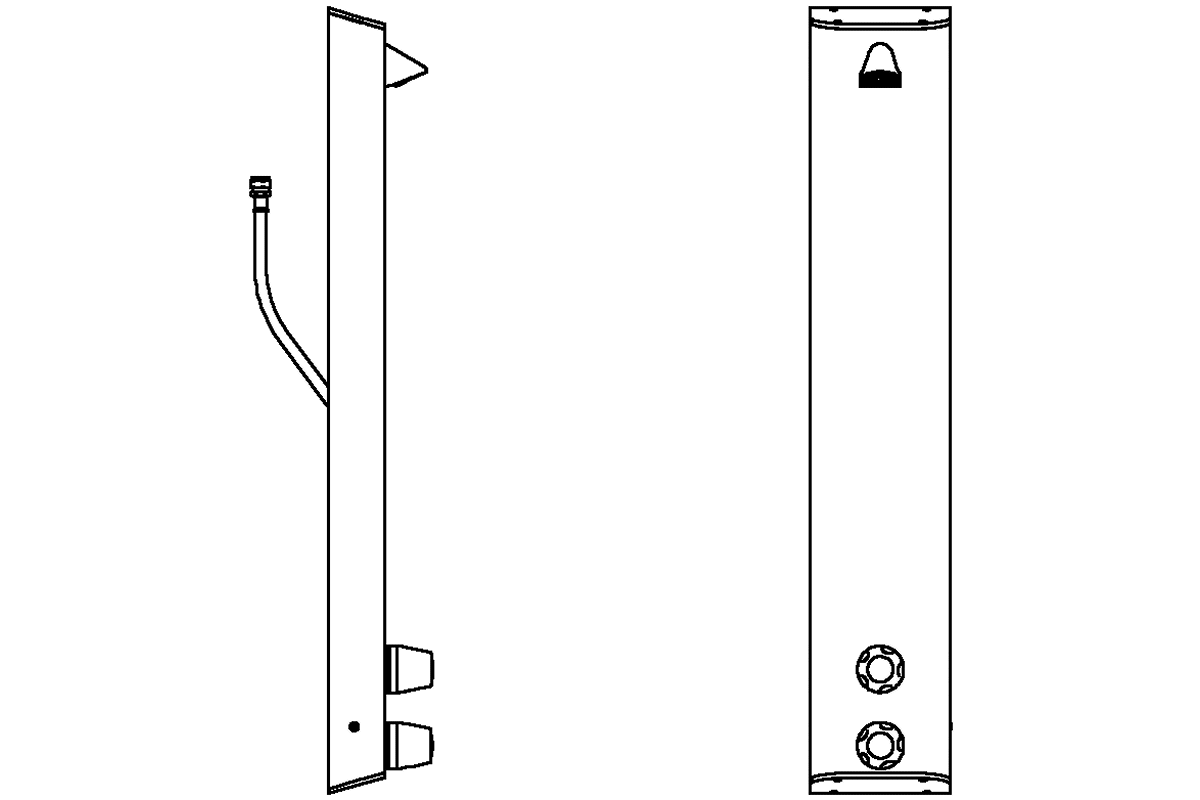

Includes integral TSV1-3 thermostatic shower valve pre-plumbed within a white powder coated aluminium panel with hand controls and vandal resistant, adjustable and flow regulated shower head in chromium plated finish. Connections by SOFT-PEX flexible braided hose for concealed water supply. Product Reference T105B as per drawing D10342. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne TSV1 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

Shower provision for new build, refurbishment, retrofit and temporary installations in healthcare, education, leisure and other institutional settings.

Horne showers for Healthcare Leisure Education markets

Features

  • Robust construction, finish and fittings for extended lifespan
  • Powder coated panel: white RAL 9010 with Light Reflective Value = 86.
  • TMV3 approved dual control shower valve provides reliable and accurate temperature control
  • Vandal resistant shower head with 2 spray positions and easy clean nozzle array - see our Safe Secure and Versatile too animation
  • Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
  • Pressure and performance tested pre-plumbed assembly
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
  • Low level servicing valves for ease of maintenance
  • Highly accessible for quick and simple maintenance









Accessories

Standards and Approvals

  • The T105B is named on the Water Technology List (efficient showers) thus is eligible for Enhanced Capital Allowances (tax relief).
  • The HORNE TSV1-3 shower valve is designed to meet the requirements of BS7942:2000, 'Thermostatic mixing valves for use in care establishments' and is approved, under the TMV3 Scheme, to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises).
  • The HORNE TSV1-3 is a WRAS approved product.
  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Variants - 105 Range

  • T105A - top entry inlets, standard controls

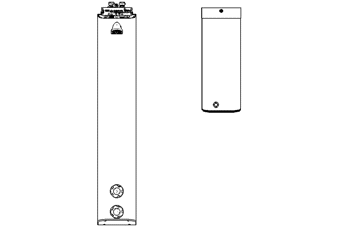

  • T105T4 - top entry inlets, standard controls, ILTDU and 465mm Pipe Cover with key slot
  • T105T9 - top entry inlets, standard controls, ILTDU and 940mm Pipe Cover with key slot
  • T105A2L - top entry inlets, lever controls
  • T105B2L - rear entry inlets, lever controls
  • T105T42L - top entry inlets, lever controls, ILTDU and 465mm Pipe Cover with key slot
  • T105T92L - top entry inlets, lever controls, ILTDU and 940mm Pipe Cover with key slot
  • T105ALR - top entry inlets, ligature resistant controls

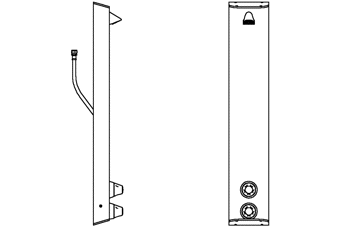

  • T105BLR - rear entry inlets, ligature resistant controls
  • T105T4LR - top entry inlets, ligature resistant controls, ILTDU and 465mm Pipe Cover with key slot
  • T105T9LR - top entry inlets, ligature resistatn controls, ILTDU and 940mm Pipe Cover with key slot

Useful Documents

Related Products

Installations

  • Empire Gym, Market Deeping
  • Grantham Hospital, Lincolnshire
  • Lighthouse Specialist Mental Healthcare
  • Royal Commonwealth Pool, Edinburgh
  • Trafford General Hospital
  • Hesley Group Special Autism Schools
  • Monkton Combe School Leisure Centre
