HORNE TSV1 Shower Panel Ligature Resistant with Integral ILTDU and Pipe Cover

T105T4LR

Includes TSV1 Thermostatic Shower Valve and In-Line Thermal Disinfection Unit ILTDU pre-plumbed (in copper) within a white epoxy-polyester powder-coated aluminium panel with ligature resistant hand controls, vandal and ligature resistant shower head in chromium plated finish, flow regulator and 465mm pipe cover with ILTDU key slot. Product Reference T105T4LR as per drawing No. D11340. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne TSV1 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Horne T105T#LR ligature resistant shower panel with ILTDU and pipe cover

Pipe Cover with ILTDU access slot and plug over VR head

Thermal disinfection of Horne shower panel with integral ILTDU

Horne Dual Shower Controls, Ligature Resistant

X-ray style image of Ligature Resistant dual shower controls and thermostatic shower valve

Horne Vandal Resistant Shower Head flowing water

Horne ligature and vandal resistant shower head

VR shower head with adjustable spray plate

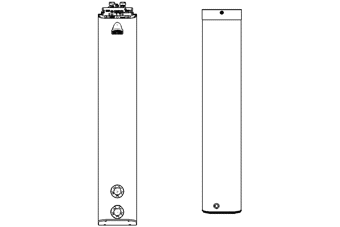

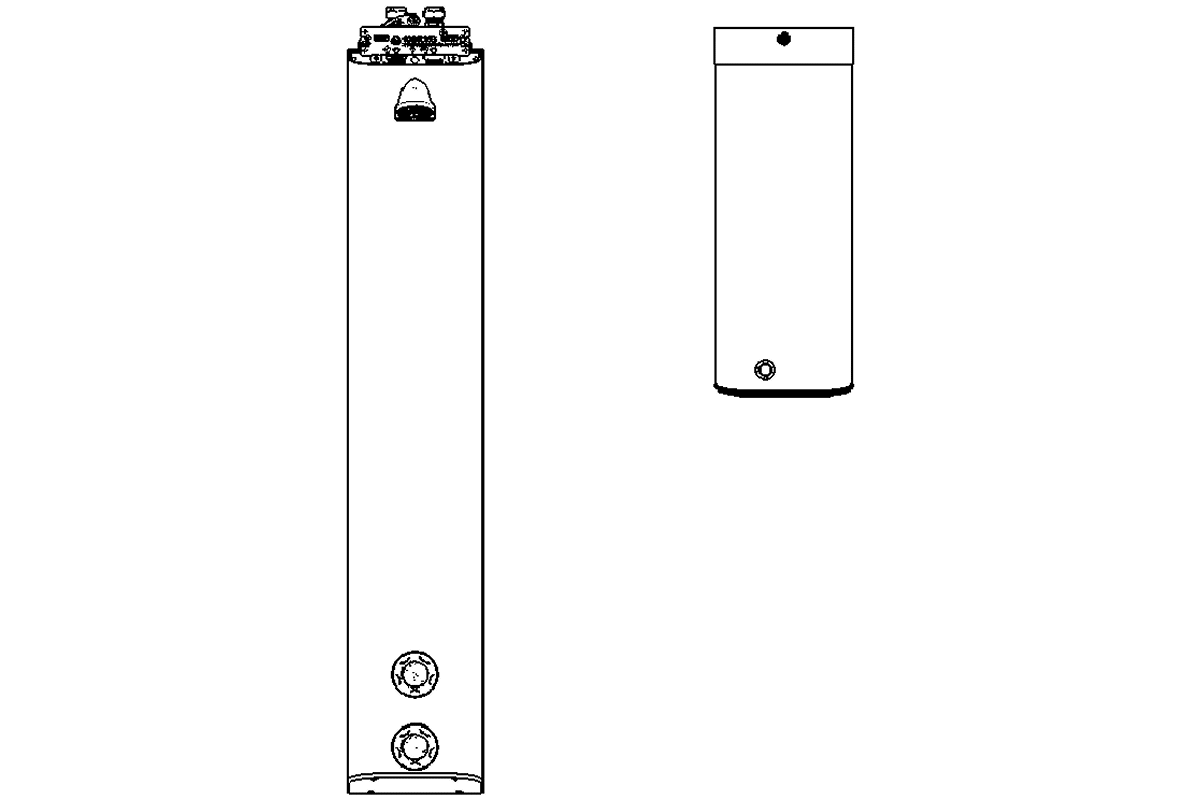

Line Drawing Horne shower panel T105T4LR

Applications

Ligature resistant shower provision for new build, refurbishment, retrofit and temporary installations in secure, mental health, healthcare establishments and some leisure and education settings.

Horne Showers for Secure, Mental Health, Healthcare, Leisure and Education Markets

Features

Robust construction, finish and fittings for extended lifespan
Powder-coated panel: white RAL 9010 with Light Reflective Value = 84
Type 3 (healthcare) approved dual control shower valve (ligature resistant controls) provides reliable and accurate temperature control
Vandal and ligature resistant shower head with 2 spray positions and easy clean nozzle array - see our Safe Secure and Versatile too animation
Integral ILTDU in-line thermal disinfection unit for control of retrograde contaminants
465mm long Pipe Cover in same profile as panel with key slot for ILTDU operation. Includes safety plug in keyslot for preventing ligature point creation by vulnerable users
Integral flow regulator (8 L/min) for water and energy conservation and contributes to BREEAM rating
Pressure and performance tested pre-plumbed assembly with internal copper piping
Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
Low level servicing valves for ease of maintenance
Highly accessible for quick and simple testing, maintenance and water sampling

Accessories

TSV1 Flushing Kit
Monitoring Kit
Lever controls for retrofit alteration to 2L variants
ILTDU Operation Key
Safety plug removal magnet

Standards and Approvals

The HORNE TSV1-3 shower valve is designed to meet the requirements of BS7942:2011, 'Thermostatic mixing valves for use in care establishments' and is approved as a Type 3 TMV to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises)
The HORNE TSV1-3 and the ILTDU are approved to Reg 4 (materials in contact with water) of the Water Fitting Regulations 1999
All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Variants - T105 Range

T105T9LR - top entry inlets, ligature resistant controls, ILTDU and 940mm Pipe Cover with key slot
T105ALR - top entry inlets, ligature resistant controls
T105BLR - rear entry inlets, ligature resistant controls
T105A - top entry inlets, standard controls
T105B - rear entry inlets, standard controls
T105T4 - top entry inlets, standard controls, ILTDU and 465mm Pipe Cover with key slot
T105T9 - top entry inlets, standard controls, ILTDU and 940mm Pipe Cover with key slot
T105A2L - top entry inlets, lever controls
T105B2L - rear entry inlets, lever controls
T105T42L - top entry inlets, lever controls, ILTDU and 465mm Pipe Cover with key slot
T105T92L - top entry inlets, lever controls, ILTDU and 940mm Pipe Cover with key slot
