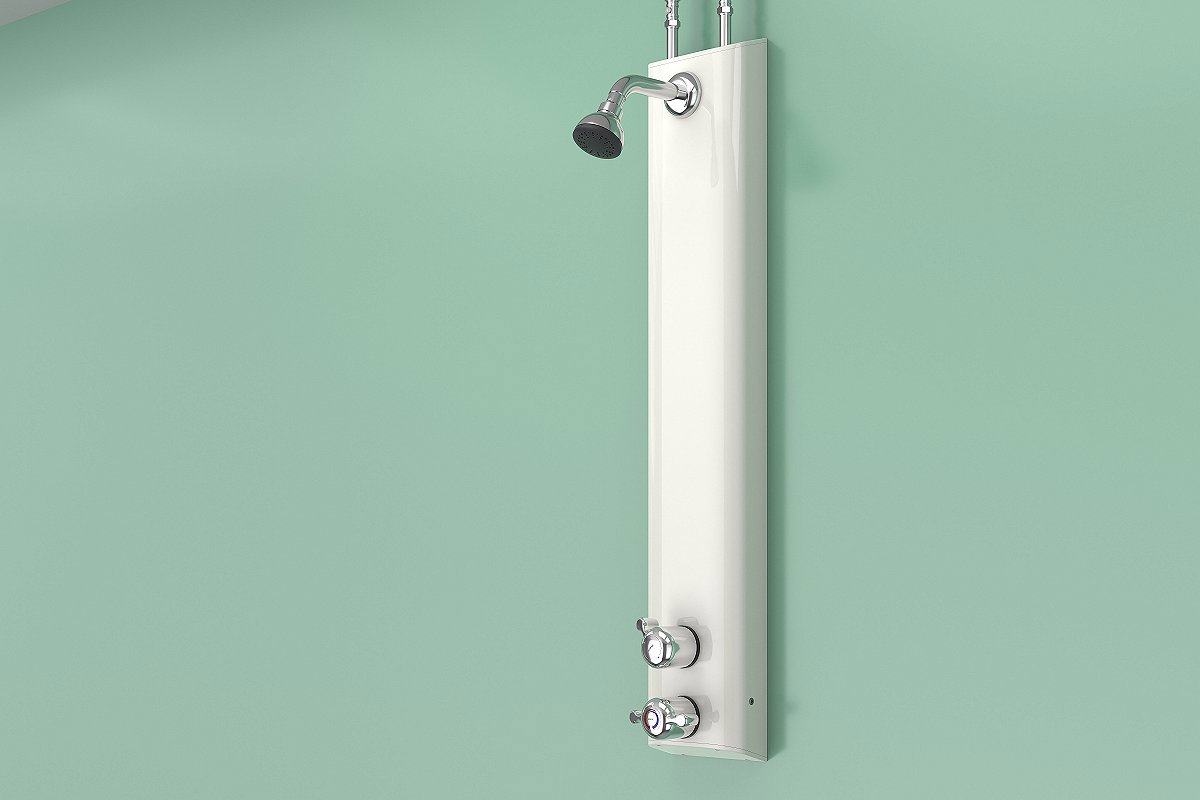

HORNE TSV1 Shower Panel with Dual Control Thermostatic Shower Valve, Lever Controls and Swivel Shower Head

T106A2L

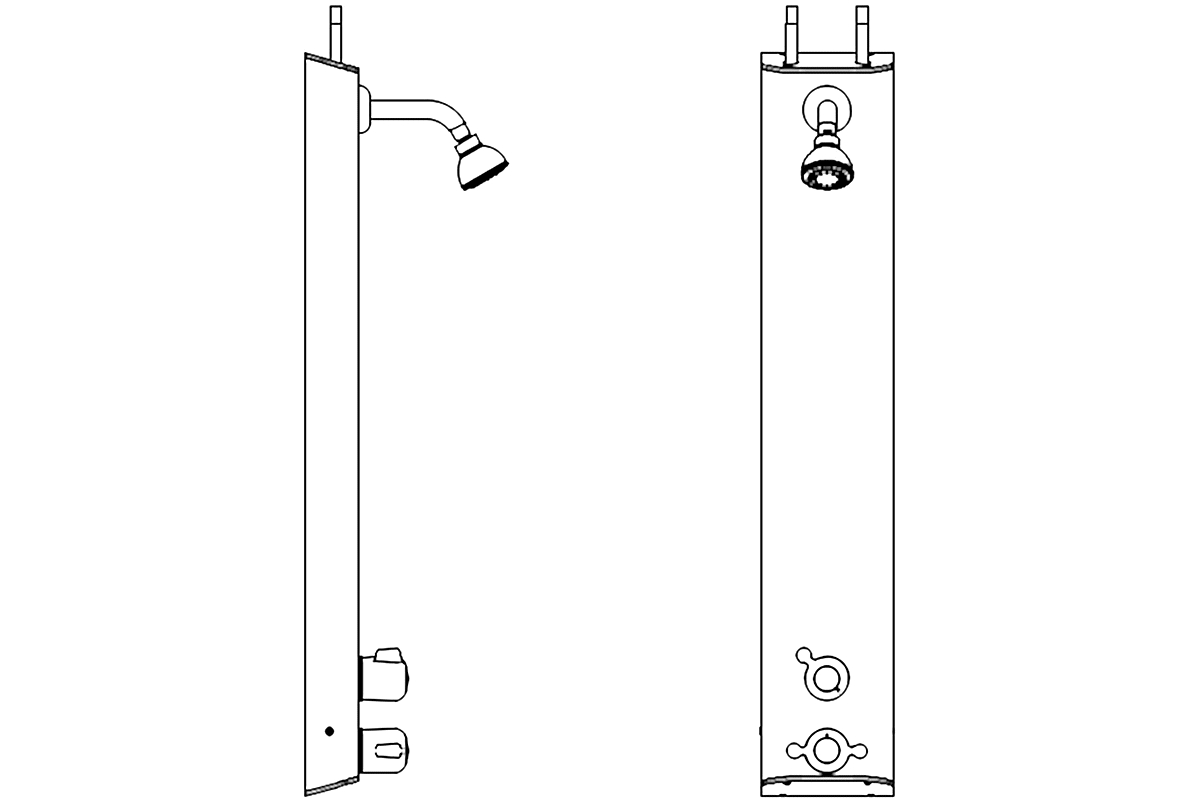

Includes integral TSV1-3 thermostatic shower valve pre-plumbed within a white powder coated aluminium panel with lever controls and easy clean swivel shower head with flow regulator in chromium plated finish. Product Reference T106A2L as per drawing No. D10372. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne TSV1 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

Shower provision for new build, refurbishment, retrofit and temporary installations in healthcare, education, leisure and other institutional settings.

Horne showers for Healthcare Leisure Education markets

Features

  • Robust construction, finish and fittings for extended lifespan
  • Powder coated panel: white RAL 9010 with Light Reflective Value = 86.
  • TMV3 approved dual control shower valve provides reliable and accurate temperature control
  • Lever controls for ease of operation
  • Fixed swivel shower head in chromium plated finish
  • Integral flow regulator (8 L/min)  for water and energy conservation contributes to BREEAM rating
  • Pressure and performance tested pre-plumbed assembly with internal copper piping
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
  • Low level servicing valves for ease of maintenance
  • Highly accessible for quick and simple maintenance





Standards and Approvals

  • The T106A2L is named on the Water Technology List (efficient showers) thus is eligible for Enhanced Capital Allowances (tax relief).
  • The HORNE TSV1-3 shower valve is designed to meet the requirements of BS7942:2000, 'Thermostatic mixing valves for use in care establishments' and is approved, under the TMV3 Scheme, to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises).
  • The HORNE TSV1-3 is a WRAS approved product.
  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224



Variants - 106 Range

  • T106B2L - rear entry inlets, lever control
  • T106T42L - top entry inlets, lever controls, ILTDU and 465mm Pipe cover with key slot
  • T106T92L - top entry inlets, lever controls, ILTDU and 940mm Pipe Cover with key slot
  • T106A - top entry inlets, standard controls
  • T106B - rear entry inlets, standard controls
  • T106T4 - top entry inlets, standard controls, ILTDU and 465mm Pipe Cover with key slot
  • T106T9 - top entry inlets, standard controls, ILTDU and 940mm Pipe Cover with key slot
