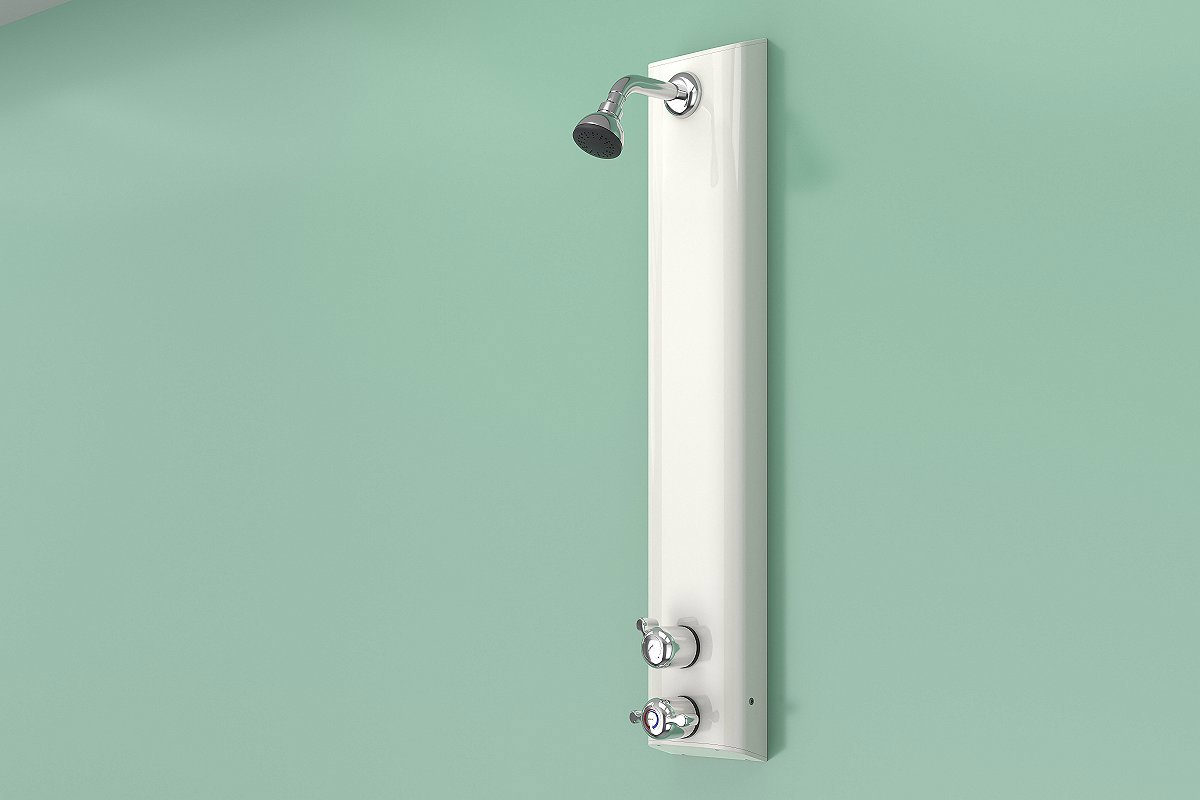

HORNE TSV1 Shower Panel with Dual Control Thermostatic Shower Valve, Lever Controls and Swivel Shower Head

T106B2L

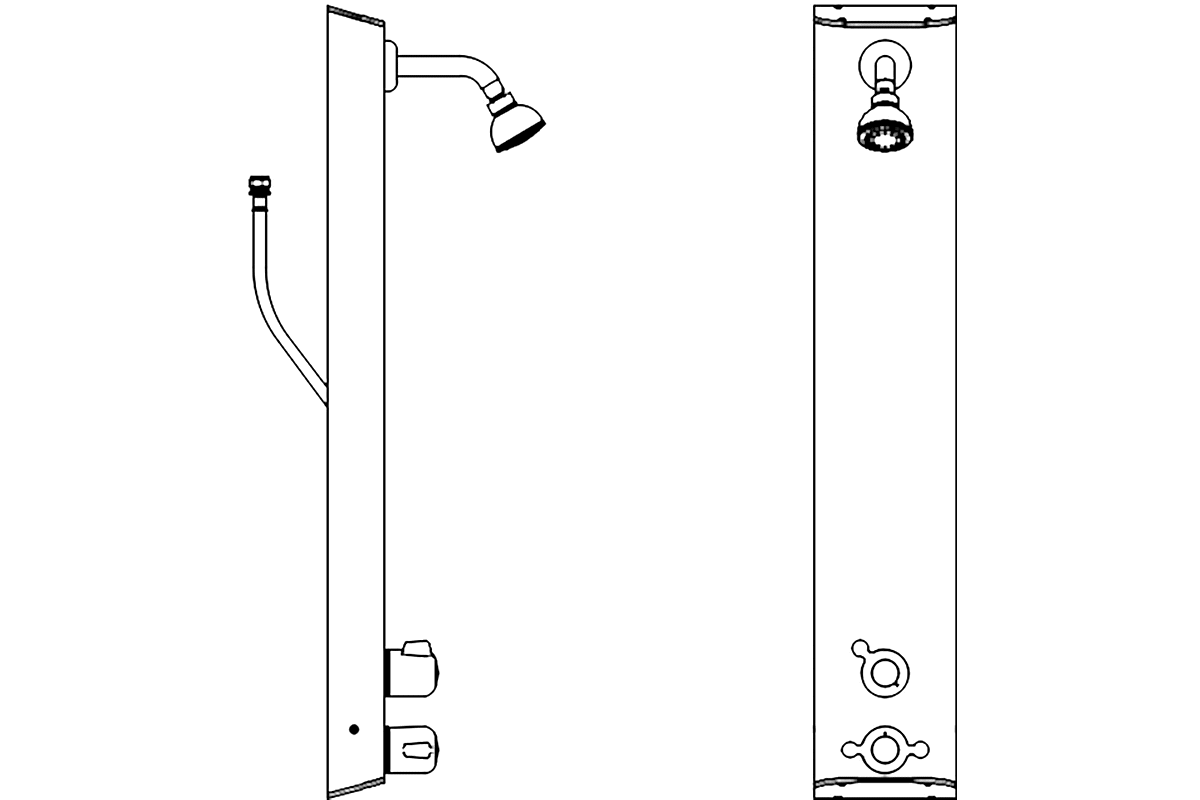

Includes integral TSV1-3 thermostatic shower valve pre-plumbed within a white epoxy-polyester powder-coated aluminium panel with lever controls and easy clean swivel shower head with flow regulator in chromium plated finish. Connections by SOFT-PEX flexible braided hose for concealed water supply. Product Reference T106B2L as per drawing No. D10373. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne TSV1 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Horne TSV1 Shower valve with lever controls (in shower panel)

Horne Shower component -single function swivel head

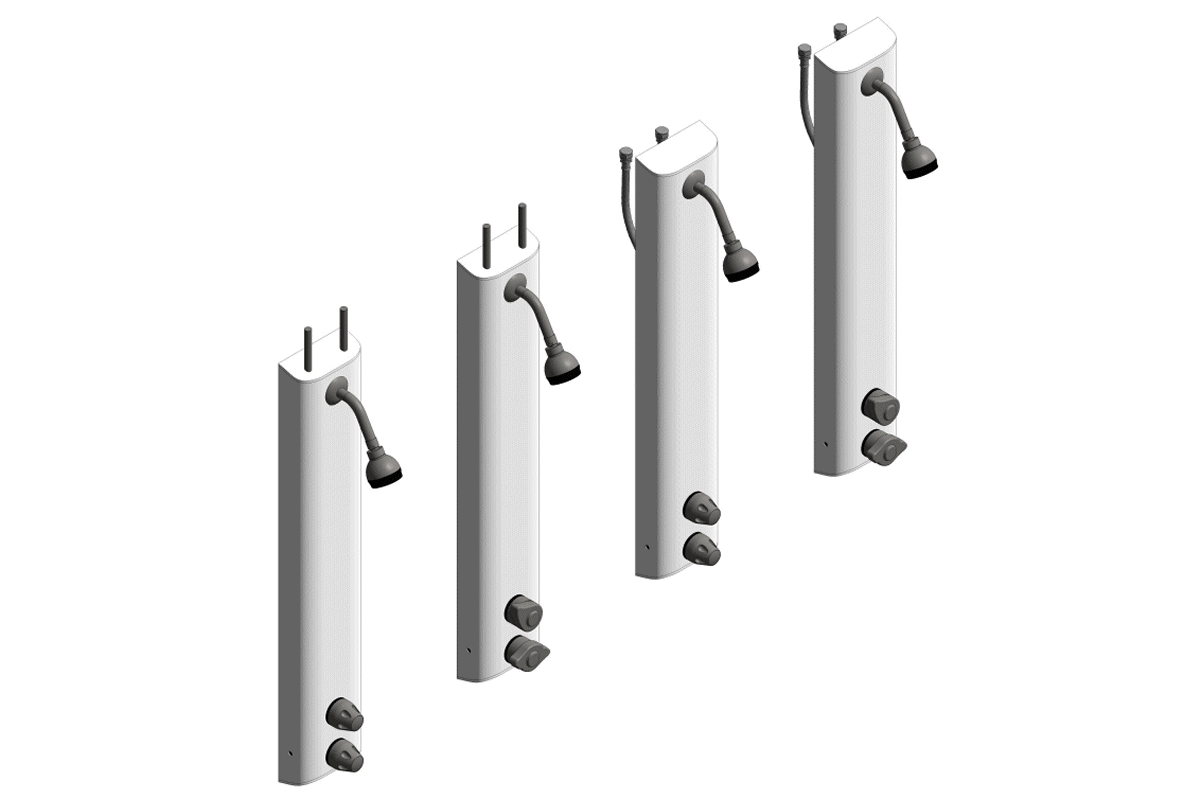

T106A / T106A2L / T106B / T106B2L BIM screengrab

Applications

Shower provision for new build, refurbishment, retrofit and temporary installations in healthcare, residential care, education, leisure and other institutional settings.

Horne showers for Healthcare Leisure Education markets

Features

Robust construction, finish and fittings for extended lifespan
Powder-coated panel: white RAL 9010 with Light Reflective Value = 84
Type 3 (healthcare) approved dual control shower valve provides reliable and accurate temperature control
Lever controls for ease of operation
Fixed swivel shower head in chromium plated finish
Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
Pressure and performance tested pre-plumbed assembly
Includes flexible braided (SOFT-PEX) inlets for concealed water supplies
Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
Low level servicing valves for ease of maintenance
Highly accessible for quick and simple testing, maintenance and water sampling

Accessories

TSV1 Flushing Kit
Monitoring Kit

Standards and Approvals

The HORNE TSV1-3 shower valve is designed to meet the requirements of BS7942:2011, 'Thermostatic mixing valves for use in care establishments' and is approved as a Type 3 TMV to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises)
The HORNE TSV1-3 is approved to Reg 4 (materials in contact with water) of the Water Fitting Regulations 1999
All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Variants - T106 Range

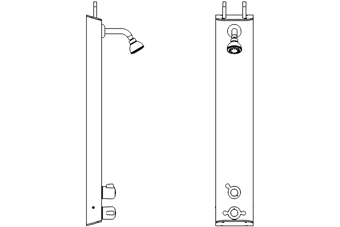

T106A2L - top entry inlets, lever controls

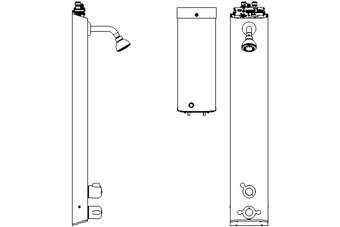

T106T42L - top entry inlets, lever controls, ILTDU and 465mm Pipe cover with key slot
T106T92L - top entry inlets, lever controls, ILTDU and 940mm Pipe Cover with key slot
T106A - top entry inlets, standard controls

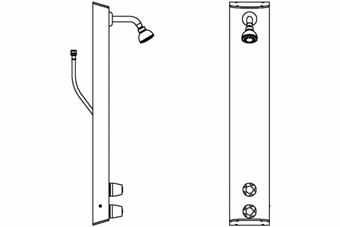

T106B - rear entry inlets, standard controls
T106T4 - top entry inlets, standard controls, ILTDU and 465mm Pipe Cover with key slot
T106T9 - top entry inlets, standard controls, ILTDU and 940mm Pipe Cover with key slot
