DOC M / Inclusive Design HORNE Dual-Mode Shower Panel with Lever Controls, Integral ILTDU and Pipe Cover, and wall-mounted Riser Rail

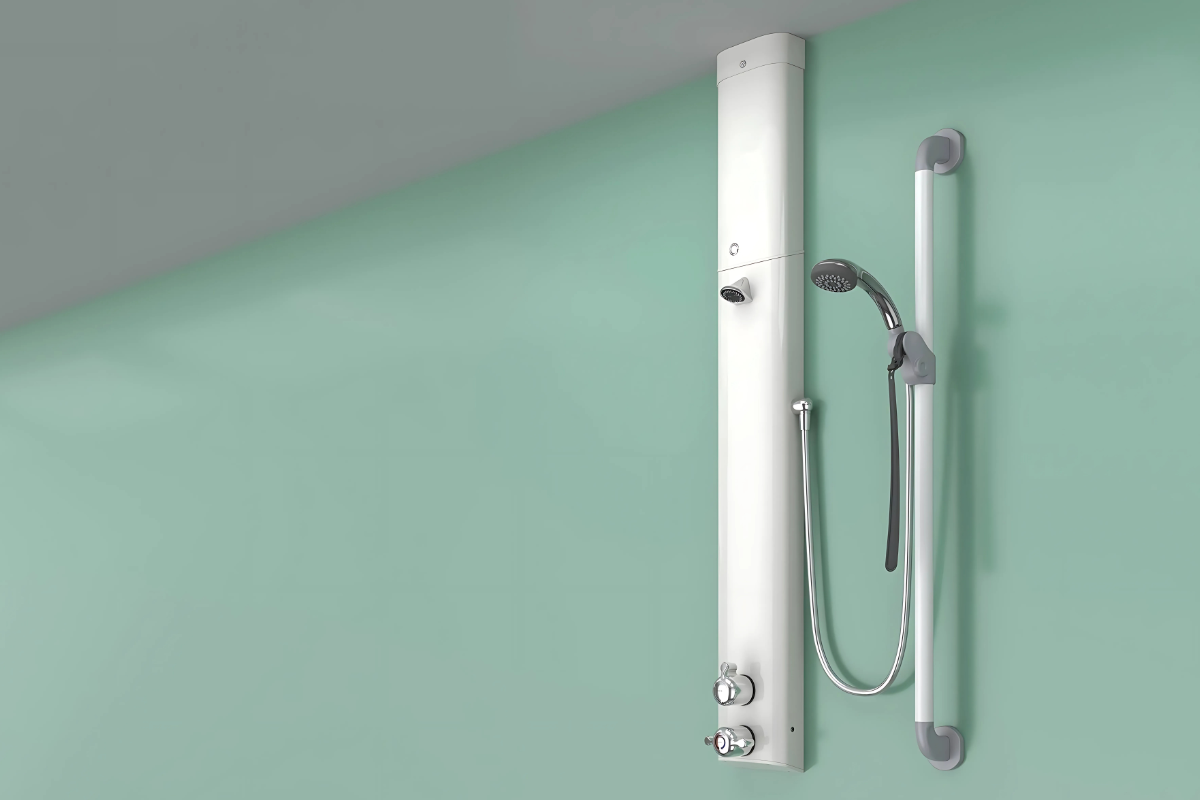

Includes integral Type 3 and UK Water Reg 4 Approved HORNE TSV1-3 Thermostatic Shower Valve and In-Line Thermal Disinfection Unit ILTDU pre-plumbed (in copper) within a white epoxy-polyester powder-coated aluminium panel with manual flow diverter, BS 8300 compliant lever controls, fixed vandal resistant shower head in chromium plated finish, hose with single function handset, flow regulator and 940mm pipe cover with ILTDU key slot and wall-mounted riser rail in white/grey.

Unsupervised mode: lever shower controls (On - anti-clockwise rotation) with vandal resistant shower head.

Assisted showering mode: lever controls (On - clockwise rotation) and flow via hose and single function handset.

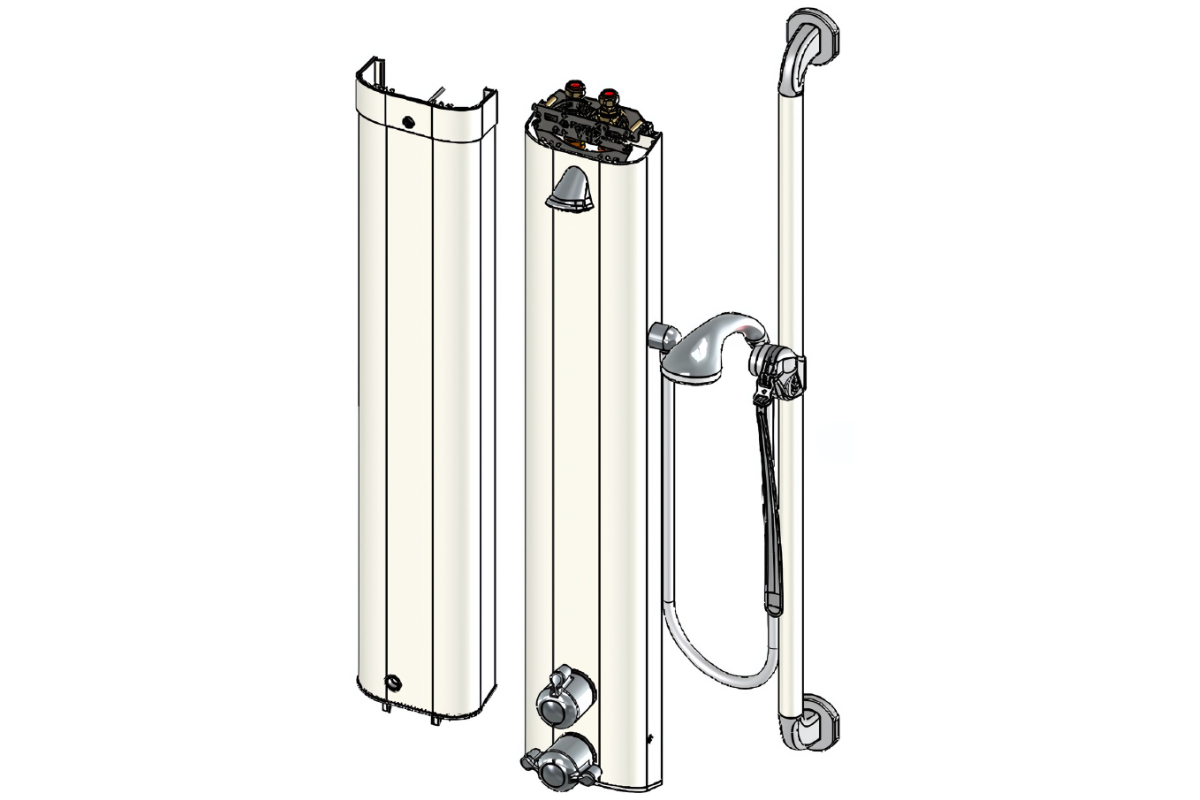

Product Reference T705T92L as per drawing No. D12306. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne TSV1 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product


Shower provision for new build, refurbishment, retrofit and temporary installations in healthcare, elderly, extra- and dementia care, disability adaptations, as well as accessible & Changing Places showering in transit hubs, leisure, education and other public facilities.

T1Y8A2L shower in dementia en-suite with highly visible supportive grab and riser bar


  • Robust construction, finish and fittings for extended lifespan
  • Robust wall-mounted shower riser rail, 675mm* between centres, with Inclusive Design carriage operation, and Release Extender for wheelchair users. White RAL 9010 (Light Reflective Value = 84) and grey.
  • Powder-coated panel: white RAL 9010 with LRV = 84
  • Type 3 approved dual control shower valve provides reliable and accurate temperature control
  • Integral ILTDU in-line thermal disinfection unit for routine sanitation and control of retrograde contaminants
  • 940mm long Pipe Cover in same profile as shower panel with key slot for ILTDU operation
  • Lever controls designed to meet BS 8300:Inclusive Design
  • Vandal resistant shower head with 2 spray positions and easy clean nozzle array - see our Safe Secure and Versatile too animation

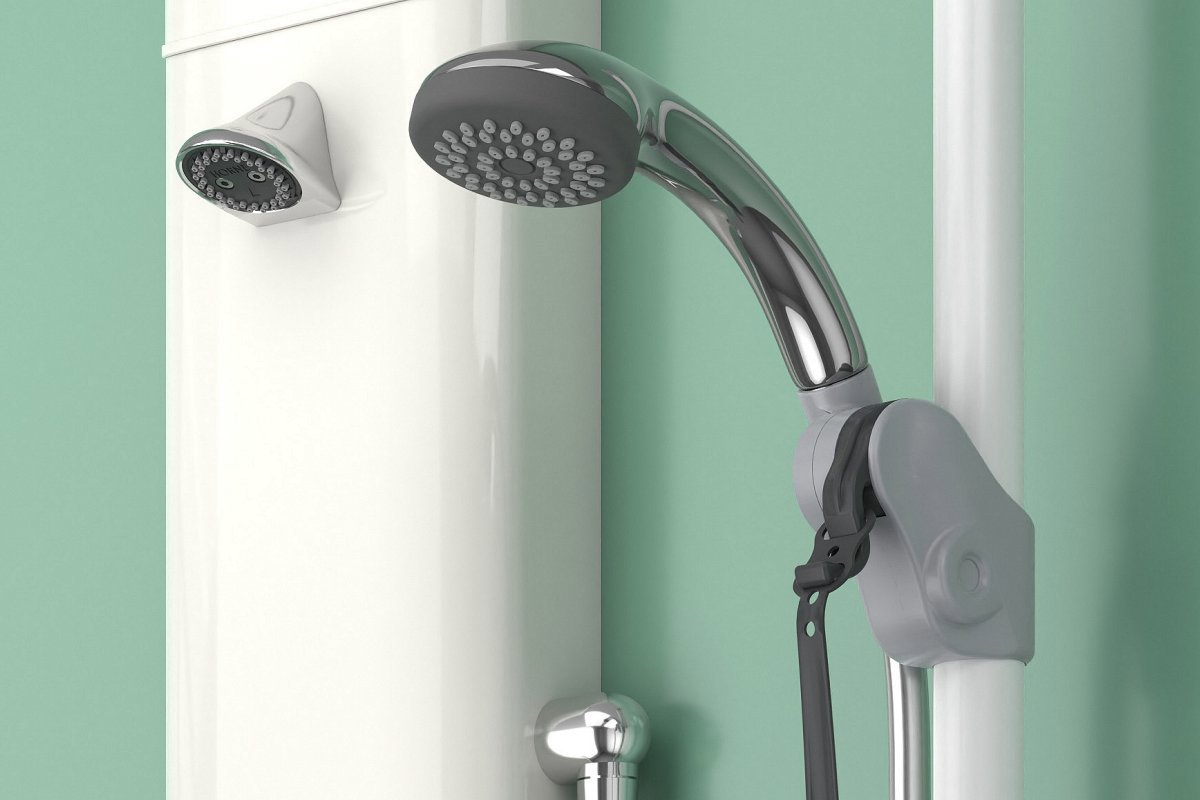

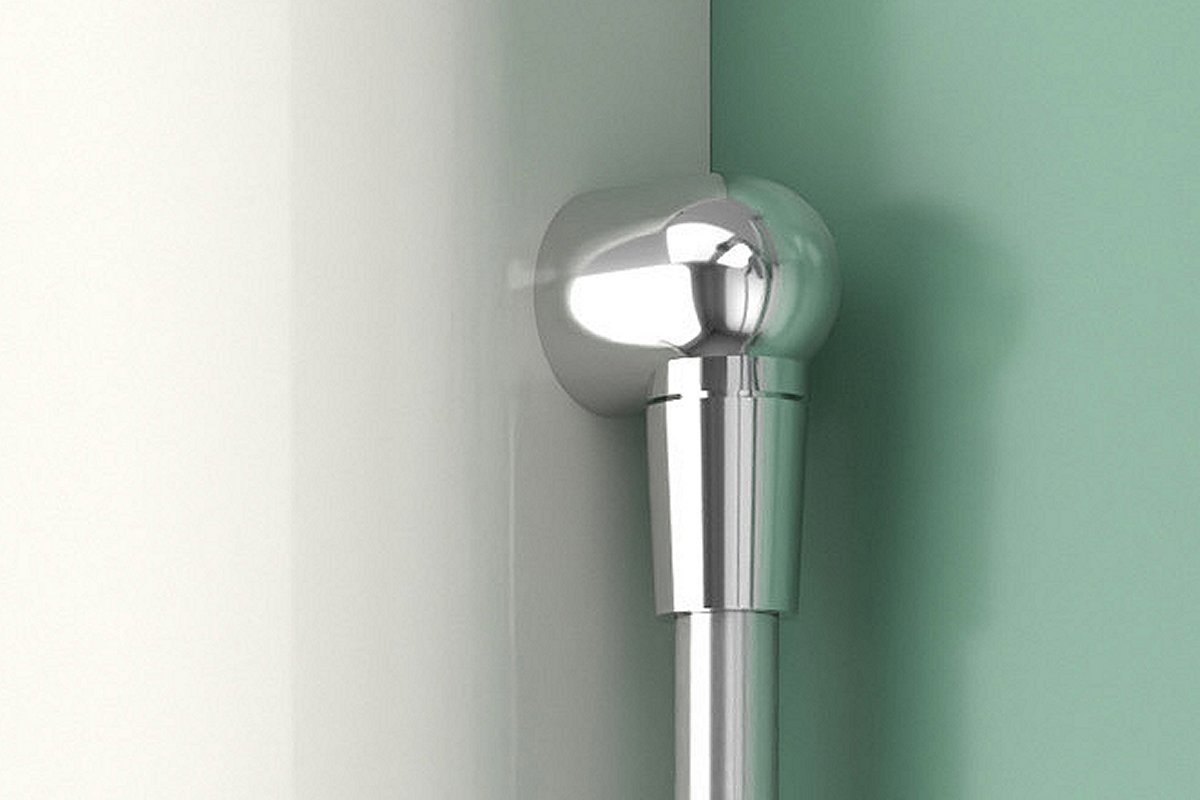

  • Dual outlet shower with integral manual diverter valve to facilitate unassisted and assisted showering in care and accessible / adapted environments. Unassisted Mode uses the fixed vandal and ligature resistant shower head at top of panel (rotate on/off control anti-clockwise to start flow). Assisted Mode (rotate on/off control clockwise) directs water flow to hose and single function handset.
  • Integral 8 L/min flow regulator (VR head) for water and energy conservation contributes to BREEAM rating
  • Pressure and performance tested pre-plumbed assembly with internal copper piping
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installation
  • Low level servicing valves for ease of maintenance
  • Highly accessible for quick and simple testing, maintenance and water sampling

* current arrangement.  For broader compliance with various Accessible/Inclusive Design regulations and guidance, a longer wall-mounted riser rail (1060mm between fixing centres) will become the standard issue for this accessible shower package.  It is anticipated to be in production from approx. late September 2024.

Please note that this shower model is unsuitable for gravity-fed installations and requires a minimum dynamic pressure of 2 bar at each shower head.


















Standards and Approvals

  • The HORNE TSV-MDV shower valve is designed to comply with the requirements of BS7942:2011, and 'Thermostatic mixing valves for use in care establishments'.  3rd party approval to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises) is pending.
  • The HORNE TSV-MDV is designed to comply  (3rd party approval pending) with Reg 4 (materials in contact with water) of the Water Fitting Regulations 1999.
  • The integral ILTDU is approved to Reg 4 (materials in contact with water) of the Water Fitting Regulations 1999.
  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Variants - T705 Range

  • T705T42L - top entry inlets, lever controls, ILTDU and 940mm pipe cover with key slot and white/grey wall-mounted riser rail
  • T7Y5T42L - top entry inlets, lever controls, ILTDU and 465mm pipe cover with key slot and orange/grey wall-mounted riser rail
  • T7Y5T92L - top entry inlets, lever controls, ILTDU and 940mm pipe cover with key slot and orange/grey wall-mounted riser rail
