HORNE TSV1 Shower Panel with Handset, Hose and Riser Rail, Integral ILTDU and Pipe Cover

T307T9

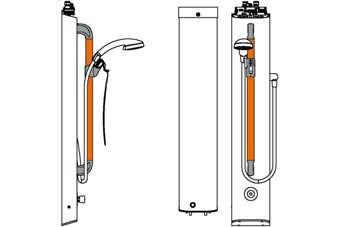

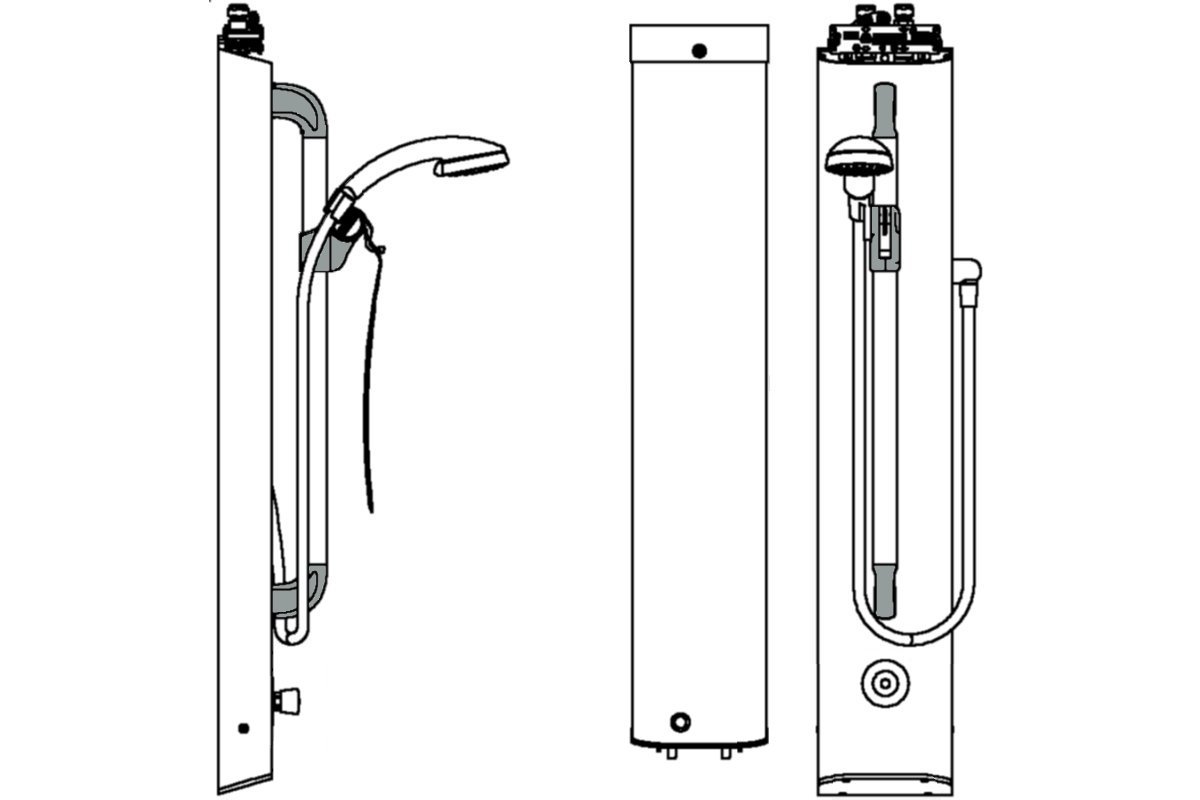

Includes integral Horne 15 Thermostatic Mixing Valve and In-Line Thermal Disinfection Unit, ILTDU, pre-plumbed (in copper) within a white epoxy-polyester powder-coated aluminium panel with hand controls and shower kit, comprising flow-regulated chromium-plated three function easy-clean shower hand set with flexible hose and riser rail in deep orange, and 940mm pipe cover with ILTDU key slot. Product Reference T307T9 as per drawing No. D11377. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne TSV1 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

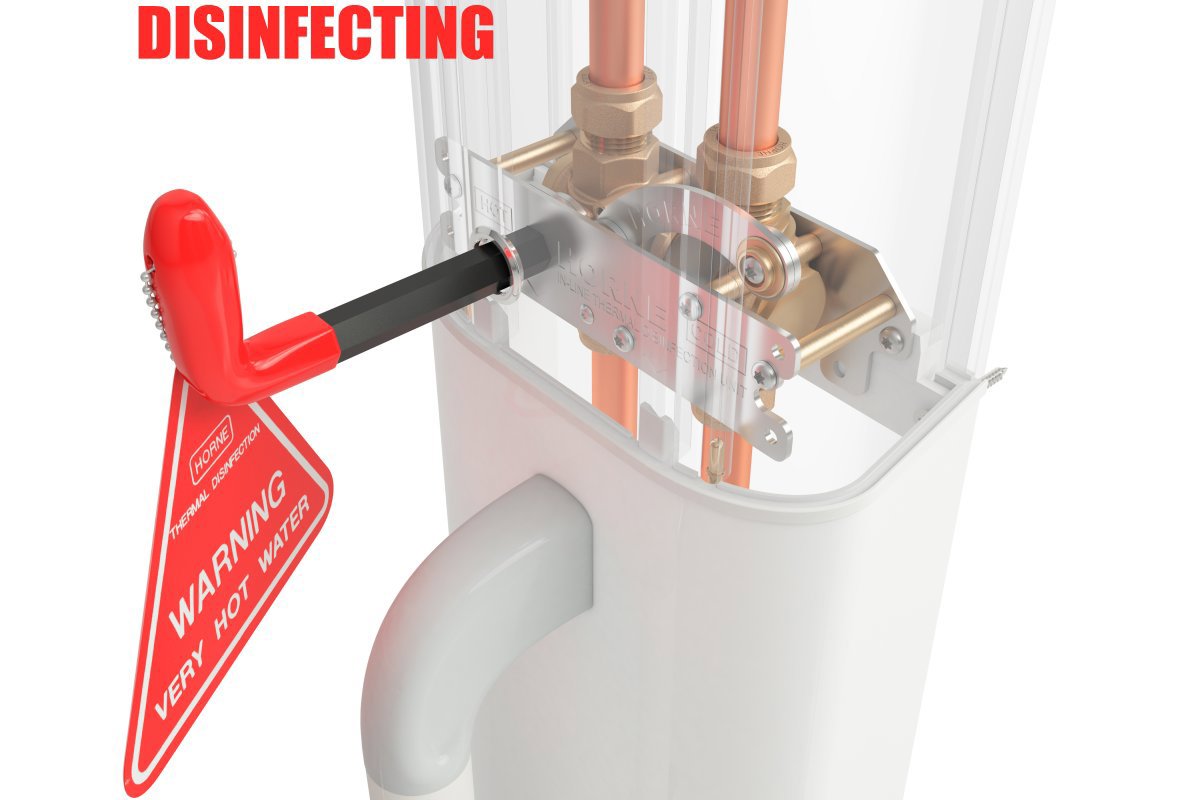

Thermal disinfection of Horne shower panel with integral ILTDU

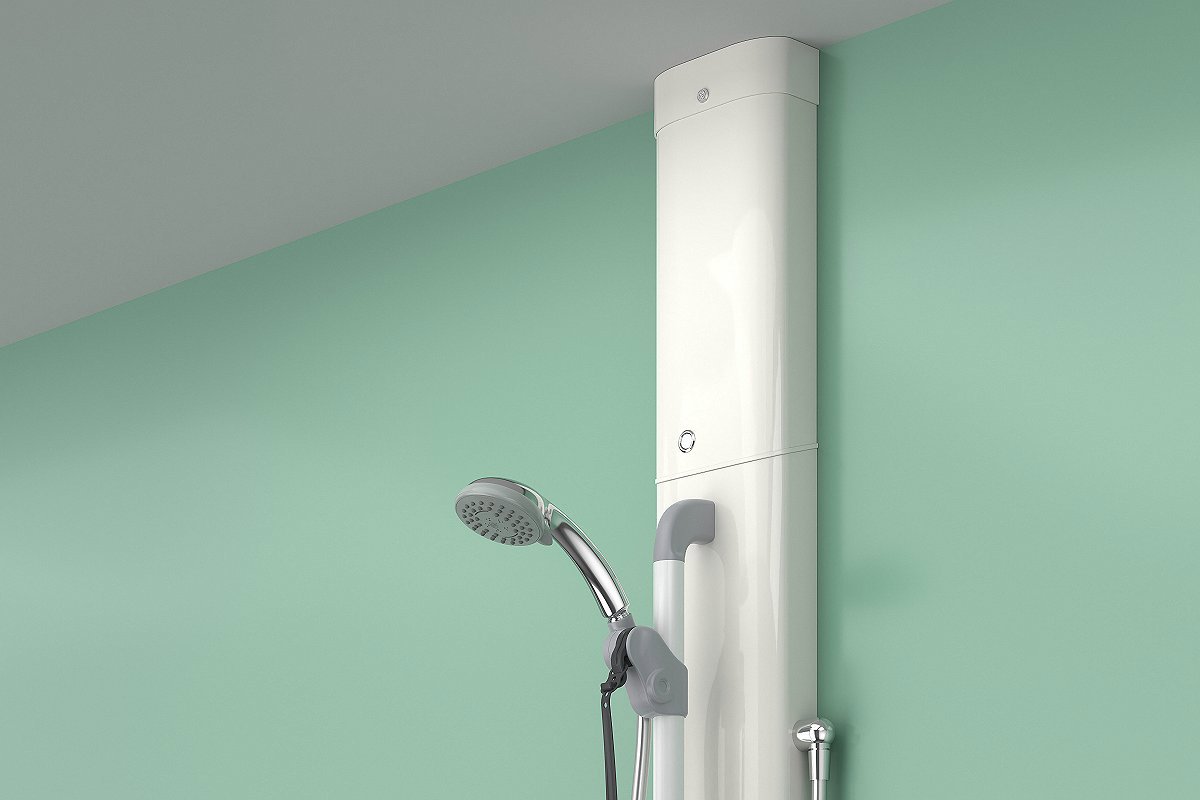

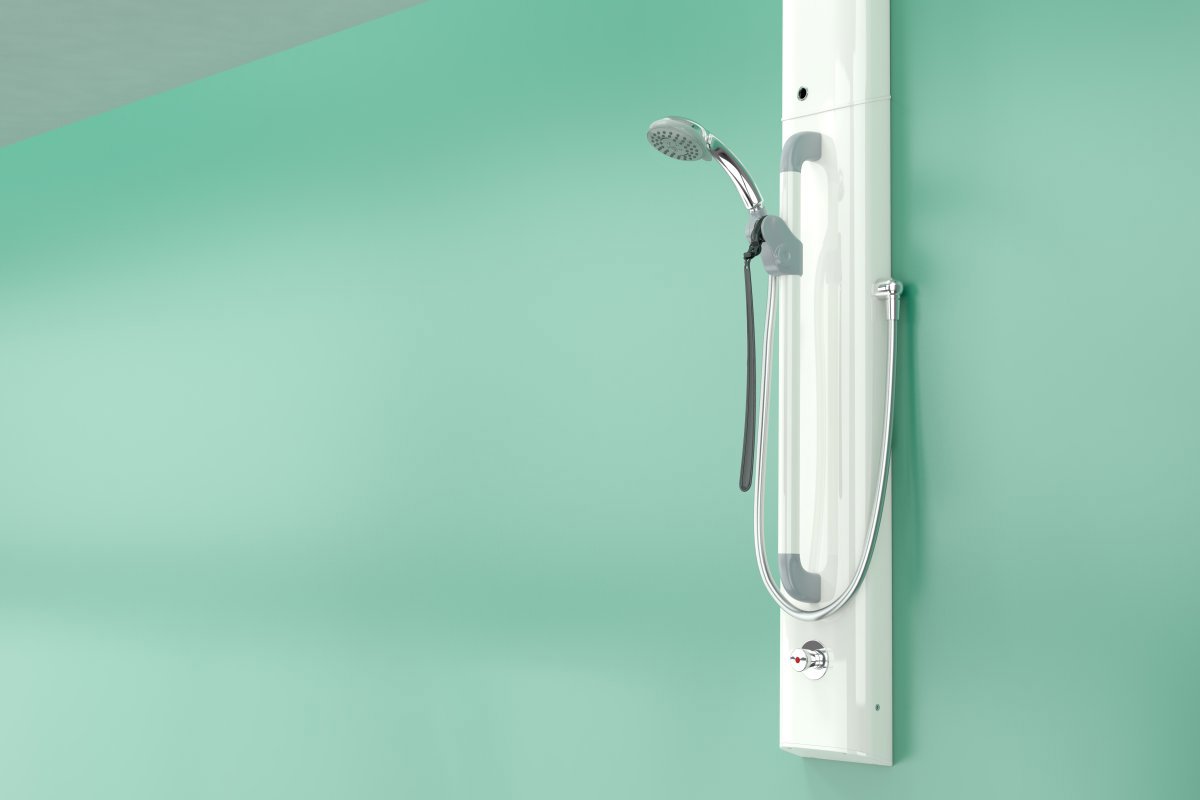

Horne shower panel with integral ILTDU, pipe cover, three function handset and white riser rail

Triple function handset, hose and Horne white riser rail

Horne shower handset riser adjustment release mechanism

Horne Shower Riser rail adjustment release mechanism

Horne 15 within shower panel with standard push button timed flow control

Applications

Thermostatic shower provision for new build, refurbishment, retrofit and temporary installations in sport & leisure, education and other institutional settings where water and energy conservation is of importance.

Horne showers for the Leisure & Education markets

Features

Robust construction, finish and fittings for extended lifespan
Powder-coated panel: white RAL 9010 with Light Reflective Value = 84
Type 3 (healthcare) approved integral Horne 15 thermostatic mixing valve provides reliable and accurate temperature control
Push-button timed flow control (max. duration 45 seconds) for water and energy conservation
Integral ILTDU in-line thermal disinfection unit for control of retrograde contaminants
940mm long Pipe Cover in same profile as panel with key slot for ILTDU operation
Shower kit comprises anti-kink 1.25m hose, three function easy-clean shower handset and robust riser rail in deep orange, handset holder and riser mechanism - easy to see, slide and adjust for users with limited sight and hand mobility
Handset carriage mechanism with Release Extender allows shorter or wheelchair users to easily lower a high-set shower handset
Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
Pressure and performance tested pre-plumbed assembly with internal copper piping
Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
Low-level servicing valves for ease of maintenance
Highly accessible for quick and simple testing, maintenance and water sampling

Accessories

Standards and Approvals

The shower's internal HORNE 15 TMV is designed to meet the requirements of BS7942:2011, 'Thermostatic mixing valves for use in care establishments' and is approved, as a Type 3 thermostatic mixing valve, to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises).
The H1503 and the ILTDU are UK Water Reg. 4 approved (materials in contact with water).
All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Variants - T307 Range

T307T4 - top entry inlets, standard control, ILTDU and 940mm Pipe Cover with key slot
T307A - top entry inlets, standard control
T307B - rear entry inlets, standard control
