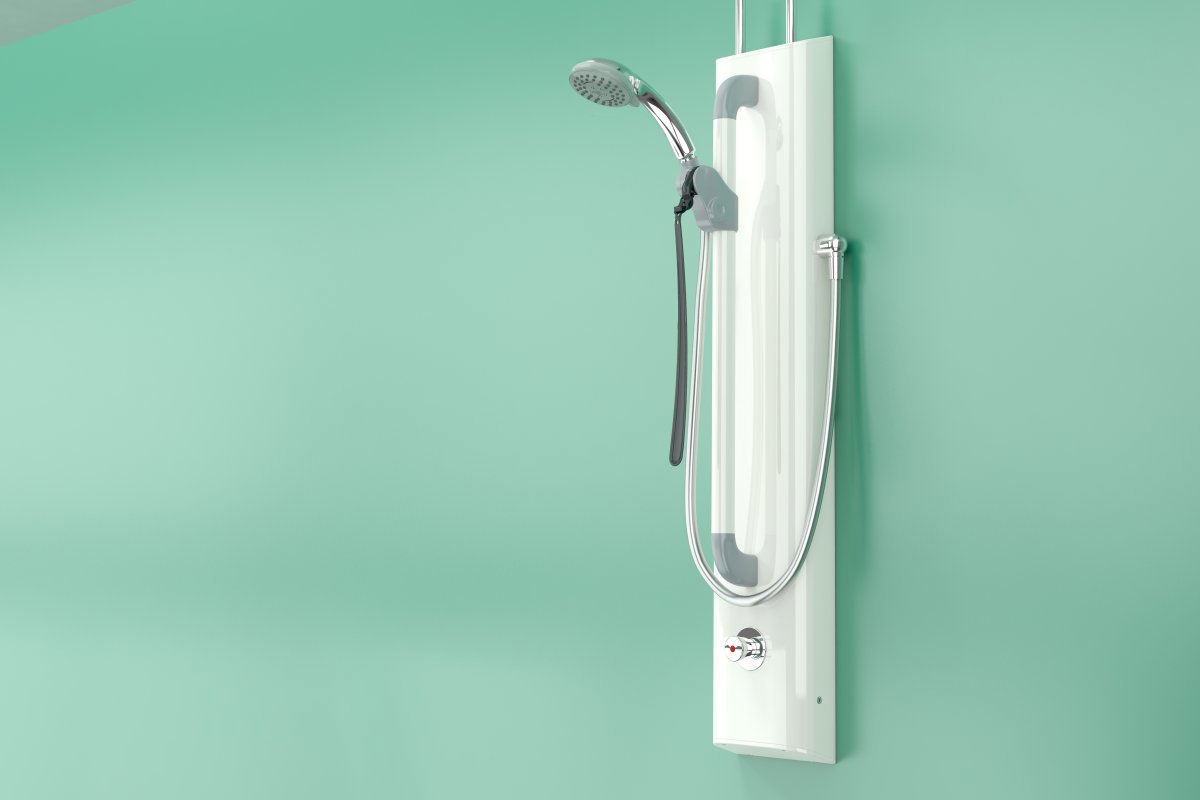

HORNE TSV1 Shower Panel with Timed Flow Control, 3 Function Shower Handset, Flexible Hose and Slide Bar

T307A

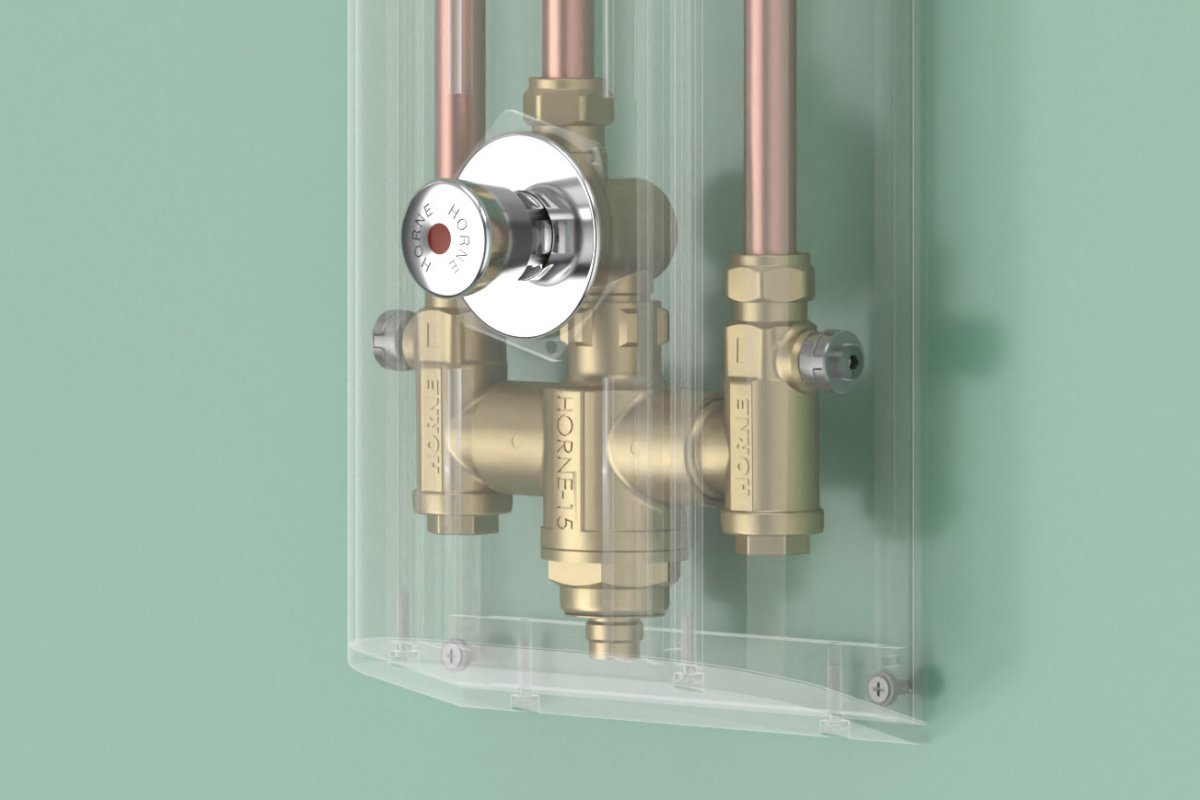

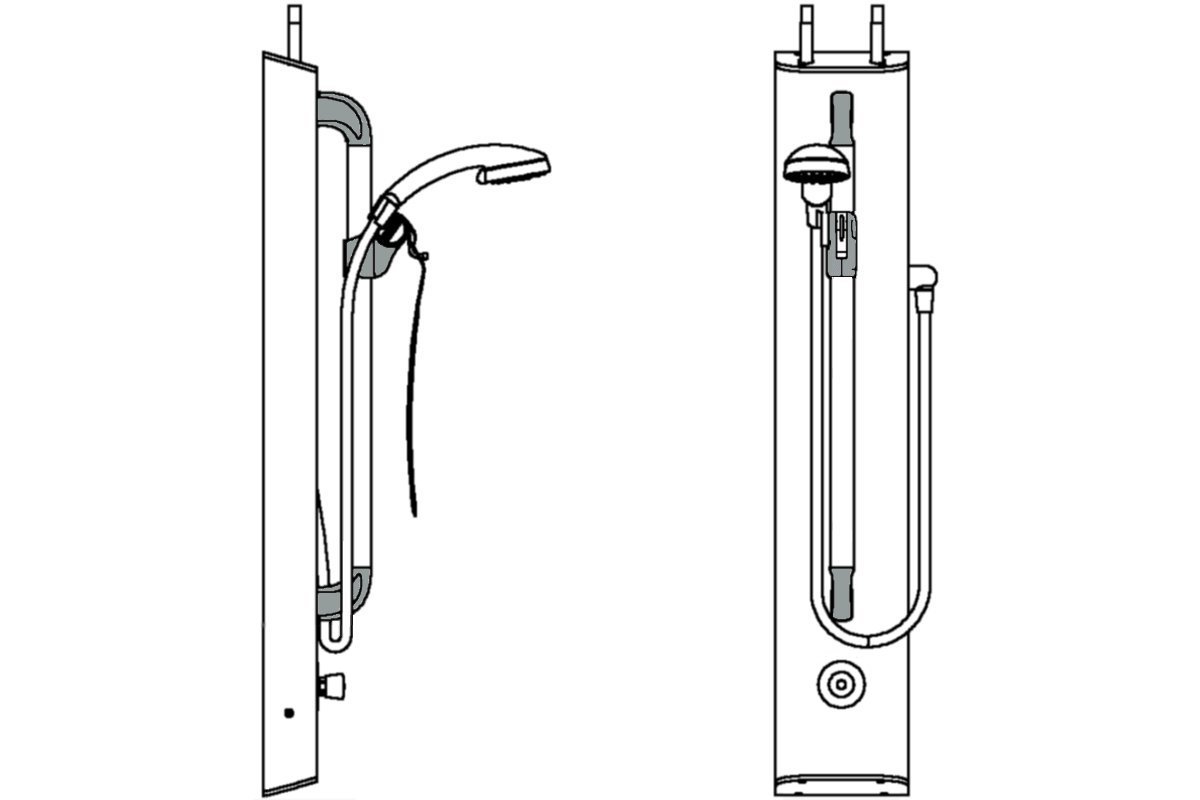

Includes integral Horne 15 H1503 thermostatic mixing valve pre-plumbed within a white powder coated aluminium panel with push button timed flow control and shower kit, comprising chromium plated three function easy clean shower hand set with flexible hose and slide bar. Product Reference T307A as per drawing No. D10355. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne 15 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

Thermostatic shower provision for new build, refurbishment, retrofit and temporary installations in sport & leisure, education and other institutional settings where water and energy conservation is of importance.

Horne showers for the Leisure & Education markets

Features

  • Robust construction, finish and fittings for extended lifespan
  • Powder coated panel: white RAL 9010 with Light Reflective Value = 86.
  • TMV3 approved integral Horne 15 themostatic mixing valve provides reliable and accurate temperature control
  • Push button timed flow control for water and energy conservation

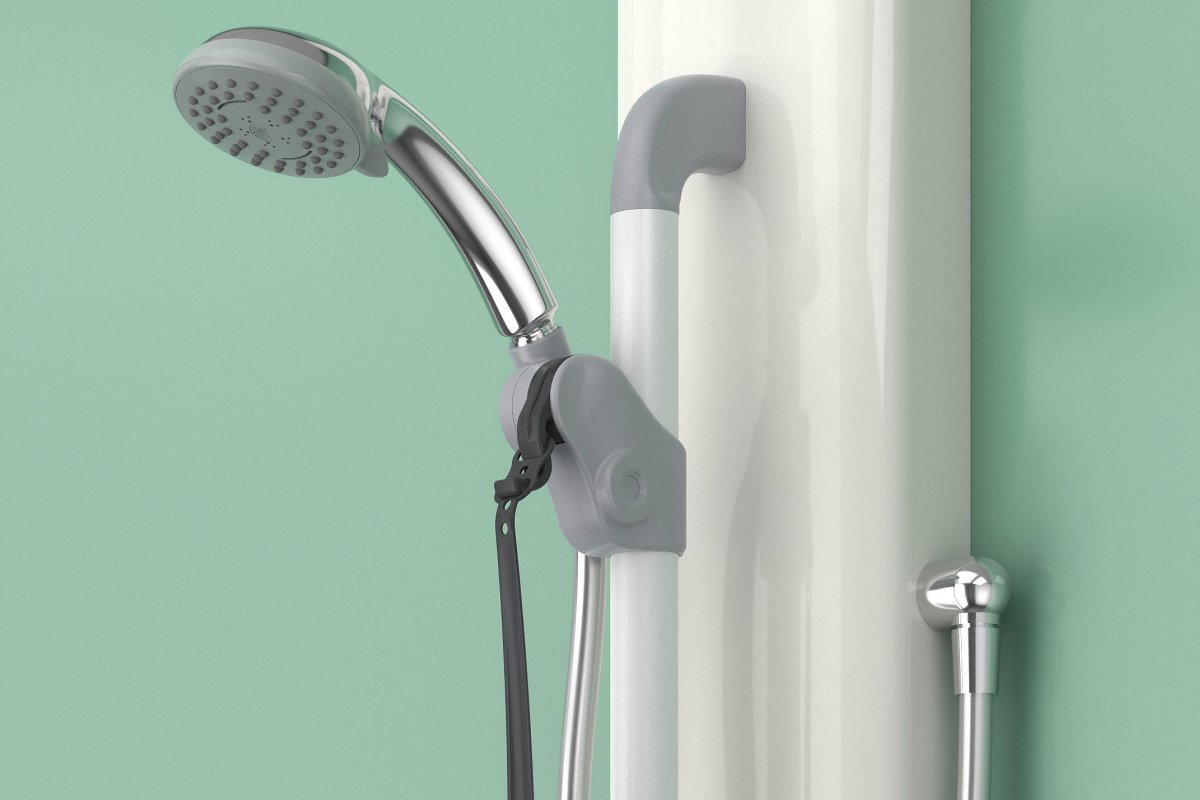

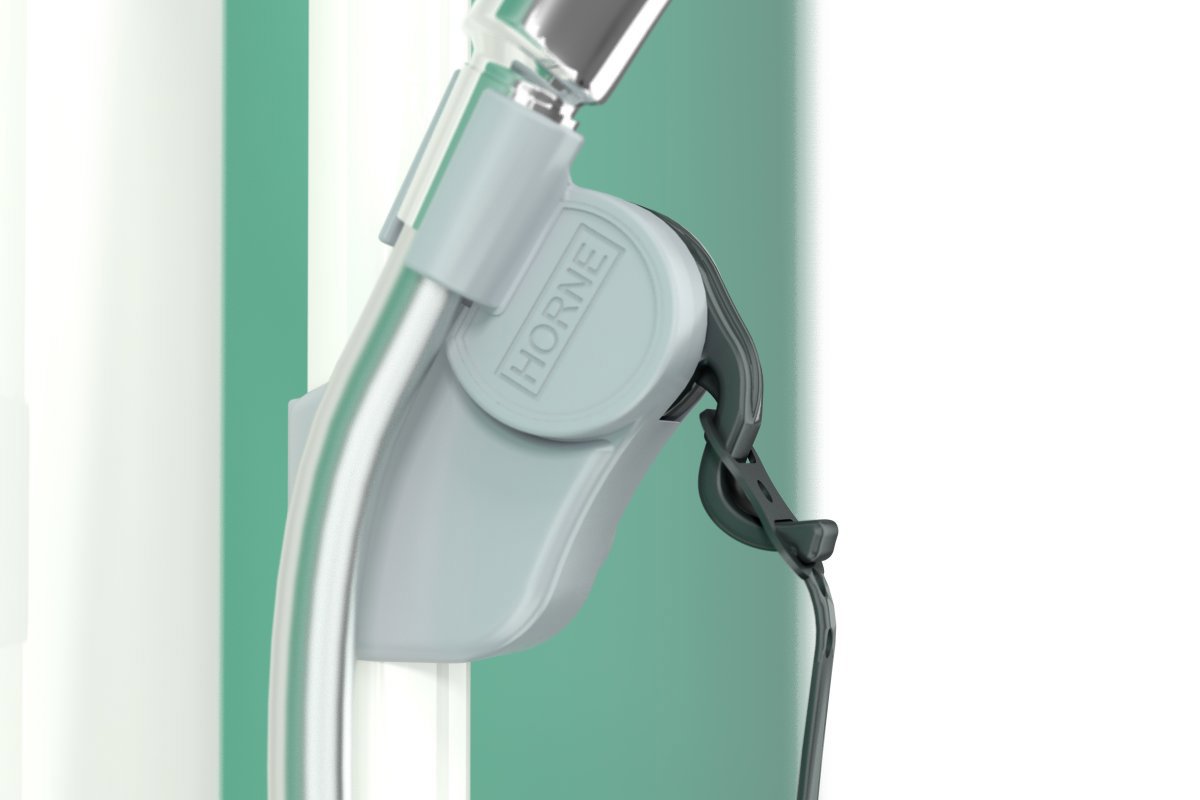

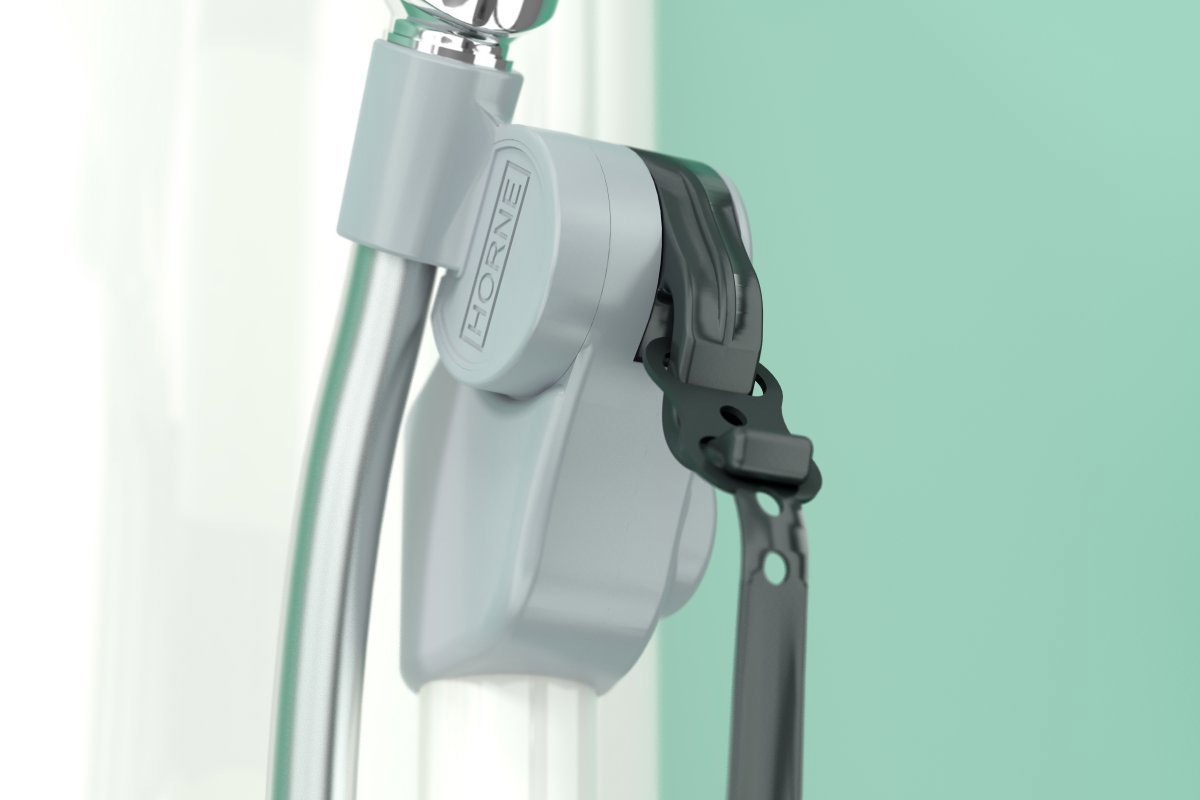

  • Shower kit comprises anti-kink 1.25m hose, 3 function easy clean shower handset and robust riser bar with easy to see, and slide, handset holder
  • Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
  • Pressure and performance tested pre-plumbed assembly with internal copper piping
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
  • Low level servicing valves for ease of maintenance
  • Highly accessible for quick and simple maintenance

Standards and Approvals

  • The T307A is named on the Water Technology List (efficient showers) thus is eligible for Enhanced Capital Allowances (tax relief).
  • The HORNE H1503 thermostatic mixing valve is designed to meet the requirements of BS7942:2000, 'Thermostatic mixing valves for use in care establishments' and is approved, under the TMV3 Scheme, to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises).
  • The H1503 thermostatic mixing valve is a WRAS approved product.
  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

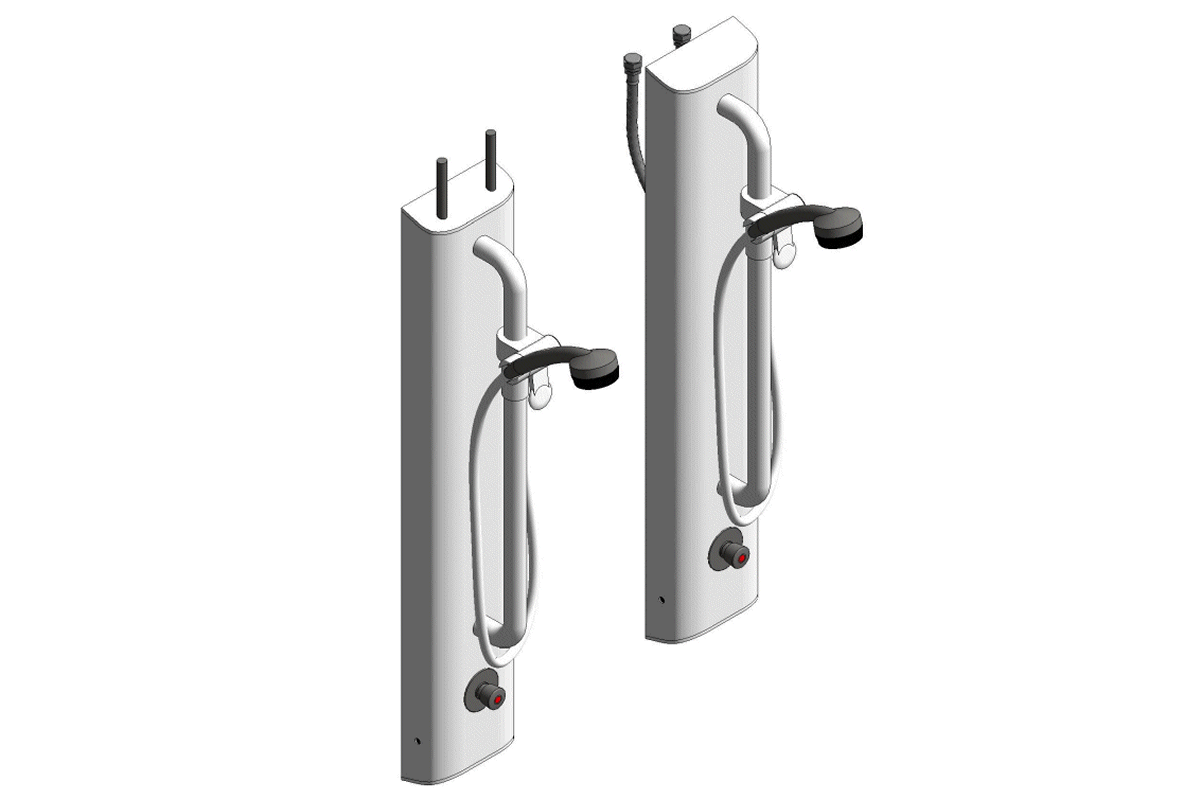

Variants - T307 Range

  • T307B - rear entry inlets, standard control

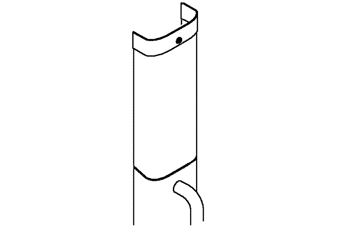

  • T307T4 - top entry inlets, standard control, ILTDU and 465mm Pipe Cover with key slot
  • T307T9 - top entry inlets, standard control, ILTDU and 940mm Pipe Cover with key slot

Useful Documents

Related Products

Installations

  • Crumlin Recreation Grounds, Antrim
  • Hesley Gp Special Autism Schools
  • Parklands Country Club, Glasgow
  • Royal Brompton Hospital
  • The Walton Centre NHS FT
