HORNE TSV1 Shower Panel with Integral ILTDU and Pipe Cover

T306T4

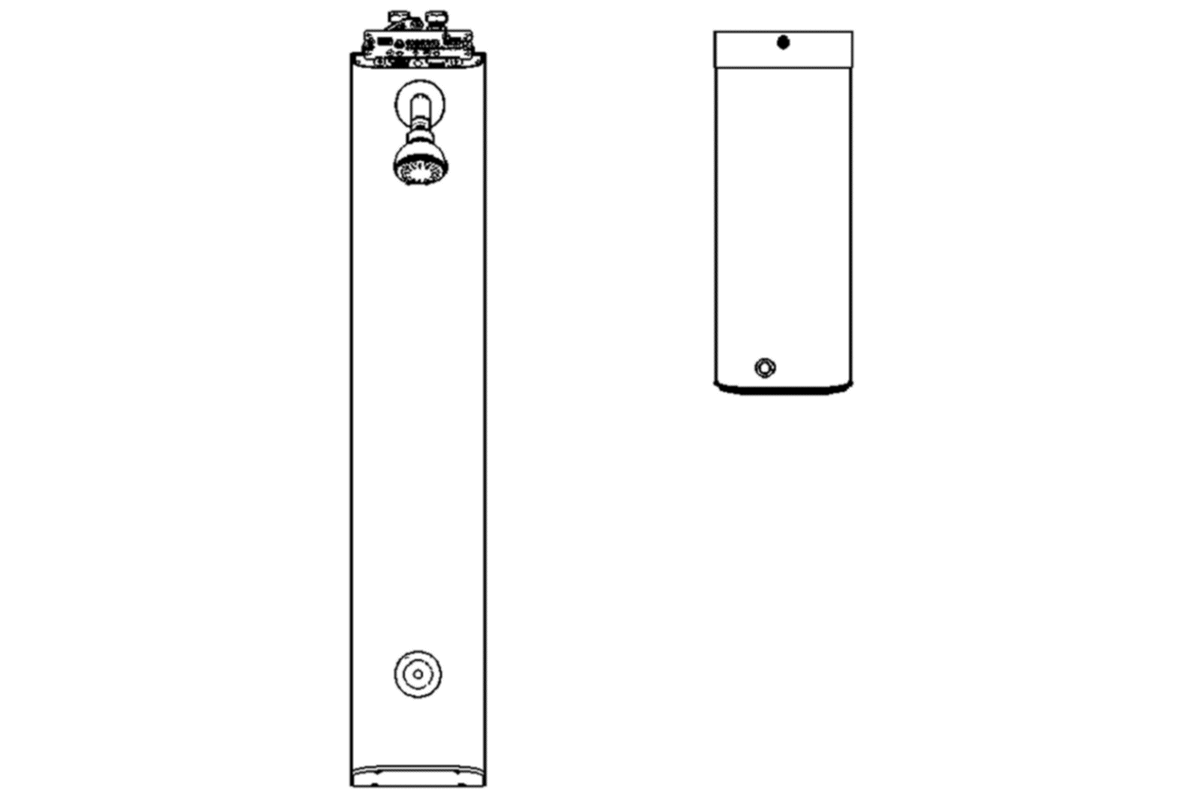

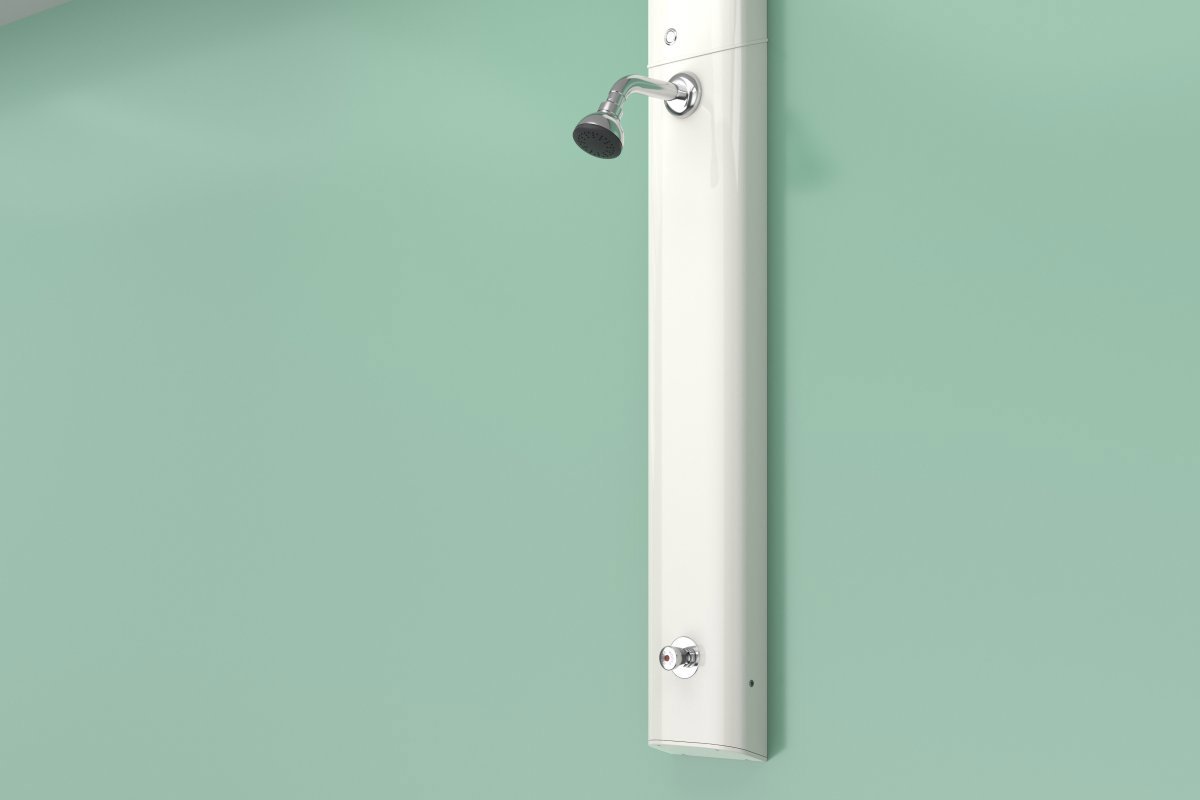

Includes Horne 15 Thermostatic Mixing Valve and In-Line Thermal Disinfection Unit ILTDU pre-plumbed (in copper) within a white epoxy-polyester powder-coated aluminium panel with push button timed flow control, easy-clean swivel shower head in chromium plated finish, flow regulator and 465mm pipe cover with ILTDU key slot. Product Reference T306T4 as per drawing No. D11374. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne TSV1 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

Shower provision for new build, refurbishment, retrofit and temporary installations in healthcare, residential care, education, leisure and other institutional settings.

Horne showers for Healthcare Leisure Education markets

Features

  • Robust construction, finish and fittings for extended lifespan
  • Powder-coated panel: white RAL 9010 with Light Reflective Value = 84
  • Type 3 (healthcare) approved integral Horne 15 thermostatic mixing valve provides reliable and accurate temperature control
  • Push-button timed flow control for water and energy conservation

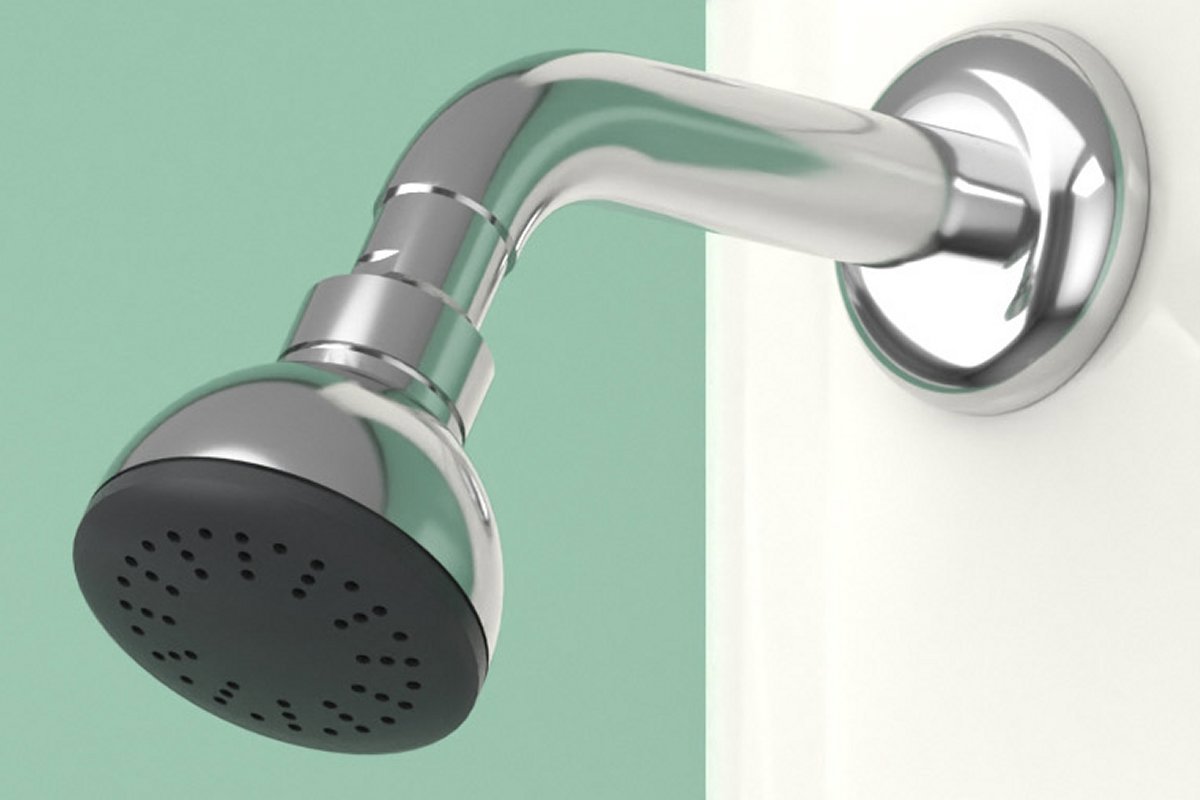

  • Easy-clean swivel shower head in chromium plated finish
  • Integral ILTDU in-line thermal disinfection unit for control of retrograde contaminants

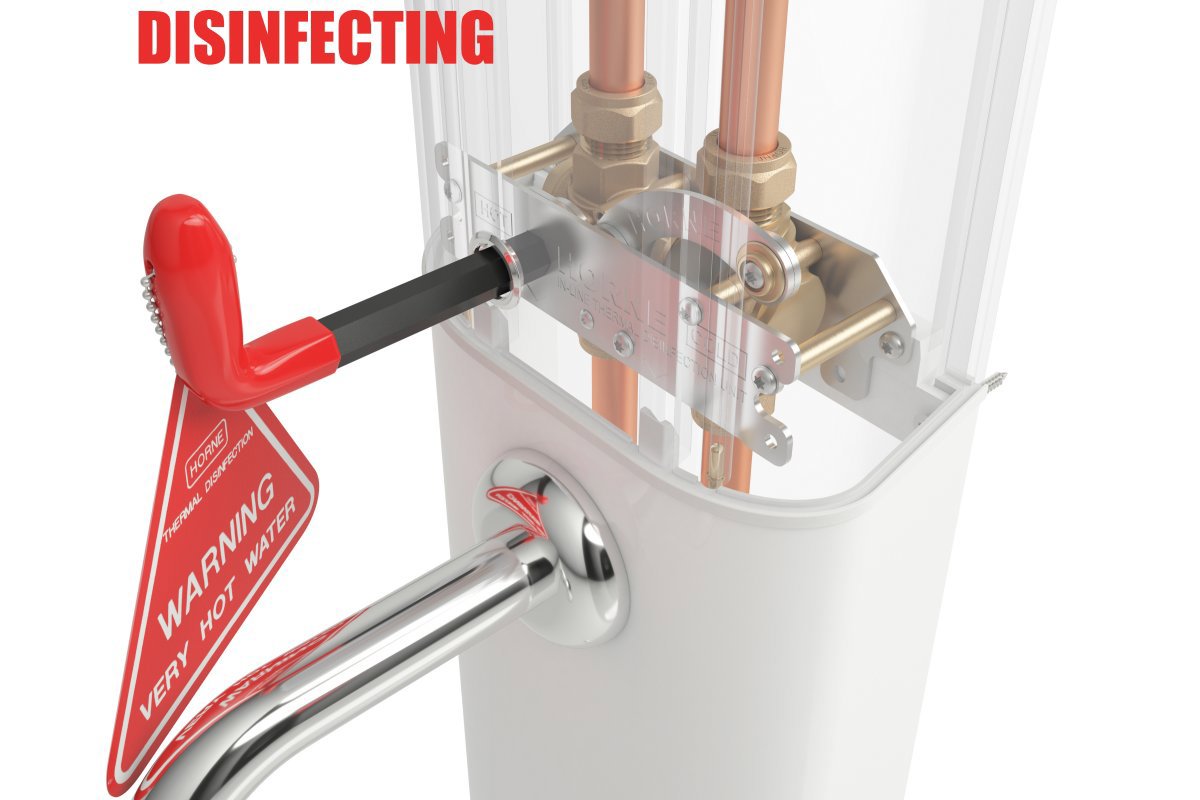

  • 465mm long Pipe Cover in same profile as panel with key slot for ILTDU operation
  • Integral flow regulator (8 L/min) for water and energy conservation and contributes to BREEAM rating
  • Pressure and performance tested pre-plumbed assembly with internal copper piping
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
  • Low-level servicing valves for ease of maintenance
  • Highly accessible for quick and simple testing, maintenance and water sampling

Accessories











Standards and Approvals

  • The shower's internal HORNE 15 TMV is designed to meet the requirements of BS7942:2011, 'Thermostatic mixing valves for use in care establishments' and is approved, as a Type 3 thermostatic mixing valve, to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises).
  • The H1503 and the ILTDU are UK Water Reg. 4 approved (materials in contact with water).
  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Variants - T306 Range

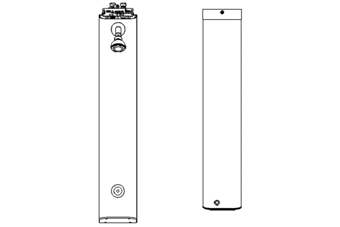

  • T306T9 - top entry inlets, standard control, ILTDU and 940mm Pipe Cover with key slot

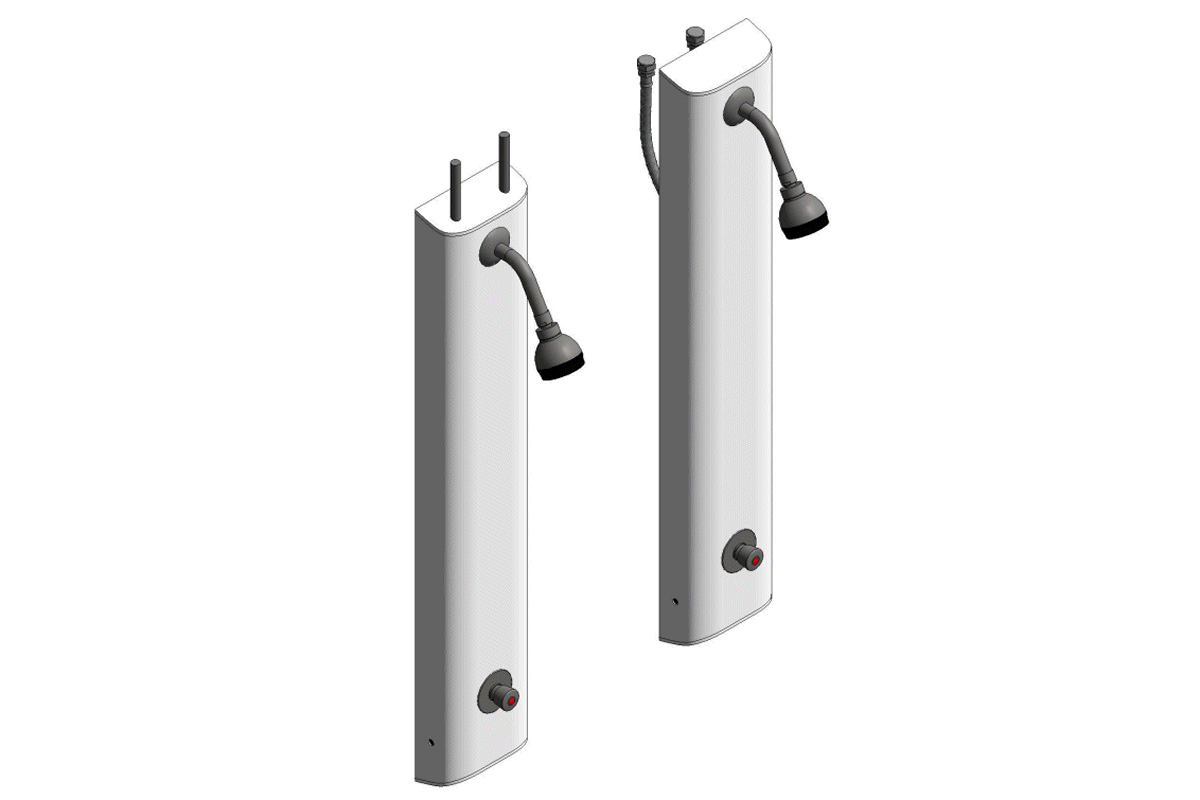

  • T306A - top entry inlets, standard control
  • T306B - rear entry inlets, standard control
