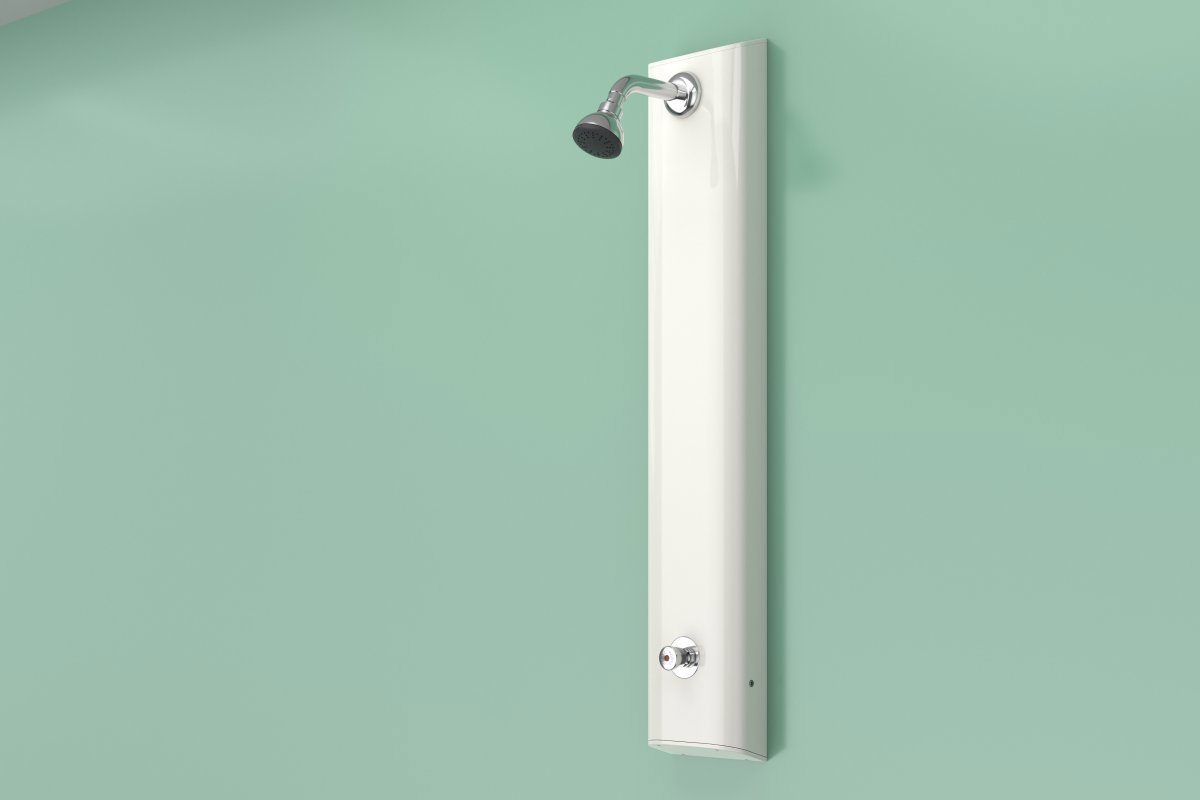

HORNE TSV1 Shower Panel with Timed Flow Control and Swivel Shower Head

T306B

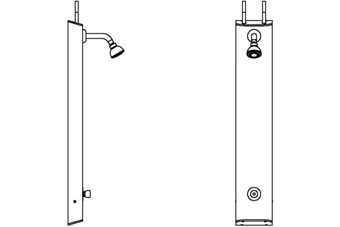

Includes integral Horne 15 H1503 thermostatic mixing valve pre-plumbed within a white epoxy-polyester powder-coated aluminium panel with push button timed flow control and swivel shower head in chromium plated finish. Connections by SOFT-PEX flexible braided hose for concealed water supply. Product Reference T306B as per drawing D10357. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne 15 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Horne 15 within shower panel with standard push button timed flow control

Horne Shower component -single function swivel head

Applications

Shower provision for new build, refurbishment, retrofit and temporary installations in healthcare, residential care, education, leisure and other institutional settings.

Horne showers for Healthcare Leisure Education markets

Features

Robust construction, finish and fittings for extended lifespan
Powder-coated panel: white RAL 9010 with Light Reflective Value = 84
Type 3 (healthcare) approved integral Horne 15 thermostatic mixing valve provides reliable and accurate temperature control
Push-button timed flow control for water and energy conservation
Fixed swivel head for directional flow with easy-clean spray face
Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
Pressure and performance tested pre-plumbed assembly
Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
Includes flexible braided (SOFT-PEX) inlets suitable for concealed water supply
Low-level servicing valves for ease of maintenance
Highly accessible for quick and simple testing, maintenance and water sampling

Accessories

Horne 15 Flushing Kit
Monitoring Kit

Standards and Approvals

The shower's internal HORNE 15 TMV is designed to meet the requirements of BS7942:2011, 'Thermostatic mixing valves for use in care establishments' and is approved, as a Type 3 thermostatic mixing valve, to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises).
The H1503 is UK Water Reg. 4 approved (materials in contact with water).
All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Variants - T306 Range

T306A - top entry inlets, standard controls
T306T4 - top entry inlets, standard controls, ILTDU and 465mm pipe cover with key slot
T306T9 - top entry inlets, standard controls, ILTDU and 940mm pipe cover with key slot
