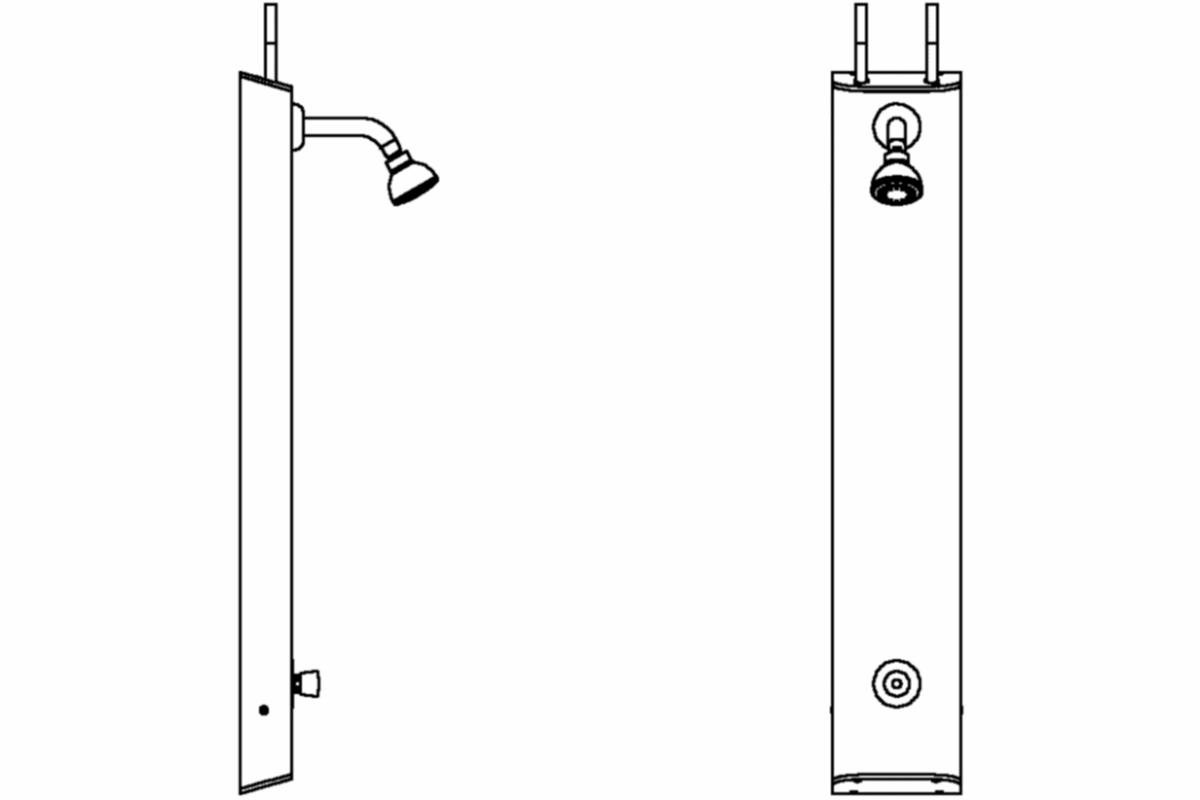

HORNE TSV1 Shower Panel with Timed Flow Control and Swivel Shower Head

T306A

Includes integral Horne 15 H1503 thermostatic mixing valve pre-plumbed within a white powder coated aluminium panel with push button timed flow control and swivel shower head in chromium plated finish. Product Reference T306A as per drawing No. D10354. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne 15 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

Shower provision for new build, refurbishment, retrofit and temporary installations in healthcare, education, leisure and other institutional settings.

Horne showers for Healthcare Leisure Education markets

Features

  • Robust construction, finish and fittings for extended lifespan
  • Powder coated panel: white RAL 9010 with Light Reflective Value = 86.
  • TMV3 approved integral Horne 15 themostatic mixing valve provides reliable and accurate temperature control
  • Push button timed flow control for water and energy conservation
  • Fixed swivel head for directional flow with easy-clean spray face
  • Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
  • Pressure and performance tested pre-plumbed assembly with internal copper piping
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
  • Low level servicing valves for ease of maintenance
  • Highly accessible for quick and simple maintenance

Standards and Approvals

  • The T306A is named on the Water Technology List (efficient showers) thus is eligible for Enhanced Capital Allowances (tax relief).
  • The HORNE H1503 thermostatic mixing valve is designed to meet the requirements of BS7942:2000, 'Thermostatic mixing valves for use in care establishments' and is approved, under the TMV3 Scheme, to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises).
  • The HORNE H1503 is a WRAS approved product.
  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Variants - T306 Range

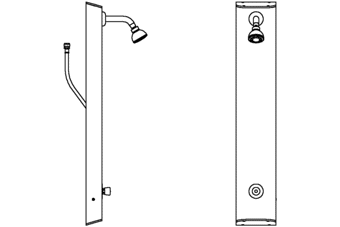

  • T306B - rear entry inlets, standard control
  • T306T4 - top entry inlets, standard control, ILTDU and 465mm Pipe Cover with key slot
  • T306T9 - top entry inlets, standard control, ILTDU and 940mm Pipe Cover with key slot
