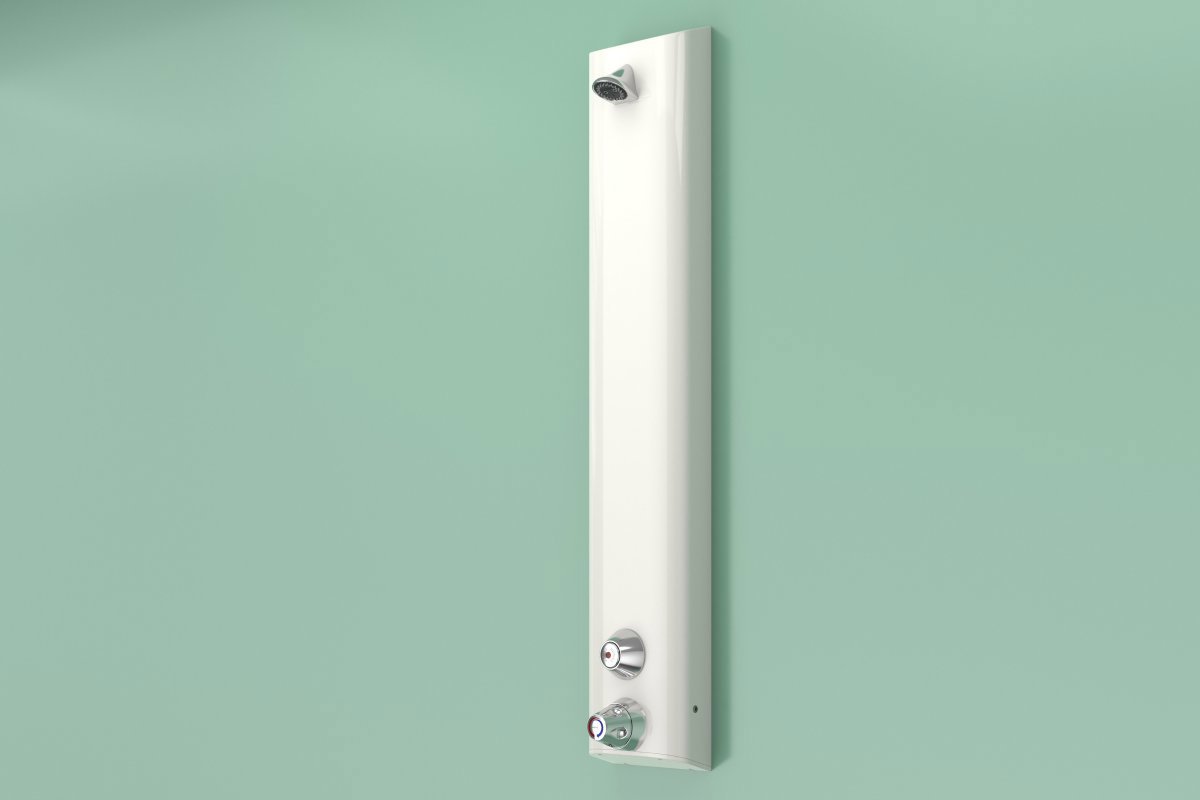

HORNE Thermostatic Shower Panel with Ligature Resistant Temperature and Timed Flow Control and Vandal Resistant Shower Head

T113BLR

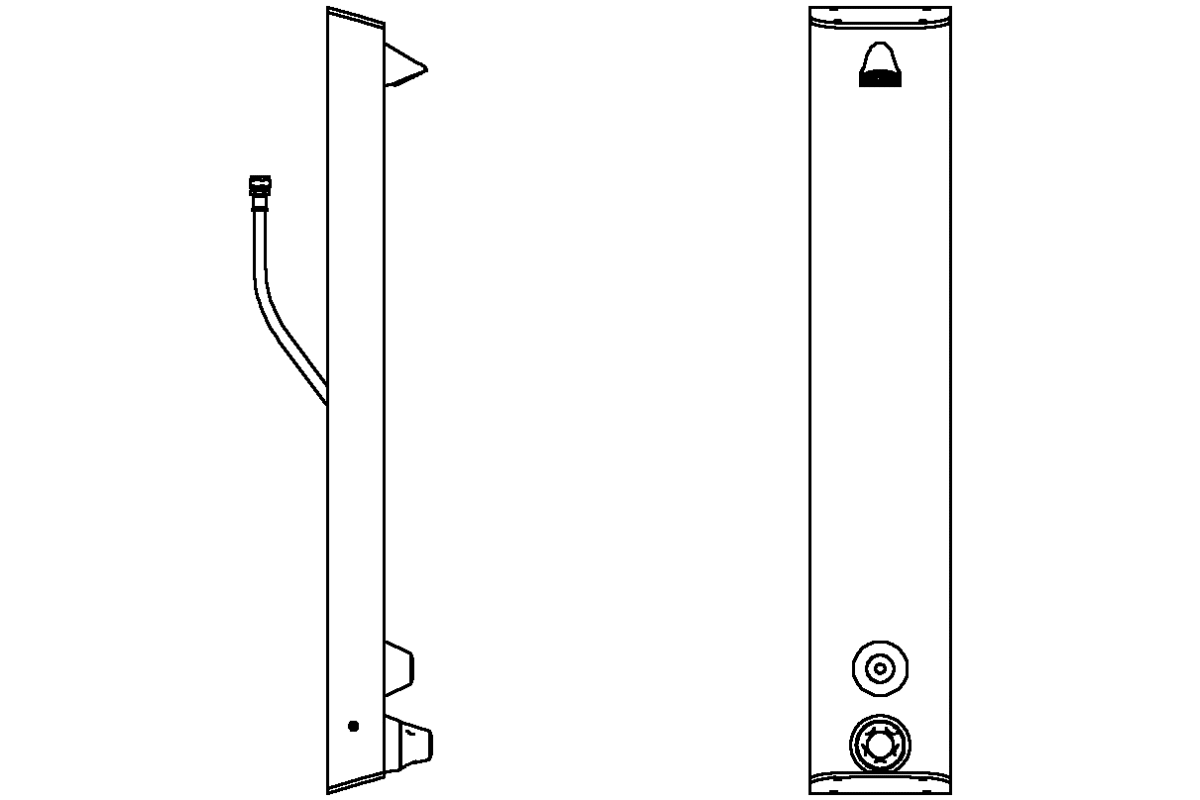

Includes integral thermostatic shower valve pre-plumbed within a white epoxy-polyester powder-coated aluminium panel with ligature resistant push button timed flow control, temperature adjustment and ligature and vandal resistant, adjustable and flow regulated shower head in chromium plated finish. Connections by SOFT-PEX flexible braided hose for concealed water supply. Product Reference T113BLR as per drawing number D11302. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne TSV1 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Ligature resistant Shower Valve with Timed Flow Control and Temperature control

Horne TSV-TFC shower valve with ligature resistant controls (within shower panel)

Horne ligature and vandal resistant shower head

VR shower head with adjustable spray plate

Applications

Ligature resistant shower provision for new build, refurbishment, retrofit and temporary installations in sport & leisure, education, secure and other institutional settings where water and energy conservation is of importance.

Horne showers for Leisure Education Secure markets

Features

Robust construction, finish and fittings for extended lifespan
Powder-coated panel: white RAL 9010 with Light Reflective Value = 84
Type 3 (healthcare) approved thermostatic shower valve and push button timed flow control provides reliable and accurate temperature control while conserving water
Vandal and ligature resistant shower head with 2 spray positions and easy clean nozzle array - see our Safe Secure and Versatile too animation
Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
Pressure and performance tested pre-plumbed assembly with internal copper piping
Includes flexible braided (SOFT-PEX) inlets suitable for concealed water supplies
Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
Low level servicing valves for ease of maintenance
Highly accessible for quick and simple testing, maintenance and water sampling

Accessories

Standards and Approvals

The HORNE TSV-TFC shower valve is designed to meet the requirements of BS7942:2011, 'Thermostatic mixing valves for use in care establishments' and is approved as a Type 3 Thermostatic mixing valve to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises)
The HORNE TSV-TFC shower valve is approved to Reg 4 (materials in contact with water) of the Water Fitting Regulations 1999
All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Variants - T113 Range

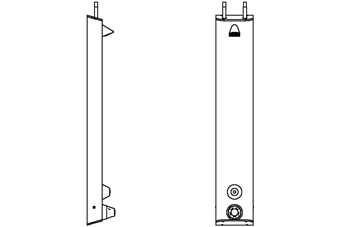

T113ALR - top entry inlets, ligature resistant controls
T113T4LR - top entry inlets, ligature resistant controls. ILTDU and 465mm Pipe Cover with key slot
T113T9LR - top entry inlets, ligature resistant controls, ILTDU and 940mm Pipe Cover with key slot
T113A - top entry inlets, standard controls
T113B - rear entry inlets, standard controls
T113T4 - top enty inlets, standard controls, ILTDU and 465mm Pipe Cover with key slot
T113T9 - top entry inlets, standard controls, ILTDU and 940mm Pipe Cover with key slot
T113A1L - top entry inlets, temperature control lever
T113B1L - rear entry inlets, temperature control lever
T113T41L - top entry inlets, temperature control lever, ILTDU and 465mm Pipe Cover with key slot
T113T91L - top entry inlets, temperature control lever, ILTDU and 940mm Pipe Cover with key slot.
