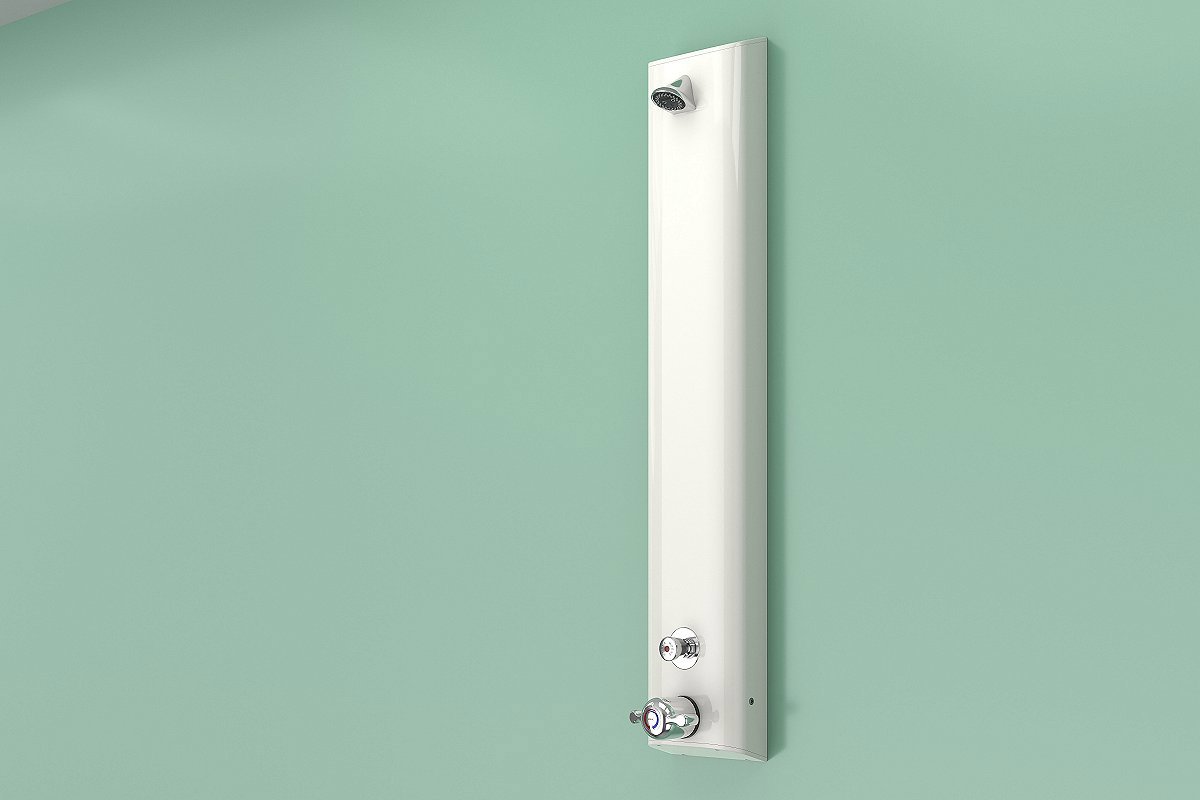

HORNE Thermostatic Shower Panel with Lever Temperature Control, Timed Flow Control and Vandal Resistant Shower Head

T113B1L

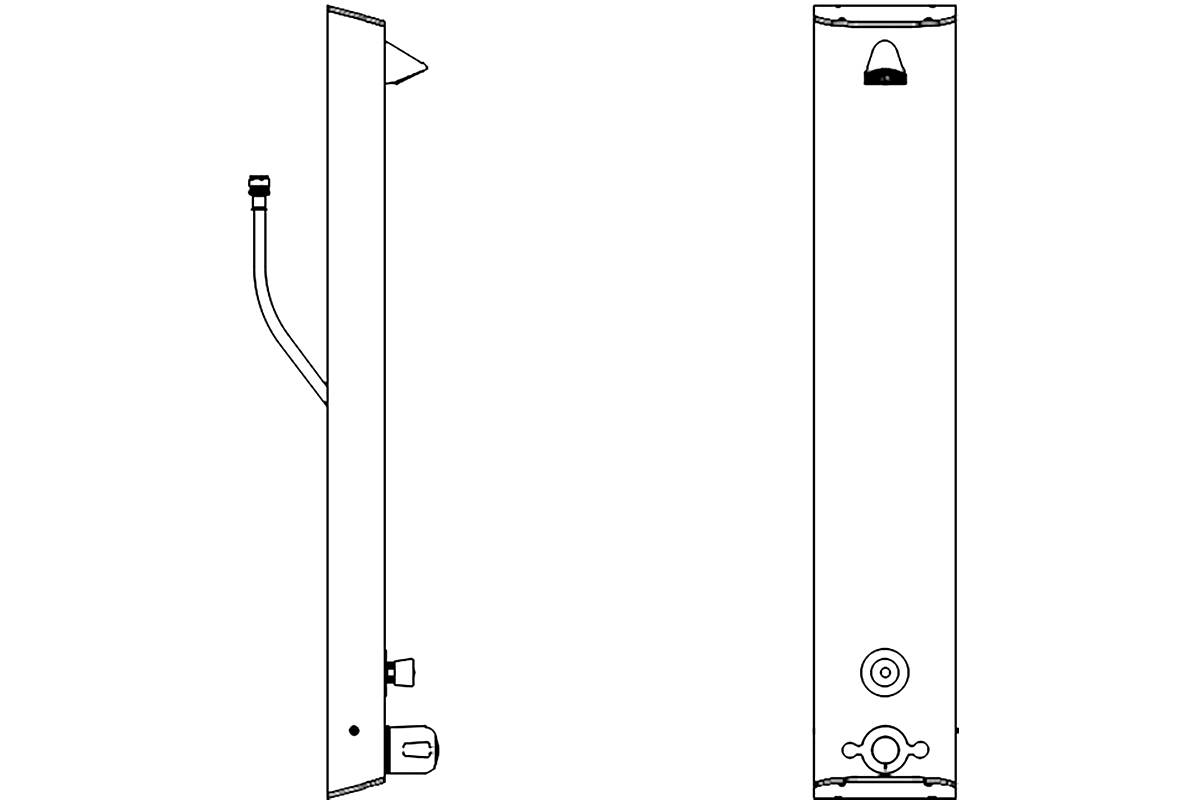

Includes integral thermostatic shower valve pre-plumbed within a white powder coated aluminium panel with push button timed flow control, lever temperature adjustment and vandal resistant, adjustable and flow regulated shower head in chromium plated finish. Connections by SOFT-PEX flexible braided hose for concealed water supply. Product Reference T113B1L as per drawing D10333. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne TSV1 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

Shower provision for new build, refurbishment, retrofit and temporary installations in sport & leisure, education and other institutional settings where water and energy conservation is of importance.

Horne showers for the Leisure & Education markets

Features

  • Robust construction, finish and fittings for extended lifespan
  • Powder coated panel: white RAL 9010 with Light Reflective Value = 86.

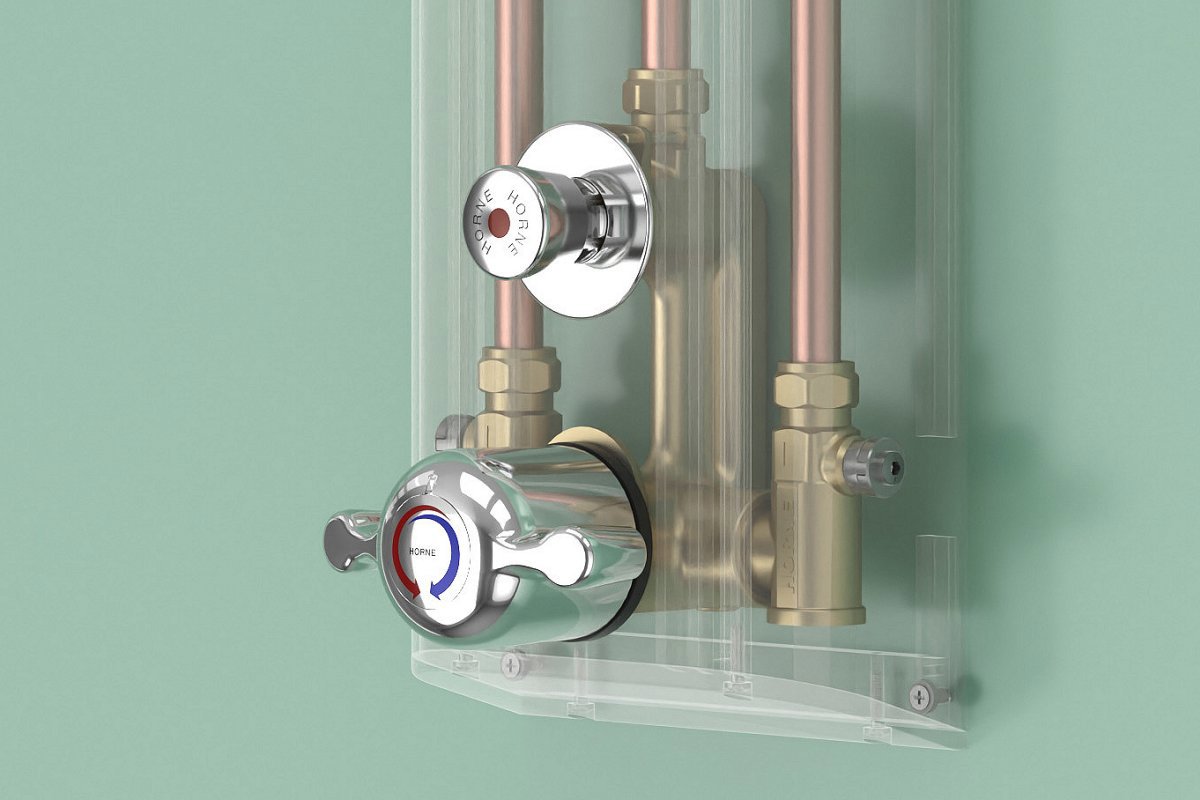

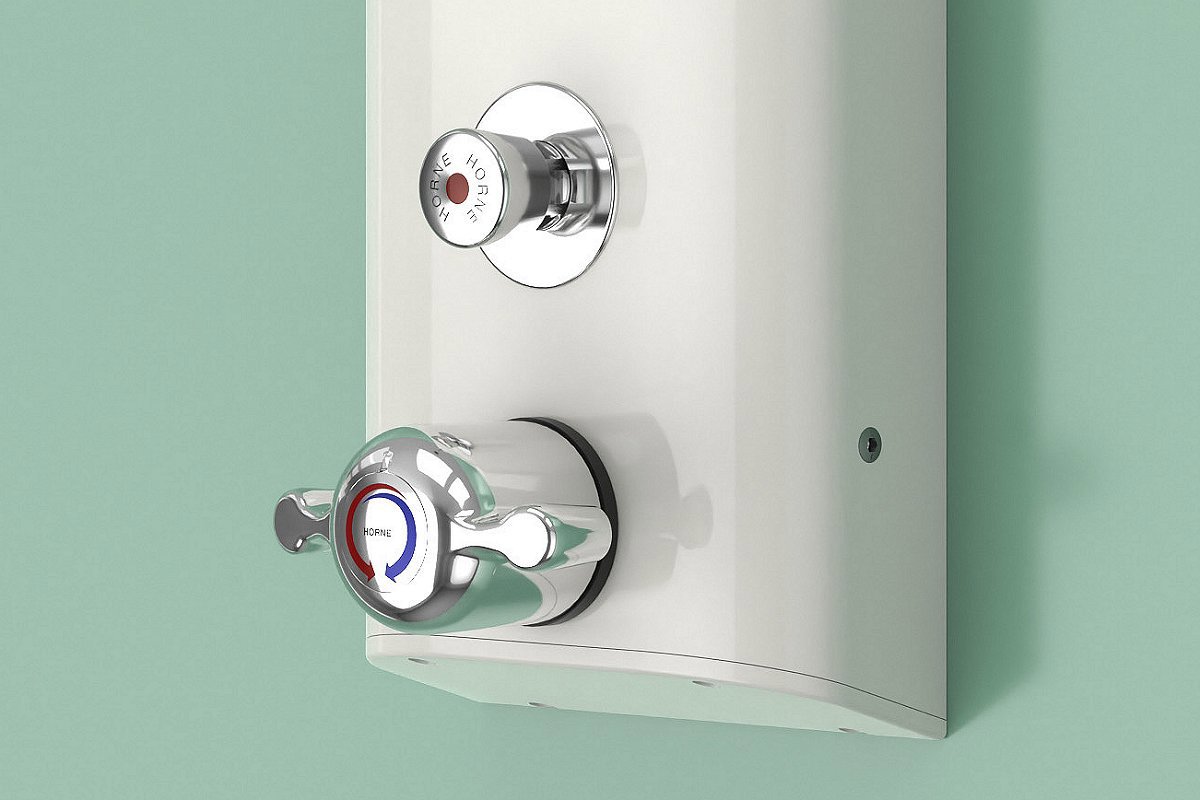

  • Integrated thermostatic shower valve and push button timed flow control provides reliable and accurate temperature control while conserving water
  • Vandal resistant shower head with 2 spray positions and easy clean nozzle array - see our Safe Secure and Versatile too animation
  • Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
  • Pressure and performance tested pre-plumbed assembly
  • Includes flexible braided inlets with SOFT-PEX liner suitable for concealed water supplies
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
  • Low level servicing valves for ease of maintenance
  • Highly accessible for quick and simple maintenance

Accessories

Standards and Approvals

  • The T113B1L is named on the Water Technology List (efficient showers) thus is eligible for Enhanced Capital Allowances (tax relief).
  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

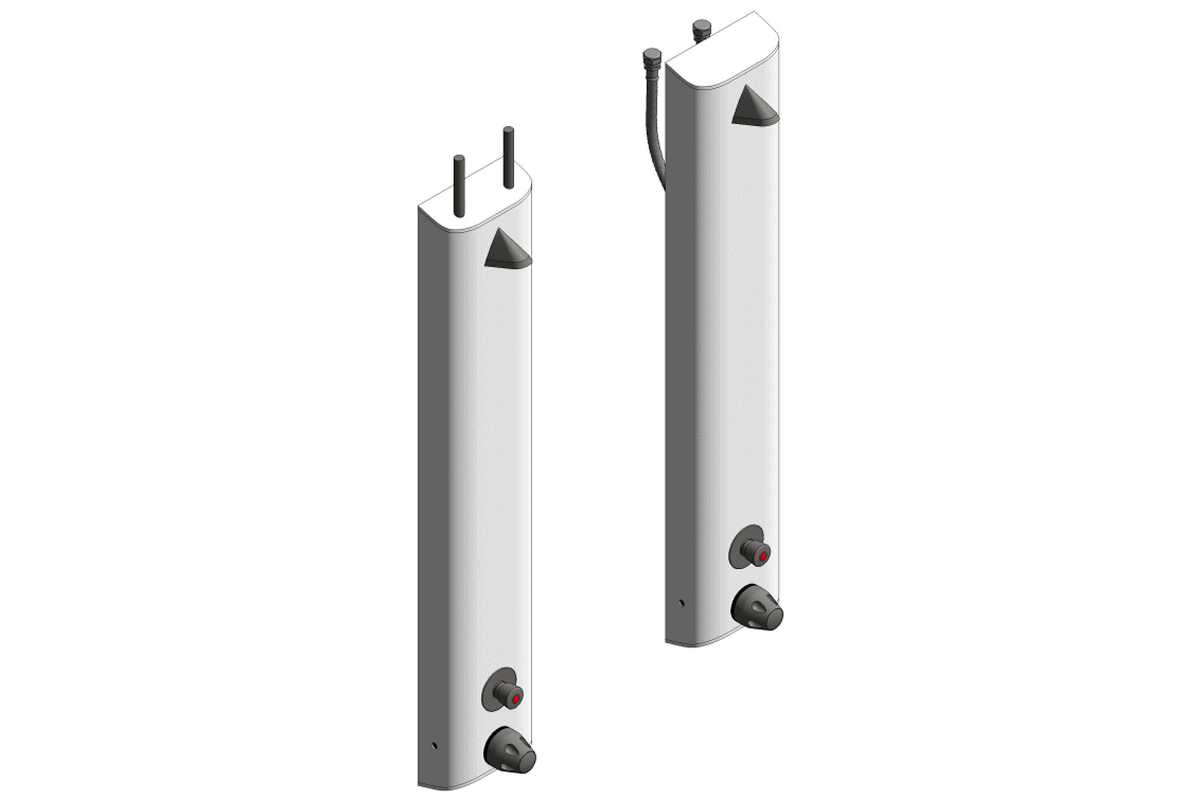

Variants - 113 Range

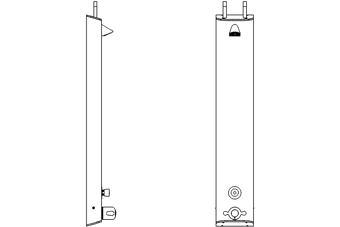

  • T113A1L - top entry inlets, temperature control lever
  • T113T41L - top entry inlets, temperature control lever, ILTDU and 465mm Pipe Cover with key slot
  • T113T91L - top entry inlets, temperature control lever, ILTDU and 940mm Pipe Cover with key slot.
  • T113A - top entry inlets, standard controls
  • T113B - rear entry inlets, standard controls
  • T113T4 - top entry inlets, standard controls, ILTDU and 465mm Pipe Cover with key slot
  • T113T9 - top entry inlets, standard controls, ILTDU and 940mm Pipe Cover with key slot
  • T113ALR - top entry inlets, ligature resistant controls
  • T113BLR - rear entry inlets, ligature resistant controls
  • T113T4LR - top enty inlets, ligature resistant controls, ILTDU and 465mm Pipe Cover with key slot
  • T113T9LR - top entry inlets, ligature resistant controls. ILTDU and 940mm Pipe Cover with key slot
