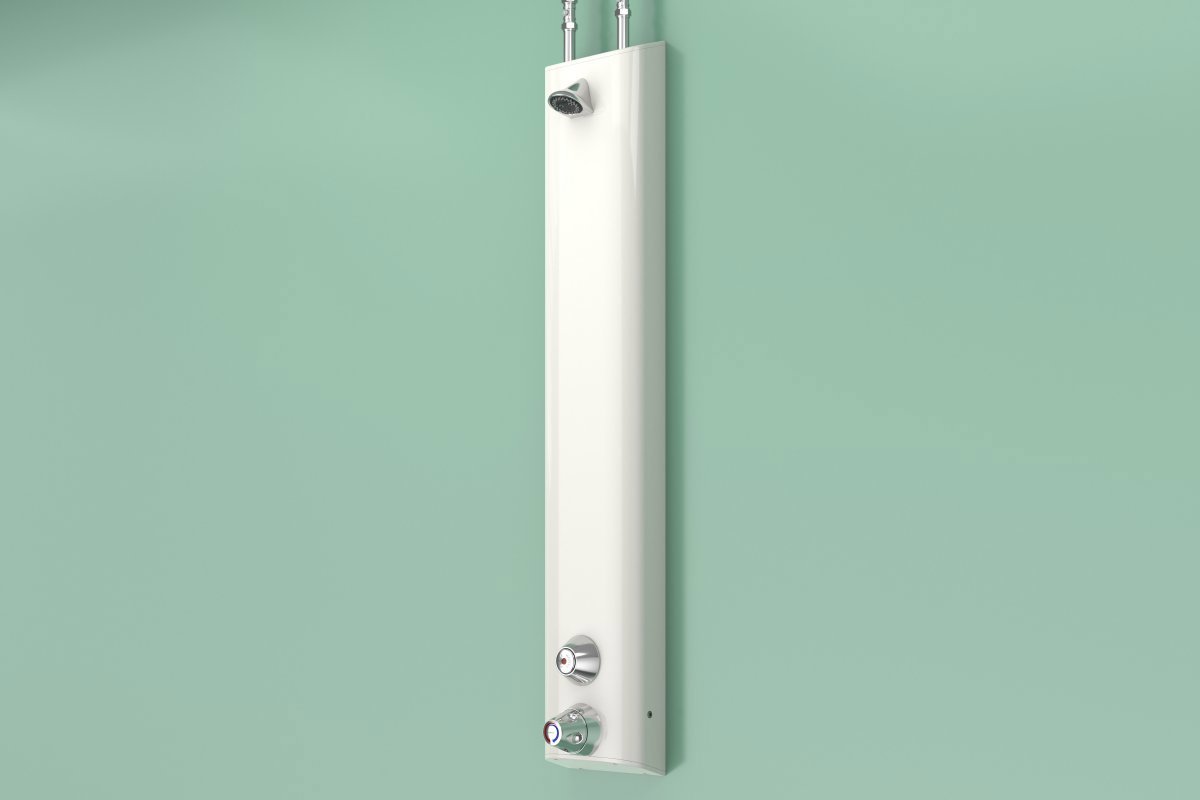

HORNE Shower Panel with Ligature Resistant Temperature and Timed Flow Controls and Vandal Resistant Shower Head

T113ALR

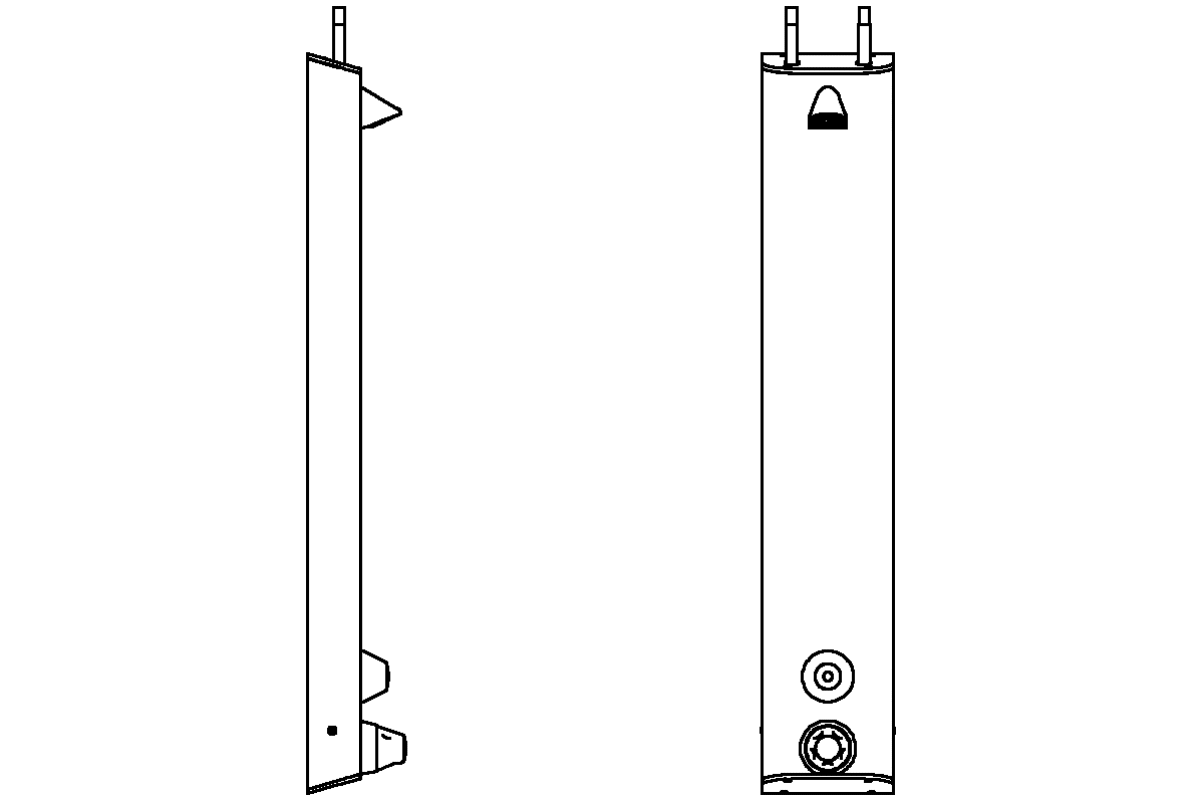

Includes integral thermostatic shower valve pre-plumbed within a white epoxy-polyester powder-coated aluminium panel with ligature resistant push button timed flow control, temperature adjustment and vandal and ligature resistant, adjustable and flow regulated shower head in chromium plated finish. Product Reference T113ALR as per drawing number D11301. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne TSV1 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

Ligature resistant shower provision for new build, refurbishment, retrofit and temporary installations in sport & leisure, education, secure and other institutional settings where water and energy conservation is of importance.

Horne showers for Leisure Education Secure markets

Features

  • Robust construction, finish and fittings for extended lifespan
  • Powder-coated panel: white RAL 9010 with Light Reflective Value = 84
  • Type 3 (healthcare) approved thermostatic shower valve and push button timed flow control provides reliable and accurate temperature control while conserving water
  • Vandal and ligature resistant shower head with 2 spray positions and easy clean nozzle array - see our Safe Secure and Versatile too animation
  • Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
  • Pressure and performance tested pre-plumbed assembly with internal copper piping
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
  • Low level servicing valves for ease of maintenance
  • Highly accessible for quick and simple testing, maintenance and water sampling

Standards and Approvals

  • The HORNE TSV-TFC shower valve is designed to meet the requirements of BS7942:2011, 'Thermostatic mixing valves for use in care establishments' and is approved as a Type 3 Thermostatic mixing valve to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises)
  • The HORNE TSV-TFC shower valve is approved to Reg 4 (materials in contact with water) of the Water Fitting Regulations 1999
  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224



Variants - T113 Range

  • T113BLR - rear entry inlets, ligature resistant controls

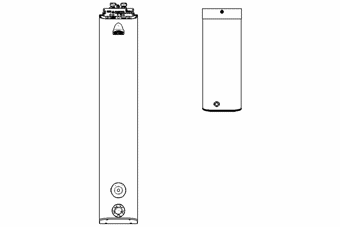

  • T113T4LR - top entry inlets, ligature resistant controls. ILTDU and 465mm Pipe Cover with key slot
  • T113T9LR - top entry inlets, ligature resistant controls, ILTDU and 940mm Pipe Cover with key slot
  • T113A - top entry inlets, standard controls
  • T113B - rear entry inlets, standard controls
  • T113T4 - top enty inlets, standard controls, ILTDU and 465mm Pipe Cover with key slot
  • T113T9 - top entry inlets, standard controls, ILTDU and 940mm Pipe Cover with key slot
  • T113A1L - top entry inlets, temperature control lever
  • T113B1L - rear entry inlets, temperature control lever
  • T113T41L - top entry inlets, temperature control lever, ILTDU and 465mm Pipe Cover with key slot
  • T113T91L - top entry inlets, temperature control lever, ILTDU and 940mm Pipe Cover with key slot.
