HORNE TSV1 Dual Mode Shower Panel Ligature Resistant with Integral ILTDU and Pipe Cover

T605T4LR

Includes integral HORNE TSV1-3 Thermostatic Shower Valve and In-Line Thermal Disinfection Unit ILTDU pre-plumbed (in copper) within a white epoxy-polyester powder-coated aluminium panel with ligature resistant hand controls, fixed vandal and ligature resistant shower head in chromium plated finish, detachable hose with single function handset, flow regulator and 465mm pipe cover with ILTDU key slot.

Unsupervised mode: shower controls and outlet fitting with ligature resistant features.

Assisted showering mode: ligature resistant shower controls and detachable 2m hose with single function handset. Hose and handset to be accessible to and used by authorised care staff only.

Product Reference T605T4LR as per drawing No. D11354. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne TSV1 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Pipe Cover with ILTDU access slot and plug over VR head

Thermal disinfection of Horne shower panel with integral ILTDU

Horne Dual Shower Controls, Ligature Resistant

Horne TSV1 shower valve and flow diverter with ligature resistant control knobs (inside shower panel)

Horne ligature and vandal resistant shower head

VR shower head with adjustable spray plate

Detachable Hose fitted to T605 shower models

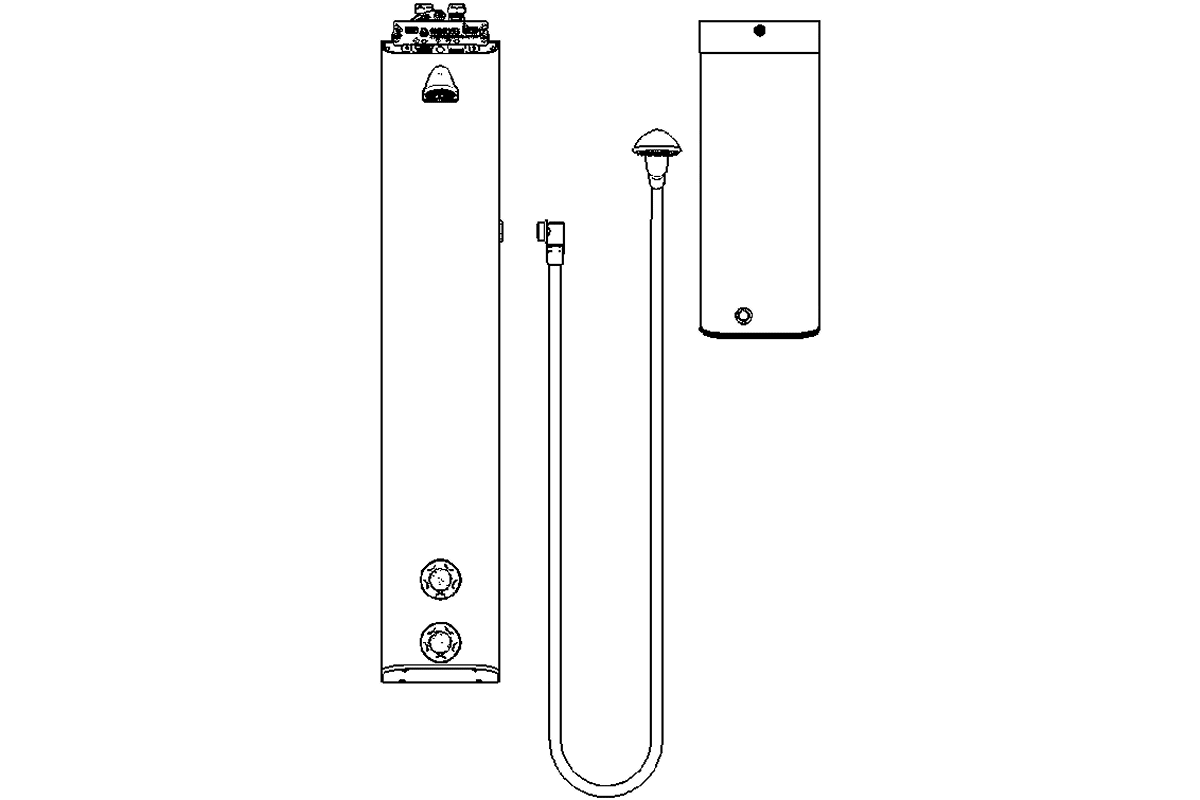

Line Drawing Horne shower panel T605T4LR

T605A2L / T605B2L / T605ALR / T605BLR BIM Screengrab

Applications

Ligature resistant shower provision for new build, refurbishment, retrofit and temporary installations in secure, mental health and healthcare establishments.

Horne showers for mental health, secure and healthcare settings

Features

Robust construction, finish and fittings for extended lifespan
Powder-coated panel: white RAL 9010 with Light Reflective Value = 84
Type 3 (healthcare) approved dual control shower valve provides reliable and accurate temperature control
Integral ILTDU in-line thermal disinfection unit for control of retrograde contaminants
465mm long Pipe Cover in same profile as panel with key slot for ILTDU operation. Includes safety plug in key slot for preventing ligature point creation by vulnerable users
Includes ligature resistant chromium plated brass cowls on the flow and temperature control knobs
Ligature & vandal resistant shower head with 2 spray positions and easy clean nozzle array - see our Safe Secure and Versatile too animation
Dual outlet shower with integral diverter valve to facilitate unassisted and assisted showering. Unassisted Mode uses the fixed vandal and ligature resistant shower head at top of panel. Assisted Mode - 2m hose and single function handset are attached to outlet on side of panel
Integral 8 L/min flow regulator (VR head) for water and energy conservation contributes to BREEAM rating
Pressure and performance tested pre-plumbed assembly with internal copper piping
Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installation
Low level servicing valves for ease of maintenance
Highly accessible for quick and simple testing, maintenance and water sampling

Please note that this shower model is unsuitable for gravity-fed installations and requires a minimum dynamic pressure of 2 bar at each shower head.

Accessories

TSV1 Flushing Kit
Monitoring Kit
ILTDU Operation Key
Safety plug removal magnet

Standards and Approvals

The HORNE TSV1-3 shower valve is designed to meet the requirements of BS7942:2011, 'Thermostatic mixing valves for use in care establishments' and is approved as a Type 3 TMV to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises)
The HORNE TSV1-3 and the ILTDU are approved to Reg 4 (materials in contact with water) of the Water Fitting Regulations 1999
All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Variants - T605 Range

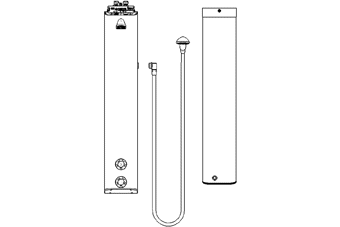

T605T9LR - top entry inlets, ligature resistant controls, ILTDU and 940mm pipe cover with key slot
T605ALR - top entry inlets, ligature resistant controls
T605BLR - rear entry inlets, ligature resistant controls
T605A2L - top entry inlets, lever controls
T605B2L - rear entry inlets, lever controls
T605T42L - top entry inlets, lever controls, ILTDU and 465mm pipe cover with key slot
T605T92L - top entry inlets, lever controls, ILTDU and 940mm pipe cover with key slot
