HORNE TSV1 Dual Mode Shower Panel with Ligature Resistant Controls and Auto Divert

T605BLR

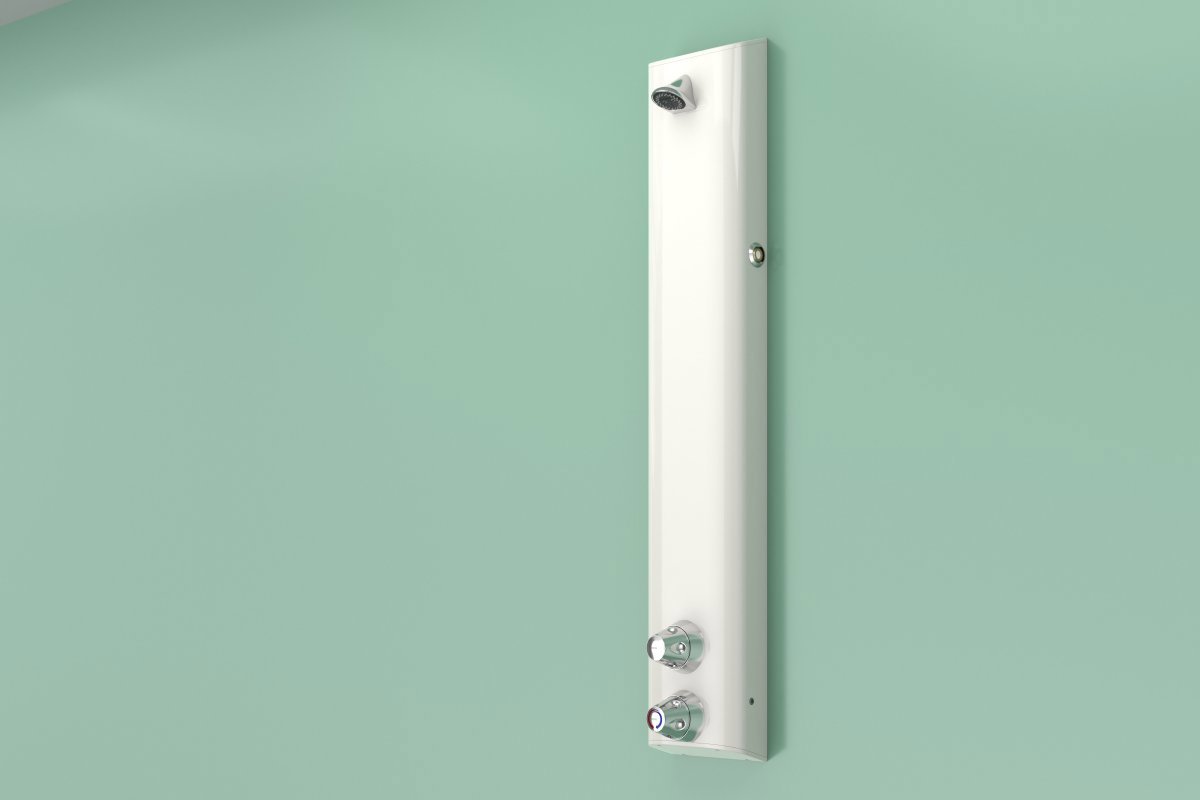

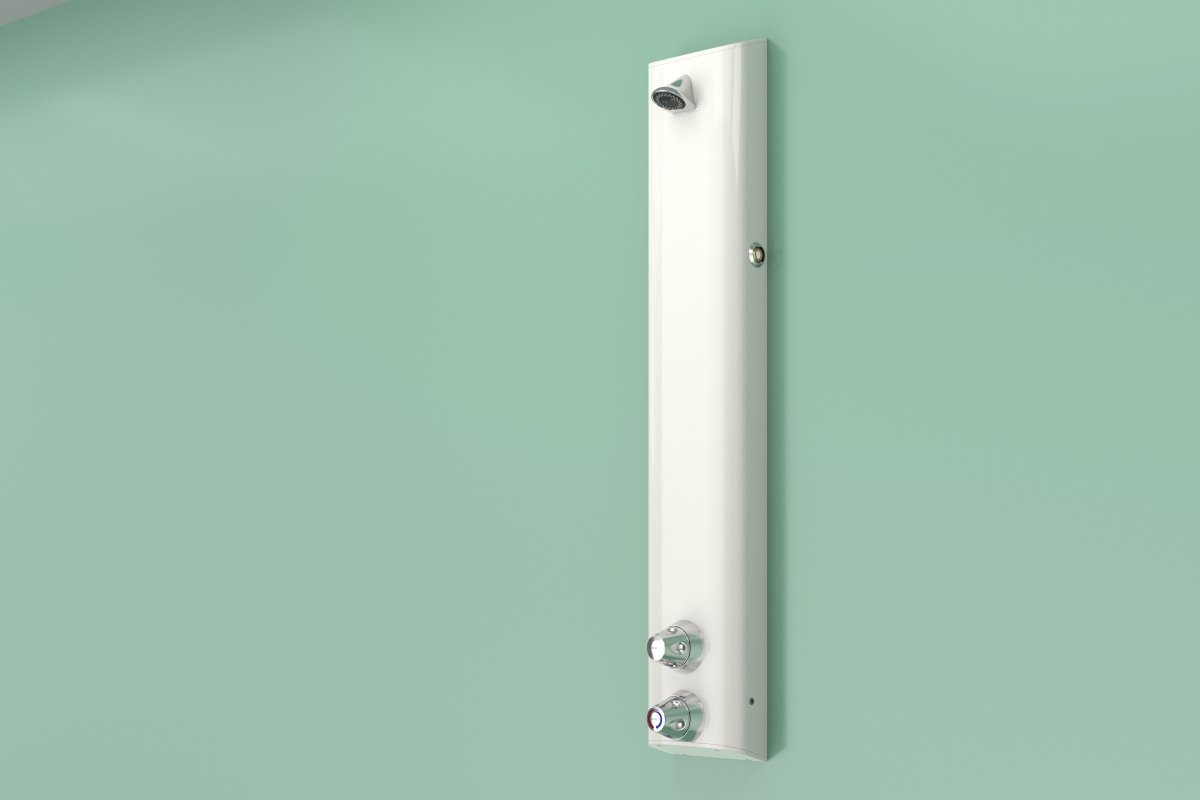

Includes integral HORNE TSV1-3 Thermostatic Shower Valve and automatic flow diverter, ligature resistant shower controls and fixed, vandal resistant shower head, pre-plumbed within a white epoxy-polyester powder-coated aluminium panel. Also includes detachable hose and handset for assisted showering. Connections by SOFT-PEX flexible braided hose for concealed supply.

Unsupervised mode: shower controls and outlet fitting with ligature resistant features.

Assisted showering mode: ligature resistant shower controls and detachable 2m hose with single function handset. Hose and handset to be accessible to and used by authorised care staff only.

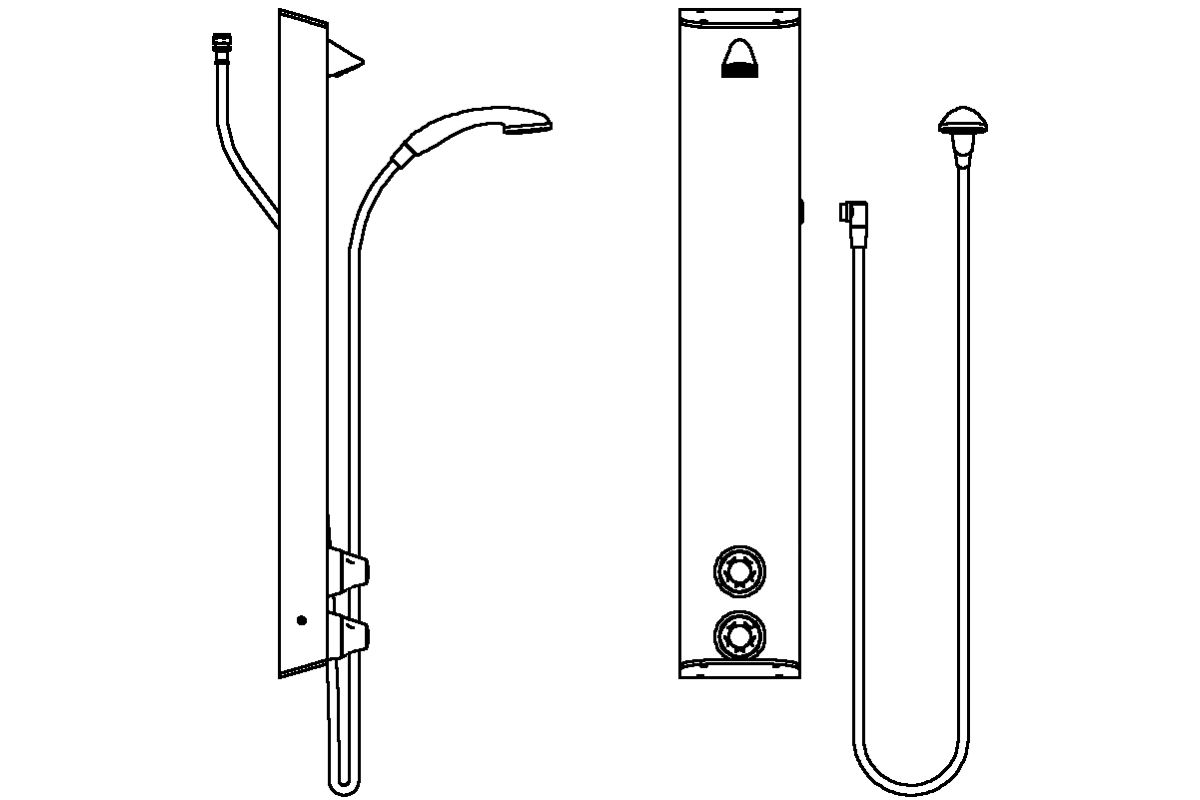

Product reference T605BLR as per drawing D10381. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne TSV1 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

Ligature resistant shower provision for new build, refurbishment, retrofit and temporary installations in secure, mental health and healthcare establishments.

Horne showers for mental health, secure and healthcare settings

Features

  • Robust construction, finish and fittings for extended lifespan
  • Powder-coated panel: white RAL 9010 with Light Reflective Value = 84
  • Type 3 (healthcare) approved dual control shower valve provides reliable and accurate temperature control
  • Ligature & vandal resistant shower head with 2 spray positions and easy clean nozzle array - see our Safe Secure and Versatile too animation
  • Includes ligature resistant chromium plated brass cowls on the flow and temperature control knobs
  • Dual outlet shower with integral diverter valve to facilitate unassisted and assisted showering. Unassisted Mode uses the fixed vandal and ligature resistant shower head at top of panel. Assisted Mode - 2m hose and single function handset are attached to outlet on side of panel
  • Integral 8 L/min flow regulator (VR head) for water and energy conservation contributes to BREEAM rating
  • Pressure and performance tested pre-plumbed assembly
  • Includes flexible braided (SOFT-PEX) inlets suitable for concealed water supplies.
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installation
  • Low level servicing valves for ease of maintenance
  • Highly accessible for quick and simple testing, maintenance and water sampling

Please note that this shower model is unsuitable for gravity-fed installations and requires a minimum dynamic pressure of 2 bar at each shower head.

Accessories





















Standards and Approvals

  • The HORNE TSV1-3 shower valve is designed to meet the requirements of BS7942:2011, 'Thermostatic mixing valves for use in care establishments' and is approved as a Type 3 TMV to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises)
  • The HORNE TSV1-3 is approved to Reg 4 (materials in contact with water) of the Water Fitting Regulations 1999
  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224



Variants - T605 Range

  • T605ALR - top entry inlets, ligature resistant controls
  • T605T4LR - top entry inlets, ligature resistant controls, ILTDU and 465mm pipe cover with key slot
  • T605T9LR - top entry inlets, ligature resistant controls, ILTDU and 940mm pipe cover with key slot
  • T605A2L - top entry inlets, lever controls
  • T605B2L - rear entry inlets, lever controls
  • T605T42L - top entry inlets, lever controls, ILTDU and 465mm pipe cover with key slot
  • T605T92L - top entry inlets, lever controls, ILTDU and 940mm pipe cover with key slot
