HORNE TSV1 Shower Panel with Timed Flow Control, Riser Rail, Flexible Hose and 3 Function Handset

T3Y7B

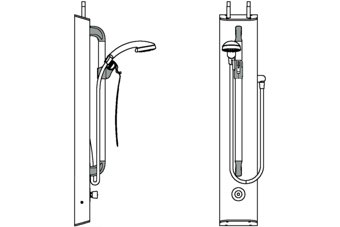

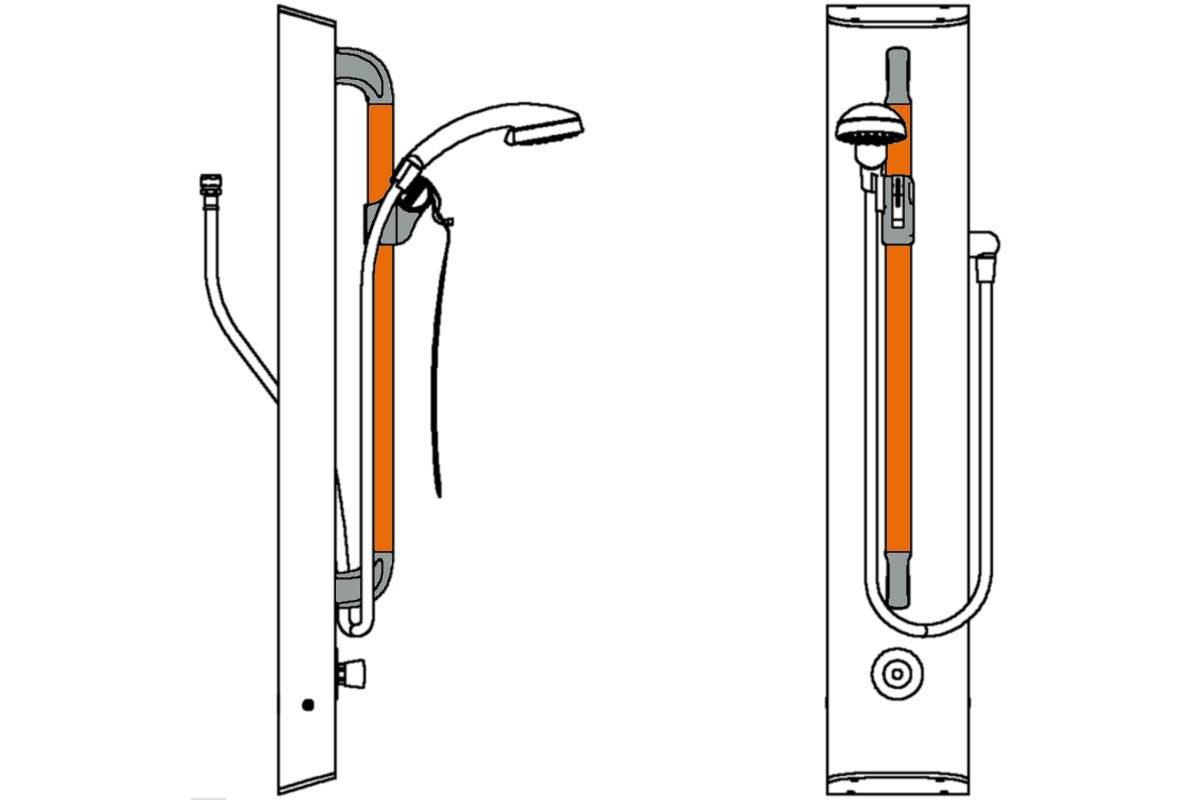

Includes integral Horne 15 H1503 thermostatic mixing valve pre-plumbed within a white epoxy-polyester powder-coated aluminium panel with push-button timed flow control and shower kit, comprising chromium-plated three function easy-clean shower hand set with flexible hose and riser rail in deep orange. Connections by SOFT-PEX flexible braided hose for concealed water supply. Product Reference T3Y7B as per drawing D10379. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne 15 Flushing kit.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

Thermostatic shower provision for new build, refurbishment, retrofit and temporary installations in sport & leisure, education and other institutional settings where water and energy conservation is of importance.

Horne showers for the Leisure & Education markets

Features

  • Robust construction, finish and fittings for extended lifespan
  • Powder-coated panel: white RAL 9010 with Light Reflective Value = 84
  • TMV3 approved integral Horne 15 thermostatic mixing valve provides reliable and accurate temperature control
  • Push-button timed flow control (max. duration 45 seconds) for water and energy conservation
  • Shower kit comprises anti-kink 1.25m hose, three function easy-clean shower handset, robust riser rail in deep orange, handset holder and riser mechanism - easy to see, slide and adjust for users with limited sight and hand mobility
  • Handset carriage mechanism with Release Extender allows shorter or wheelchair users to easily lower a high-set shower handset
  • Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
  • Pressure and performance tested pre-plumbed assembly
  • Includes flexible braided (SOFT-PEX) inlets suitable for concealed water supplies
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
  • Low-level servicing valves for ease of maintenance
  • Highly accessible for quick and simple testing, maintenance and water sampling

 Accessories

Standards and Approvals

  • The HORNE H1503 thermostatic mixing valve is designed to meet the requirements of BS7942:2000, 'Thermostatic mixing valves for use in care establishments' and is approved, under the TMV3 Scheme, to NHS Model Engineering Specifications D 08 Thermostatic mixing valves (Healthcare premises).
  • All materials in contact with water are WRAS approved.
  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Standards

Variants - T3Y7 Range

  • T3Y7A - top entry inlets, standard control
  • T3Y7T4 - top entry inlets, standard control, ILTDU and 465mm Pipe Cover with key slot
  • T3Y7T9 - top entry inlets, standard control, ILTDU and 940mm Pipe Cover with key slot
