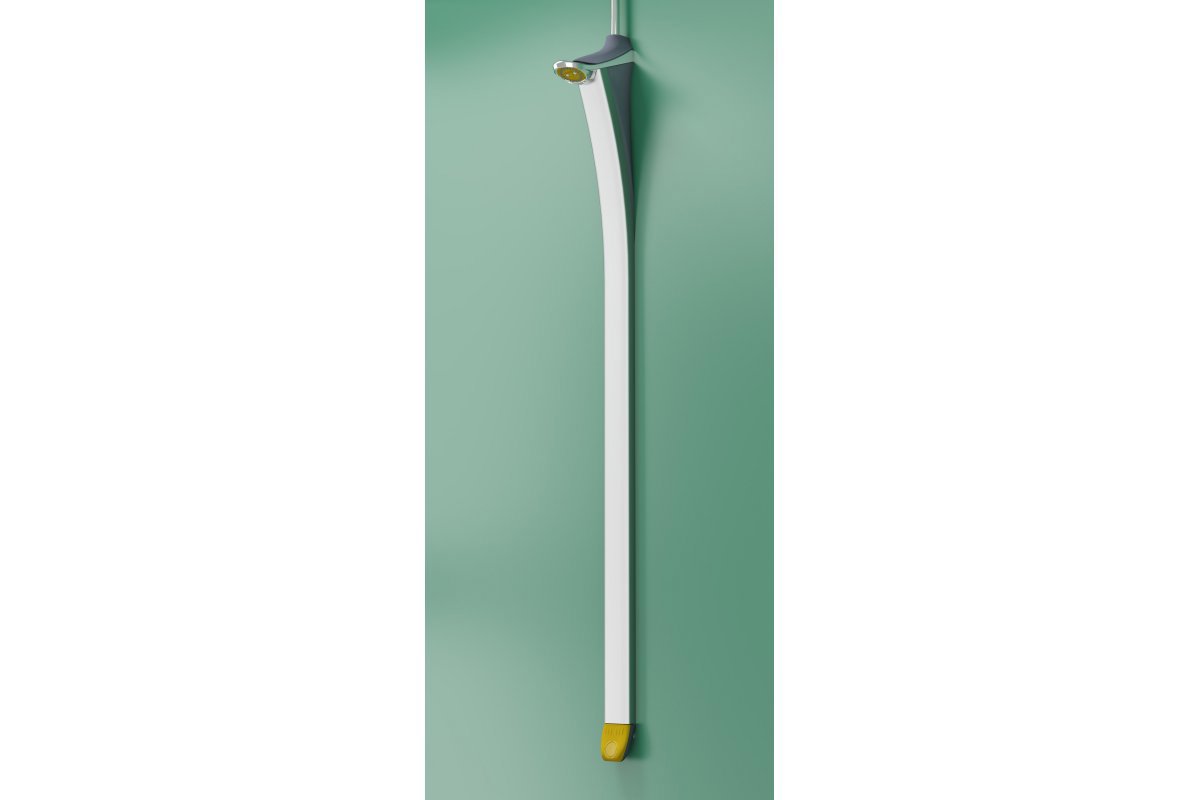

HORNE Duŝo Sport Shower Column with Yellow Trim

Duso DS-A60Y

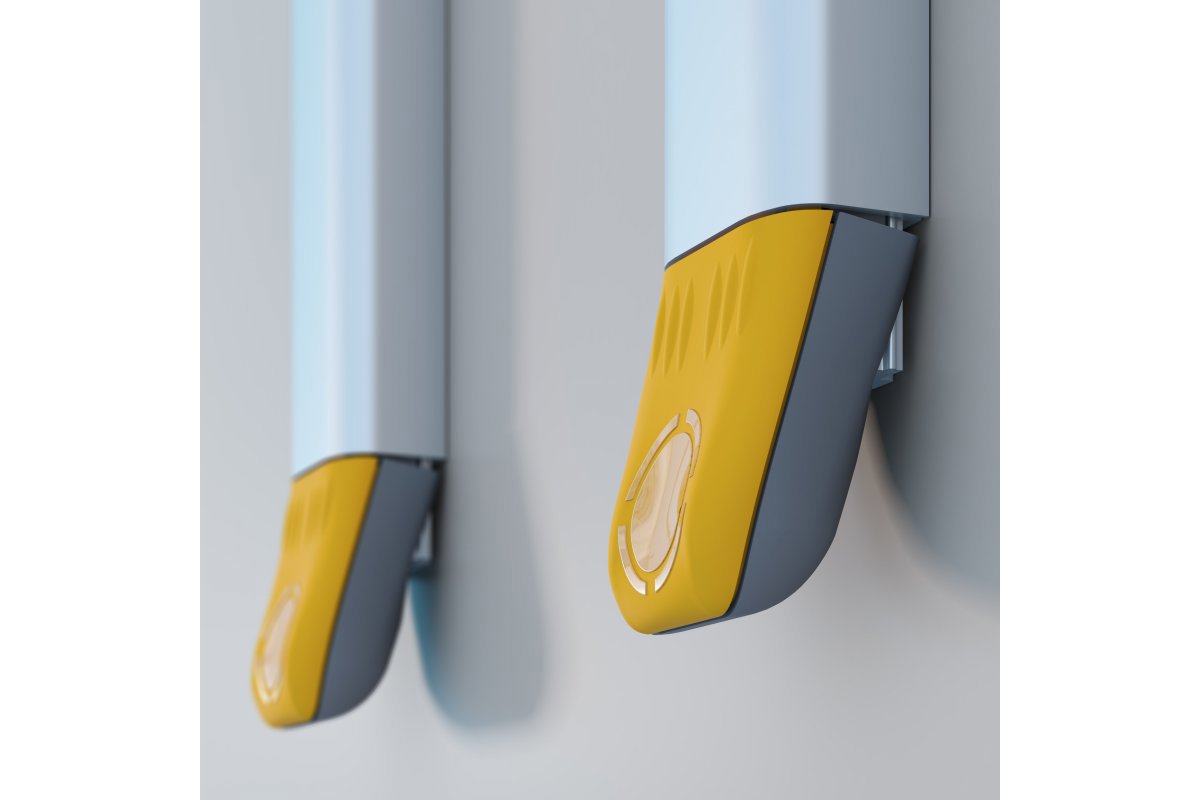

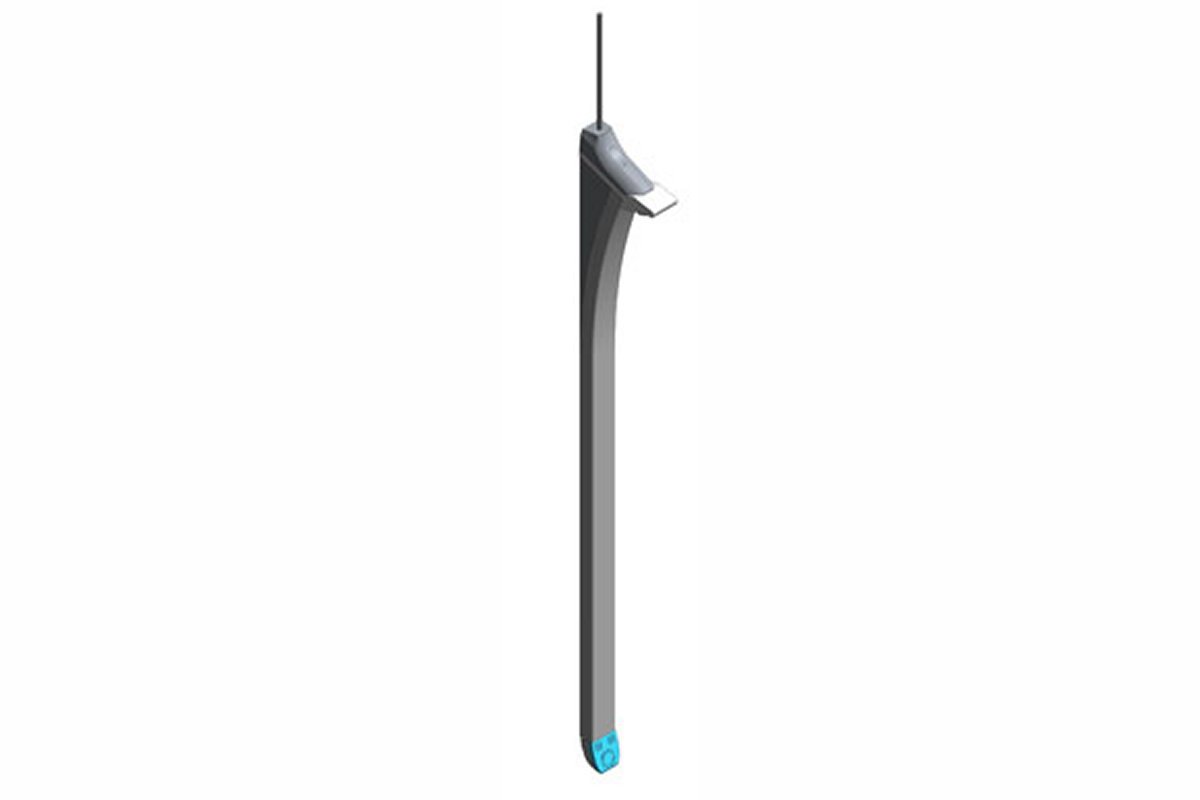

Integrated shower assembly featuring hydraulically actuated timed-flow control, anodised aluminium column, chromium plated shower head, adjustable spray-plate and flow regulation (8 L/min). Yellow coloured actuator paddle and spray plate manufactured in robust and durable injection moulded polymers. Product Reference DS-A60Y as per drawing No. D10397.

For use with pre-blended water supply only and to be installed and commissioned according to the manufacturer's instructions.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

Group shower (pre-mixed water supply) provision for new build, refurbishment, retrofit and temporary installations in sport and leisure settings or where water conservation is a key requirement.

Multiple shower columns should be supplied with pre-mixed water from a suitably sized Horne TMV such as the Horne 15 or Horne 20

Please note that the Duŝo requires a minimum operating pressure of 1 bar dynamic at the shower head.

Multiple shower columns should be supplied with pre-mixed water from a suitably sized Horne TMV such as the Horne 15 or Horne 20

For assistance choosing the most appropriate size of valve please use our simple

Valve Sizing Tool

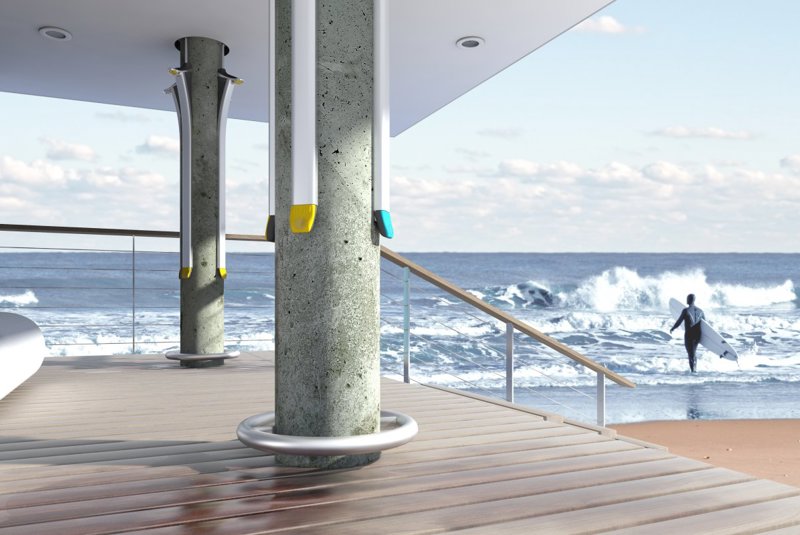

Duso outdoor coastal installation

Features

  • Striking and colourful design
  • Robust construction, finish and fittings for extended lifespan

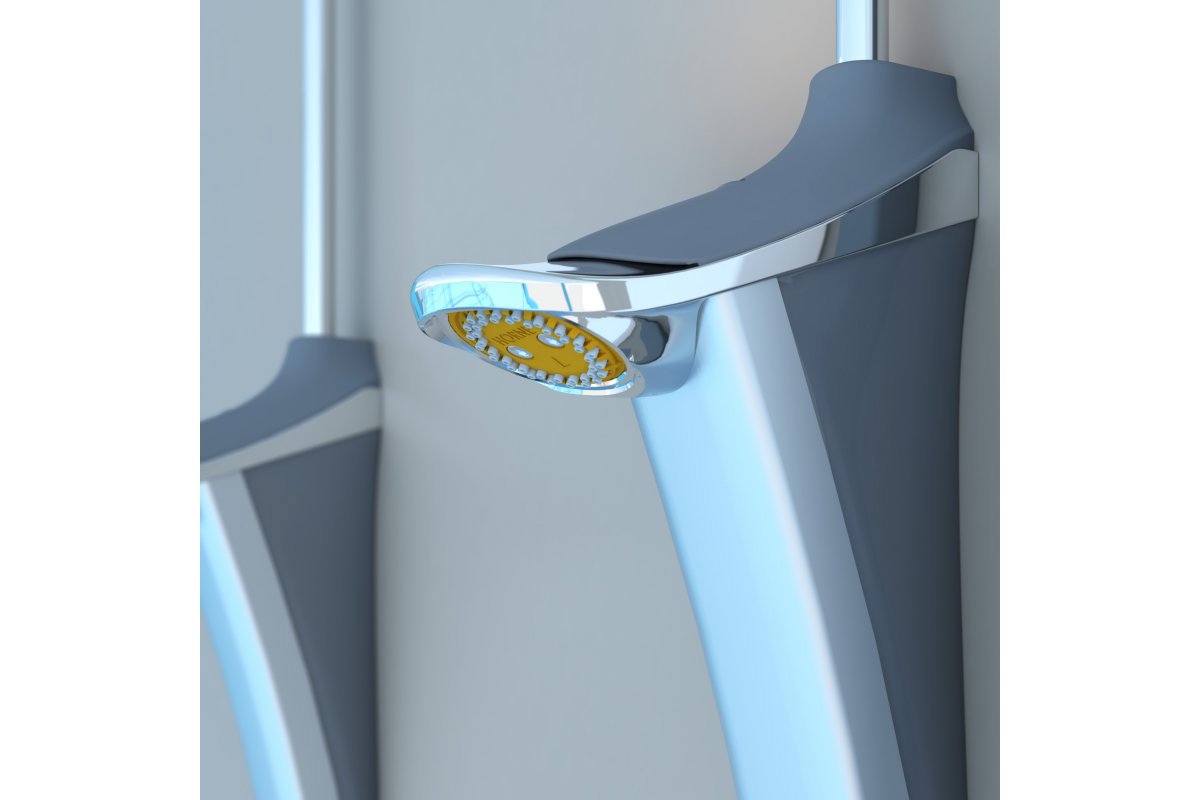

  • Vandal resistant shower head with 2 spray positions and easy clean nozzle array - see video above
  • Timed flow control for water and energy conservation: 60+ seconds duration.
  • Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
  • In-line fine mesh strainer protects timed flow control mechanism from damage by pipe debris
  • Quick and easy to install
  • Requires minimal maintenance
  • Parts and components suitable for recycling after operational lifespan

Accessories

  • Replacement spray-plate / nozzle array (4 colour options)
  • 30 second insert - to reduce flow duration, where required
  • Replacement flow regulator (6, 8 or 10 L/min)









Standards and Approvals

  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Variants - Duŝo Range

  • DS-A60Awith TFC paddle and adjustable sprayplate in Aquamarine
  • DS-A60B - with TFC paddle and adjustable sprayplate in Black
  • DS-A60Gwith TFC paddle and adjustable sprayplate in Grey

Useful Documents

Related Products

Choose the Optimal Valve Size for your shower group

Recent Installations

  • Allander Sports Centre, Bearsden
  • Buxton Swimming Pool
  • Ongar Leisure Centre
  • Spen Valley Leisure Centre
  • St Sidwell Leisure Centre
  • The Cedars Academy

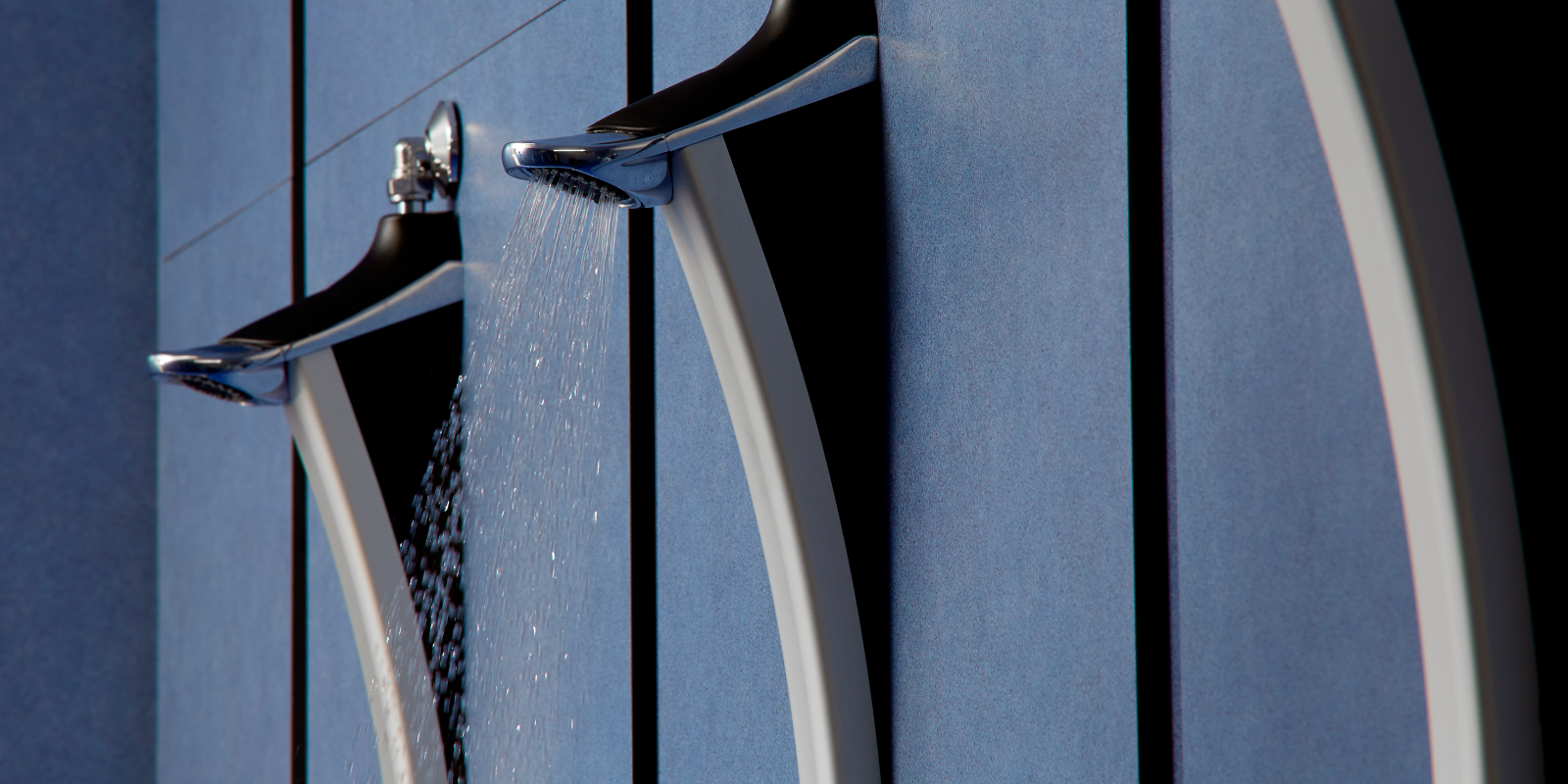

An array of Duso shower heads with black trim at Ardler leisure Centre, Dundee

Duŝo Case Study - the blueprint for Dundee City Council
