HORNE Duŝo Sport Shower Column with Grey Trim

Duso DS-A60G

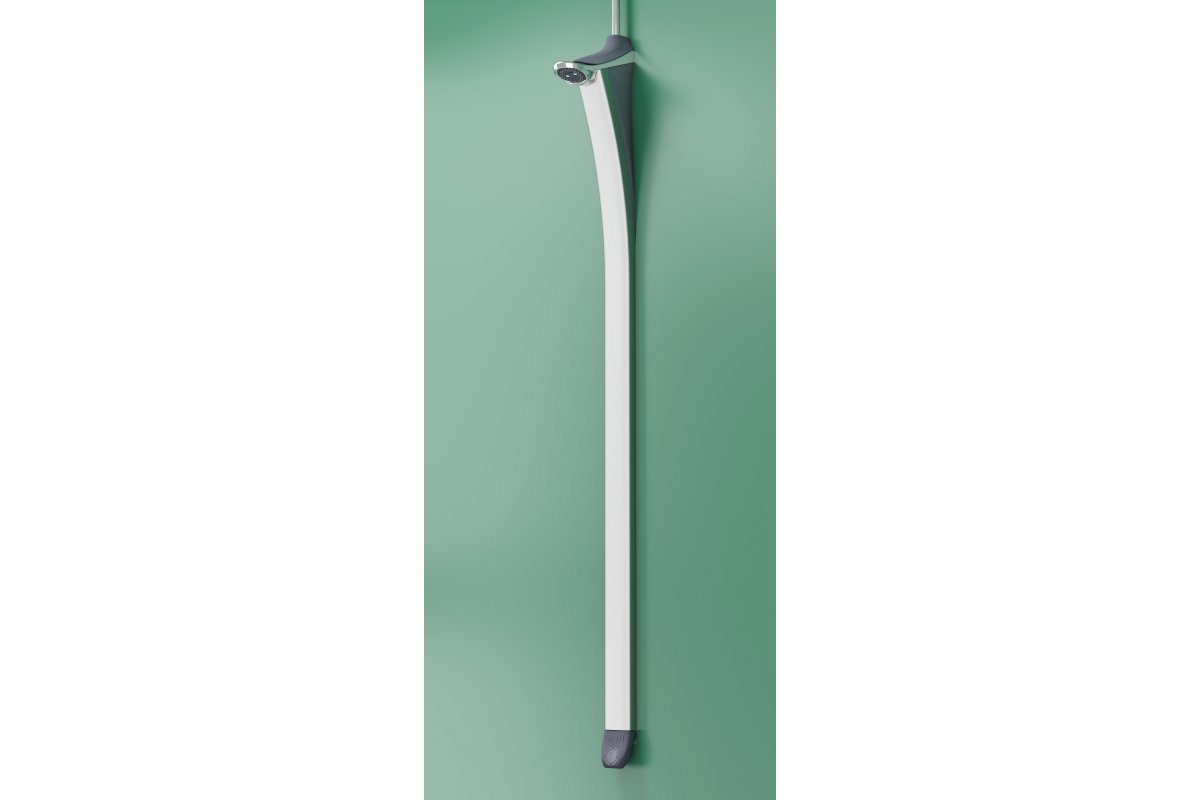

Integrated shower assembly featuring hydraulically actuated timed-flow control, anodised aluminium column, chromium plated shower head, adjustable spray-plate and flow regulation (8 L/min). Grey coloured actuator paddle and spray plate manufactured in robust and durable injection moulded polymers. Product Reference DS-A60G as per drawing No. D10397.

For use with pre-blended water supply only and to be installed and commissioned according to the manufacturer's instructions.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

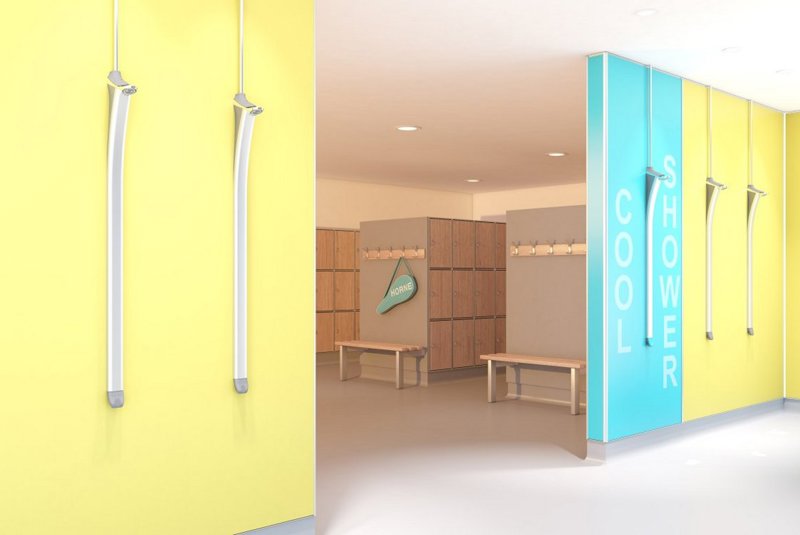

Group shower (pre-mixed water supply) provision for new build, refurbishment, retrofit and temporary installations in leisure and sport settings or where water conservation is a key requirement.

Please note that the Duŝo requires a minimum operating pressure of 1 bar dynamic at the shower head.

Multiple shower columns should be supplied with pre-mixed water from a suitably sized Horne TMV such as the Horne 15 or Horne 20.

For assistance choosing the most appropriate size of valve please use our simple

Valve Sizing Tool

Features

Striking and elegant design
Robust construction, finish and fittings for extended lifespan (see video above)

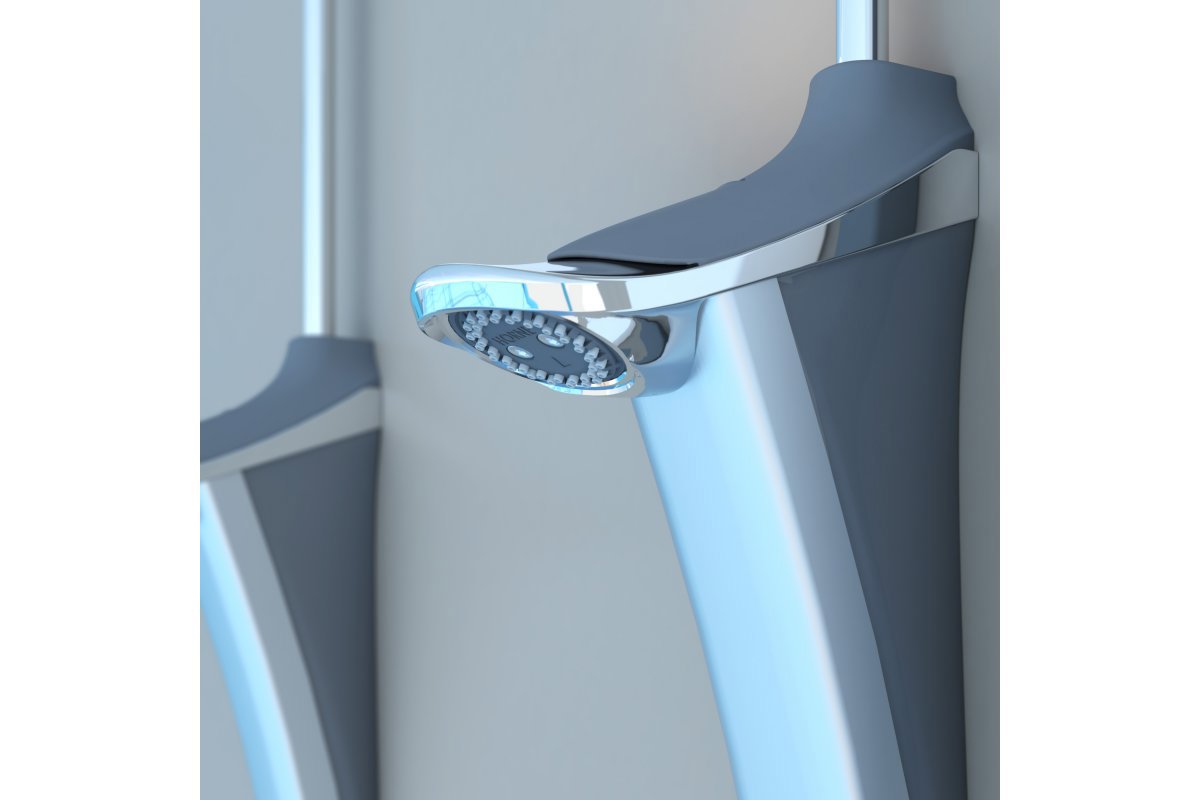

Vandal resistant shower head with 2 spray positions and easy clean nozzle array - see video above

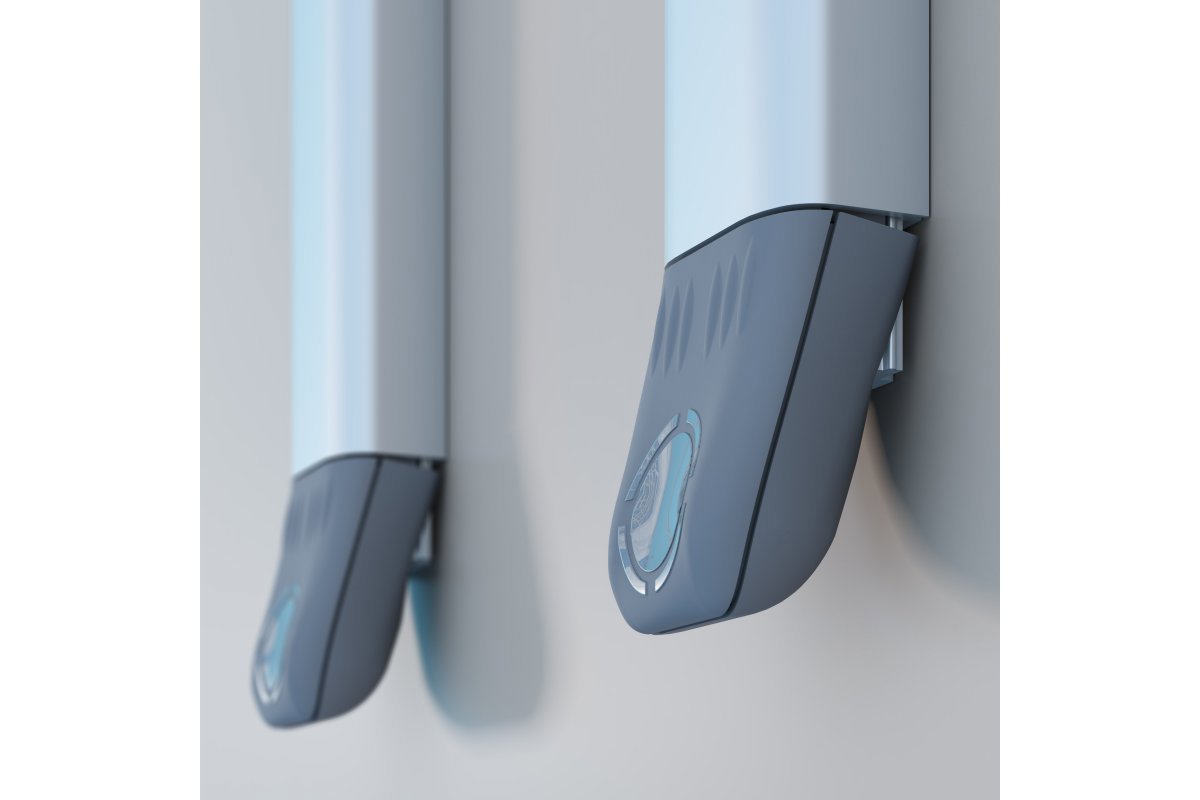

Push paddle timed flow control for water and energy conservation: 60+ seconds duration.
Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
In-line fine mesh strainer protects timed flow control mechanism from damage by pipe debris
Quick and easy to install
Requires minimal maintenance
Parts and components suitable for recycling after operational lifespan
