HORNE Duŝo Sport Shower Column with Black Trim

Duso DS-A60B

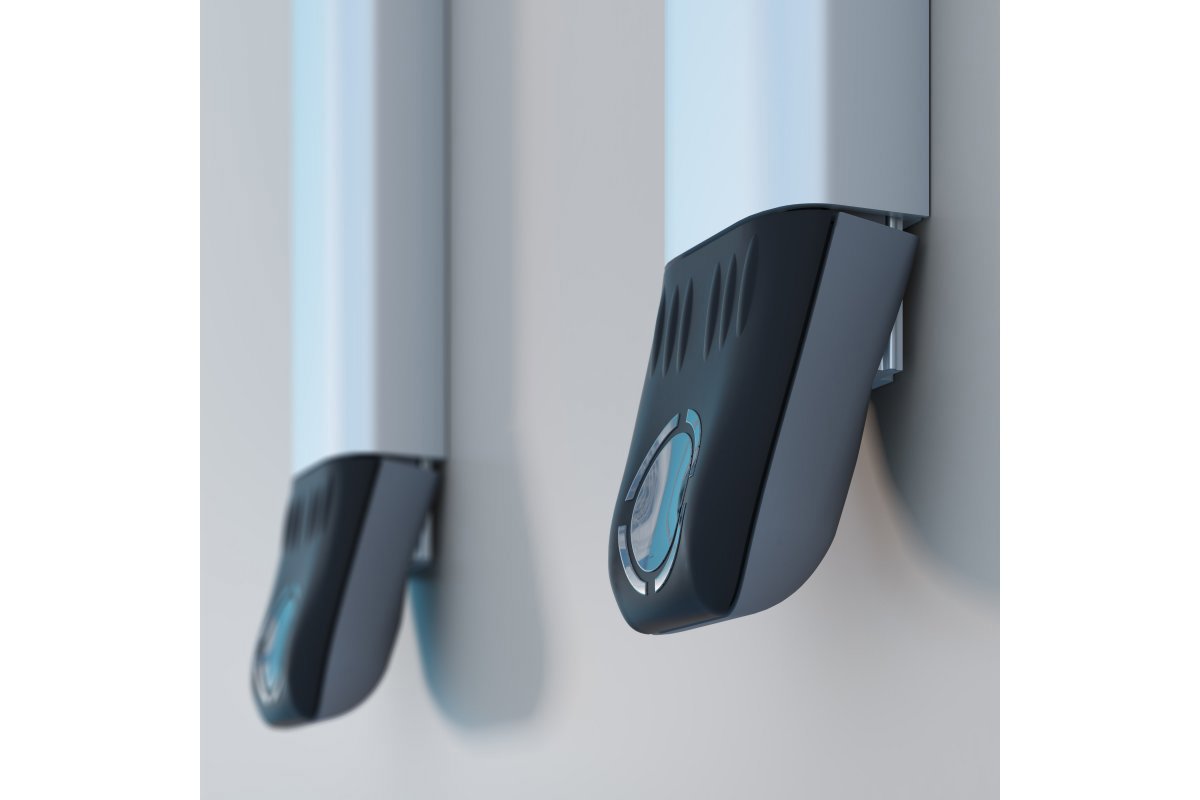

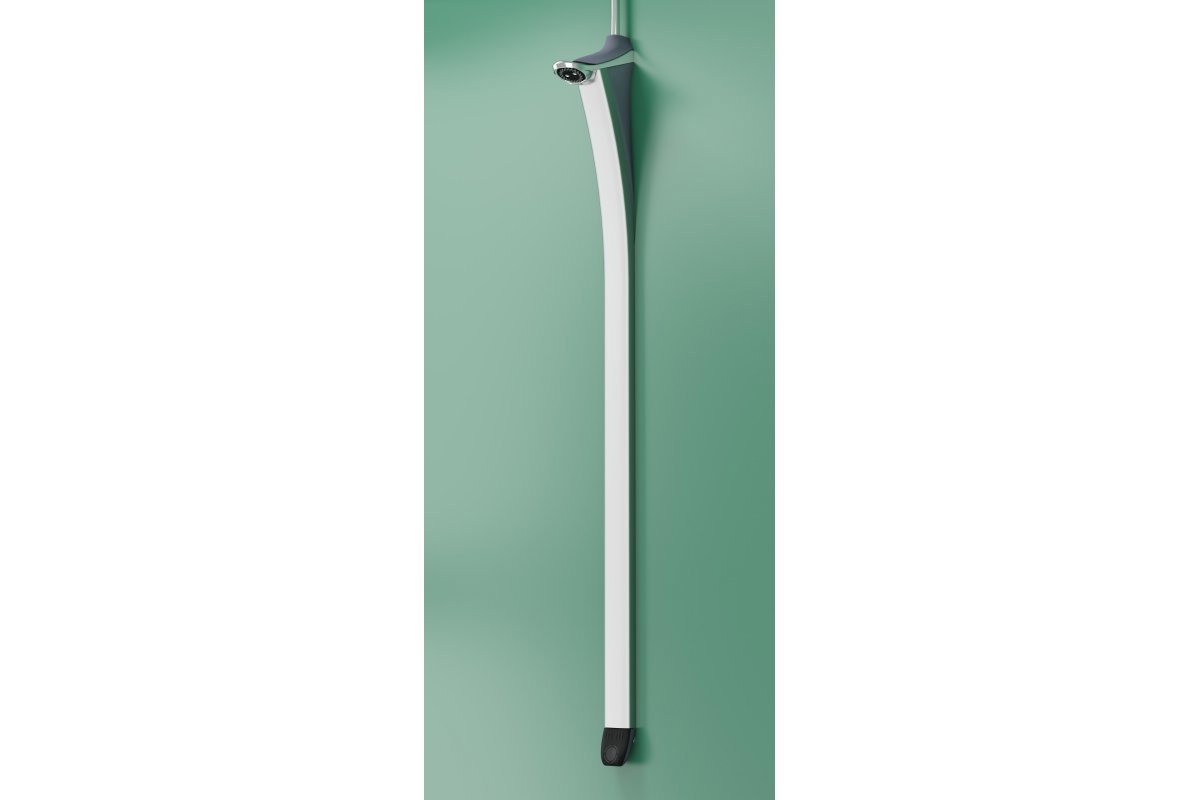

Integrated shower assembly featuring hydraulically actuated timed-flow control, anodised aluminium column, chromium plated shower head, adjustable spray-plate and flow regulation (8 L/min). Black coloured actuator paddle and spray plate manufactured in robust and durable injection moulded polymers. Product Reference DS-A60B as per drawing No. D10397.

For use with pre-blended water supply only and to be installed and commissioned according to the manufacturer's instructions.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

Group shower (pre-mixed water supply) provision for new build, refurbishment, retrofit and temporary installations in leisure and sport settings or where water conservation is a key requirement.

Please note that the Duŝo requires a minimum operating pressure of 1 bar dynamic at the shower head.

Multiple shower columns should be supplied with pre-mixed water from a suitably sized Horne TMV such as the Horne 15 or Horne 20

For assistance choosing the most appropriate size of valve please use our simple

Valve Sizing Tool
Showers

Features

  • Striking and elegant design
  • Robust construction, finish and fittings for extended lifespan

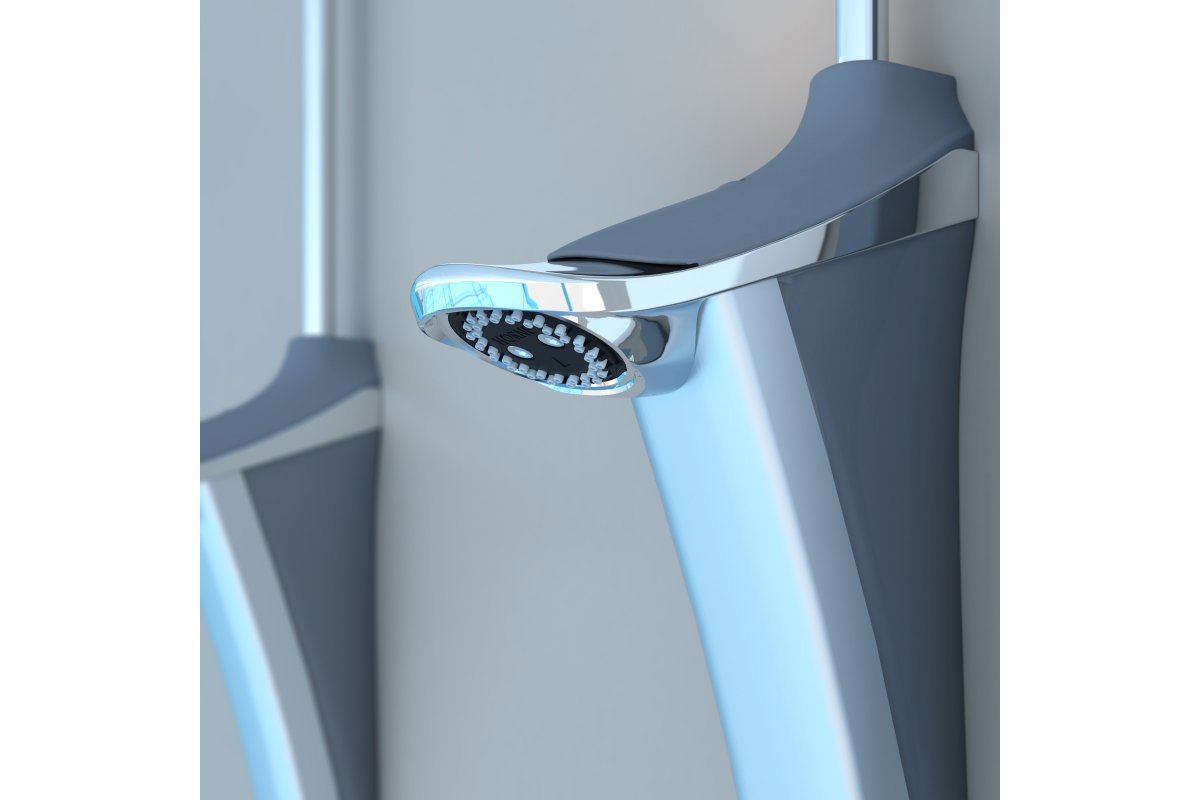

  • Vandal resistant shower head with 2 spray positions and easy clean nozzle array - see video above
  • Timed flow control for water and energy conservation: 60+ seconds duration.
  • Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
  • In-line fine mesh strainer protects timed flow control cartridge mechanism from damage by pipe debris
  • Quick and easy to install
  • Requires minimal maintenance
  • Parts and components suitable for recycling after operational lifespan

Accessories

  • Replacement spray-plate/nozzle array (4 colour options)
  • 30 second insert - to reduce flow duration, where required
  • Replacement flow regulator (6, 8 or 10 L/min)









Standards and Approvals

  • The Duŝo is UK Water Regulation 4 Approved (materials approval), KIWA certificate 2003746
  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Variants - Duŝo Range

  • DS-A60Awith TFC paddle and adjustable sprayplate in Aquamarine
  • DS-A60Gwith TFC paddle and adjustable sprayplate in Grey
  • DS-A60Ywith TFC paddle and adjustable sprayplate in Yellow
