HORNE Duŝo Sport Shower Column with Aquamarine Trim

Duso DS-A60A

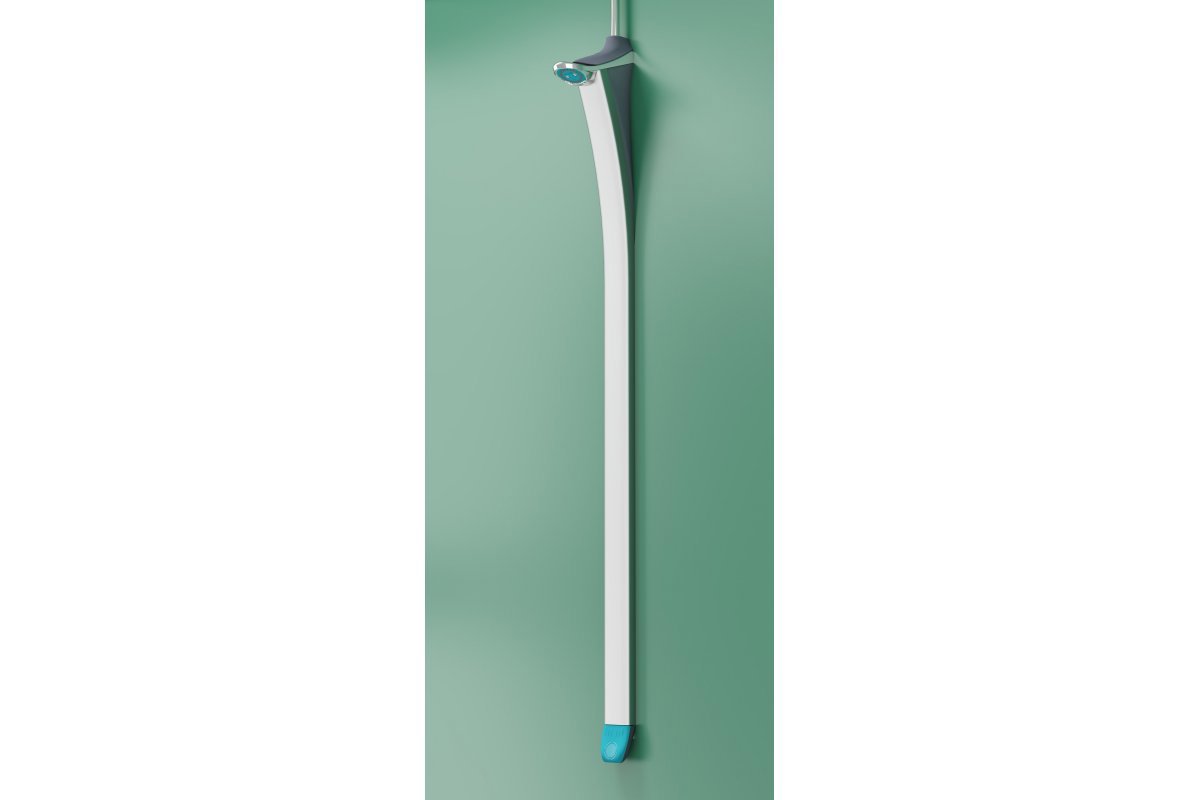

Integrated shower assembly featuring hydraulically actuated timed-flow control, anodised aluminium column, chromium plated shower head, adjustable spray-plate and flow regulation (8 L/min).  Aquamarine coloured actuator paddle and spray plate manufactured in robust and durable injection moulded polymers.  Product Reference DS-A60A as per drawing No. D10397.

For use with pre-blended water supply only and to be installed and commissioned according to the manufacturer's instructions.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

Group shower (pre-mixed water supply) provision for new build, refurbishment, retrofit and temporary installations in sport and leisure settings or where water conservation is a key requirement.

Please note that the Duŝo requires a minimum operating pressure of 1 bar dynamic at the shower head.

Multiple shower columns should be supplied with pre-mixed water from a suitably sized Horne TMV such as the Horne 15 or Horne 20.

For assistance choosing the most appropriate size of valve please use our simple

Valve Sizing Tool

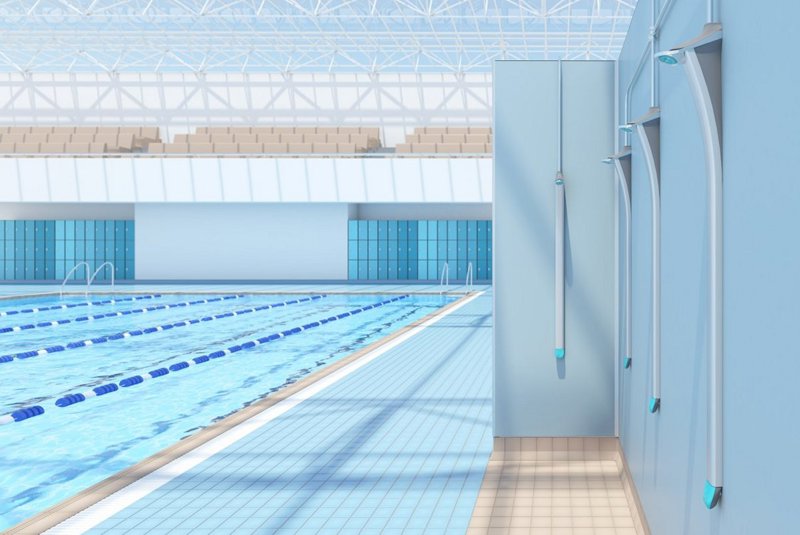

Poolside Duso Installation

Features

  • Striking and colourful design
  • Robust construction, finish and fittings for extended lifespan

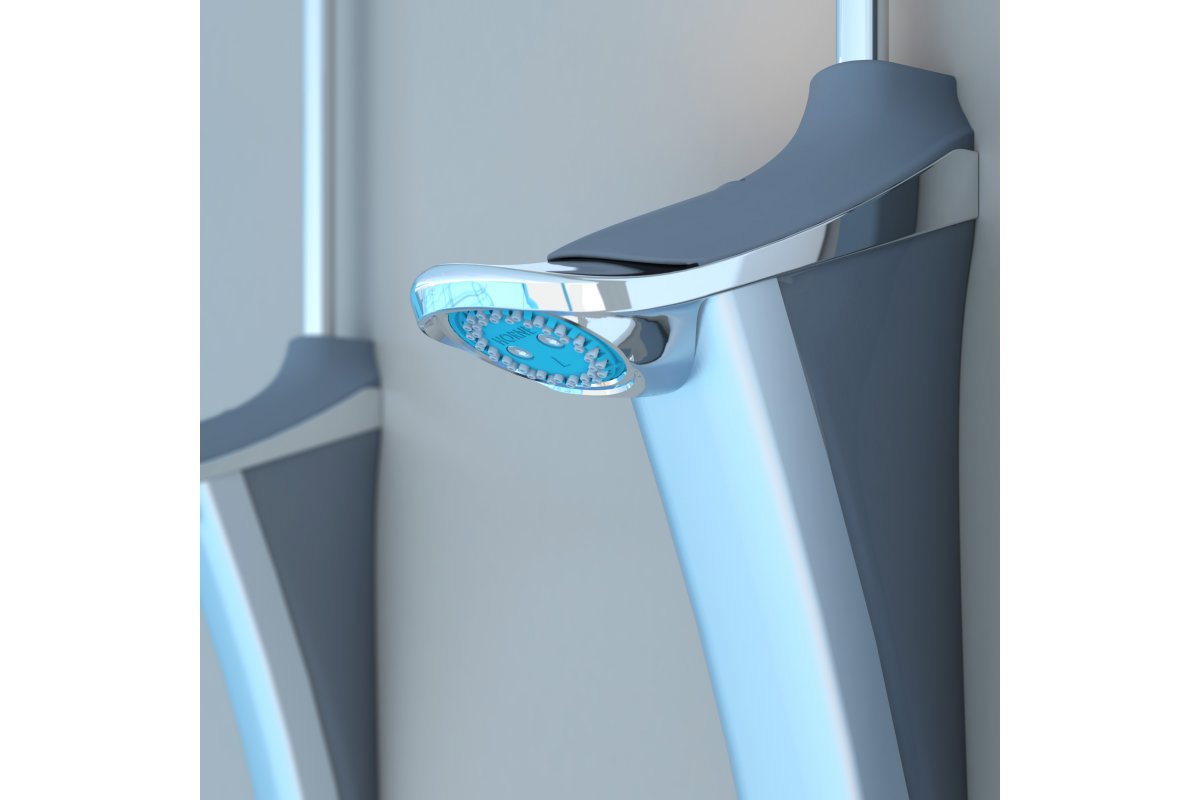

  • Vandal resistant shower head with 2 spray positions and easy clean nozzle array - see also our Safe Secure and Versatile too animation

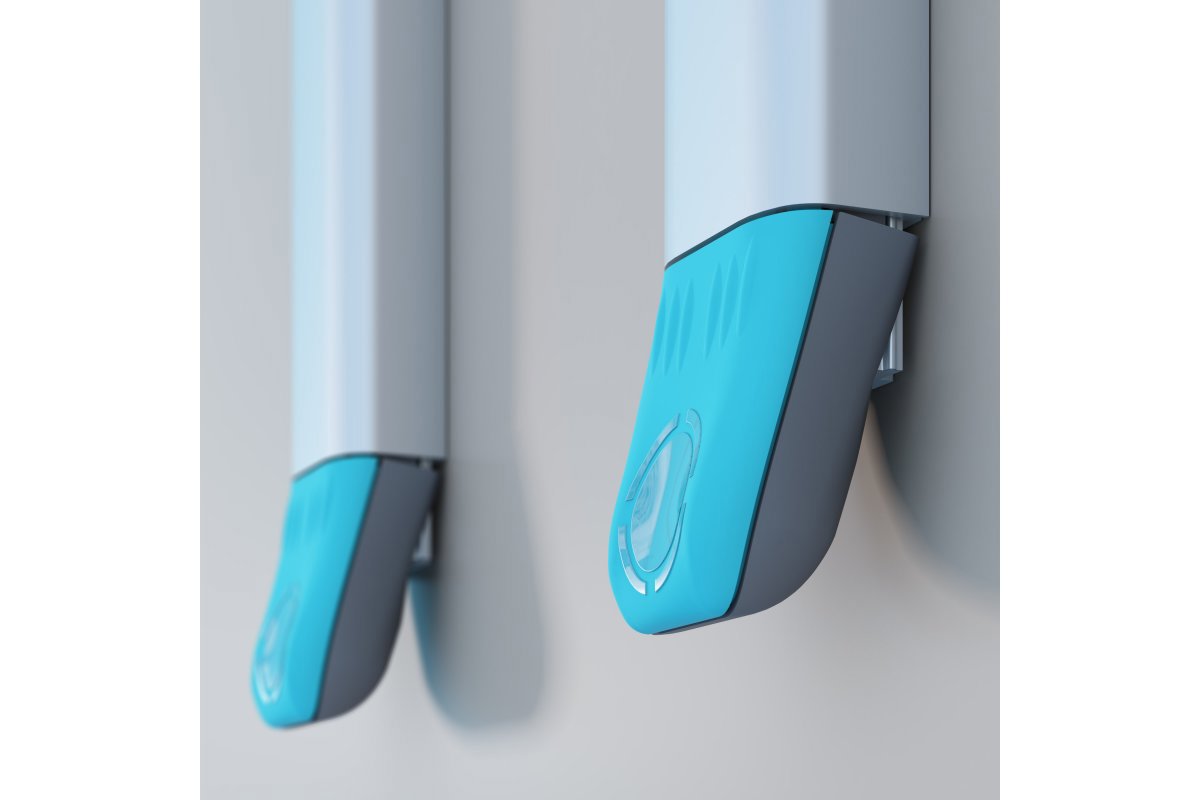

  • Push-paddle timed flow control for water and energy conservation: 60+ seconds duration.
  • Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
  • In-line fine mesh strainer protects timed flow control mechanism from damage by pipe debris
  • Quick and easy to install
  • Requires minimal maintenance
  • Parts and components suitable for recycling after operational lifespan

Accessories

  • Replacement spray-plate / nozzle array (4 colour options)
  • 30 second insert - to reduce flow duration, where required
  • Replacement flow regulator (6, 8 or 10 L/min)









Standards and Approvals

  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Variants - Duŝo Range

  • DS-A60B - with TFC paddle and adjustable sprayplate in Black
  • DS-A60G - with TFC paddle and adjustable sprayplate in Grey
  • DS-A60Y - with TFC paddle and adjustable sprayplate in Yellow

Useful Documents

Related Products

Choose the optimal size valve for your shower group

Recent Installations

  • Abraham Moss Leisure Centre
  • Bolberry House Farm Campsite
  • Chichester Sports Pavilion
  • Dover Leisure Centre
  • Elmbridge Xcel
  • LB Hounslow Leisure Centres
  • Newcastle United Foundation
  • North Herts Leisure Centre
  • Ongar Leisure Centre
  • Petersfield Open Air Pool
  • The Triangle Leisure Centre, Burgess Hill
  • Everyone Active Watford

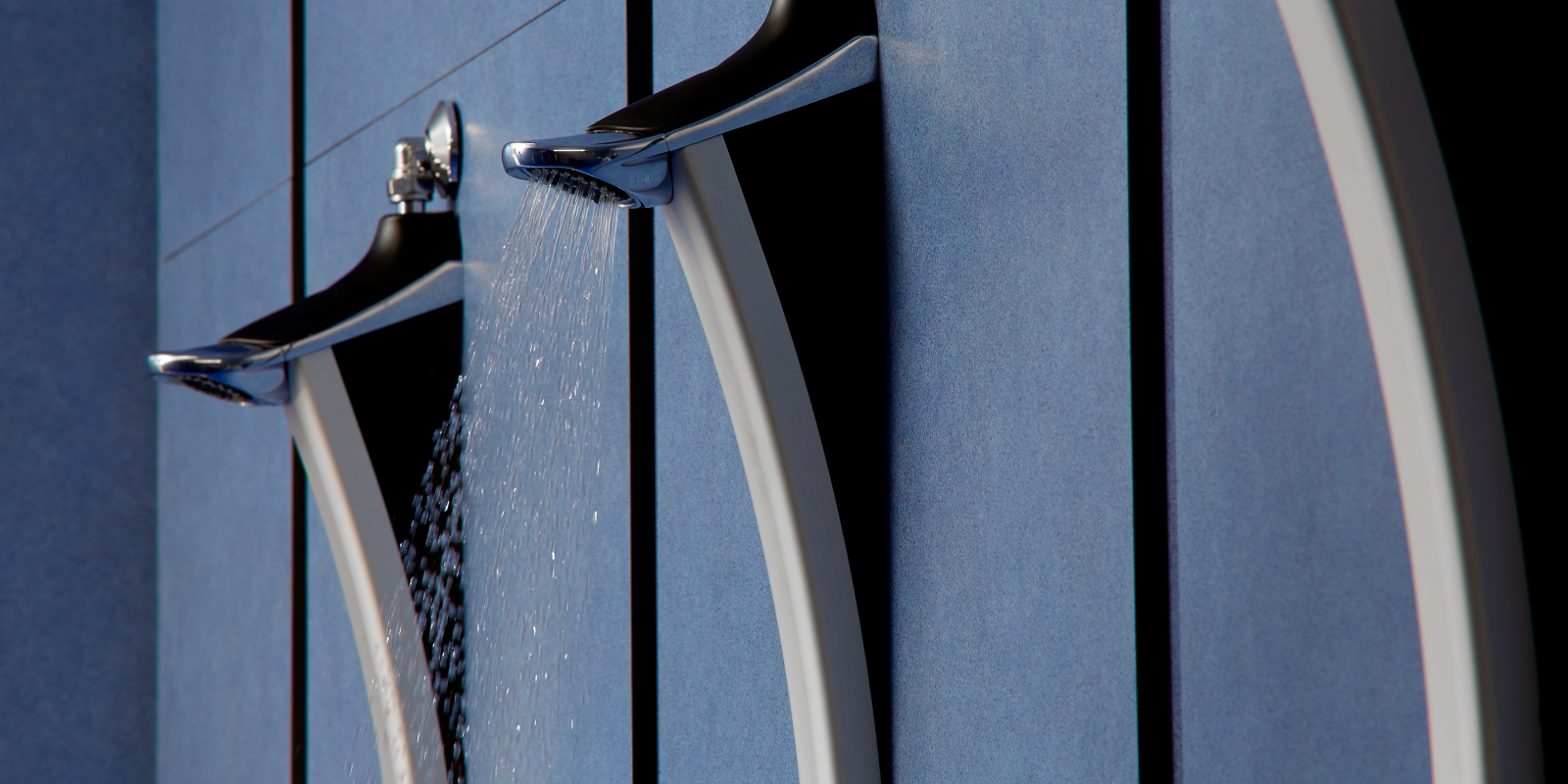

An array of Duso shower heads with black trim at Ardler leisure Centre, Dundee

Duŝo Case Study - the blueprint for Dundee City Council
