HORNE Shower Panel with Timed Flow Control and Vandal Resistant Shower Head

S110A

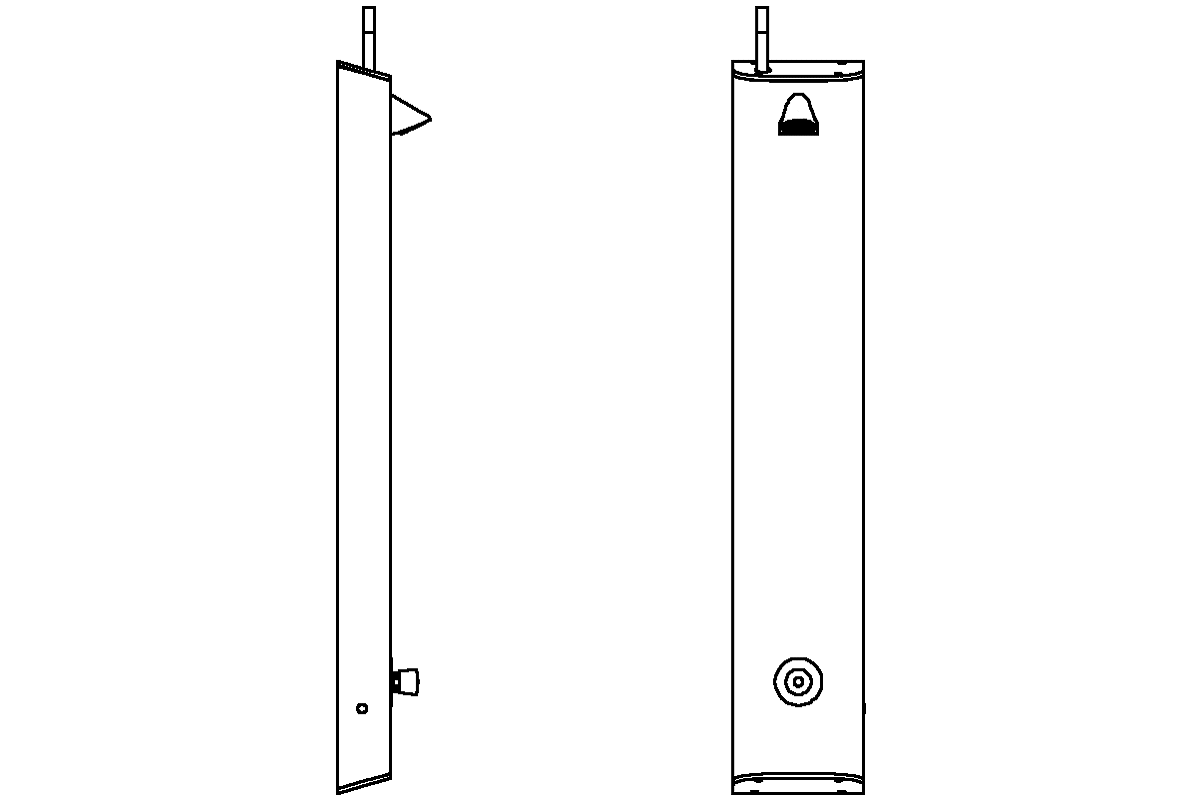

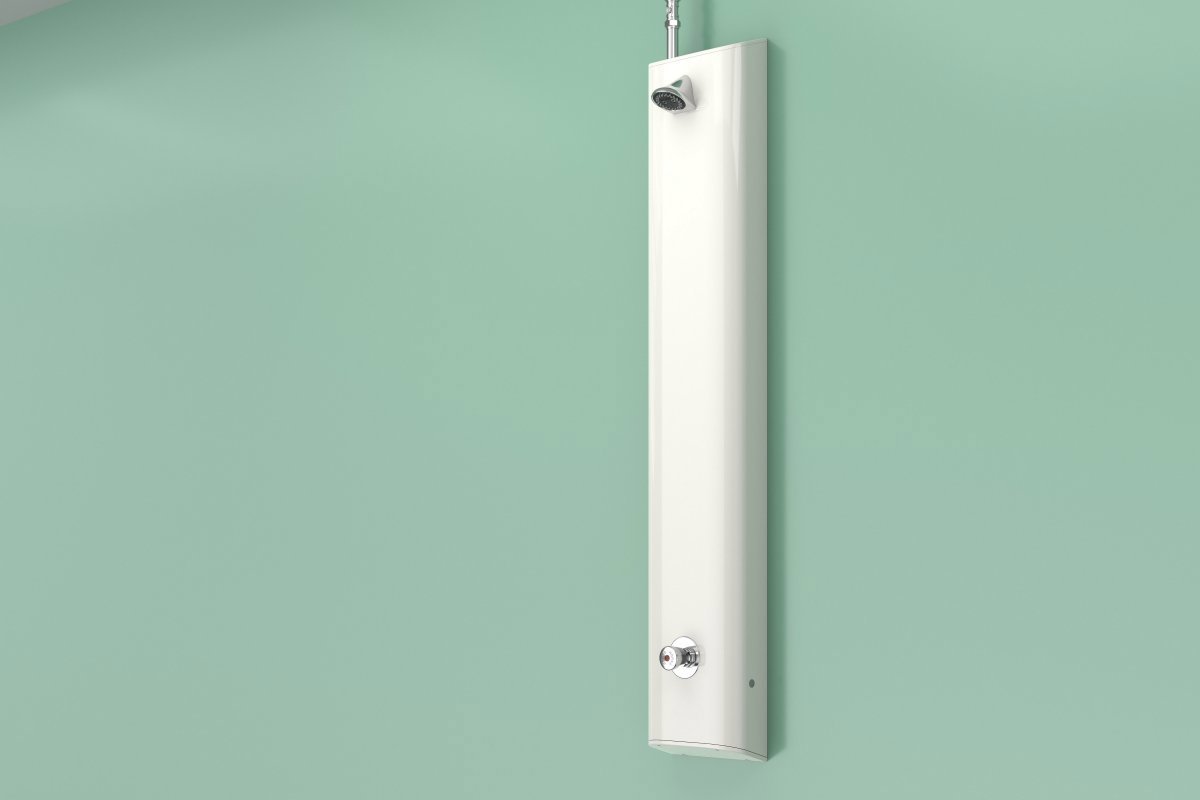

Pre-plumbed white, powder coated aluminium panel including push button timed flow control and vandal resistant, adjustable and flow regulated shower head in chromium plated finish. Product Reference S110A as per drawing No. D10350.

For use with pre-blended water supply only and to be installed according to the manufacturer's instructions.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

Group shower (pre-mixed water supply) provision for new build, refurbishment, retrofit and temporary installations in sport and leisure settings or where water conservation is a key requirement. Multiple shower columns should be supplied with pre-mixed water from a suitably sized Horne TMV such as the Horne 15 or Horne 20.

Multiple shower columns should be supplied with pre-mixed water from a suitably sized Horne TMV such as the Horne 15 or Horne 20

For assistance choosing the most appropriate size of valve please use our simple

Valve Sizing Tool
Horne showers for the Leisure & Education markets

Features

  • Robust construction, finish and fittings for extended lifespan
  • Powder coated panel: white RAL 9010 with Light Reflective Value = 86.
  • Vandal resistant shower head with 2 spray positions and easy clean nozzle array - see our Safe Secure and Versatile too animation
  • Push button timed flow control for water and energy conservation
  • Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
  • Pressure and performance tested pre-plumbed assembly with internal copper piping
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations

Standards and Approvals

  • The S110A is named on the Water Technology List (efficient showers) thus is eligible for Enhanced Capital Allowances (tax relief).
  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Variants - S110 Range

  • S110B - rear entry inlets, standard timed flow control
  • S110ALR - top entry inlets, ligature resistant timed flow control
  • S110BLR - rear entry inlets, ligature resistant timed flow control

Useful Documents

Related Products

Choose the optimal valve size for your shower group

Installations

  • Allestree Woodlands Academy, Derby
  • Crosby Leisure Centre, Liverpool
  • Fusion Lifestyle (various locations)
  • Park Road Leisure Centre, London
  • Jospeph Rowntree Housing Trust
  • Liverpool Hope University Sports
  • Manor College, Hartlepool
  • Waltham Forest LC
  • Welcome Break (various locations)
