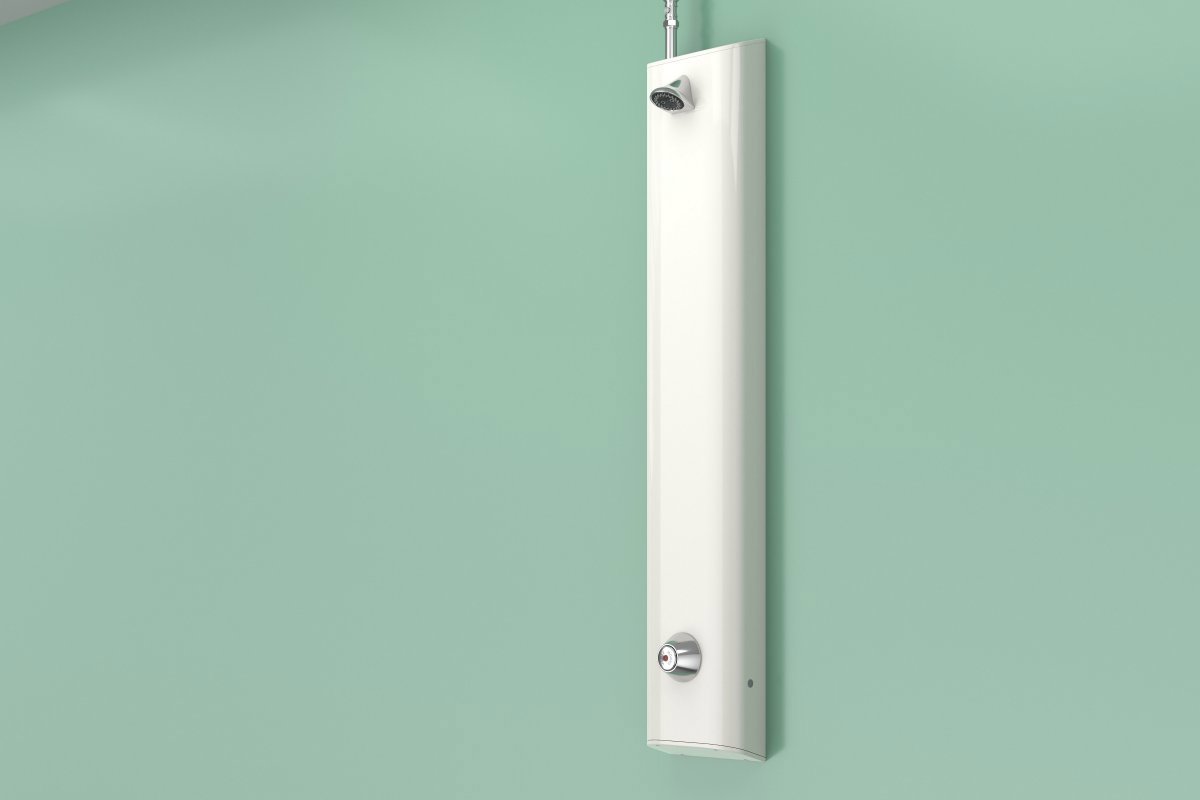

HORNE Shower Panel Ligature Resistant with Timed Flow Control and Vandal Resistant Shower Head

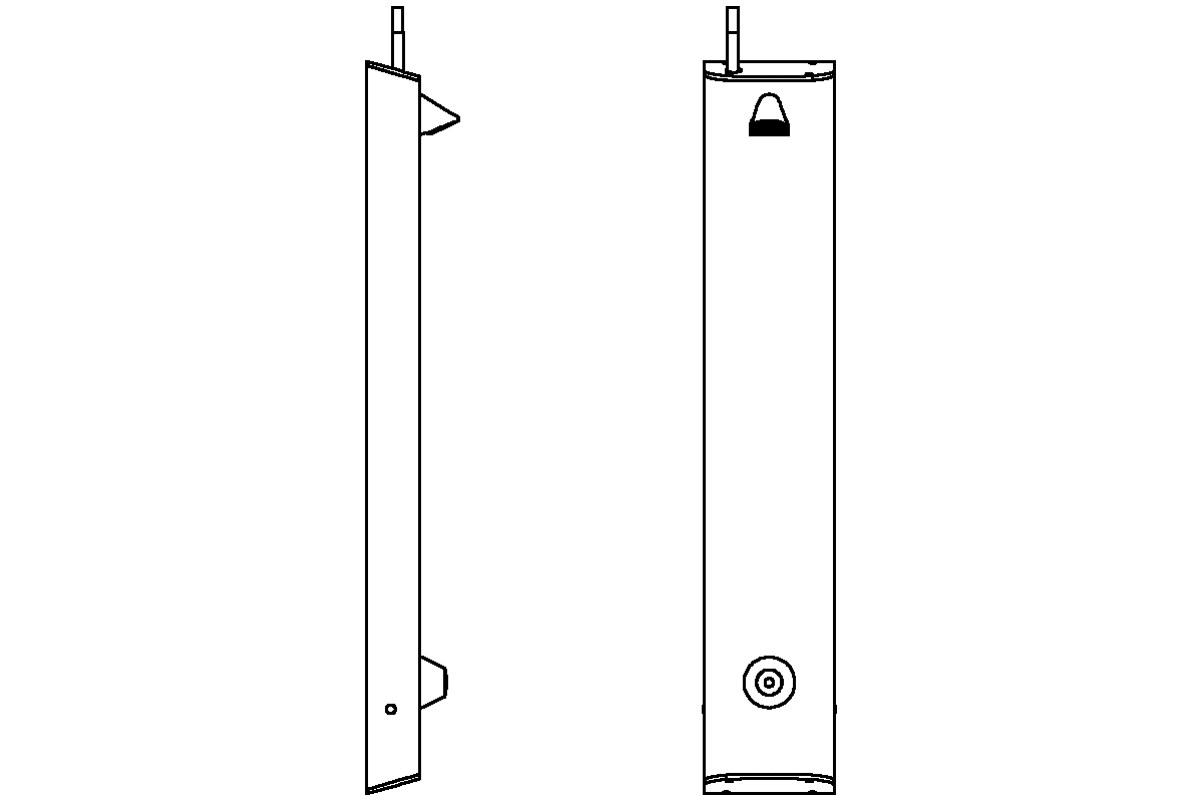

Pre-plumbed white epoxy-polyester powder-coated aluminium panel with ligature resistant fittings including push button timed flow control and vandal resistant, adjustable and flow regulated shower head in chromium plated finish. Product Reference S110ALR as per drawing No. D11303.

For use with pre-blended water supply only and to be installed according to the manufacturer's instructions.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product


Ligature resistant, group shower (pre-mixed water supply) provision for new build, refurbishment, retrofit and temporary installations in sport, leisure and secure settings or where water conservation is a key requirement. Multiple shower columns should be supplied with pre-mixed water from a suitably sized Horne TMV such as the Horne 15 or Horne 20. For assistance choosing the most appropriate size of valve please use our VALVE SIZER TOOL.

Horne showers for Leisure Education Secure markets


  • Robust construction, finish and fittings for extended lifespan
  • Powder-coated panel: white RAL 9010 with Light Reflective Value = 84
  • Vandal resistant shower head with 2 spray positions and easy-clean nozzle array - see our Safe Secure and Versatile too animation
  • Push-button timed flow control with ligature resistant bezel for water and energy conservation
  • Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
  • Pressure and performance tested pre-plumbed assembly with internal copper piping
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations






Standards and Approvals

  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Variants - S110 Range

  • S110BLR - rear entry inlets, ligature resistant timed flow control
  • S110A - top entry inlets, standard timed flow control
  • S110B - rear entry inlets, standard timed flow control
