HORNE Shower Panel Ligature Resistant with Timed Flow Control and Vandal Resistant Shower Head

S110BLR

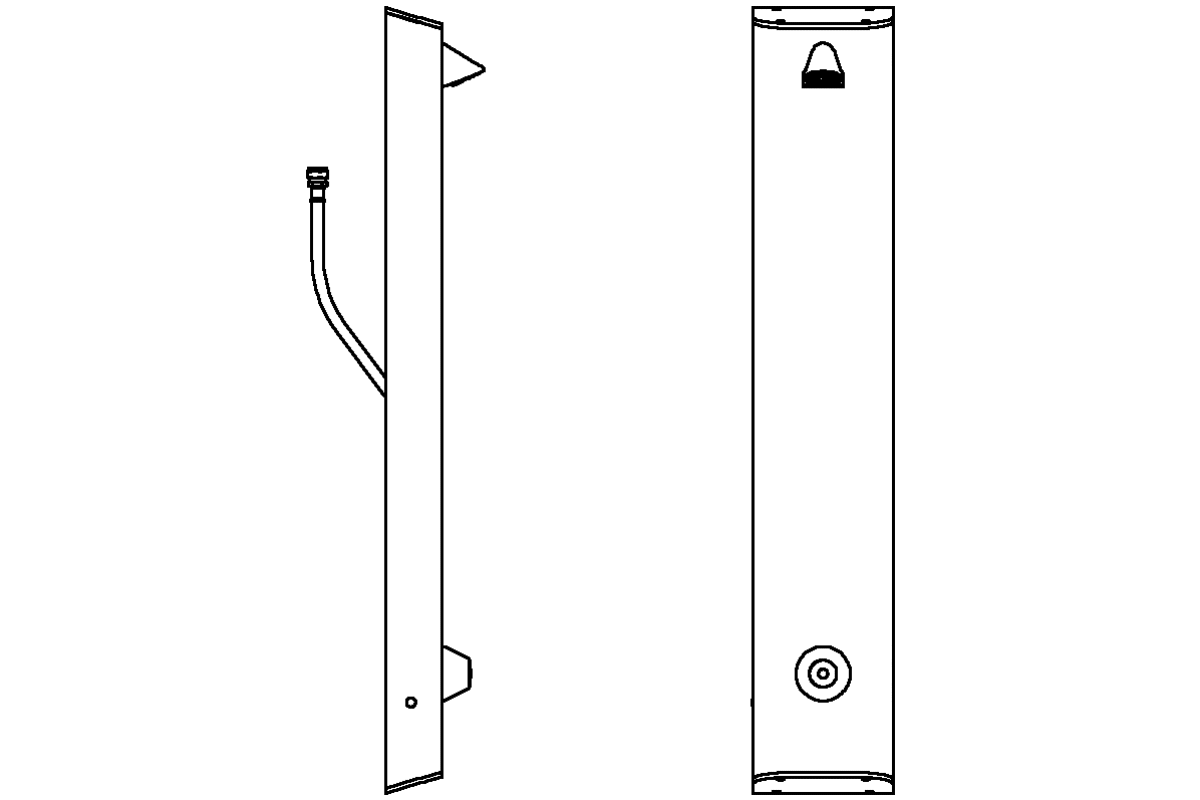

Pre-plumbed white, powder coated aluminium panel with ligature resistant fittings including push button timed flow control and vandal resistant, adjustable and flow regulated shower head in chromium plated finish. Connections by SOFT-PEX flexible braided hose for concealed water supply.  Product Reference S110BLR as per drawing No. D11304.

For use with pre-blended water supply only and to be installed according to the manufacturer's instructions.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

Ligature resistant, group shower (pre-mixed water supply) provision for new build, refurbishment, retrofit and temporary installations in sport, leisure and secure settings or where water conservation is a key requirement. Multiple shower columns should be supplied with pre-mixed water from a suitably sized Horne TMV such as the Horne 15 or Horne 20. For assistance choosing the most appropriate size of valve please use our VALVE SIZER TOOL.

Horne showers for Leisure Education Secure markets

Features

  • Robust construction, finish and fittings for extended lifespan
  • Powder coated panel: white RAL 9010 with Light Reflective Value = 86.
  • Vandal resistant shower head with 2 spray positions and easy clean nozzle array - see our Safe Secure and Versatile too animation

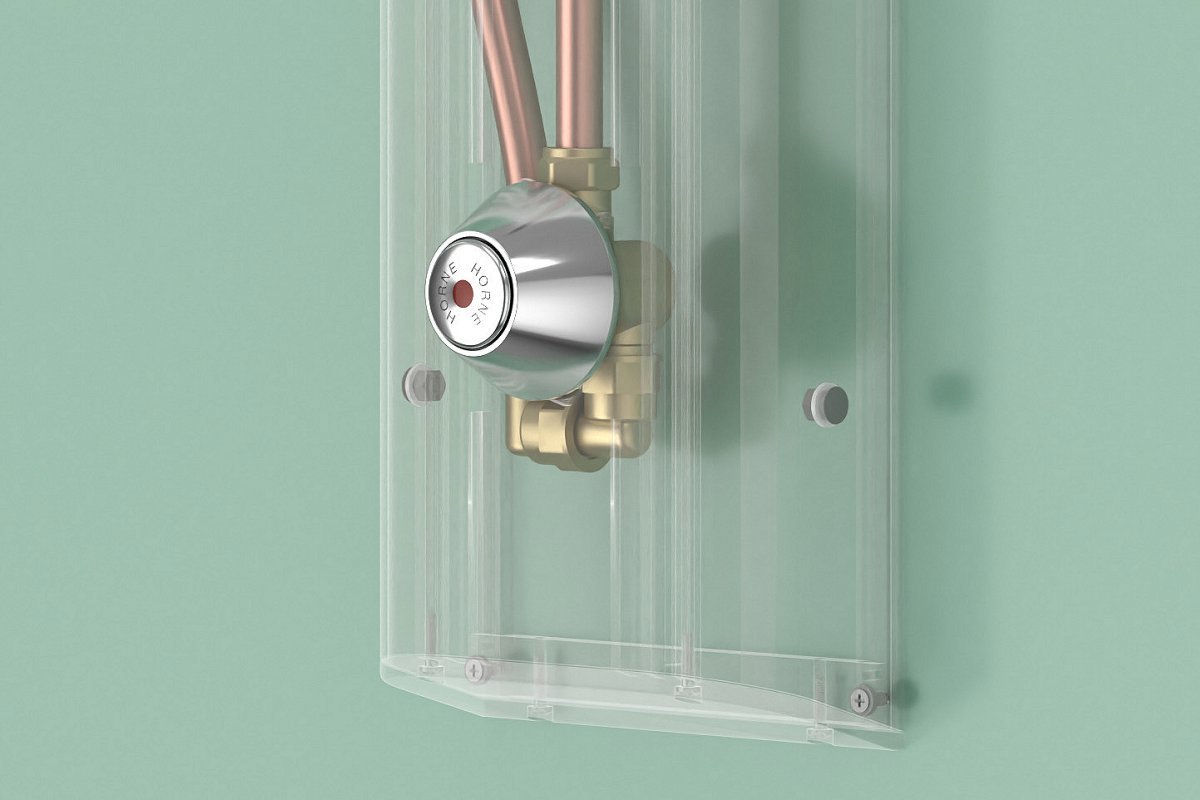

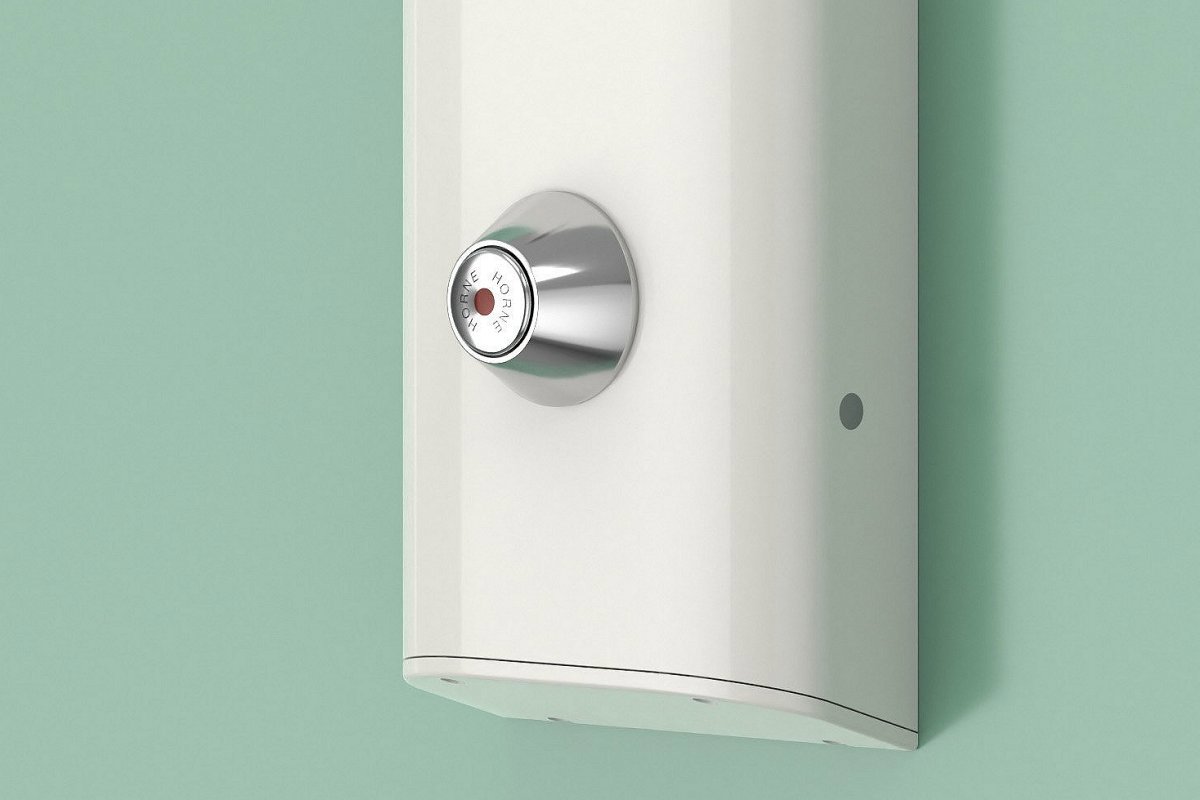

  • Push button timed flow control with ligature resistant bezel for water and energy conservation
  • Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
  • Pressure and performance tested pre-plumbed assembly with internal copper piping
  • Includes flexible braided (SOFT-PEX) inlets suitable for concealed water supplies
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations

Standards and Approvals

  • The S110BLR is named on the Water Technology List (efficient showers) thus is eligible for Enhanced Capital Allowances (tax relief).
  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2008. Certificate No. FM 01224

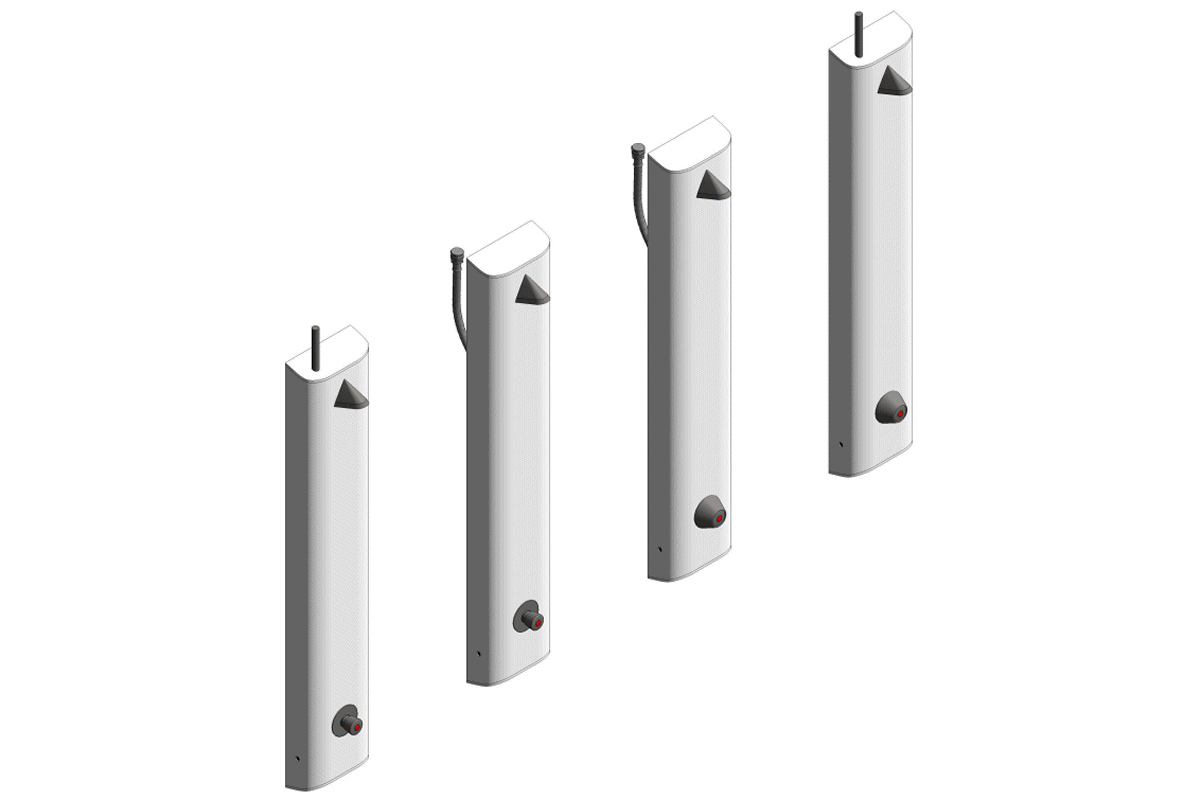

Variants - S110 Range

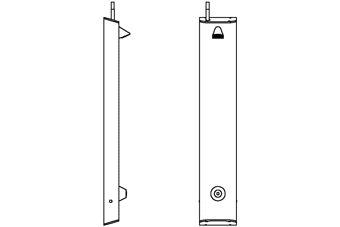

  • S110ALR - top entry inlets, ligature resistant timed flow control
  • S110A - top entry inlets, standard timed flow control
  • S110B - rear entry inlets, standard timed flow control

Useful Documents

Related Products

Choose the Optimal Valve Size for your shower group

Installations

  • South Tyneside College
  • Crossley Sports Centre, Oldham
Maintenance Image
