HORNE Shower Panel with Timed Flow Control and Vandal Resistant Shower Head

S110B

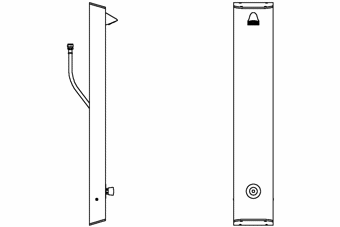

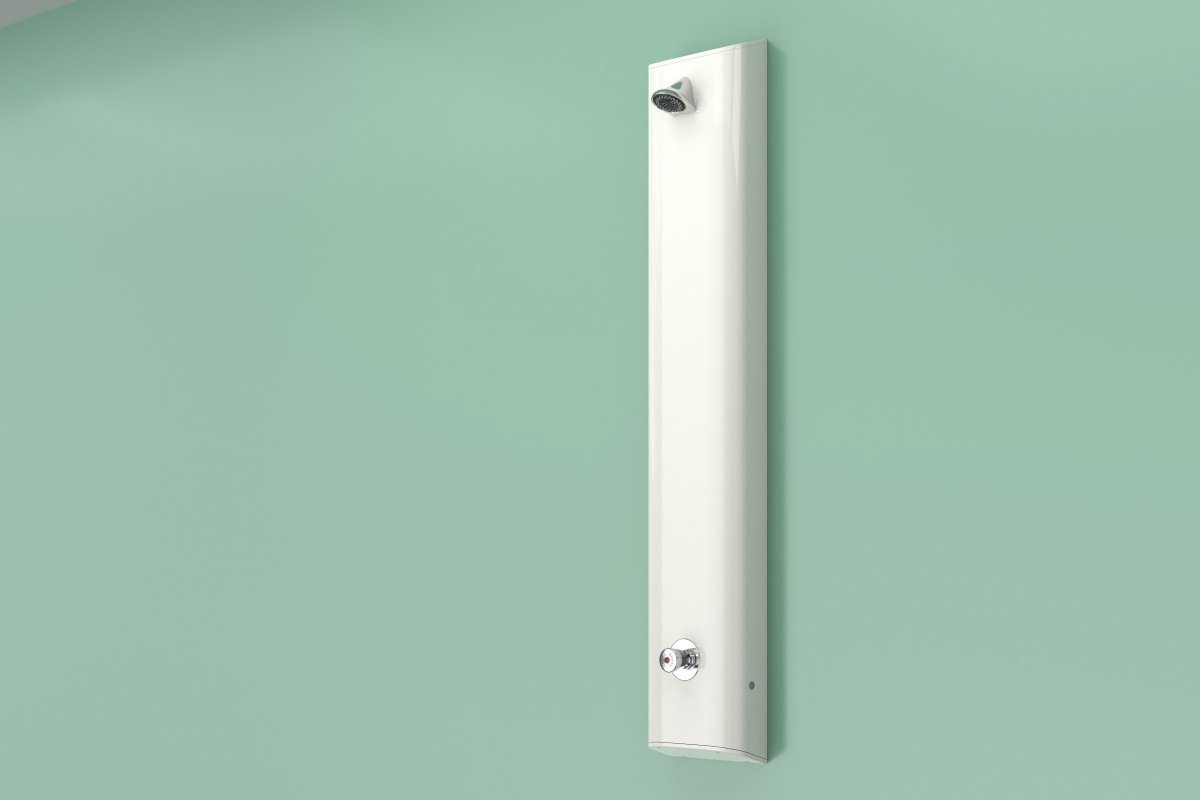

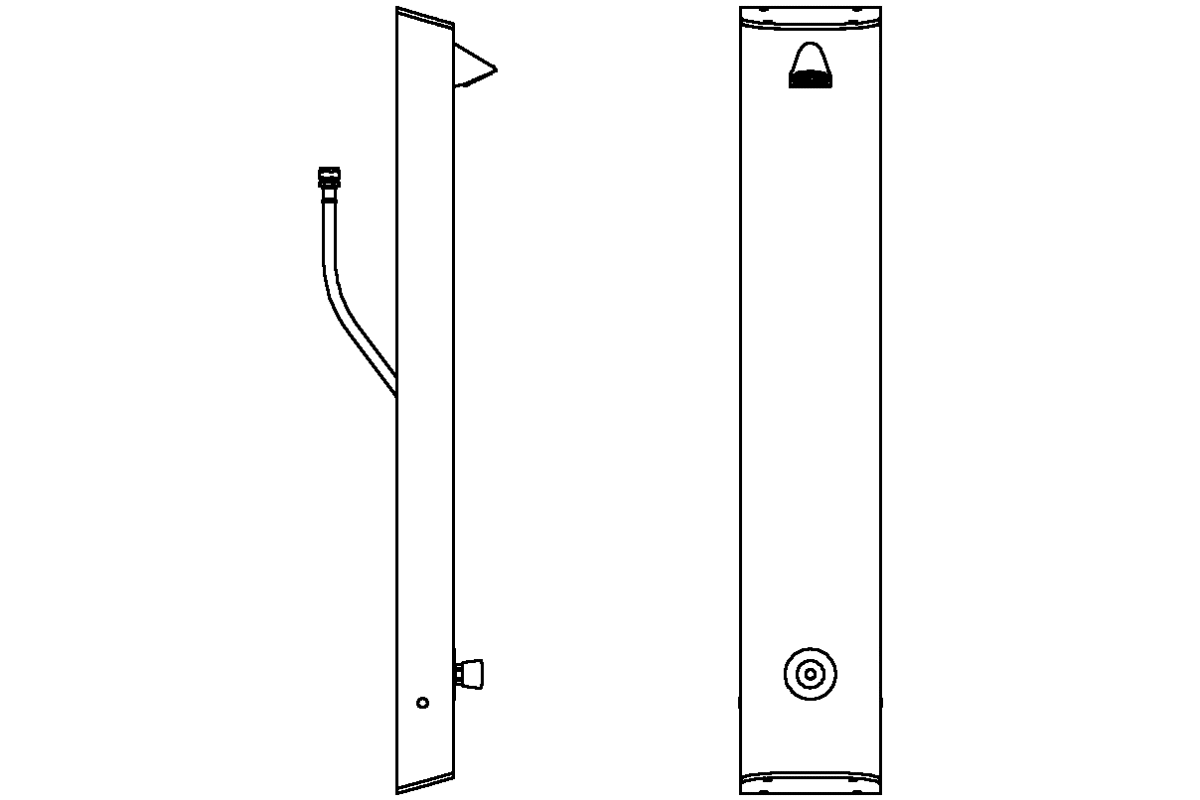

Pre-plumbed white epoxy-polyester powder-coated aluminium panel including push button timed flow control and vandal resistant, adjustable and flow regulated shower head in chromium plated finish. Mixed water connection by SOFT-PEX flexible braided hose for concealed water supply. Product Reference S110B as per drawing D10359.

For use with pre-blended water supply only and to be installed according to the manufacturer's instructions.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

Group shower (pre-mixed water supply) provision for new build, refurbishment, retrofit and temporary installations in sport and leisure settings or where water conservation is a key requirement.

Multiple shower columns should be supplied with pre-mixed water from a suitably sized Horne TMV such as the Horne 15 or Horne 20

For assistance choosing the most appropriate size of valve please use our simple

Valve Sizing Tool
Horne showers for the Leisure & Education markets

Features

  • Robust construction, finish and fittings for extended lifespan
  • Powder-coated panel: white RAL 9010 with Light Reflective Value = 84
  • Push-button timed flow control for water and energy conservation
  • Vandal resistant shower head with 2 spray positions and easy-clean nozzle array - see our Safe Secure and Versatile too animation
  • Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
  • Includes flexible braided (SOFT-PEX) inlet suitable for concealed water supply
  • Pressure and performance tested pre-plumbed assembly
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations















Standards and Approvals

  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Variants - S110 Range

  • S110A - top entry inlets, standard timed flow control
  • S110ALR - top entry inlets, ligature resistant timed flow control
  • S110BLR - rear entry inlets, ligature resistant timed flow control

Useful Documents

Related Products

Select the Optimal Valve Size for your shower group

Installations

  • Gosport Leisure Centre
  • Highbury Leisure Centre
  • HMP Kilmarnock
  • Ryan Leisure Centre, Stranraer
  • Sir John Nelthorpe School
  • Treloy Tourist Park
