HORNE Shower Panel with Timed Flow Control, Handset, Flexible Hose and Riser Rail

S4Y7A

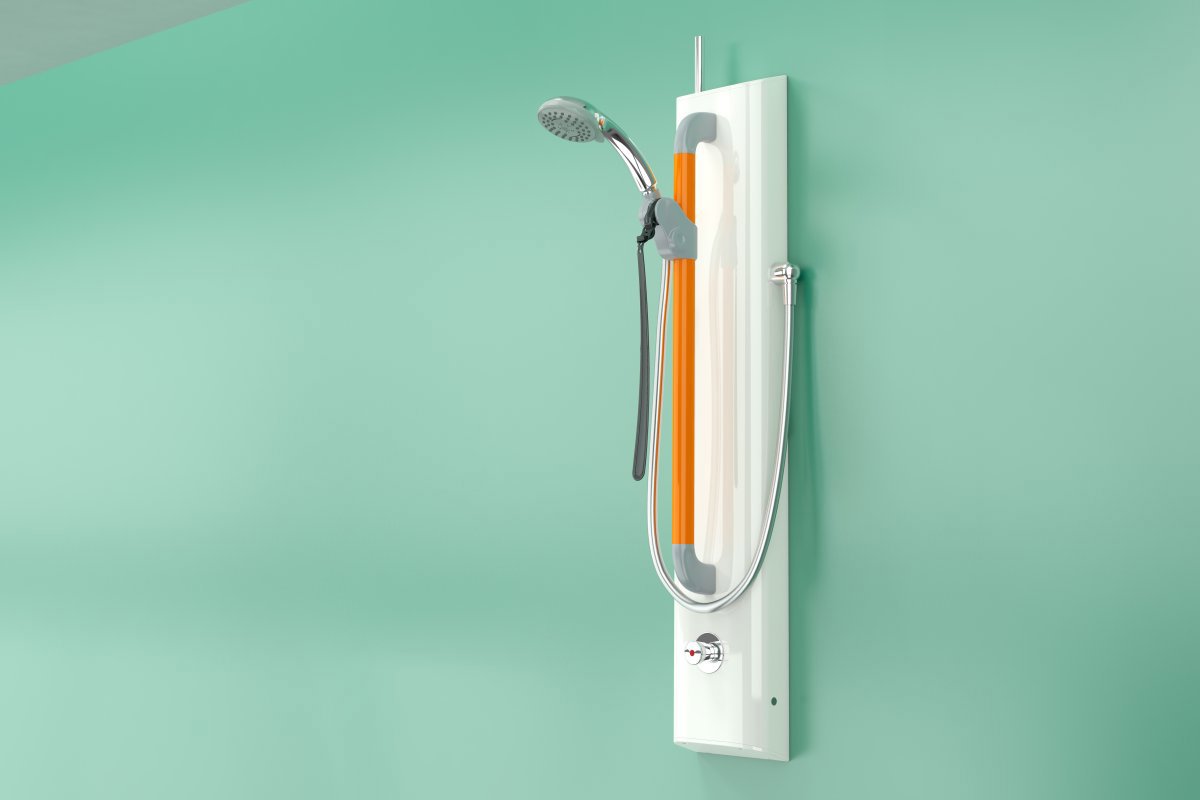

A white epoxy-polyester powder-coated and pre-plumbed (in copper) aluminium panel with push button timed flow control and shower kit, comprising chromium-plated THREE FUNCTION shower hand set, flexible hose and riser rail in deep orange.

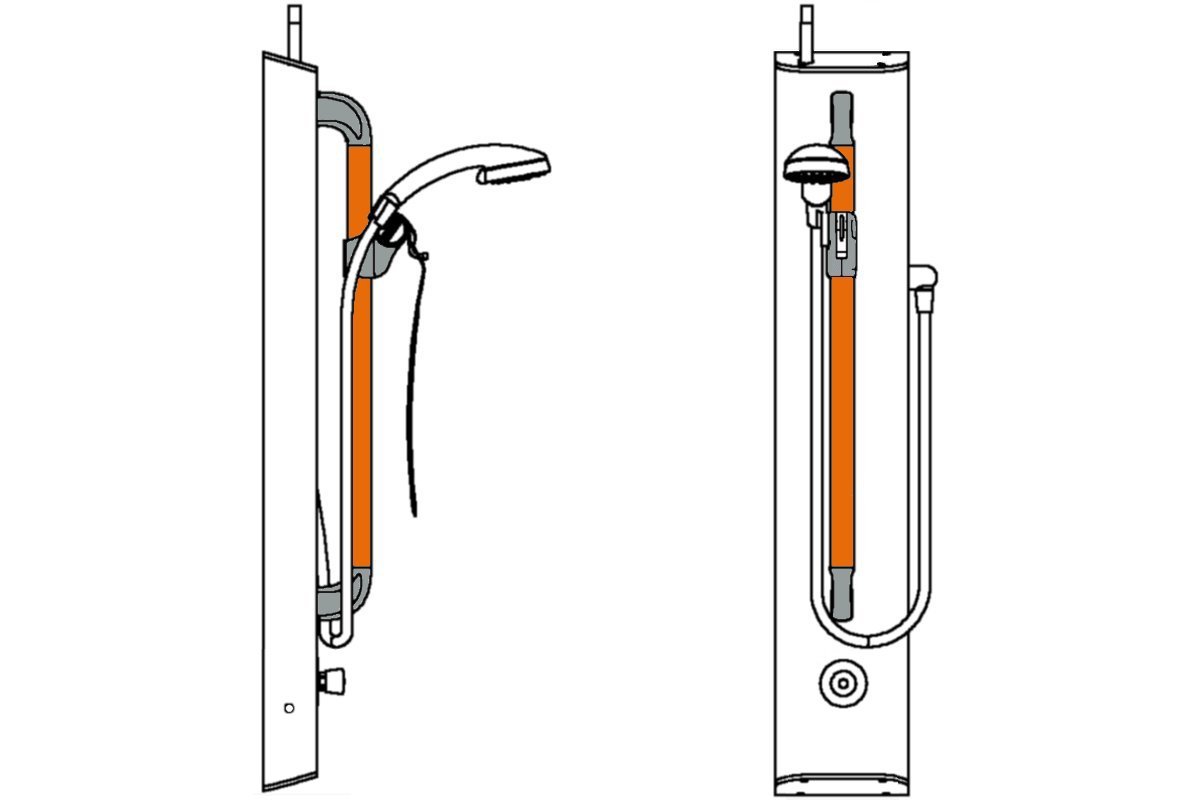

Product Reference S4Y7A as per drawing No. D10356.

For use with pre-blended water supply only and to be installed according to the manufacturer's instructions.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

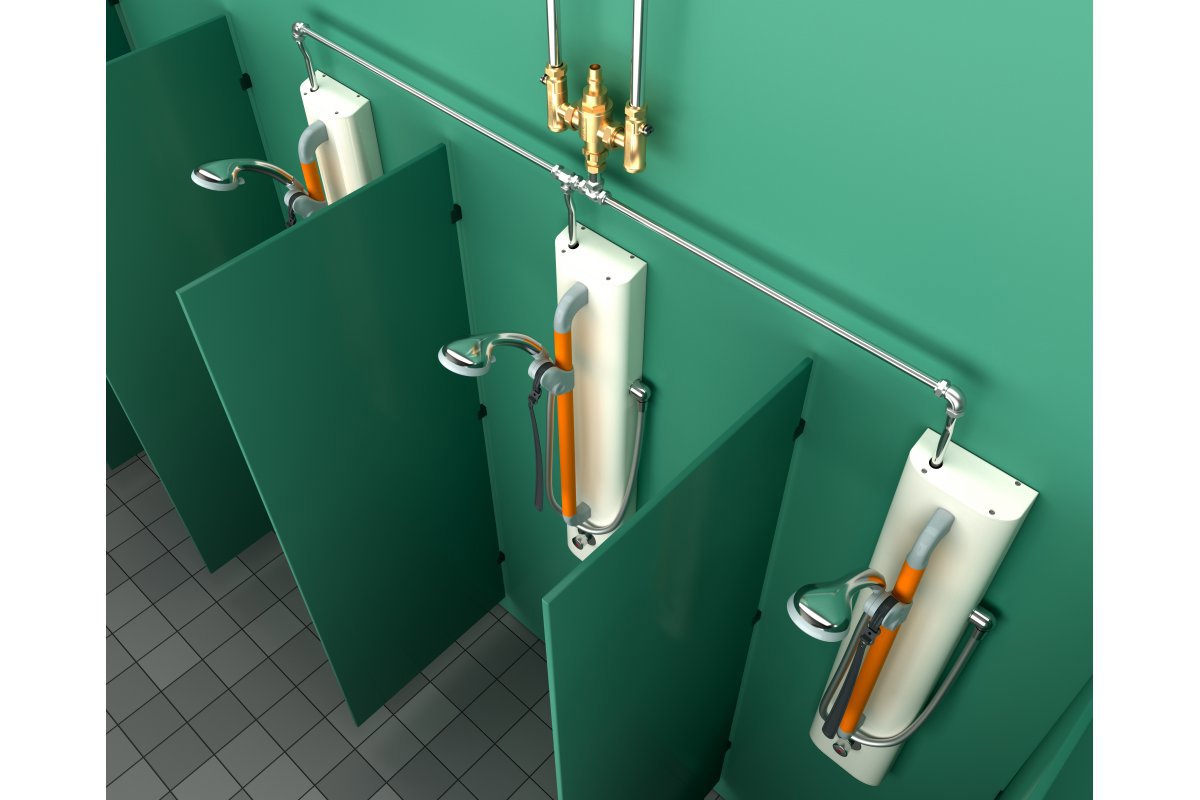

Group of Horne S4Y7A shower panels fed with pre-mixed warm water from a Horne 20 TMV

Triple function handset, hose and orange riser rail

Release mechanism on orange Horne shower riser rail

Riser release mechanism on orange Horne shower riser rail

Standard push-button timed flow control on Horne shower panels supplied via a remote thermostatic mixing valve

Standard Timed flow control, and internal pipe arrangement, for Horne group shower panels

Applications

Group shower (pre-mixed water supply) provision for new build, refurbishment, retrofit and temporary installations in sport and leisure settings or where water conservation is a key requirement.

Multiple shower columns should be supplied with pre-mixed water from a suitably sized Horne TMV such as the Horne 15 or Horne 20.

For assistance choosing the most appropriate size of valve please use our simple

Valve Sizing Tool

Horne showers for the Leisure & Education markets

Features

Robust construction, finish and fittings for extended lifespan
Powder-coated panel: white RAL 9010 with Light Reflective Value = 84
Push-button timed flow control (max. duration 45 seconds) for water and energy conservation
Shower kit comprises anti-kink 1.25m hose, three function easy-clean shower handset and robust riser rail in deeo orange with sliding handset holder - easy to see, slide and adjust for users with limited sight and hand mobility
Handset carriage mechanism with Release Extender allows shorter or wheelchair users to easily lower a high-set shower handset
Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
Pressure and performance tested pre-plumbed assembly with internal copper piping
Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations
