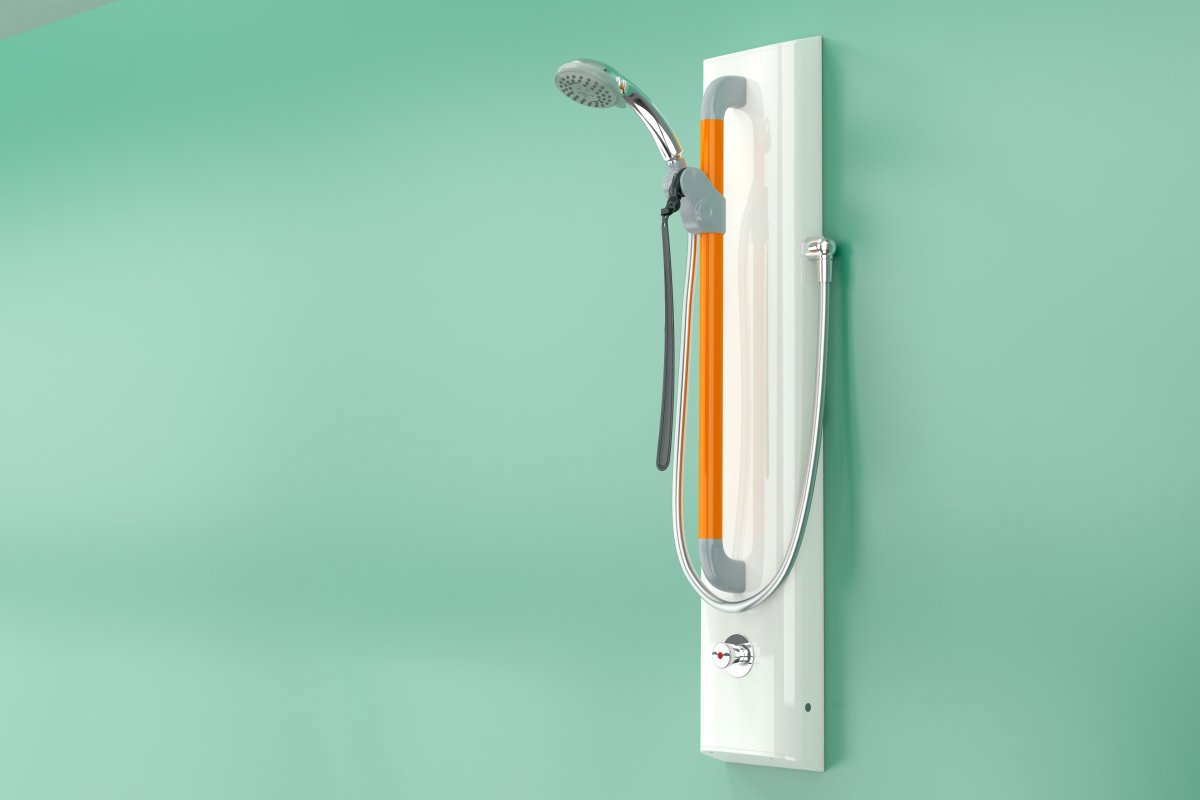

HORNE Shower Panel with Timed Flow Control, Handset, Flexible Hose and Riser Rail

S4Y7B

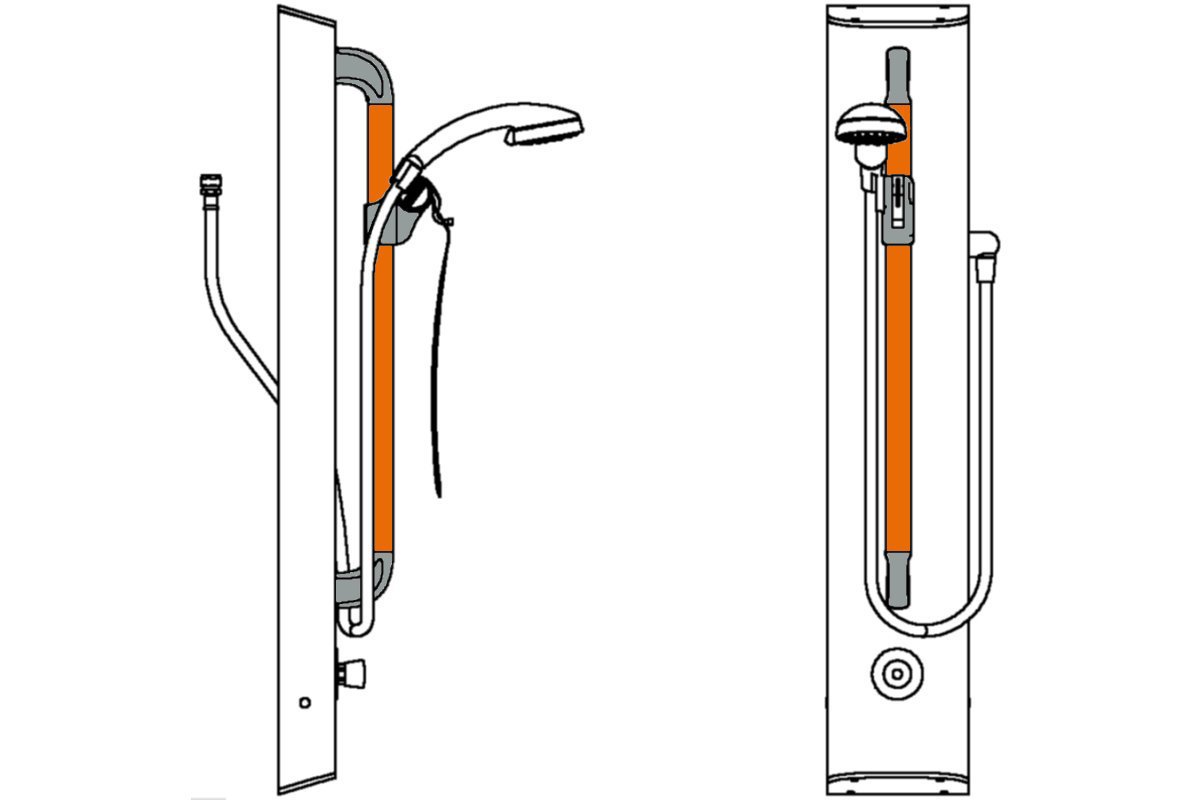

A white epoxy-polyester powder-coated and pre-plumbed (in copper) aluminium panel with push button timed flow control and shower kit, comprising chromium-plated THREE FUNCTION shower hand set, flexible hose and riser rail in deep orange. Connections by SOFT-PEX flexible braided hose for concealed water supply. Product Reference S4Y7B as per drawing No. D10360

For use with pre-blended water supply only and to be installed according to the manufacturer's instructions.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product

Applications

Group shower (pre-mixed water supply) provision for new build, refurbishment, retrofit and temporary installations in sport and leisure settings or where water conservation is a key requirement.

Multiple shower columns should be supplied with pre-mixed water from a suitably sized Horne TMV such as the Horne 15 or Horne 20

For assistance choosing the most appropriate size of valve please use our simple

Valve Sizing Tool
Horne showers for the Leisure & Education markets

Features

  • Robust construction, finish and fittings for extended lifespan
  • Powder-coated panel: white RAL 9010 with Light Reflective Value = 84
  • Push-button timed flow control (max. duration 45 seconds) for water and energy conservation
  • Shower kit comprises anti-kink 1.25m hose, three function easy-clean shower handset, robust riser rail in deep orange with sliding handset holder - easy to see, slide and adjust for users with limited sight and hand mobility
  • Handset carriage mechanism with Release Extender allows shorter or wheelchair users to easily lower a high-set shower handset
  • Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
  • Includes flexible braided (SOFT-PEX) inlet suitable for concealed water supply
  • Pressure and performance tested pre-plumbed assembly
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations

 Accessories

Standards and Approvals

  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224



Variants - S4Y7 Range

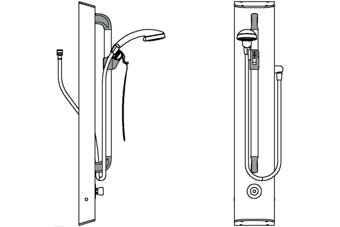

  • S4Y7A - top entry inlets
