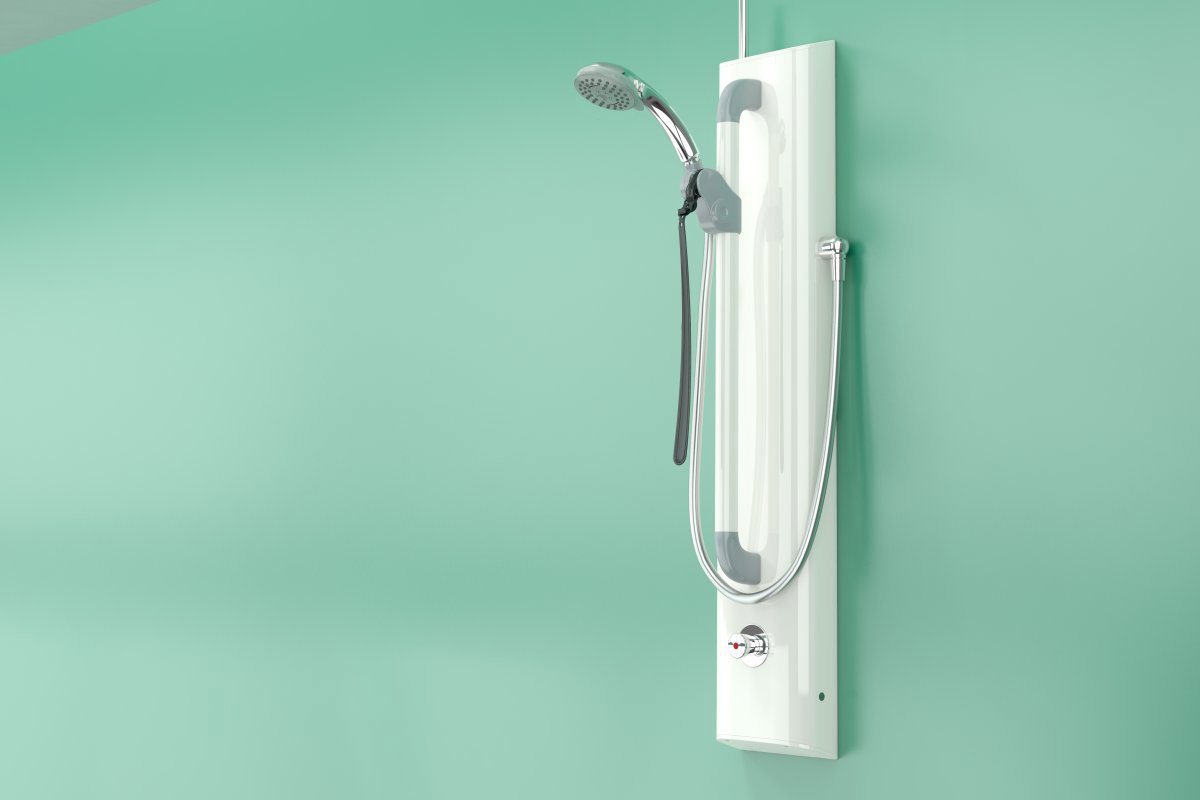

HORNE Shower Panel with Timed Flow Control and Flexible Hose, Handset and Slide Bar

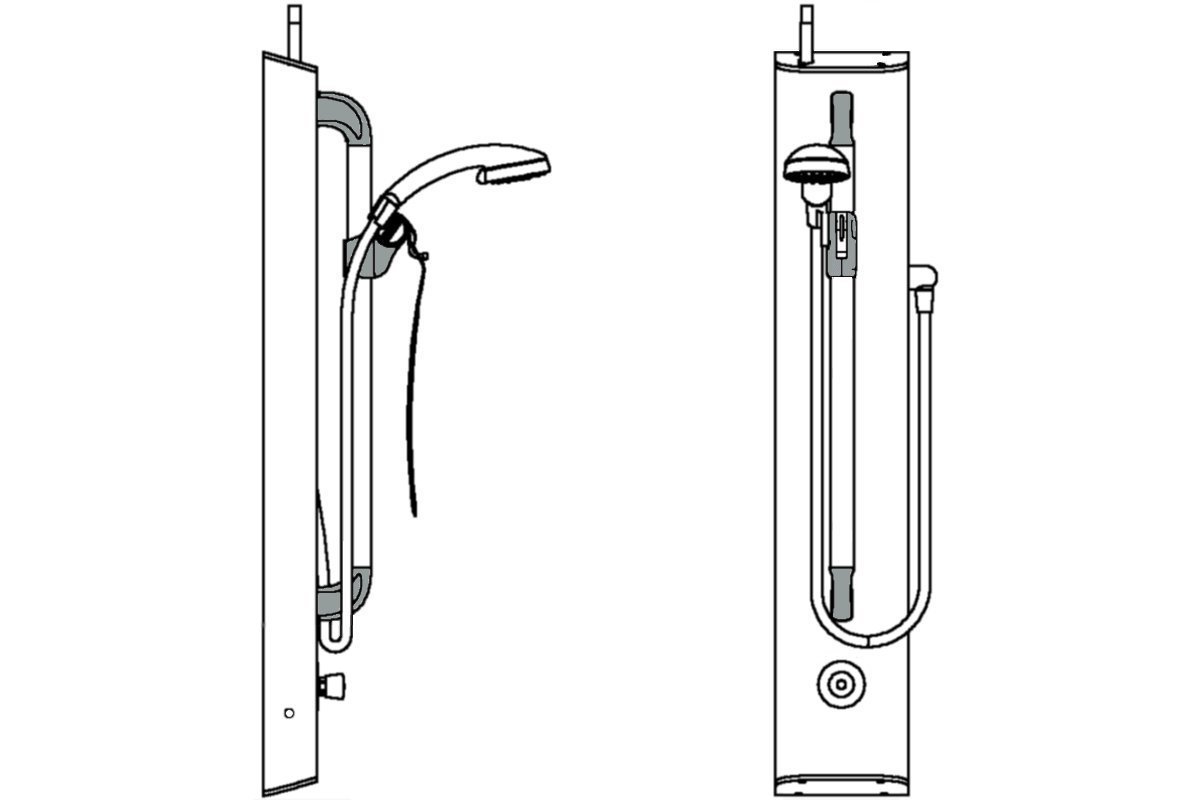

pre-plumbed within a white powder coated aluminium panel with push button timed flow control and shower kit comprising chromium plated three function easy clean and flow regulated shower hand set with flexible hose and slide bar. Product Reference S407A as per drawing No. D10356

For use with pre-blended water supply only and to be installed according to the manufacturer's instructions.

Designed and manufactured by Horne Engineering Ltd.

Enquire about this product


Group shower (pre-mixed water supply) provision for new build, refurbishment, retrofit and temporary installations in sport and leisure settings or where water conservation is a key requirement. Multiple shower columns should be supplied with pre-mixed water from a suitably sized Horne TMV such as the Horne 15 or Horne 20.

Multiple shower columns should be supplied with pre-mixed water from a suitably sized Horne TMV such as the Horne 15 or Horne 20

For assistance choosing the most appropriate size of valve please use our simple

Valve Sizing Tool
Horne showers for the Leisure & Education markets


  • Robust construction, finish and fittings for extended lifespan
  • Powder coated panel: white RAL 9010 with Light Reflective Value = 86.

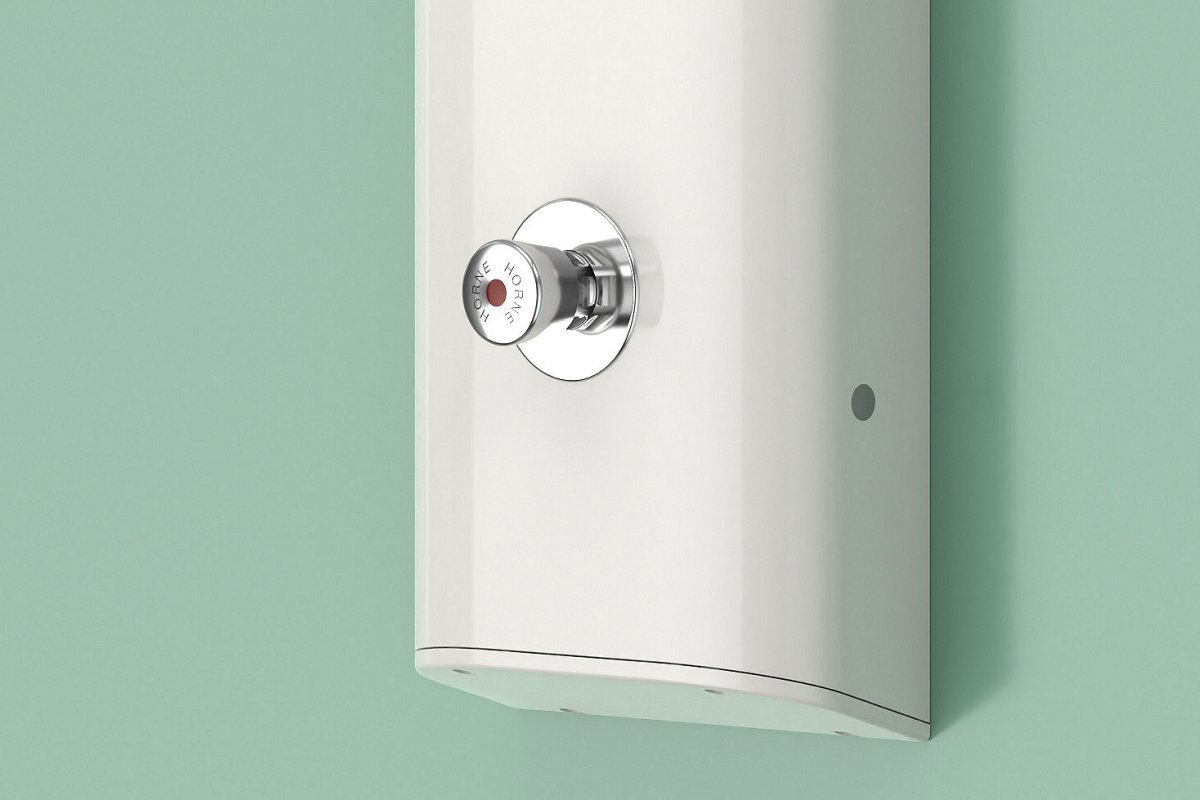

  • Push button timed flow control for water and energy conservation
  • Shower kit comprises anti-kink 1.25m hose, 3 function easy clean shower handset and robust riser bar with easy to see, and slide, handset holder
  • Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating

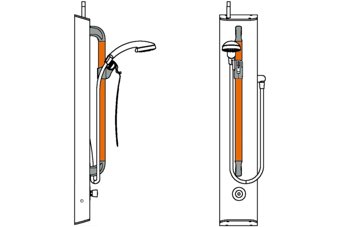

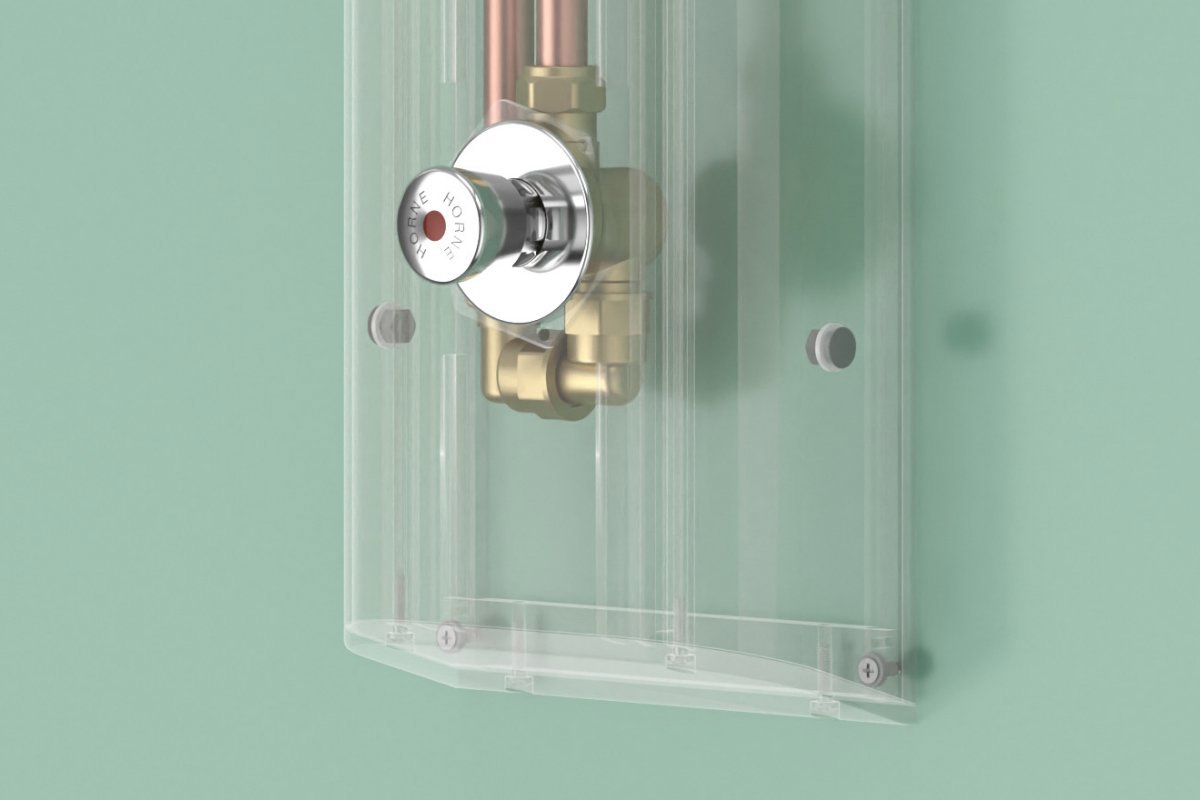

  • Pressure and performance tested pre-plumbed assembly with internal copper piping
  • Quick and easy to install surface mounted panel suitable for new build, retrofit and temporary installations

Standards and Approvals

  • The S407A is named on the Water Technology List (efficient showers) thus is eligible for Enhanced Capital Allowances (tax relief).
  • All HORNE products are manufactured under our Quality Management System to BS EN ISO 9001:2015. Certificate No. FM 01224

Variants - S407 Range

  • S407B - rear entry inlets

Useful Documents

Related Products

Choose the Optimal Size Valve for your shower group


  • Derbyshire CC (various locations)
  • Waltham Forest LC
Maintenance Image

Maintenance Support

Optimise performance and maximise the lifespan of your Horne Optitherm thermostatic taps, showers and point-of-use mixing valves.

Click the link to access a full suite of narrated installation and maintenance training videos, plus other instructional resources.

Online Training
