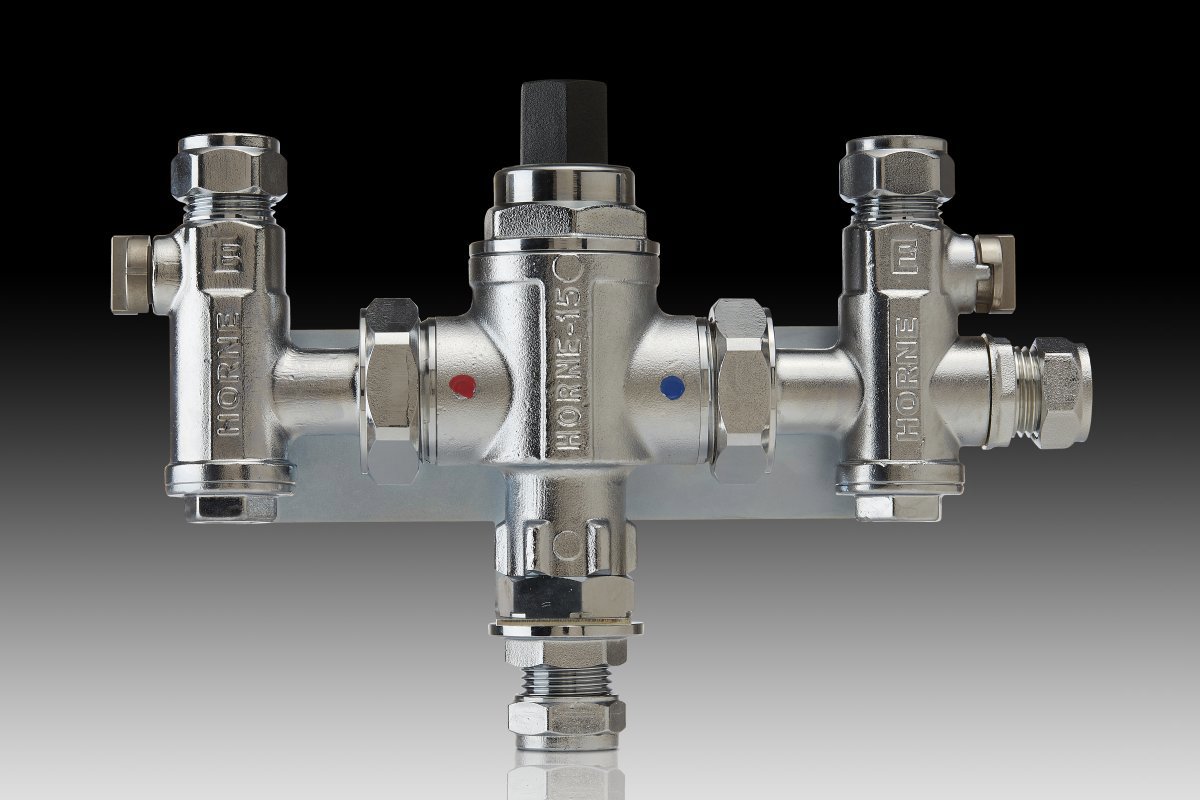

H15-25C
Including integral isolating valves, swivel inlet connections, 4th Tee connection to cold tap, strainers, check valves, flow regulator, wall bracket, screws and wallplugs. Pipe connections by compression fitting for 15mm copper pipe. In chromium plated finish. Product Reference H15-25C and drawing PA-579E. To be installed according to the manufacturer's instructions and commissioned in accordance with water regulations and bylaws using the Horne H15 Flushing kit.
Designed and manufactured by Horne Engineering Ltd.

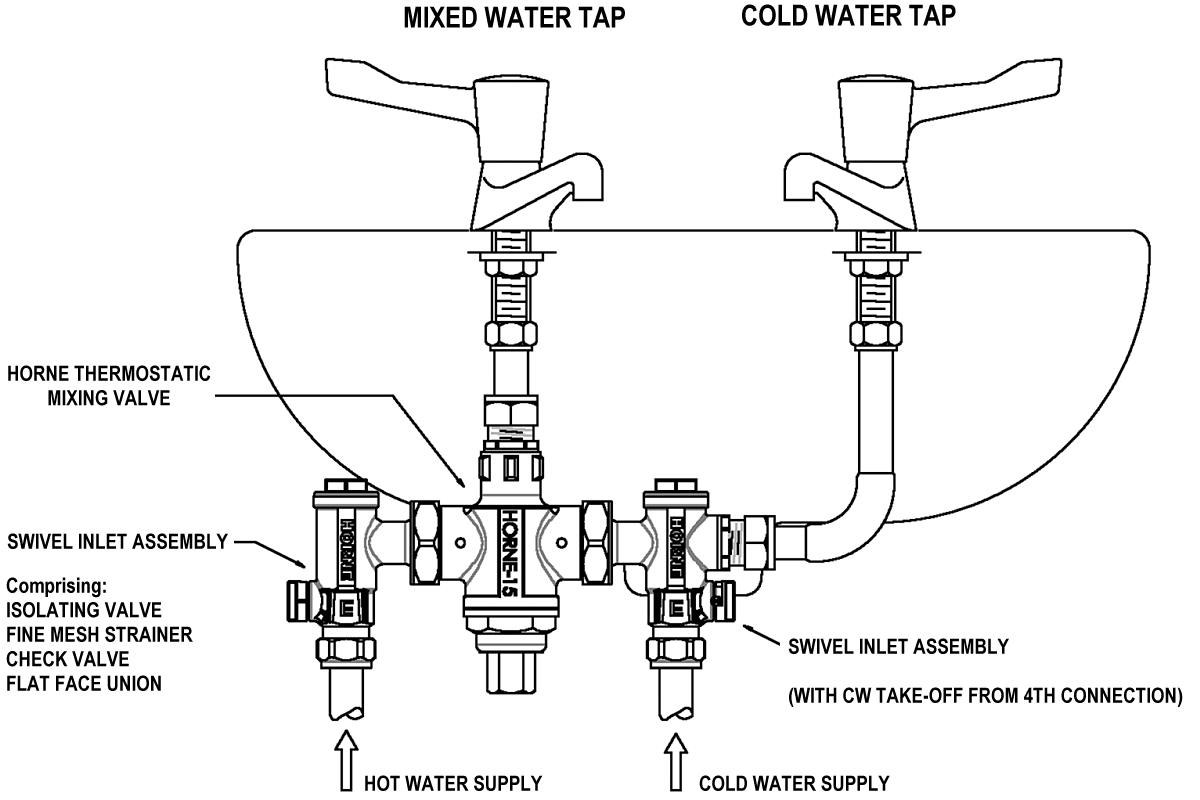

Enquire about this productSuitable for point of use thermostatic mixing at a single basin, groups of basins, bidets and shower outlets.
For sizing a TMV for group mixing applications use our simple
Valve Sizing ToolMixed water temperature setting at factory | 41°C | |
Range of temperature adjustment | 35 - 50°C | |
Range of hot water supply temperature | 55 - 65°C | |
Maximum static pressure | 10 bar | |
Range of maintained water supply pressures | 0.2 - 5 bar |
Optimise performance and maximise the lifespan of your Horne Optitherm thermostatic taps, showers and point-of-use mixing valves.
Click the link to access a full suite of narrated installation and maintenance training videos, plus other instructional resources.
